Overview

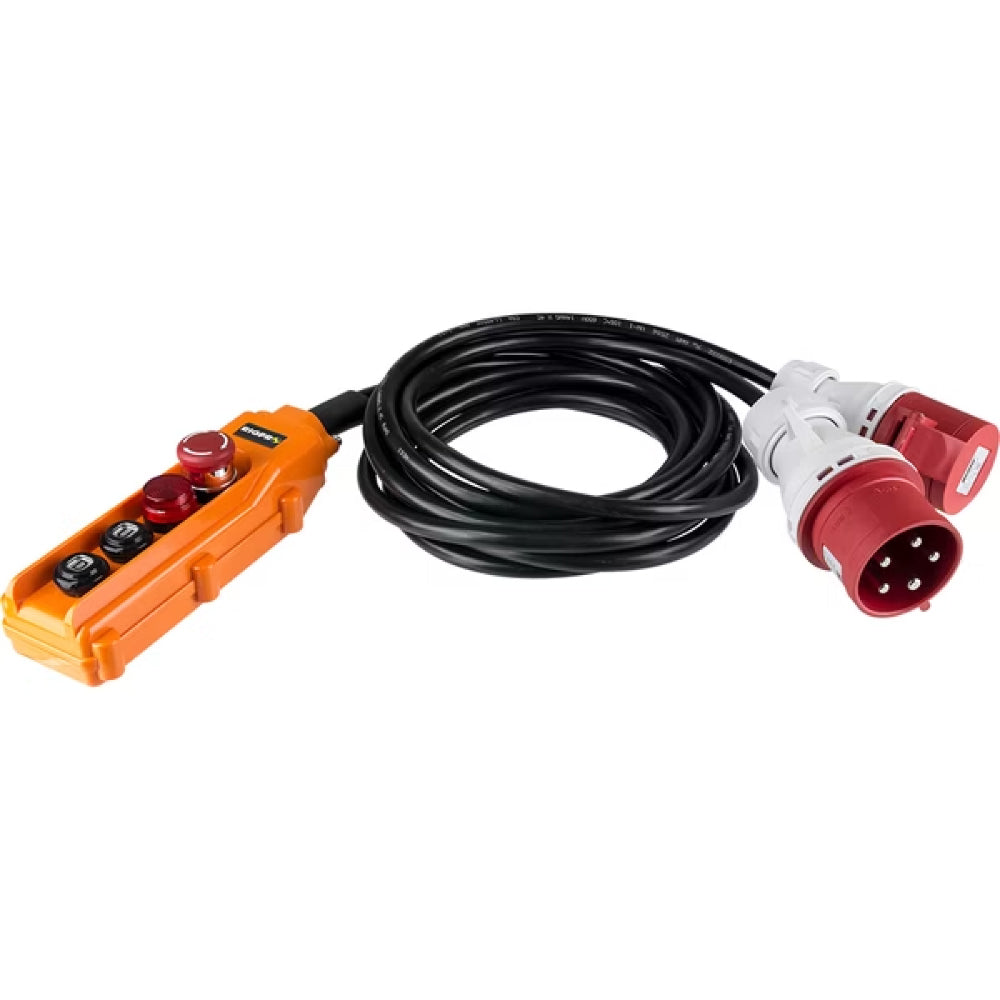

The KUPO CHC-11-3PL is a single-channel direct-voltage control station for running one three-phase chain hoist without an additional magnetic switch in line. It uses an impact-resistant ABS housing, 3 mm input and output cables, up/down controls, orange power indication, and a mushroom emergency stop for compact one-motor rigging setups.

Why It Matters

Single-motor installations benefit from a controller that is obvious, rugged, and close to the operator. CHC-11-3PL passes mains voltage directly to the hoist contactors, while its mechanical interlock prevents up and down circuits from closing at the same time.

Key Features

• Single-channel direct three-phase voltage control runs one chain hoist without a separate magnetic switch.
• Mechanical interlock prevents simultaneous up/down activation and reduces short-circuit risk.
• 3 mm input and output cables give working slack around the motor position.
• Universal AC 220 / 380 / 400 / 440 V three-phase input suits different venue power schemes.

Applications

Use for entertainment rigging, touring motor control, theatre hoist operation, corporate event truss moves, broadcast stages, and venue installations where controlled hoist movement is required.

Compatibility

Use with compatible three-phase chain hoists using CEE form 32 A 5-pin input and CEE form 16 A 4-pin output conventions.
