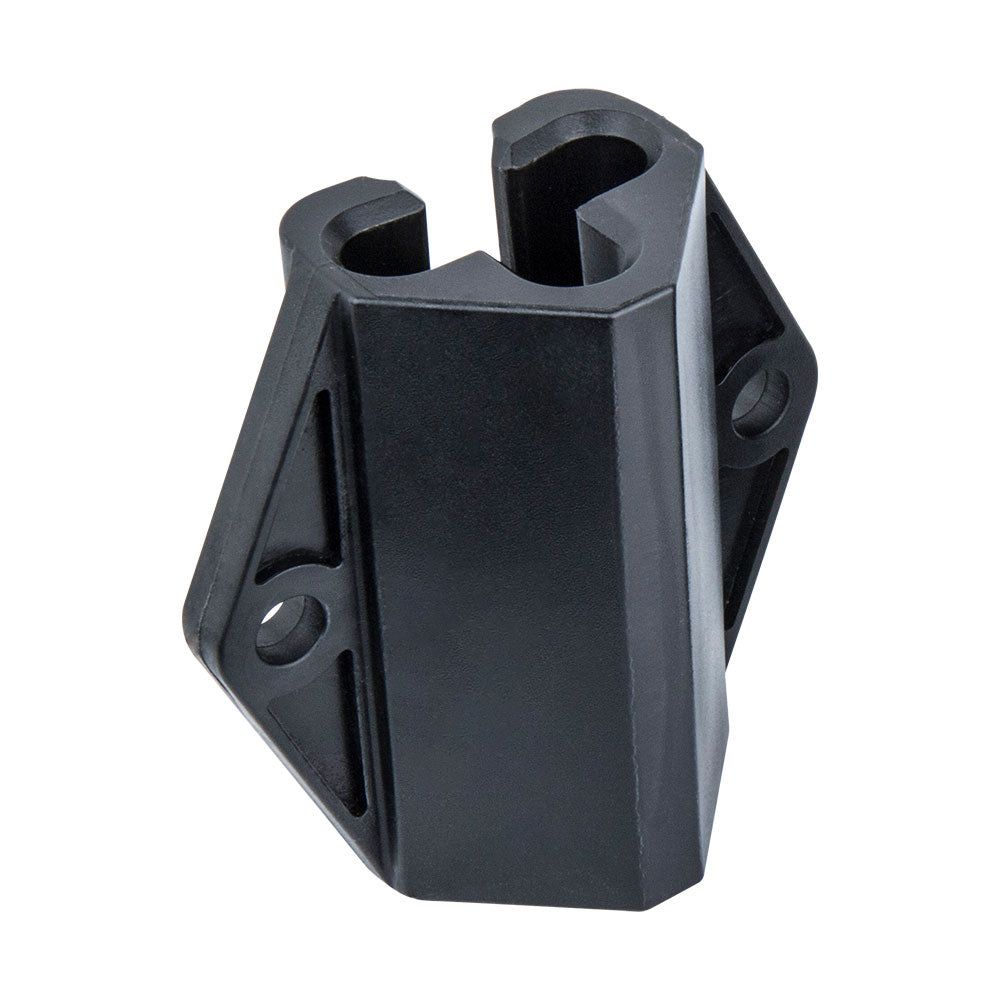

The KUPO CS-1013 is a black POM (polyoxymethylene) chain slider for cable management on chain hoists running 10.0-13.0 mm load chain. It snaps onto the load chain between hoist body and hook, adding two 10 mm fixing points so power, control, data, or audio cables can travel alongside the chain in a more organized way.
Why It Matters
CS-1013 is the largest CS slider, intended for heavy-duty third-party hoists above the standard RIGPRO chain range. It lets mixed large-hoist rigs manage cables consistently even when the chain size moves into 3 to 5 ton industrial territory.
Key Features
10.0-13.0 mm chain range matches the slider body to the correct load-chain size.

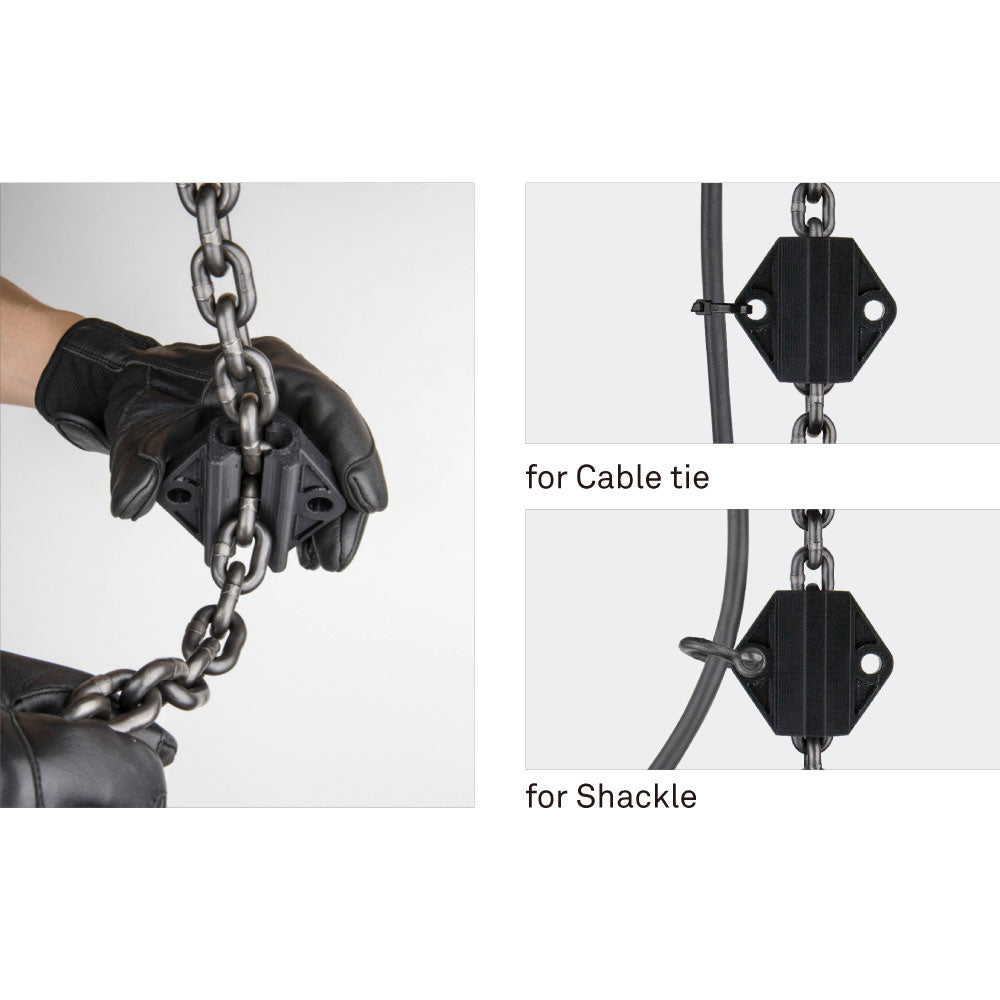

Two 10 mm fixing points accept shackles or cable ties for cable support.
Tool-free attachment avoids removing the hoist hook during setup.
Low-friction POM body helps the slider travel with the chain during hoist movement.
Additional Technical Notes
Hoist Application: Chain slider for entertainment rigging chain hoists
Cable Use: Cable management for power, control, data, or audio cables
Use Limitation: Cannot be attached or detached while chain is under load
Compatible Hoists: Heavy-duty third-party hoists running 10-13 mm chain
Applications
Use for cable management on entertainment chain hoists where power, control, data, or audio lines need to follow the load chain without hanging loosely around the hook block.
Compatibility
10-13 mm third-party chain hoists
Frequently Asked Questions
Can I install a chain slider while the chain is under load
No. The source states that chain sliders cannot be attached or detached while the chain is under load. Install them before applying the load.
Do I need to remove the hoist hook to attach it
No. The slider is designed for quick tool-free attachment without removing the hoist hook.
How do I choose the correct slider size
Choose by load-chain diameter. This model is for 10.0-13.0 mm chain.
