Overview

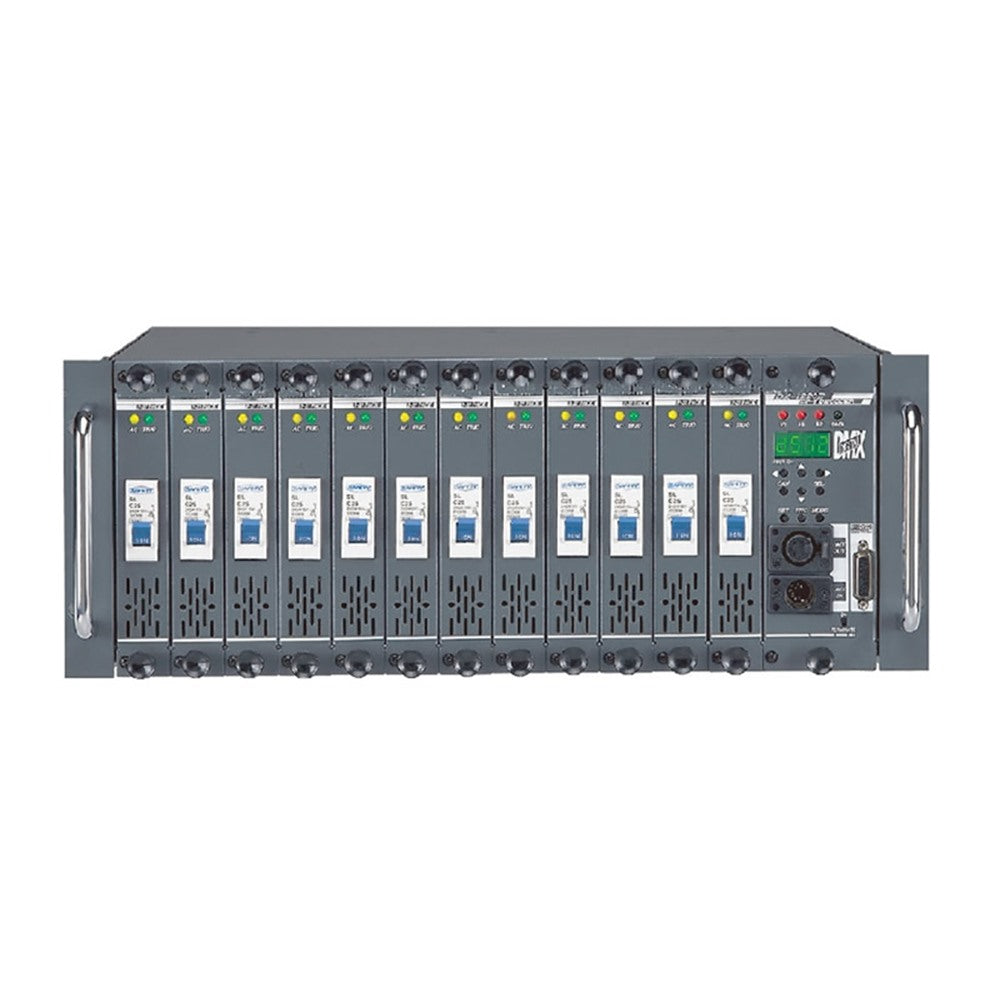

The KUPO DX-1230 is a 12-channel modular DMX dimmer pack for rack-based lighting control, rated up to 30 A maximum output per channel. It is the higher-capacity sister to the DX-1220, built for installations that need 12 channels of dimming or switching with heavier per-channel load capability.

Why It Matters

Large dimmer systems are service problems unless they are designed in modules. DX-1230 uses twelve extractable channel modules, MCB / NFB protection per channel, DMX and analog input support, emergency scene behavior, and thermal management so the rack can be operated and maintained with fewer surprises.

Key Features

• 12-channel modular dimmer system with up to 30 A maximum output per channel
• Twelve individual extractable modules support service at the channel-module level
• DMX-512 and DC 0-10 V analog input support both modern and legacy control systems
• Emergency scene output can continue when DMX signal is lost
• Thermal protection uses fan activation, output cutoff, and restart thresholds for safer operation

Additional Technical Notes

• Power Input: AC 100-240 V, 45-63 Hz, 3 phase 4 wire; other specifications upon request

Applications

Use it for theatres, concert halls, hotels, conference centers, museums, galleries, cinemas, department stores, entertainment centers, nightclubs, and architectural lighting systems that need rack-based dimming with higher channel capacity.

Compatibility

Supports DMX-512 via XLR 5-pin and DC 0-10 V analog input via D-type 15-pin connector. Power input is AC 100-240 V, 45-63 Hz, 3 phase 4 wire, with other specifications upon request.
