Overview

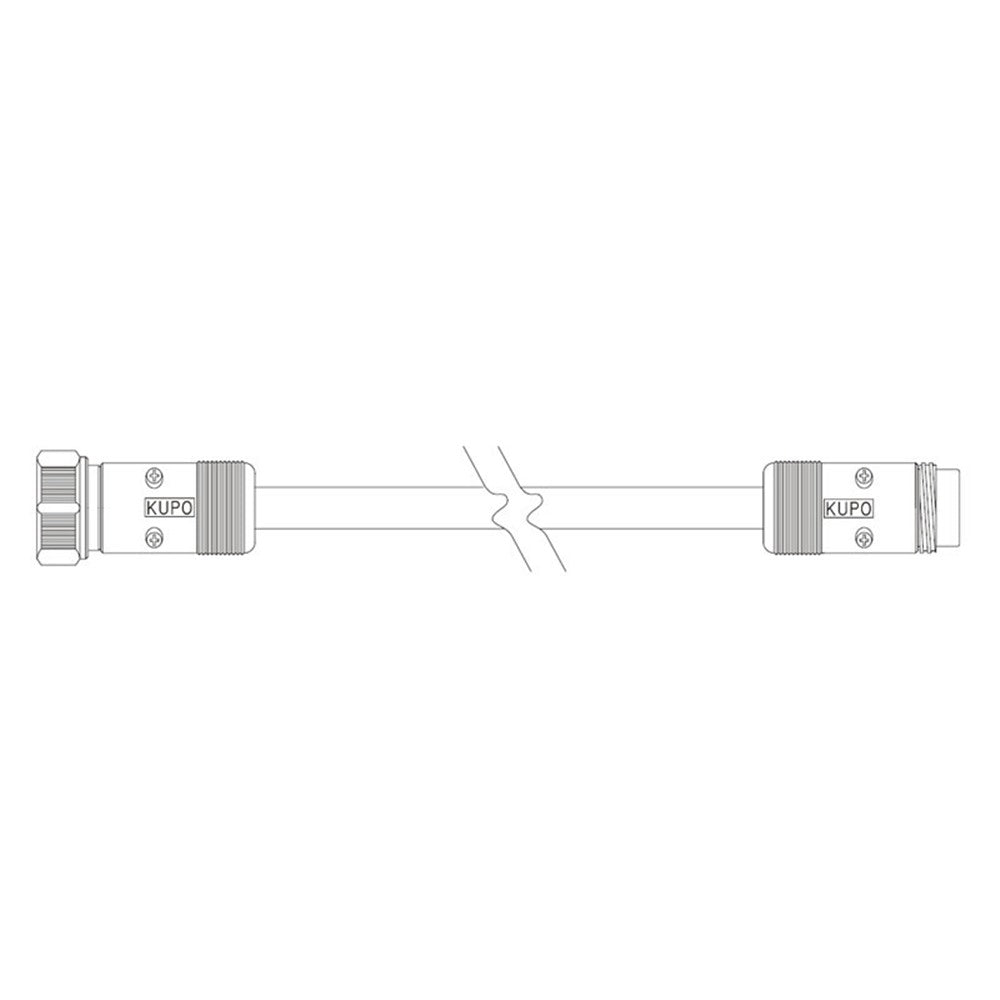

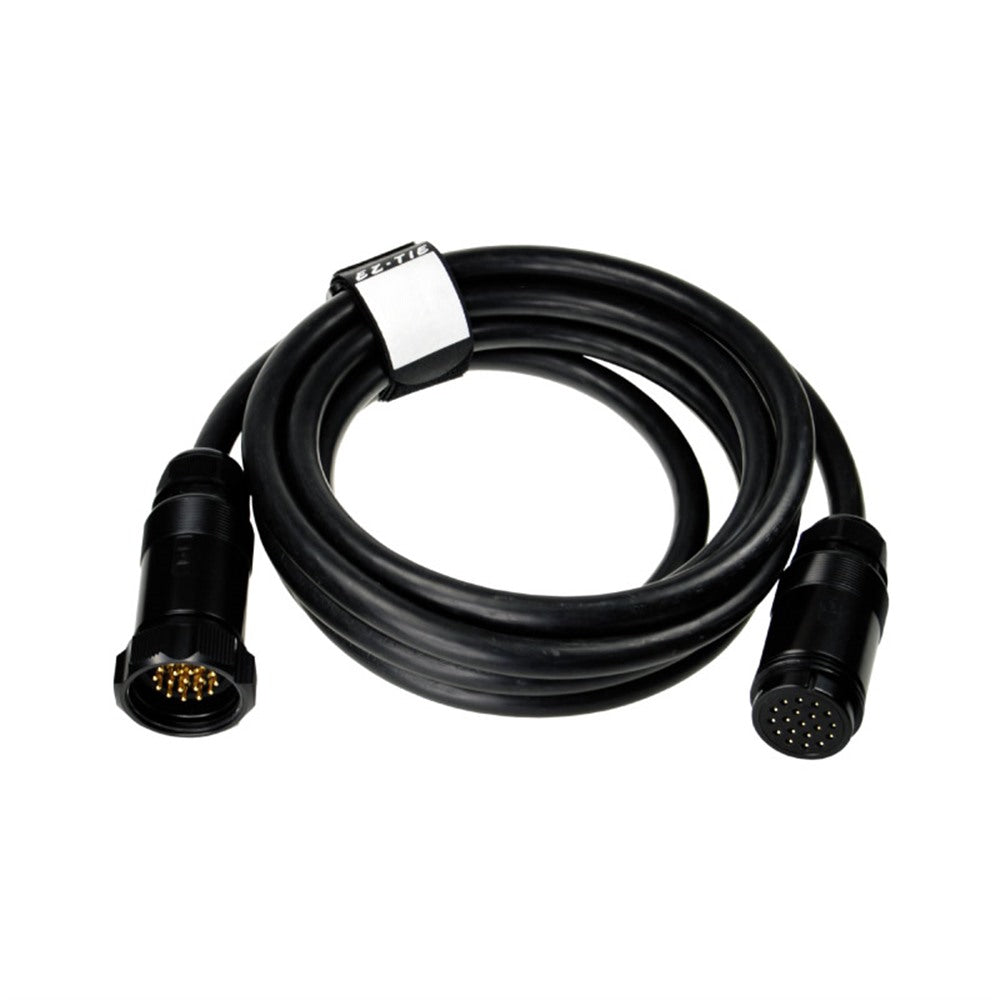

The EXE18/2.5-5 is a 5 m factory-terminated 18-core multi-cable extension for portable entertainment power distribution. It carries six circuits over a single 18 x 2.5 mm² jacketed run, with PLS-5219LM line male and PLS-5219LF line female connectors for inline extension between distro boxes, lighting bars, and Soca-compatible power systems.
Why It Matters
The 5 mm length is for short inline jumps where the heavier 2.5 mm² cable is required but extra length would only add clutter. The heavier 2.5 mm² cross-section is the main reason to choose this family over the 1.5 mm² versions when the power package calls for it.
Key Features
- 18 C x 2.5 mm² cable construction gives the EXE family a heavier cross-section option for higher-current planning.
- 5 mm length supports short distro-to-bar jumps and close equipment positions.
- Stranded class 5 copper conductors provide flexibility for portable power distribution.
- Self-extinguishing flame-retardant PVC outer jacket complies with IEC 60332-3-24.
- PLS-5219LM and PLS-5219LF terminations keep the extension inline with 19-pin Soca-compatible workflows.
Applications
Used for six-circuit entertainment power distribution, distro-to-bar extension, touring and rental power packages, indoor stage runs, production installs, and portable lighting systems that need the heavier 2.5 mm² cable option.
Compatibility
Available in 5, 10, 20, and 30 mm lengths. For two-output break-out / fan-out assemblies, see the TF18/2.5 series.
