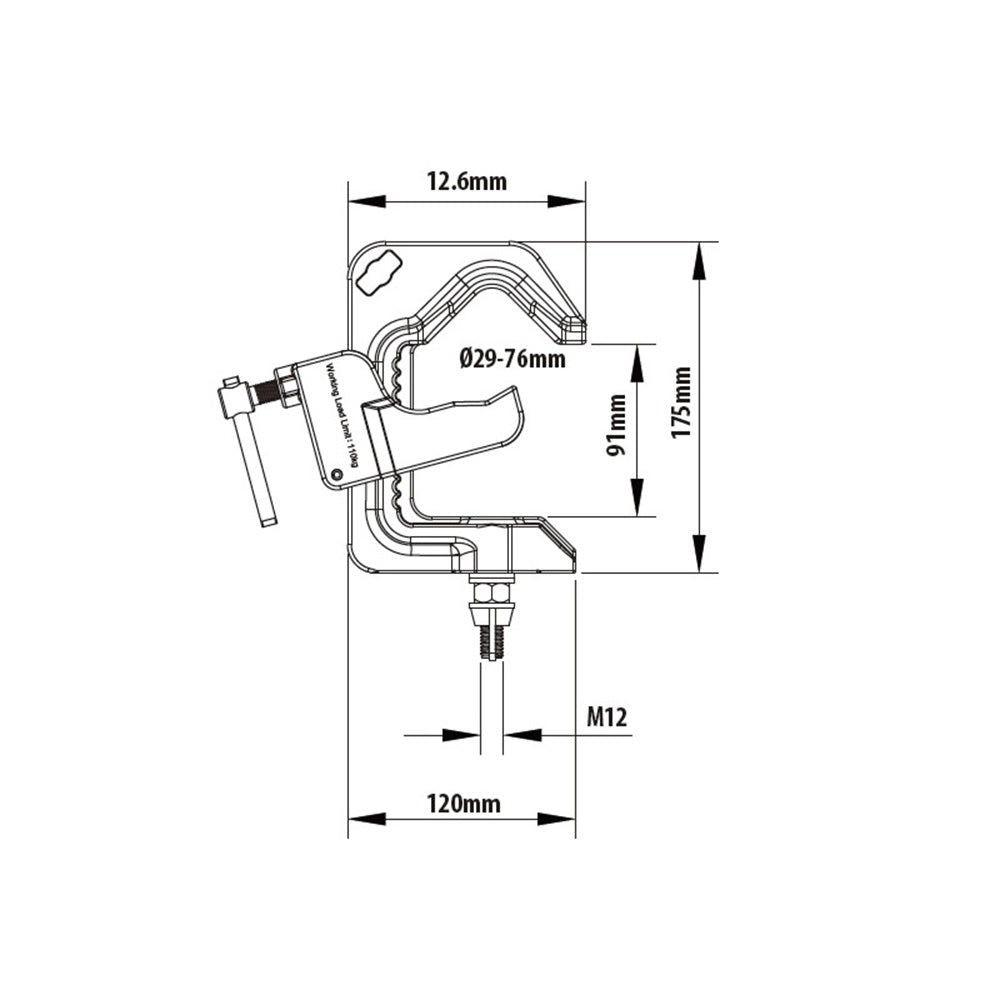

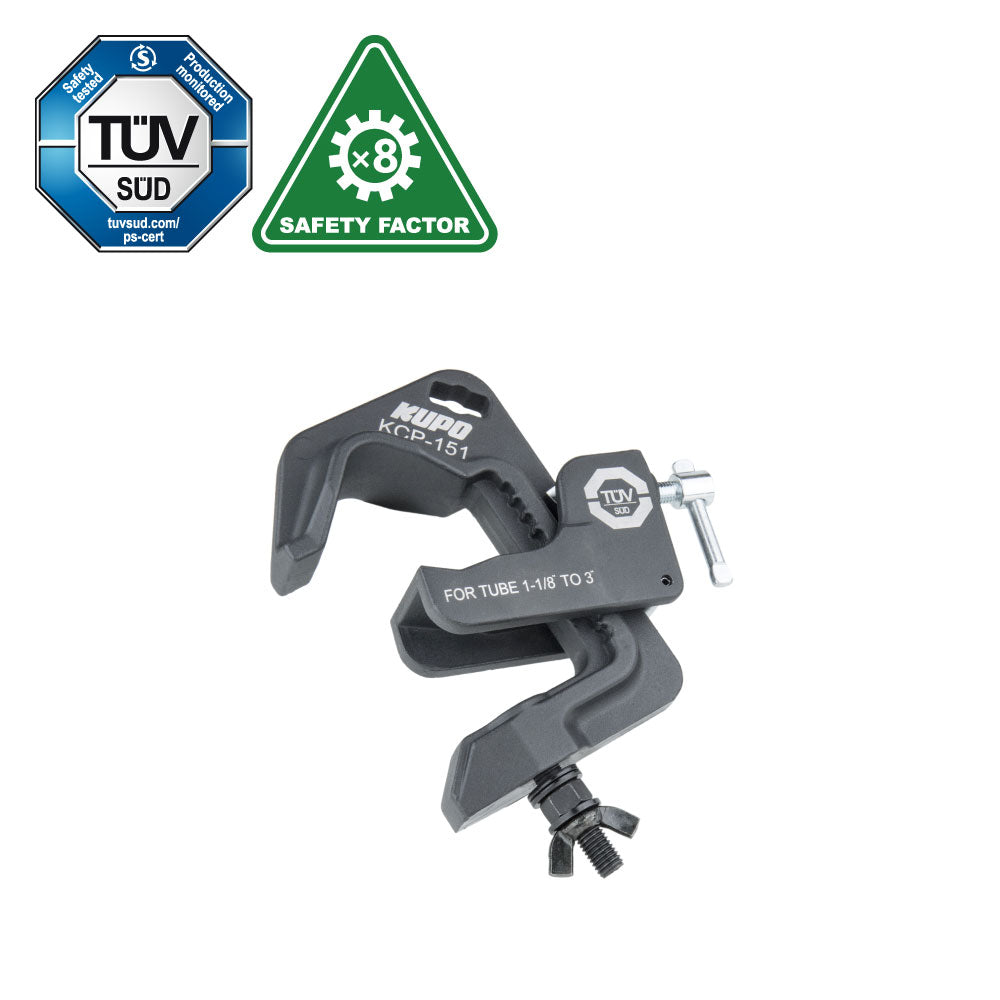

The KUPO KCP-151 Ratcheting Jaw C Clamp is a wide-opening pipe clamp for 28 to 78 mm tube, configured with an M12 bolt and nut for fixture attachment. It shares the ratcheting jaw concept of KCP-150, but keeps the top simpler for yoke-style mounting.
Why It Matters
A wide tube range saves time when the same clamp has to move between pipe sizes, truss chords, and venue hardware. KCP-151 adds a 110 kg working load limit, gravity-cast aluminum construction, and a dedicated safety cable hole in a 1.2 kg clamp body.
Key Features

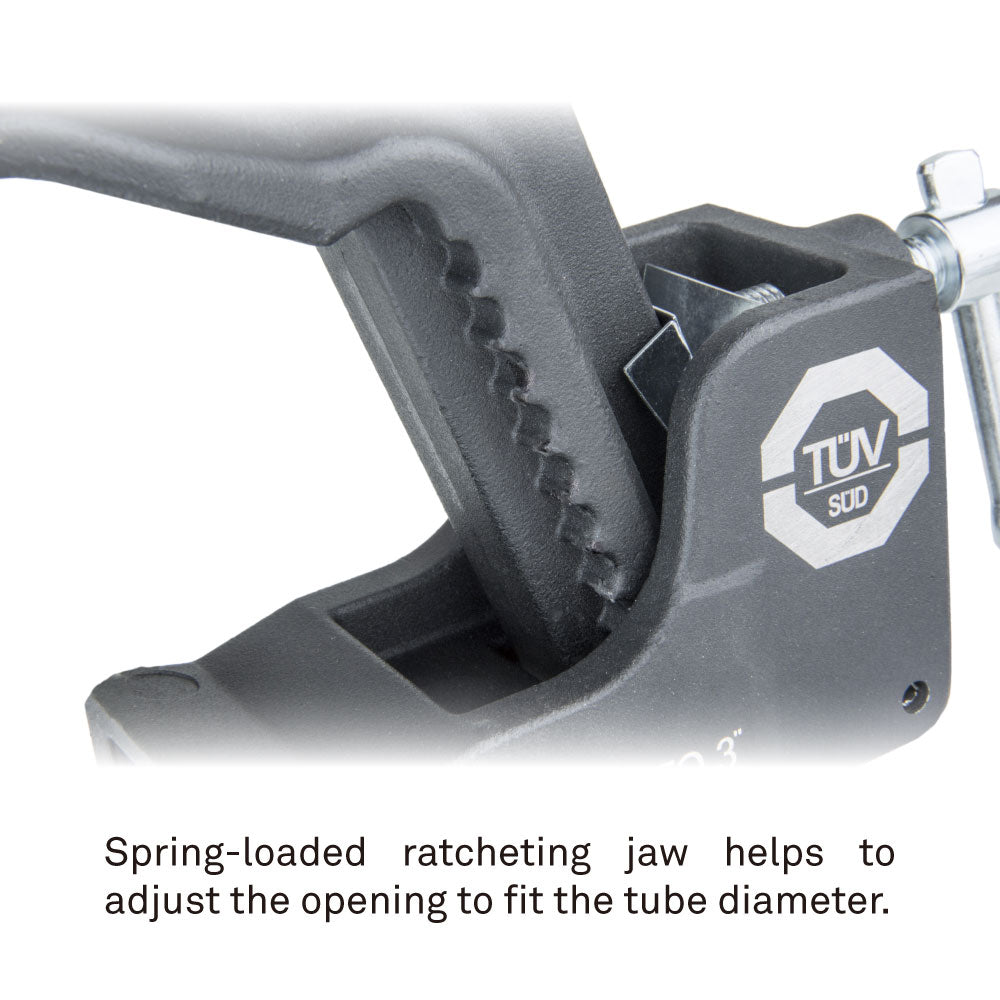

Spring-loaded ratcheting jaw adjusts quickly across 28 to 78 mm tube diameters
M12 bolt and nut attachment suits yoke-style fixture mounting without a universal head
110 kg working load limit gives strong capacity for a compact 1.2 kg clamp
Dedicated safety cable hole gives crews a clear secondary safety point
TÜV APPROVED certification is listed for working safety
Applications
Use it for theatre, studio, rental, and installation fixtures that need M12 bolt attachment from a wide range of tube sizes.
Compatibility
Fits 28 to 78 mm tube and includes M12 hex nut and wing nut for more secure fixture attachment. Sister model KCP-150 adds the swiveling universal head with receiver and stud interfaces.
Frequently Asked Questions
How is KCP-151 different from KCP-150?
KCP-151 uses an M12 bolt and nut for fixture attachment. KCP-150 adds a swiveling universal head with a 28 mm receiver and 16 mm stud.
What makes the jaw faster to adjust?
The jaw is spring-loaded and ratcheting, so it can open and settle onto different tube diameters more quickly than a fixed-size clamp.
Where should the safety cable go?
Use the dedicated safety cable hole on the clamp body, along with the fixture manufacturer's required secondary safety method.
