Product Description
Overview

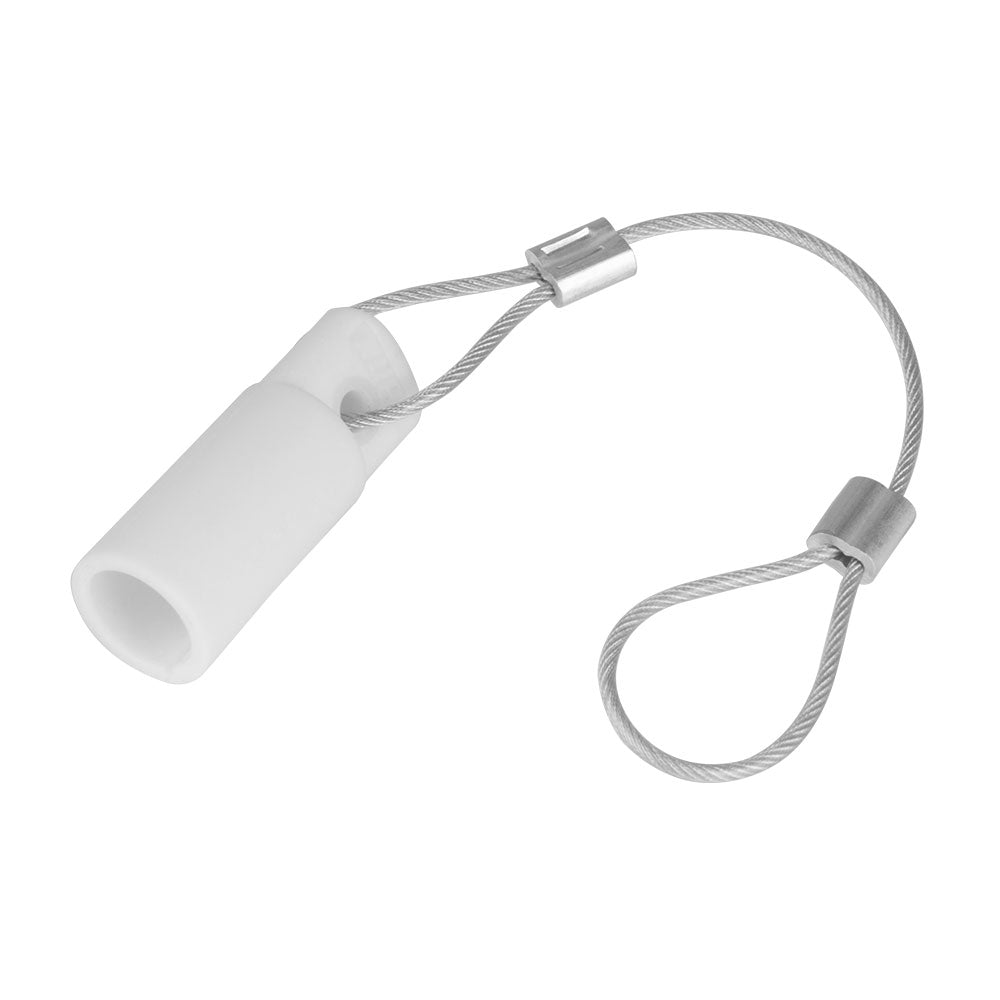

KL-15FPCW combines a white identification color with a dedicated protective fit for the K-LOK 150 A inline female connector. The tethered Santoprene TPV body stays with the cable assembly, so the connector can be covered as soon as it is disconnected.
Why It Matters
In dim racks and densely packed cable cases, the white cap is easy to spot. Its practical value is equally mechanical: it covers the connector between uses and remains attached rather than becoming a loose accessory.
Key Features
- Connector-Specific Fit: Purpose-shaped for the K-LOK 150 A inline female connector rather than used as a generic cable-end cover.
- Santoprene TPV Construction: Flexible, durable material rated up to 105 °C tolerates repeated fitting and removal in touring and rental workflows.
- Tethered Handling: The lanyard keeps the protective cap with its cable assembly through setup, operation and strike.
- White Identification: Provides a clear high-contrast identifier on cable looms and storage racks.
- Listed Performance: UL Enclosure Types 3R environmental rating with HB / UL94 flame class.
Applications
Intended for touring power looms, rental cable inventories, temporary distribution and fixed-installation service leads using KUPO K-LOK 150 A inline female connectors. The white finish provides a clear high-contrast identifier on cable looms and storage racks.
Compatibility
Fits KUPO K-LOK 150 A inline female connectors and is designed to complement compatible cam-type connector systems. It is shaped specifically for the 150 A inline female connector and should not be substituted for the male-cap profile. Correct seating supports NEMA 3R environmental protection while the connector is not in service.
Frequently Asked Questions
Why would a cable inventory use the white protective cap?
White creates a high-contrast cable-end marker that is easy to see in racks and cases. It can support a local identification plan without changing the connector's electrical rating.
What does the installer need to do with the adjustable ferrule?
Position the lanyard for practical movement, then crimp the adjustable ferrule so the cap stays tethered to its cable assembly. The ferrule should not be left unsecured.
Is KL-15FPCW intended to cover a live, connected interface?
No. It is a protective cap for the disconnected 150 A inline female connector. Remove it before mating the cable connector and keep it retained by the lanyard.
How large is the white female-connector cap assembly?
The cap is listed at 59.9 mm long with a 21.8 mm diameter. The lanyard assembly is 243.3 mm long and terminates in a 25.4 mm attachment ring.
