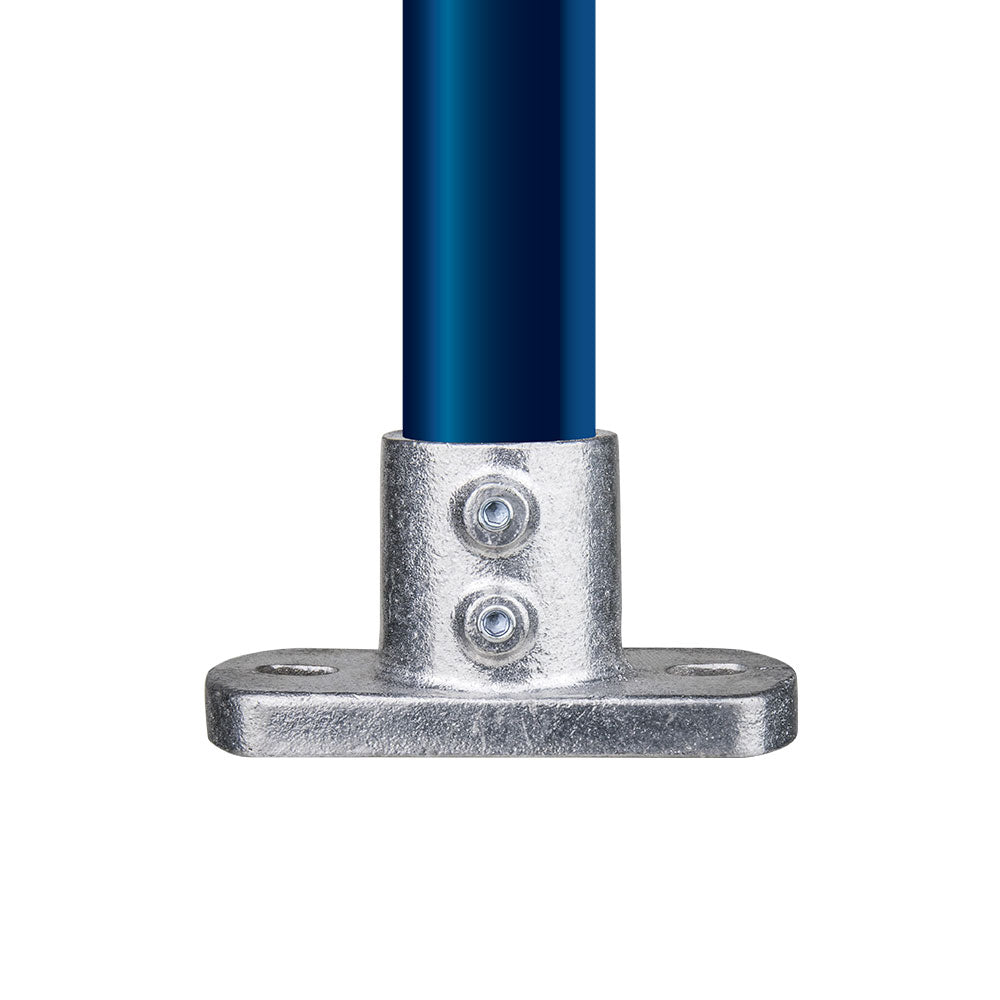

The KPC-A1446 Railing Base Flange is an A535 aluminum-magnesium alloy slip-on pipe clamp for 42.40 mm (1.66") outside diameter tube. It anchors a vertical tube to a deck or step for handrail and guardrail applications, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Railing posts need a base that reads as part of the rail system, not a generic pipe mount. This flange is shaped around that handrail and guardrail use case.
Key Features
Specialized railing base flange anchors vertical tube for handrail and guardrail work.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the tube securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for railing posts, guardrail bases, deck or step-mounted tube, access routes, recreational venues, exhibition structures, and outdoor-friendly handrail systems.
Compatibility
Fits 42.40 mm (1.66") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1246 version fits 48.30 mm tube.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting for lightweight, corrosion-resistant pipe structures.
Is this just a general base flange?
It is a base flange, but it is specifically positioned for railing and guardrail applications.
Which tube size does this version fit?
This A1400-series version fits 42.40 mm outside diameter tube. The A1200-series sister version fits 48.30 mm tube.
