Overview

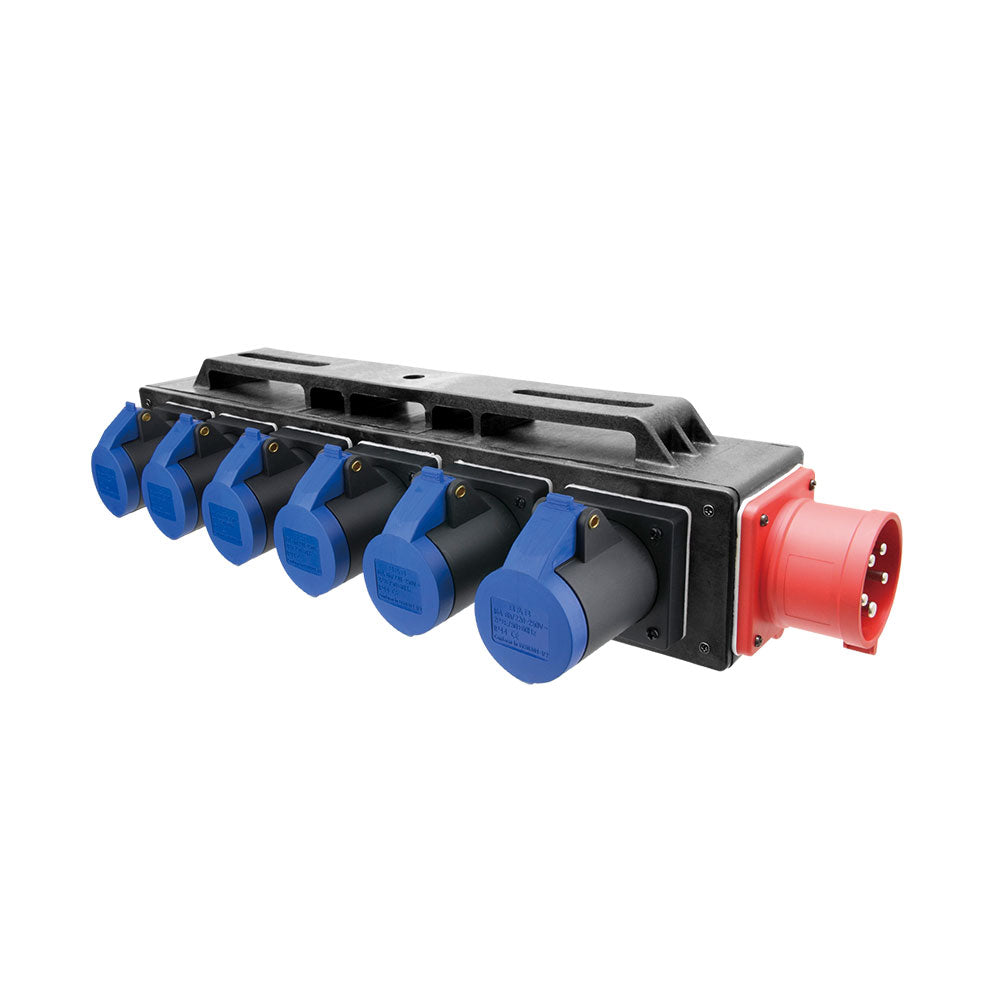

Electricity is the fundamental element and source to the lights. Stable and reliable distribution of power plays an important role in a successful lighting performance. Kupo's plastic power distribution is constructed of PA material which offers excellent insulation, impact-resistance and flame-retarded features. With in-house bracket structure, it can be diversely attached to the truss or tube with combination of clamps. Other than rigid PA material, this box is also fabricated with quality connectors, and assembled through experienced craftsmanship, which ensures the durability and reliability.

Why It Matters

Distribution boxes need to be readable, rugged, and easy to rig. PDB-P004-KDK packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.

Key Features

• Dual handle slots allow flexible movement of couplers.
• Central aperture on handle for single coupler provides attachment to truss easily.
• Rectangle and less bulky shape accesses to truss with no efforts.
• Perforation slots for the convenience of CEE and Schuko positioning.
• Black CEE and Schuko meet the low-key and professional requirement.
• Blue lid of CEE connector gives the clear identification of AC/220Vac 16 Amp.

Specifications

• 6 x CEE 16 A panel female (output).
• 1 x 32 A 5P three phase CEE panel male (input).
• L1->channel 1 & 2
• L2->channel 3 & 4
• L3->channel 5 & 6

Applications

Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.

Compatibility

Use PDB-P004-KDK with a 32 A 5P three-phase CEE input and 16 A CEE branch cables, following the listed L1, L2, and L3 channel assignment. Check phase balance, connector gender, and branch current before connecting fixtures or venue loads.
