Product Description

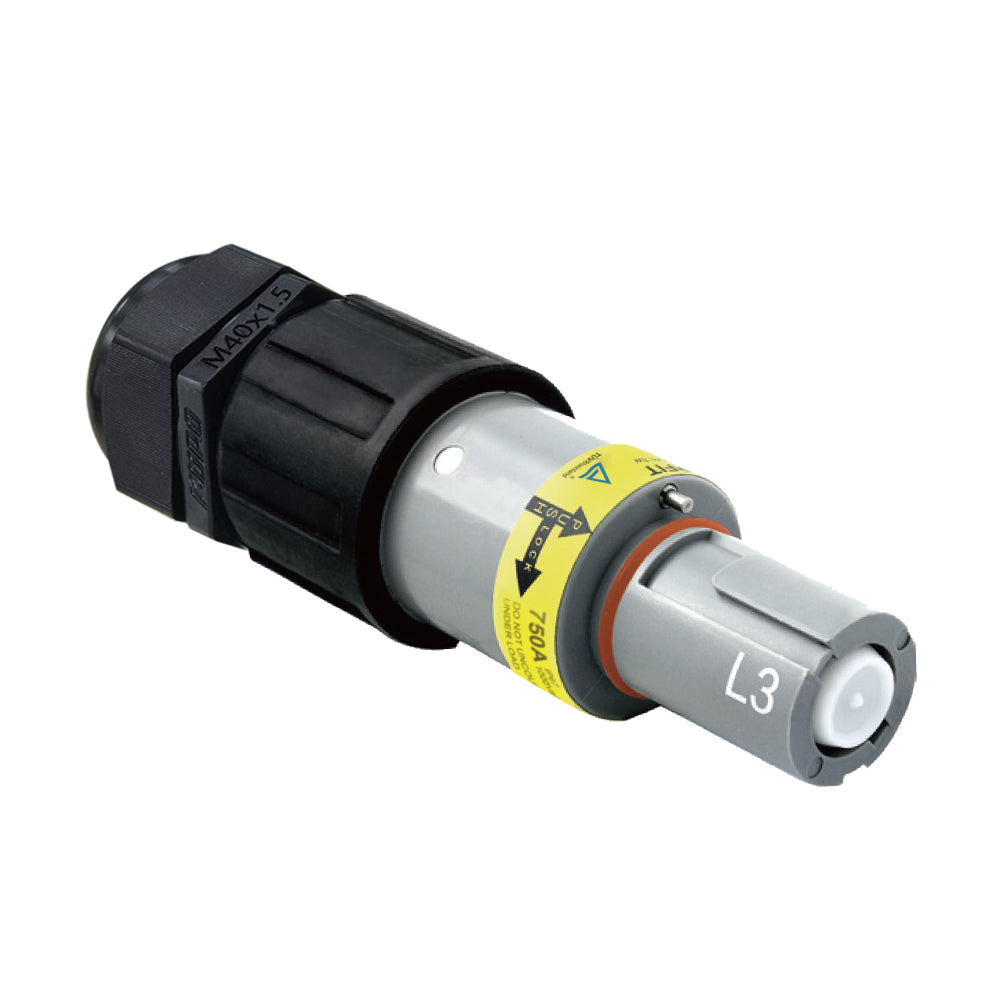

High-current power distribution demands connectors that stay reliable under repeated load-in, load-out, and field-service cycles. The PowerFit 750 A Line Drain connector in gray is built for L3 circuits, combining a Drain interface, silver-plated copper contact construction, and a secure push-and-twist locking mechanism. For installation, it uses an M40 x 1.5 cable gland with rubber bushing for sealed 300mm² cable assemblies. IP67 protection when mated and a UL94-V0 thermoplastic body help maintain safe performance in demanding touring, event, and industrial environments.
Key Features
- 750 A High-Current Rating: 750 A Maximum for heavy-duty single-pole power distribution
- Drain interface Design: Line Drain (Drain interface) for mating with compatible PowerFit Line Source or Panel Source connectors
- Positive Push-and-Twist Lock: Maintains secure mechanical engagement after mating
- Copper Silver-Plated Contact: Excellent conductivity with 0.1 mOhms contact resistance for reduced voltage drop
- Ergonomic Rubber Grip: Enhances handling comfort and control during cable connection work
- IP67-Rated Cable Sealing: M40 x 1.5 with sealing bushing (Inner Diameter: 22 mm and 33 mm)
- Silicone O-Ring: Provides protection against water and dust ingress after mating
- Durable Thermoplastic Housing: Non-conductive high impact-resistant body with UL94-V0 flame rating
- Voltage Capacity: 1000 V AC, 1500 V DC Maximum with 4500 V AC test voltage
- Certified Safety: TUV, CE, RoHS and REACH compliant for professional power distribution systems
Certifications & Standards

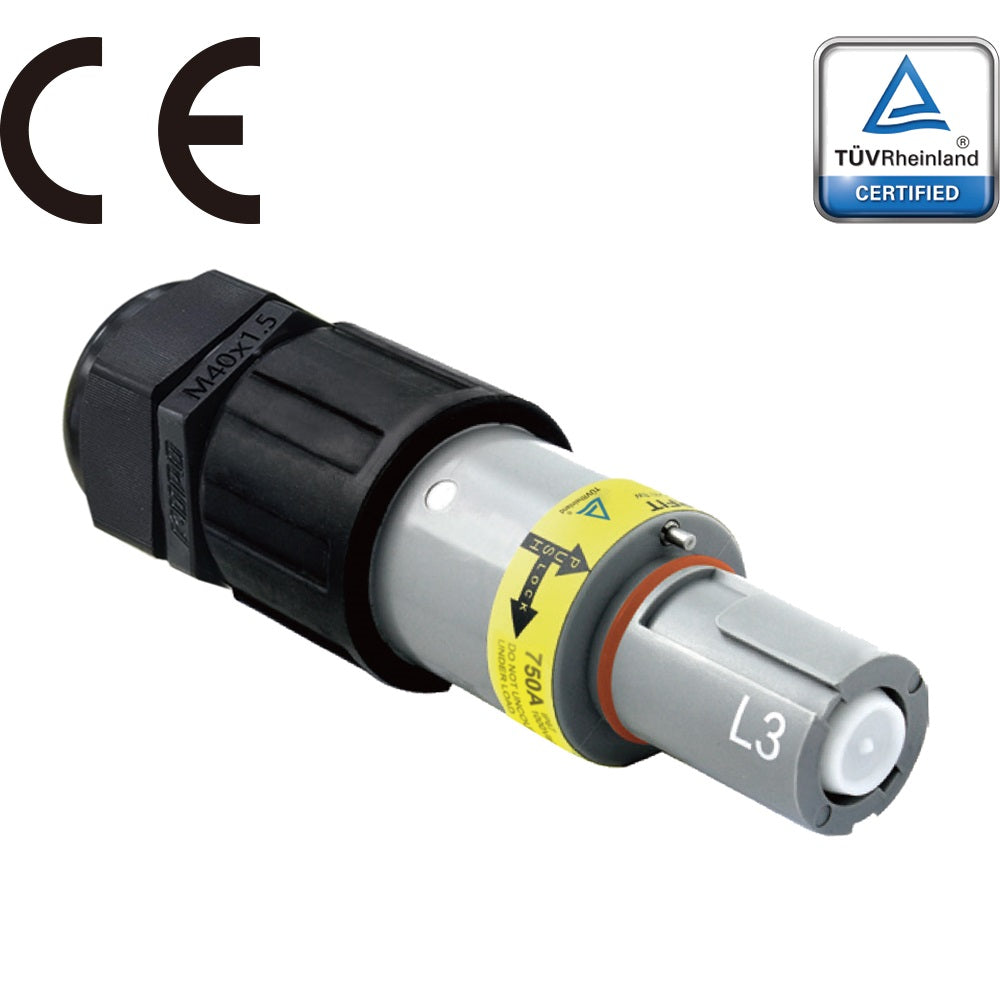

- TÜV certified for professional power connector applications
- CE Marking
- RoHS Compliant
- REACH Compliant
- UL94-V0 Flame Rating
- IP67 rating while mated
- 1000 V AC, 1500 V DC maximum voltage rating; 4500 V AC test voltage
- Short circuit rating: Up to 35.5 kA; insulation resistance > 5000 MOhms at 500 V AC
Applications
- Live Event Audio & Video Production
- Touring Sound Systems
- Stage & Lighting Power Distribution
- Concert & Festival Infrastructure
- Mobile Production Trucks
- Rental & House Power Management
- Industrial High-Current Power Distribution
Compatibility
- Rated Amperage: 750 A Maximum
- Voltage Range: 1000 V AC, 1500 V DC Maximum
- Cable Compatibility: M40 x 1.5 with sealing bushing (Inner Diameter: 22 mm and 33 mm); crimp termination for 300mm² cable
- Mating Standard: Push-and-twist
- Mating Role: Line Drain (Drain interface) mates with compatible Line Source or Panel Source connectors
- Phase Marking: L3
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
