Product Description
Overview

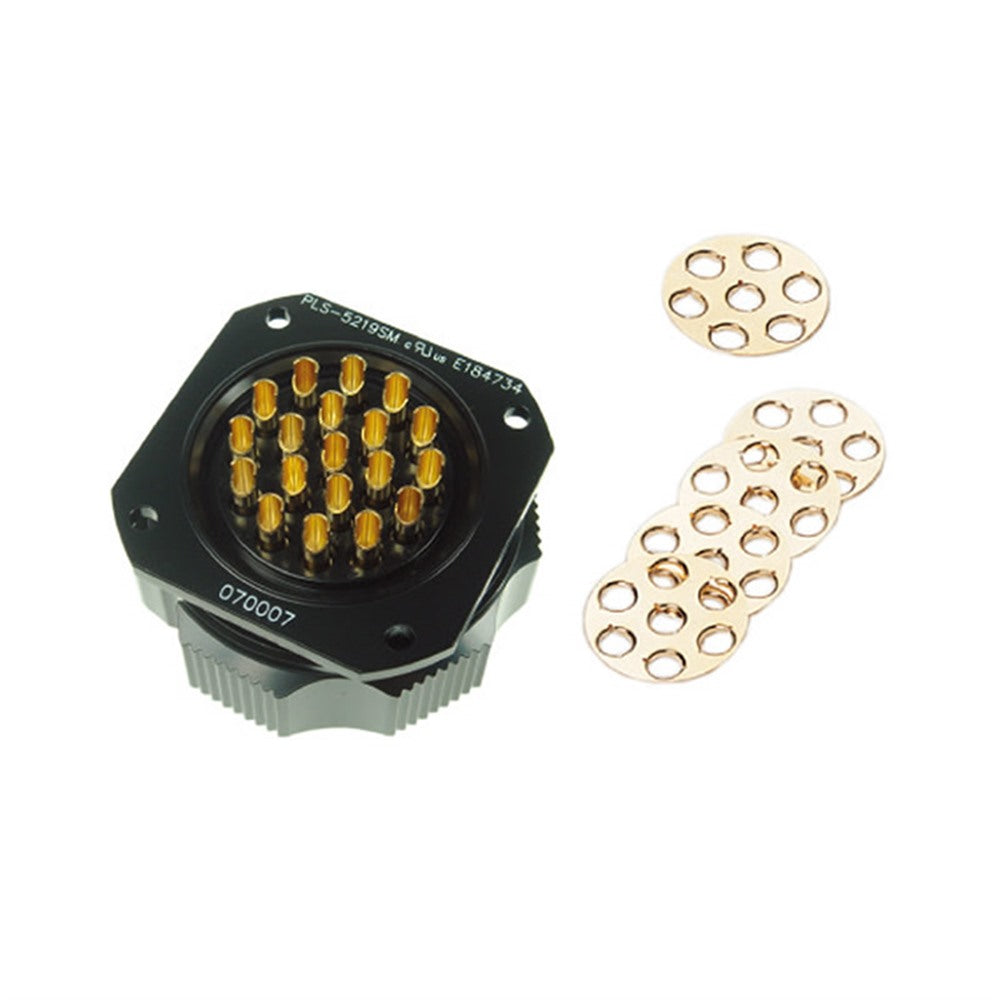

The PLS‑5219GDSK ground disk is engineered to bus together the six ground contacts in solder‑type 19‑pin connectors. Featuring a robust 7-hole design, it effectively links ground circuits to enhance shielding and ensures reliable grounding for professional lighting systems.
Specifications
- Connects the six ground contacts in compatible solder-type 19-pin connectors
- Made from high-quality brass for excellent conductivity and corrosion resistance
- Precisely accommodates solder‑type Socapex/PLS connectors for secure installation
- Ideal for use with industry-standard 19‑pin systems from Socapex, PLS, and Veam
- Built to the rigorous demands of lighting industry standards
Applications
Use it as part of a professional power, data, or set-support kit where the listed connector, accessory, or hardware function is required.
Compatibility
Use PLS-5219GDSK with solder-type 19-pin Socapex, PLS, or Veam-style connector assemblies that require a brass grounding disk across the pin set. Check connector shell style, solder termination layout, and grounding path before installing it into a lighting multicore cable or panel assembly.
Frequently Asked Questions
What is PLS-5219GDSK used for?
PLS-5219GDSK connects the six ground contacts in compatible solder-type 19-pin connectors.
What should I check before ordering?
Check the solder-type connector layout and fit of the seven-hole ground disk.
How many ground contacts does it connect?
It connects six ground contacts using a seven-hole disk.
