Product Description
Overview

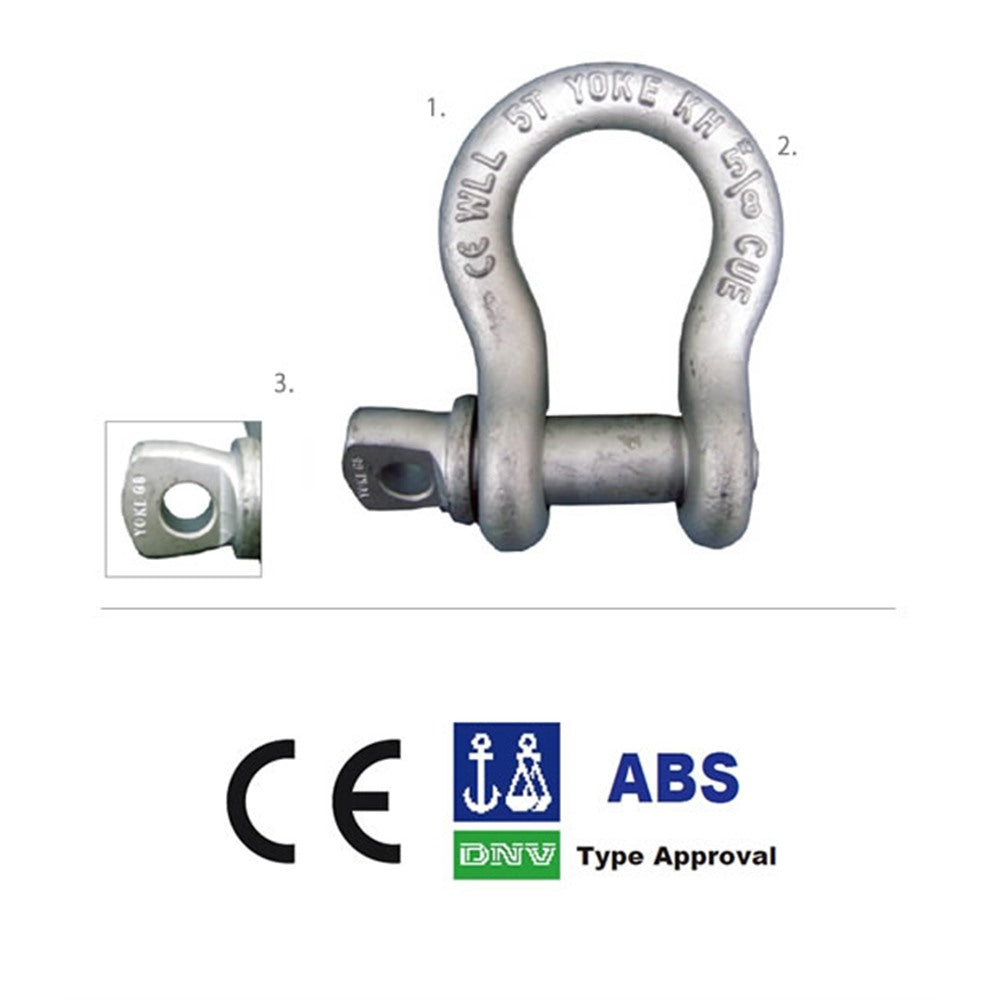

The SS-S6500 is a 6.5 tons, 7/8" nominal RIGPRO screw pin anchor shackle for fast rigging connections between slings, hoists, truss hardware, and load points. It uses a forged carbon steel body with a Dacromet-finished alloy pin, giving stage and event crews a marked, traceable connector that can be opened and redeployed quickly between builds.
Why It Matters
The 7/8" shackle is often where a rig starts to feel substantial in the hand. This model gives crew a 6.5-ton screw pin connector that is still fast to handle, while clearly separating itself from the smaller mid-range shackles in both size and capacity.
Key Features
- 6.5 tons working load limit and 7/8" nominal size are permanently marked on the body, so the shackle can be checked before it is placed into the load path.
- Forged Carbon Steel construction with 6 times minimum ultimate-load ratio places this model in the correct strength family for its rated capacity.
- Screw pin design allows quick hand installation and removal, useful when the connection changes often during stage, rental, or production work.
- 7/8" nominal size and 6.5-ton working load limit make it a heavier screw pin choice without moving all the way to the 1" family.
- DNV and ABS type approval, US Federal Specification RR-C-271D Type 4 A compliance, magnetic-particle crack detection, and 20,000-cycle fatigue rating support professional rigging inventory control.
Additional Technical Notes

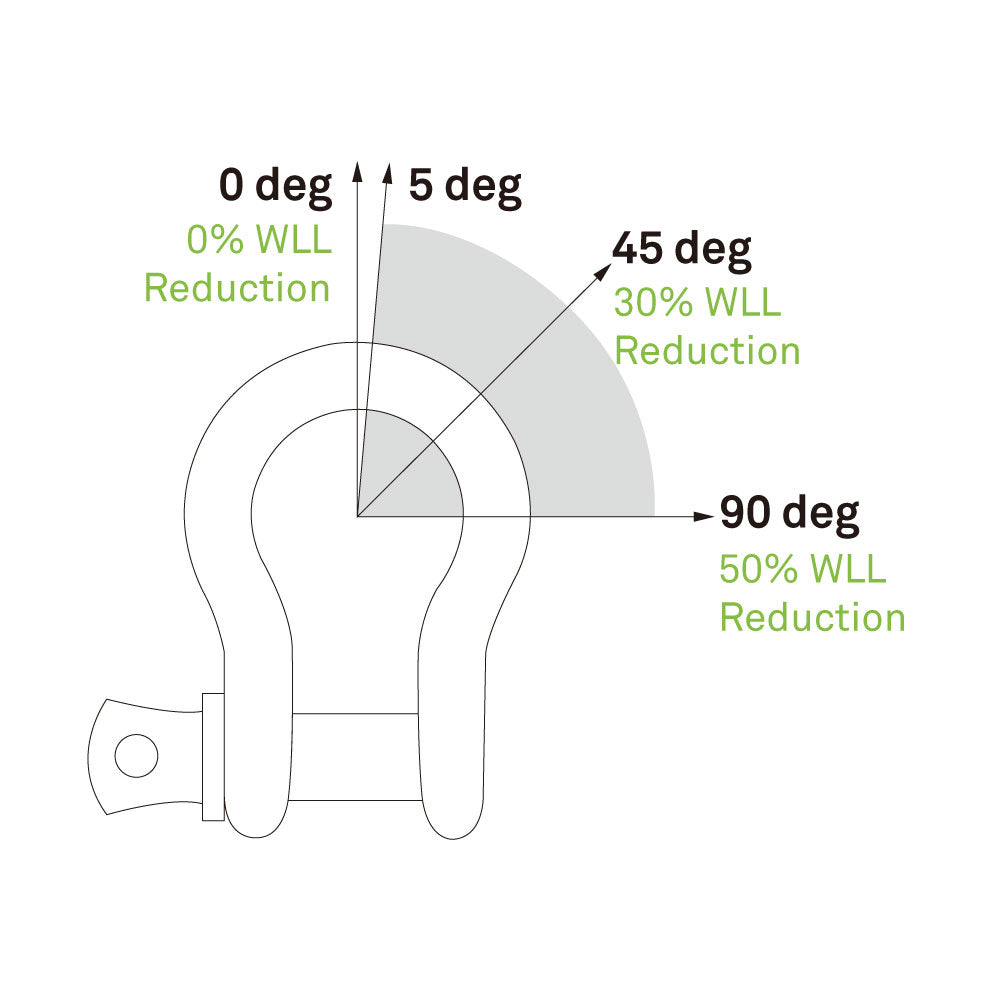

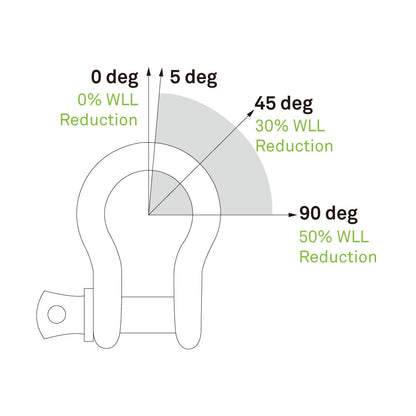

- WLL Reduction: 0 % at 5°, 30 % at 45°, 50 % at 90° from centreline
- Quality Control: 100 % magnetic-particle crack detection
- Fatigue Rating: 20,000 cycles at 1.5 times WLL
- Marking: Size, WLL, and batch code permanently marked for certificate traceability
Applications
A practical fit for temporary stage rigging, truss pickups, motor points, wire rope sling connections, round sling connections, and rental-house kits where shackles are repeatedly inspected, installed, removed, and returned to inventory.
Compatibility
Use with rated slings, hoists, and anchorage hardware selected for the same or higher capacity; reduce working load limit for off-axis loading according to the catalog values, including 30 % reduction at 45° and 50 % reduction at 90° from centreline.
Frequently Asked Questions
Why use a screw pin shackle instead of the bolt-and-nut version
Screw pin shackles are faster to open and redeploy by hand, so they suit temporary rigs and rental workflows where the connection is checked and changed often.

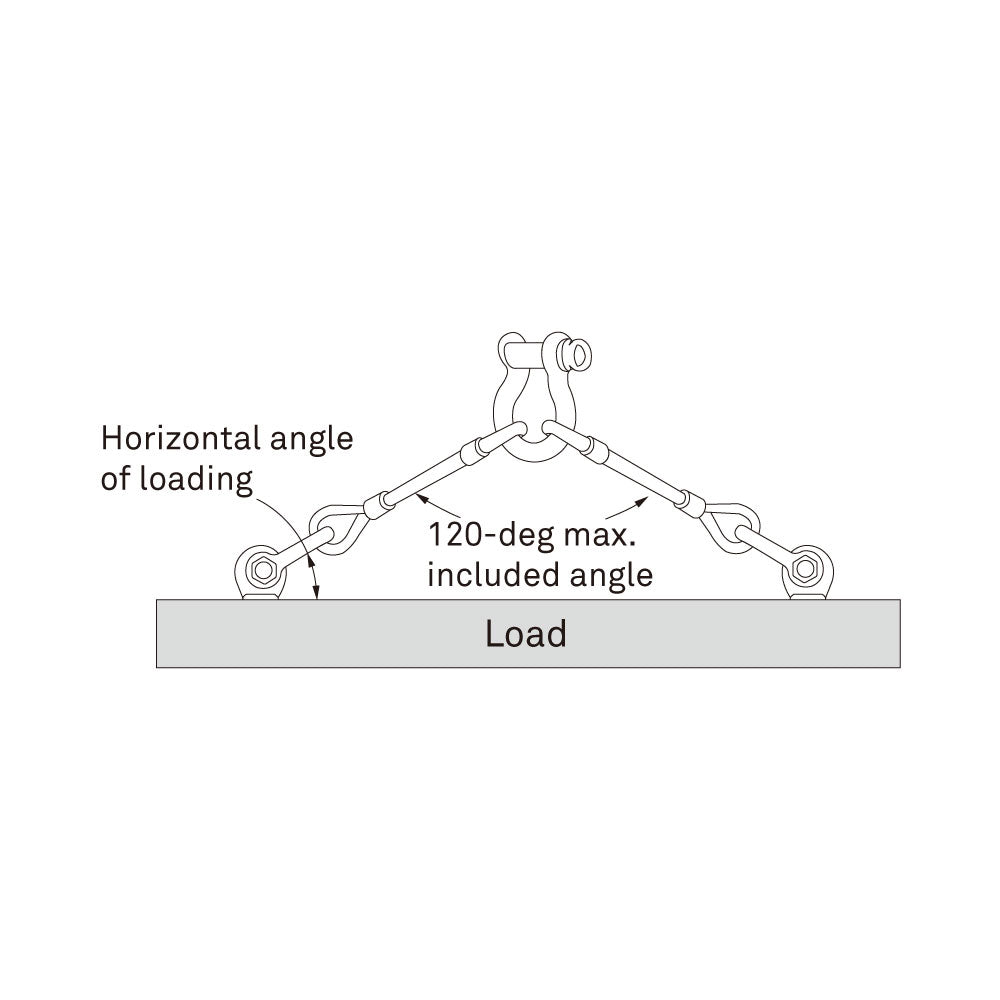

Can I side load this if the bridle angle is not straight
Side loading reduces capacity. Follow the catalog reduction table, including 30 % reduction at 45° and 50 % reduction at 90° from centreline.
When would I reach for the 7/8" size
Use it when the load calculation or hardware geometry calls for more than the 4.75-ton size, but the 1" shackle family is not required.
