Overview

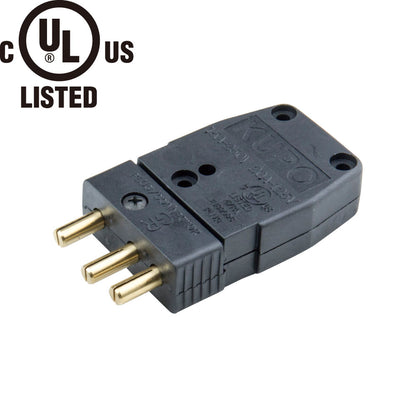

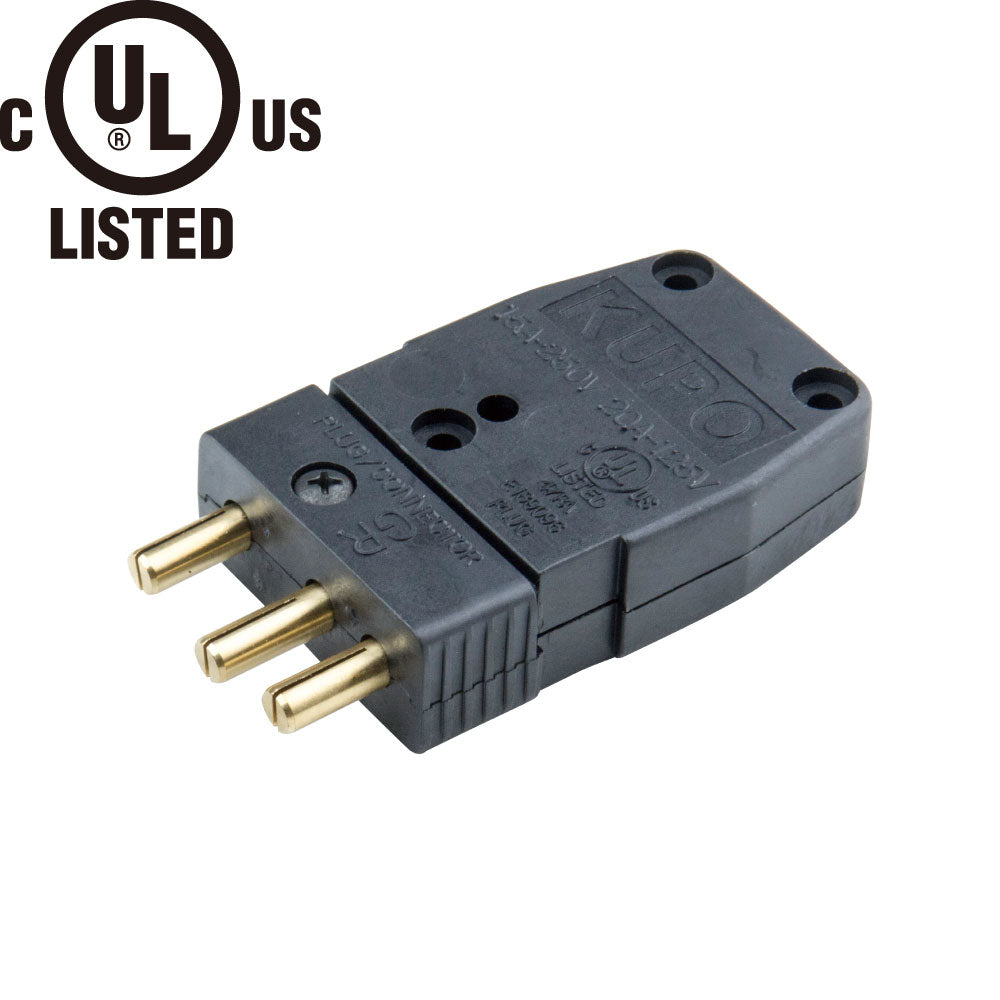

The KUPO TSP-20LM is a 20 A stage pin connector made for entertainment power systems that get handled, patched, repaired, and re-used. Its high-temperature thermoplastic body resists melting and breakdown up to 250 °C, while solid brass contacts keep the electrical path serviceable over time.
Why It Matters
This line male version is the cable-end counterpart for stage pin distribution, designed to wire without ring terminals. The housing is ergonomic for frequent handling, and the terminal markings follow NEC standards so wiring work is more straightforward in shop and field conditions.
Key Features
- 20 A inline male stage pin connector
- Crimpless pressure terminal termination for cable-end assembly
- High-temperature thermoplastic body rated up to 250 °C
- Solid brass contacts, removable and replaceable
- Accepts standard 12/3 hard-service cable and mates with standard 20 A stage pin connectors
Applications
TSP-20LM is suited to theatre power, stage pin extension builds, fixture tails, distribution panels, AV racks, rental-house repairs, touring cable service, and entertainment power systems using standard 20 A stage pin connectors.
Compatibility
Use TSP-20LM with standard 20 A stage pin connectors and properly rated 12/3 hard-service cable. Follow NEC-standard terminal markings and applicable electrical practice.
