Product Description
Overview

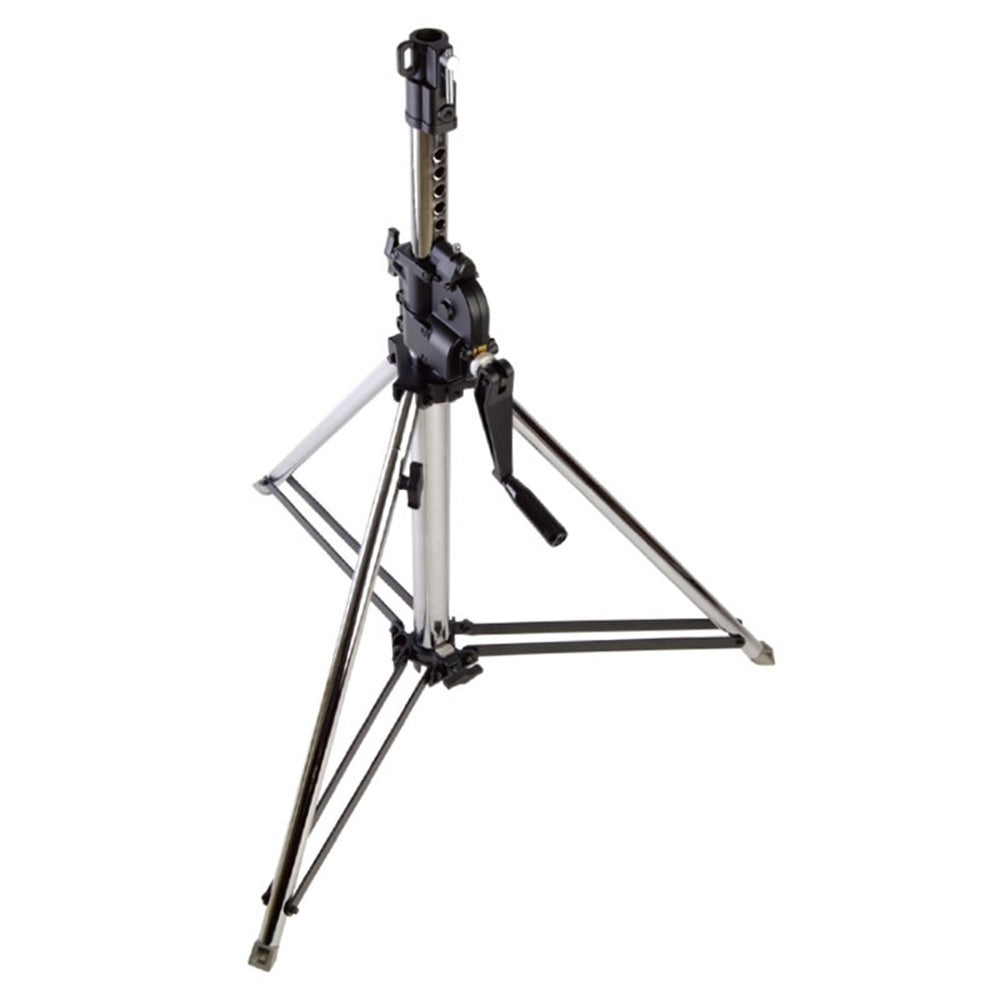

The KUPO 481 is a 2-section wind-up followspot stand built for compact lifting jobs where a normal crank stand is too tall, too wide, or too slow to adjust. Its chrome-plated steel construction, geared column, 50 kg loading capacity, and auto self-locking mechanism make it a practical support for followspots, small effects fixtures, and other heavy stand-mounted equipment that needs controlled vertical travel.
Why It Matters
Followspot and front-of-house positions often leave very little room for improvisation. The 481 gives the operator a crank-lift stand with measured 2.2 cm travel per handle turn, so height changes feel controlled instead of abrupt, and the self-locking design helps prevent the column from dropping unexpectedly.
Key Features
- Geared wind-up column raises the load in 2.2 cm increments per handle turn, making small height corrections easier under weight
- Automatic self-locking mechanism adds a safety layer when lifting fixtures up to 50 kg
- Chrome-plated steel body gives the stand the weight and rigidity expected for followspot support
- Leveling leg helps the stand settle more predictably on uneven floors or venue platforms
- Compatible with the 483-BP base plate set when the stand must be secured to the floor
Height Range & Reach
The 481 is the short wind-up member of the followspot stand family. It favors controlled lift and a broad footprint over tall extension.
- Height range: 91 to 145 cm (35.8 to 57.1")
- Closed length: 110 cm (43.3")
- Sections: 2 sections, 1 riser
- Footprint diameter: 110 cm (43.3")
- Maximum load: 50 kg (110.2 lb); self-weight 13.6 kg (30 lb)
Additional Technical Notes
- Stand Feature: Leveling leg; automatic self-locking mechanism
- Construction: Chrome plated steel with geared column
- Column Diameters: 55 mm, 45 mm
- Leg / Tube Diameter: 30 mm
- Elevation Per Handle Turn: 2.2 cm
- Compatible Accessory: 483-BP base plate
Applications
Use it for followspot positions, small moving lights, compact effects fixtures, scenic supports, or heavy equipment that needs crank-assisted height adjustment without using a full tower stand.
Compatibility
Built with a junior receiver top and suitable for KUPO wind-up stand accessories such as the 483-BP base plate set for 481, 482, 483T, and 470 stand models.
Frequently Asked Questions
Is the 481 only for followspots?
No. It is designed as a followspot stand, but the 50 kg load rating and junior receiver make it useful for other heavy stand-mounted lighting equipment when the height range fits.
Why choose this instead of a normal combo stand?
Choose the 481 when you want crank-assisted lifting and self-locking support at a relatively low working height. A normal combo stand is faster for light loads, but it does not give the same controlled wind-up action.
Can it be fixed to the floor for a venue install?
Yes, the 483-BP base plate set is listed as an optional accessory for securing compatible stands to the floor, including the 481.
