Overview

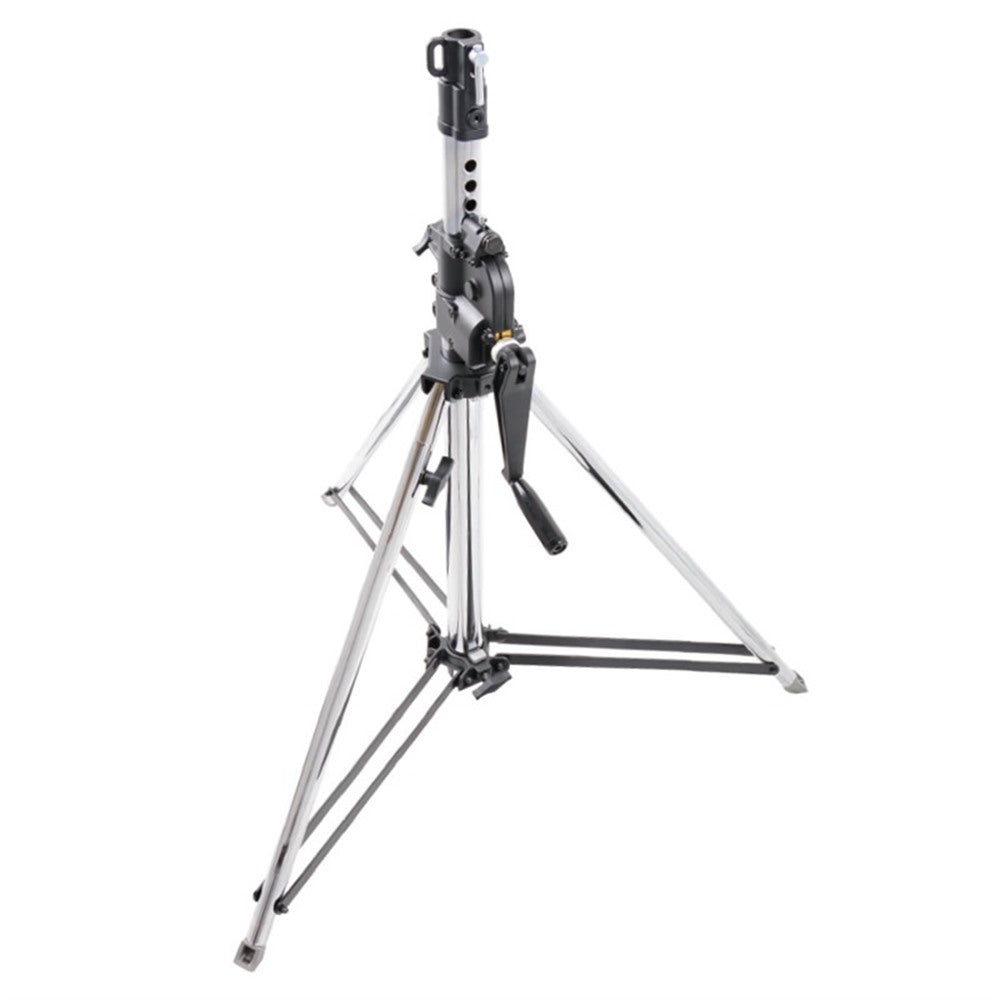

The KUPO 482T is a 2-section wind-up stand for crews who need crank-operated lifting without the height range of a 3-section model. Its chrome plated steel geared column raises the load at 2.2 cm per handle turn, with 55 mm and 45 mm tubes, a 28 mm receiver, one leveling leg, and a 45 kg load rating.

Why It Matters

Raising a heavier fixture by hand is slow and unforgiving. The 482T lets one operator lift and lower the load with the crank handle, while the auto self-locking device adds an important layer of control during adjustment.

Key Features

• Crank-operated geared column reduces manual lifting effort for heavier lighting loads
• Auto self-locking device helps prevent unexpected drop during stand operation
• 45 kg load rating supports substantial fixtures when used with correct ballast and rigging practice
• One leveling leg helps settle the stand before the load is raised
• Compatible with KC-100 casters and the 483-BP base plate for studio or fixed-position workflows

Height Range & Reach

The 482T focuses on controlled lift in a moderate height range, with a slower single-riser elevation rate for more deliberate adjustment.

• Minimum height: 145 cm (57")
• Maximum height: 245 cm (96.5")
• Closed height: 160 cm (63")
• Sections: 1 riser, 2 sections with 55 mm and 45 mm tubes
• Footprint and load: 128 cm footprint, 45 kg maximum load, 18.1 kg stand weight

Additional Technical Notes

• Stand Feature: One leveling leg; auto self-locking device
• Construction: Chrome plated steel with geared column
• Tube Diameters: 55 mm, 45 mm
• Leg Diameter: 30 mm
• Elevation Per Handle Turn: 2.2 cm
• Compatible Accessories: KC-100 caster set; 483-BP base plate

Applications

Use it for studios, stages, rental houses, and venue work where heavier fixtures need controlled vertical adjustment from a stable wind-up base.

Compatibility

The top is a 28 mm receiver. Optional compatible accessories include the KC-100 caster set for braked rolling movement and the 483-BP base plate for floor-secured positions.
