Product Description
Overview

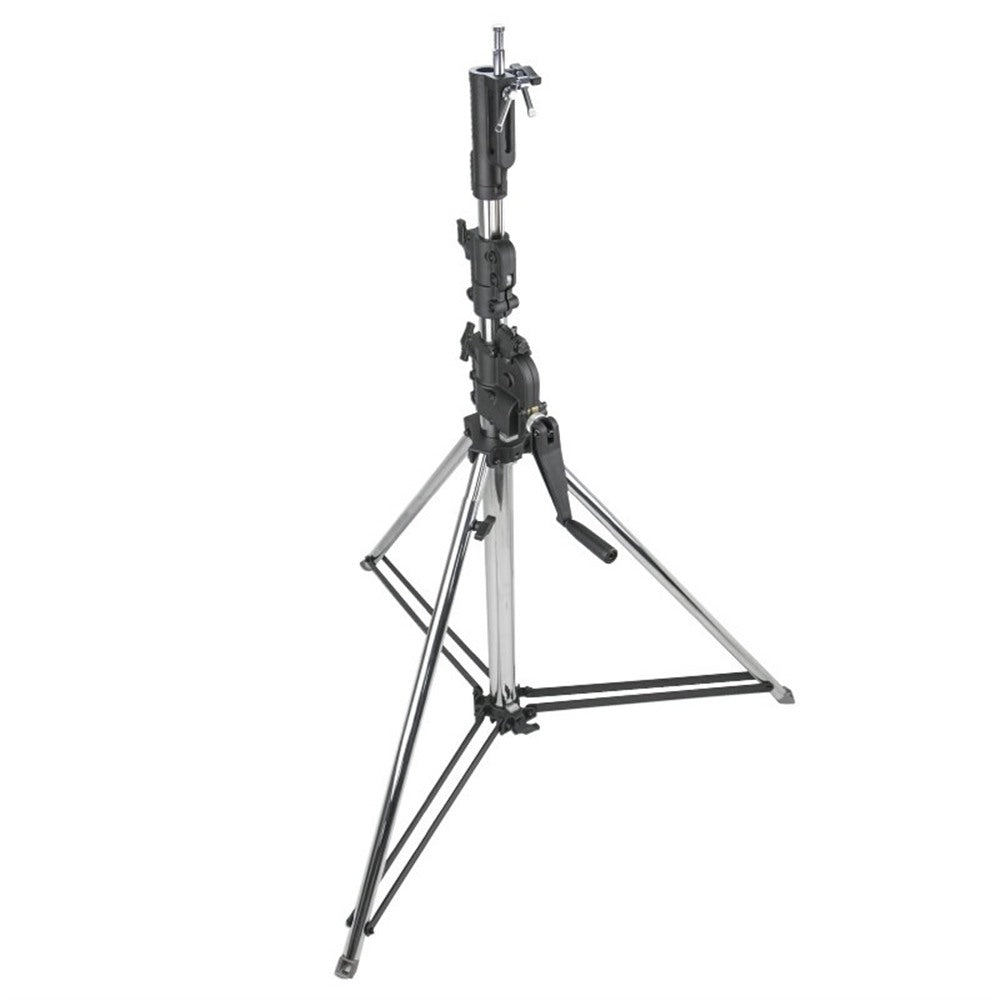

The KUPO 483SH is a short 3-section wind-up stand for controlled lifting in a lower working range than full-size wind-up models. It uses a chrome plated steel geared column, 55 mm, 45 mm, and 38 mm tube sections, 30 mm legs, and a combined 28 mm receiver plus 16 mm stud top.
Why It Matters
Not every wind-up job needs maximum height. The 483SH keeps the crank-operated lift, simultaneous section movement, and safety cable retrieval of the larger family, but stays in a lower height range that is easier to manage for studio and stage positions close to the working floor.
Key Features
- 3-section, 2-riser geared column raises both risers simultaneously at 4.4 cm per handle turn
- Safety cable supports simultaneous retrieval of all sections during lowering
- 28 mm receiver plus 16 mm stud gives more top-mount flexibility than receiver-only stands
- One leveling leg helps stabilize the base on uneven floors
- Optional KC-100 caster set supports rolling repositioning on suitable studio surfaces
Height Range & Reach
The 483SH is the short wind-up choice when controlled lift matters more than reaching high trim.
- Minimum height: 132 cm (51.96")
- Maximum height: 262 cm (103.14")
- Closed height: 152 cm (59.84")
- Sections: 3 sections, 2 risers with 55 mm, 45 mm, and 38 mm tubes
- Footprint and load: 128 cm footprint, 30 kg maximum load, 18.8 kg stand weight
Additional Technical Notes
- Stand Feature: One leveling leg; safety cable for simultaneous section retrieval
- Construction: Chrome plated steel stand with geared column
- Tube Diameters: 55 mm, 45 mm, 38 mm
- Leg Diameter: 30 mm
- Elevation Per Handle Turn: 4.4 cm
- Compatible Caster: KC-100 caster set, optional
Applications
Use it for studio fixtures, compact stage positions, overhead practicals, and rental packages where wind-up operation is preferred but full-height stand travel is unnecessary.
Compatibility
The top combines a 28 mm receiver and 16 mm stud. The stand is compatible with the optional KC-100 caster set for braked rolling movement.
Frequently Asked Questions
Why choose the 483SH instead of a taller wind-up stand?
Choose it when the job needs crank-operated lifting but only a lower height range. It is easier to place in compact setups while still giving wind-up control.
Do both risers move together?
Yes. The product description describes simultaneous riser movement at 4.4 cm per handle turn, with a safety cable used for simultaneous retrieval.
What top mounting options are built in?
The 483SH includes both a 28 mm receiver and a 16 mm stud, giving crews a flexible top interface for compatible fixtures and adapters.
