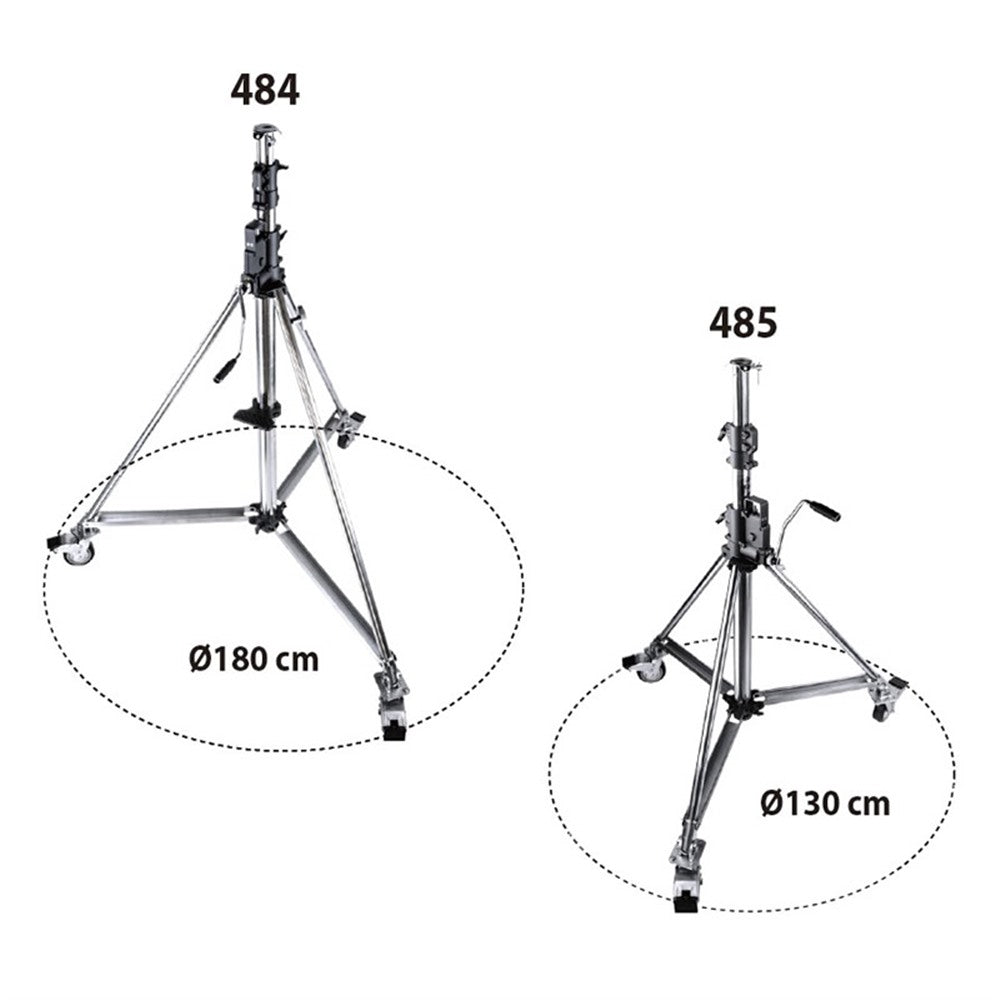

  • 484 - Heavy Duty Wind-Up Stand footprint size comparison
  • 484 - Heavy Duty Wind-Up Stand slip-free crank handle detail
  • 484 - Heavy Duty Wind-Up Stand 28 mm socket detail
  • 484 - Heavy Duty Wind-Up Stand auto self-locking device detail

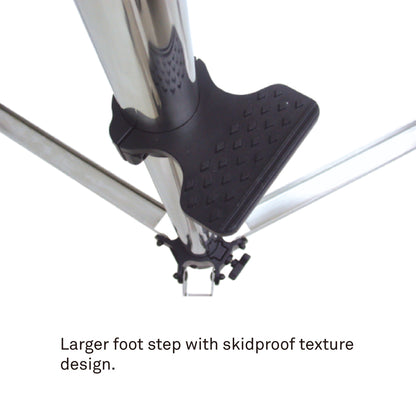

  • 484 - Heavy Duty Wind-Up Stand skidproof foot step detail
  • 484 - Heavy Duty Wind-Up Stand U-shaped stainless steel strut detail
1 7
View full details

Product Description

Overview

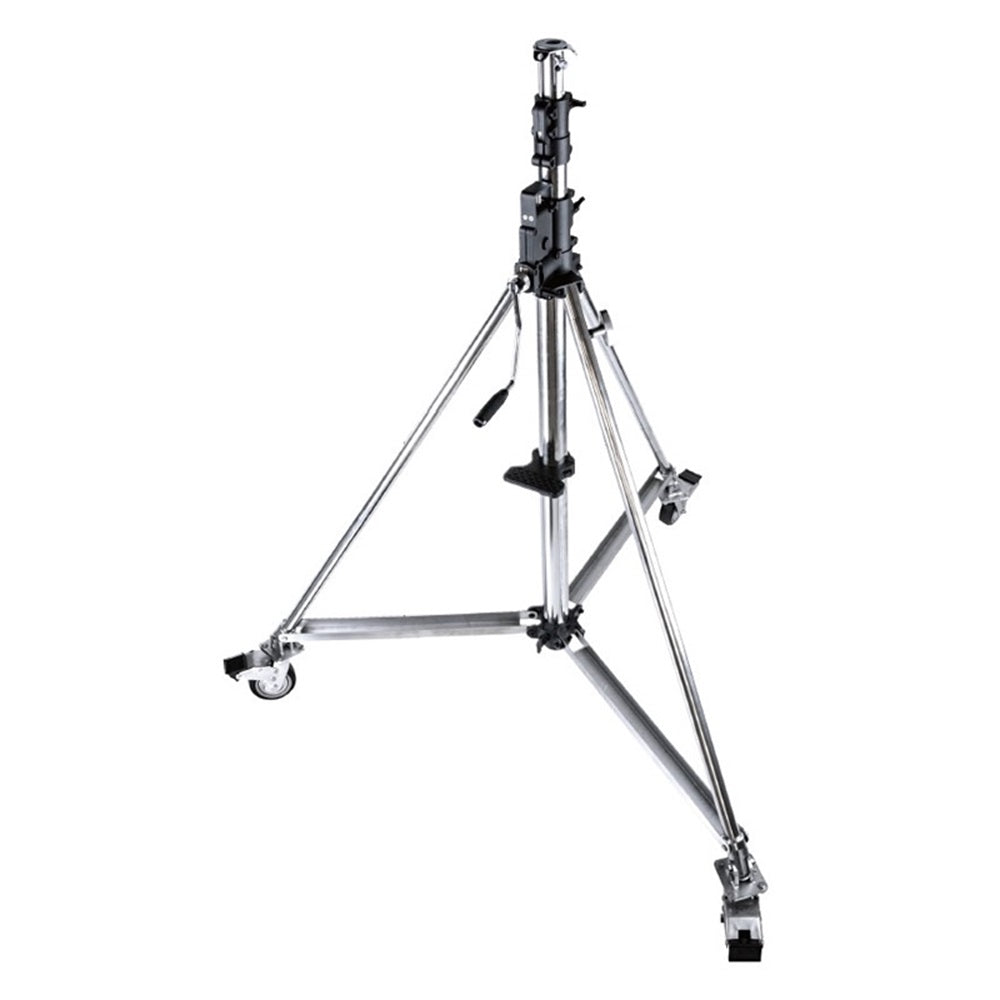

The KUPO 484 is a heavy-duty wind-up stand for large fixtures and production equipment that need real lifting capacity, a high working range, and controlled movement on braked casters. With two risers, three sections, an 80 kg loading capacity, stainless steel leg structure, chrome-plated steel columns, and a 28 mm junior receiver, it is built for serious stage and studio loads.

Why It Matters

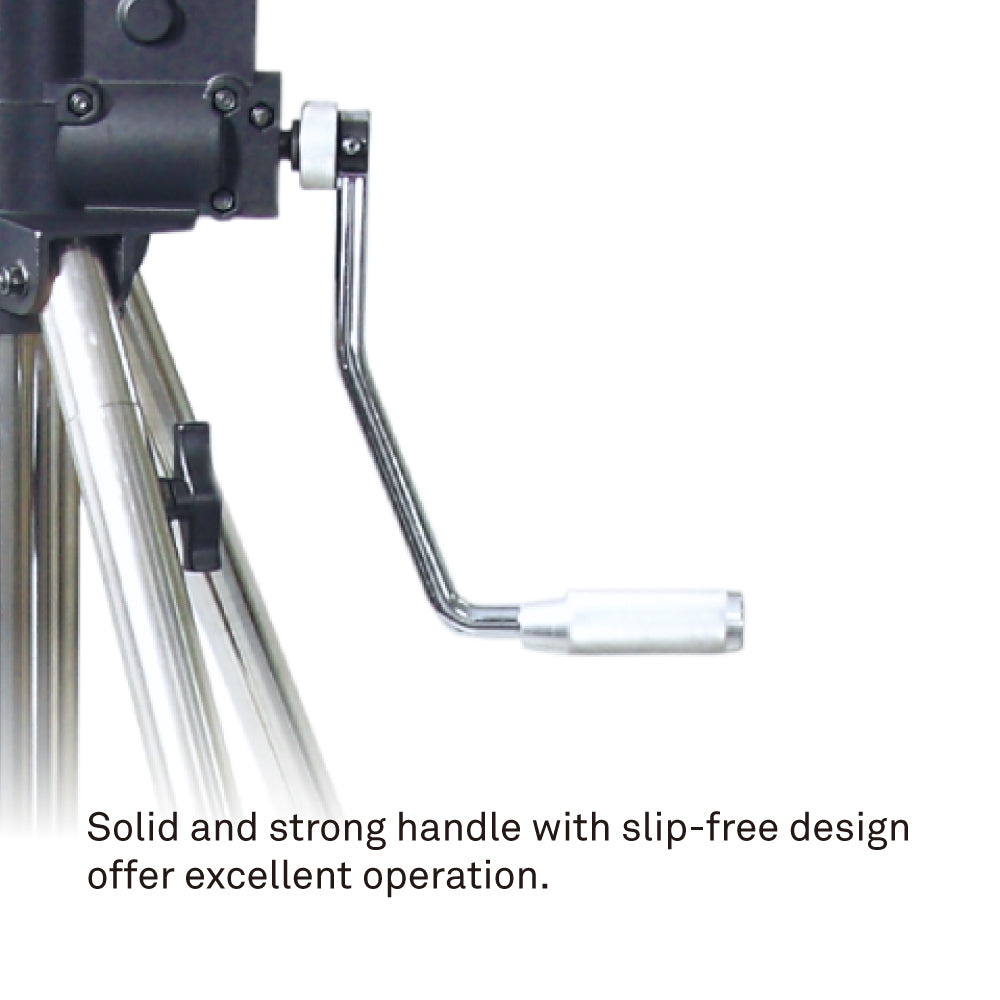

Heavy fixtures are awkward before they are dangerous. The 484 reduces that awkward moment by combining crank-assisted lift, an automatic self-locking mechanism, a patented auto-insert safety pin, and braked casters, so the crew can position and raise the load with more control.

Key Features

  • Two-riser wind-up design extends from 179 cm to 386 cm, giving useful height for large fixtures and overhead positions
  • 80 kg loading capacity supports heavier luminaires, yokes, and production hardware without treating the stand as a light-duty support
  • Patented auto-insert safety pin engages the center tube during wind-up, adding a visible mechanical safety point
  • 28 mm receiver includes three side holes for a wind bracing kit when additional stabilization is required
  • Supplied braked caster setup helps the stand move into position before final lockoff

Height Range & Reach

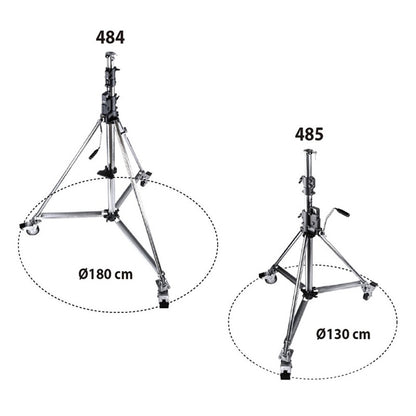

The 484 is the taller heavy-duty option in this wind-up family. It gives more reach than the low-base 485 while retaining the same 80 kg load class.

  • Height range: 179 to 386 cm
  • Closed length: 196 cm (77.2")
  • Sections: 3 sections, 2 risers
  • Column diameters: 70 mm, 60 mm, 50 mm
  • Maximum load: 80 kg (176.3 lb); self-weight 39 kg (86 lb)

Additional Technical Notes

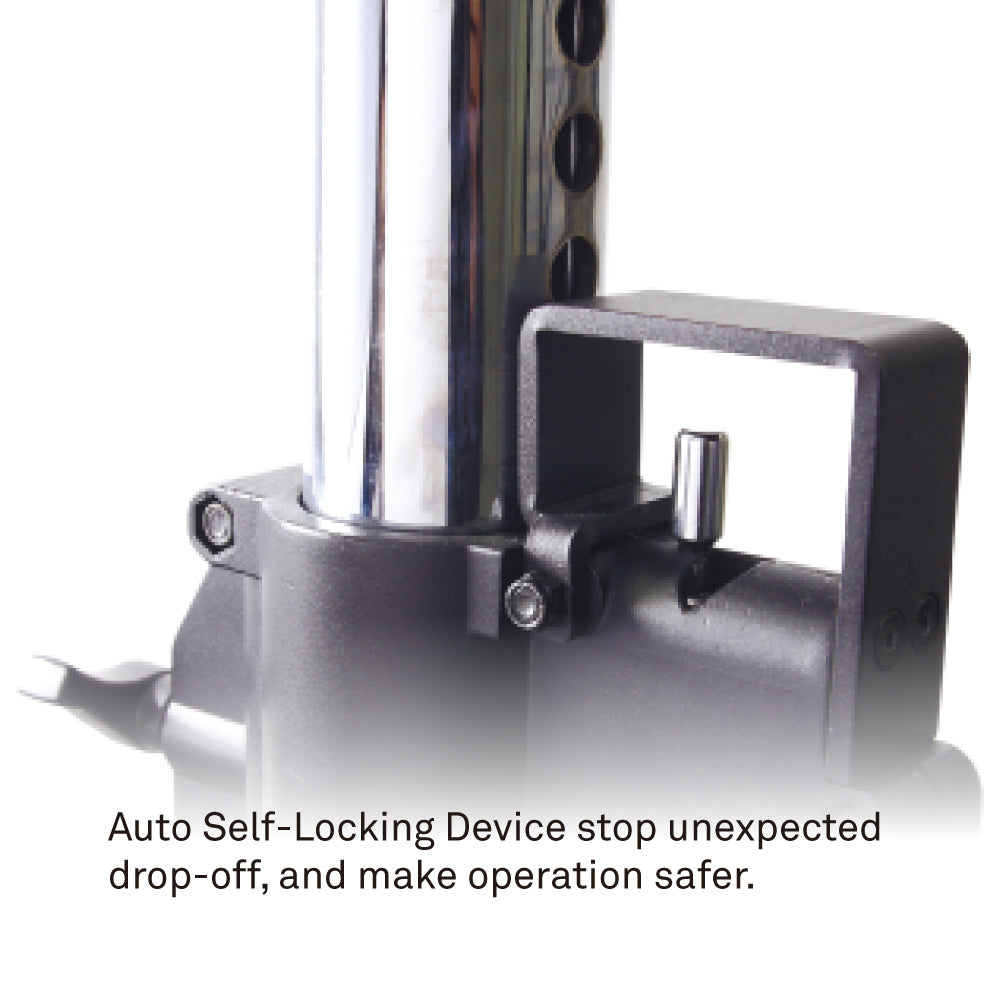

  • Safety: Automatic self-locking mechanism; patented auto-insert safety pin

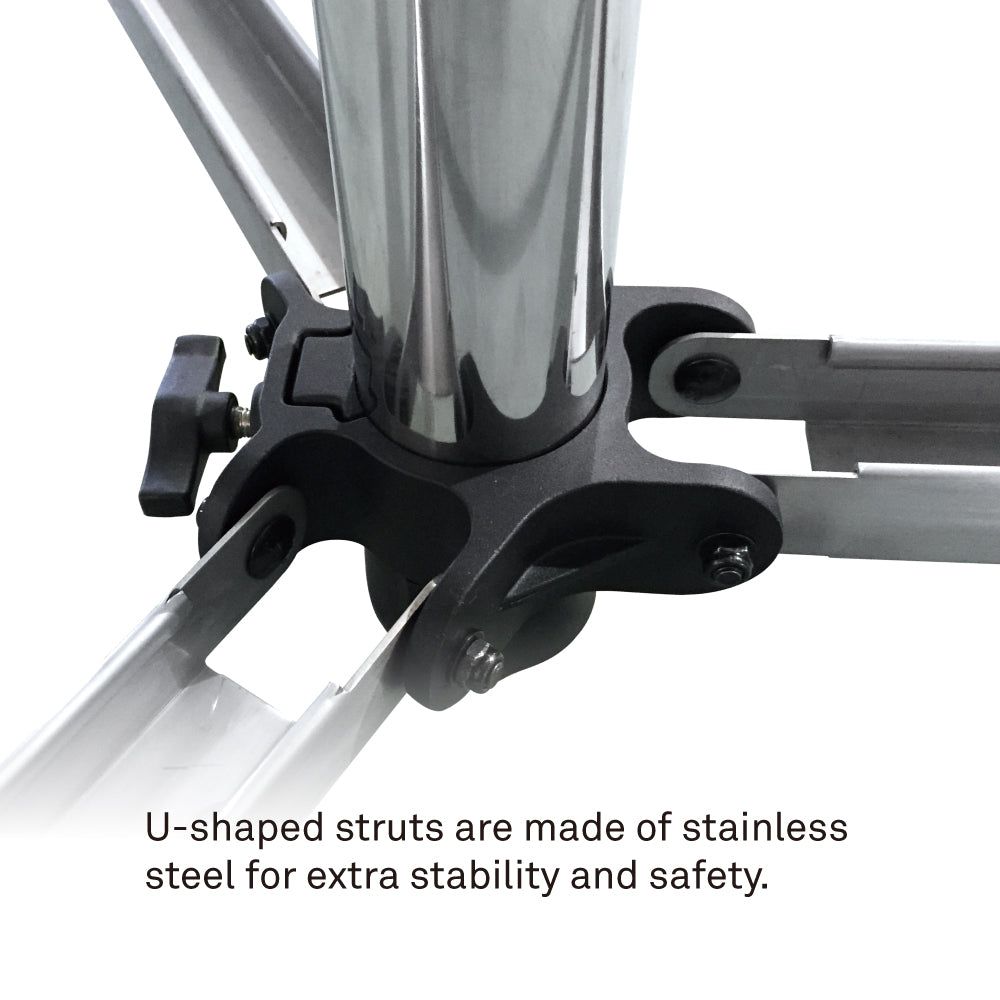

  • Construction: Stainless steel legs with chrome plated steel column
  • Column Diameters: 70 mm, 60 mm, 50 mm
  • Leg Diameter: 35 mm

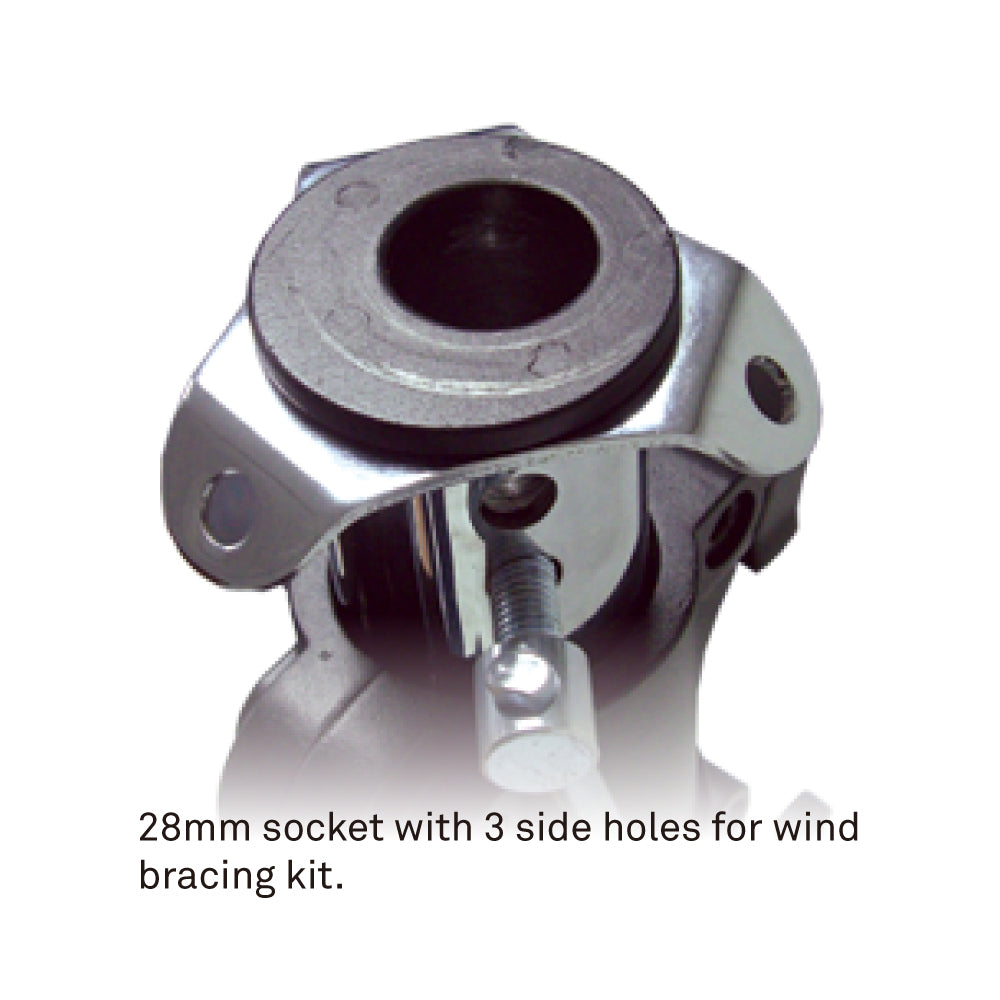

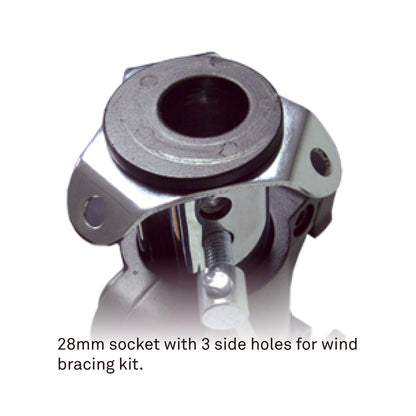

  • Bracing: 28 mm socket with 3 side holes for wind bracing kit
  • Optional Wheel Set: KC-215A pneumatic wheel with adapter plate, 215 mm (8"), set of three

Applications

Use it for large Fresnels, followspots, moving lights, heavy soft sources, scenic hardware, or studio equipment that needs crank-assisted lift and caster-based positioning.

Compatibility

Built around a 28 mm junior receiver with wind-bracing holes. Optional KC-215A pneumatic wheels are available for 484 and 485 stands when the floor or terrain calls for larger wheels.

Frequently Asked Questions

Does the 484 come with brakes on the casters?

Yes. The 484 is listed with braked casters, so the stand can be rolled into position and then locked before lifting or operating the load.

When would I choose the 484 over the 485?

Choose the 484 when height is the priority. It reaches 386 cm, while the 485 is the lower-base version for heavier work in a smaller footprint and lower maximum height.

What are the three side holes near the 28 mm receiver for?

They are designed for a wind bracing kit. Use that provision when the stand needs additional stabilization, especially with larger fixtures or exposed positions.
