Overview

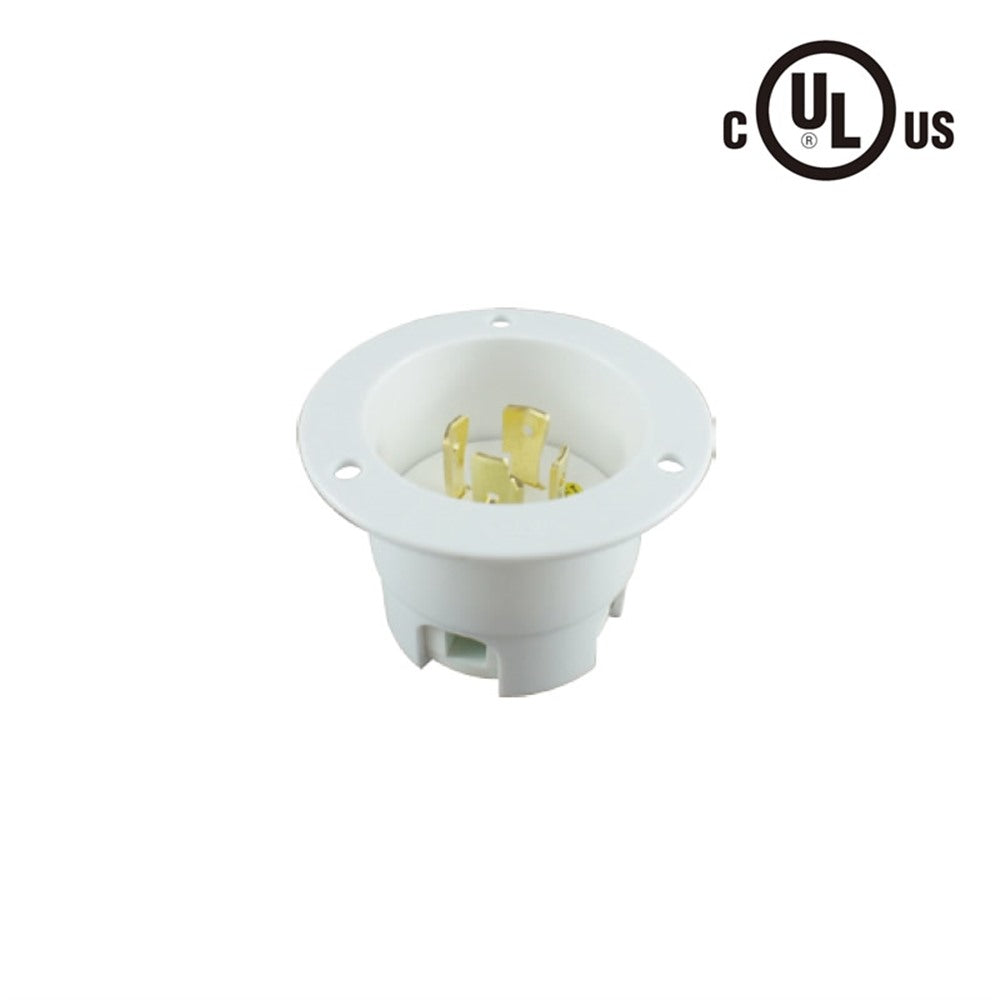

TURN-LOK connectors are the choice for quality electrical demand. UL and UL / cUL Listed, and also made to comply with NEMA 20 A and 30 A configuration. It is constructed of sturdy Nylon, PBT (thermoplastic) and premium grade of copper alloy, ensuring the durability and reliability for power connection. Turn-Lok is available in both receptacles and plugs for voltage AC125/250 V, and covering up the needs for single and three phase applications.
Why It Matters
Locking power connectors are small parts with a large effect on system reliability. ATL-1520 FI gives technicians the correct pin count, current rating, and NEMA configuration for building or maintaining dependable stage and studio power runs.
Key Features
- Ribbed main body for firm and secure gripping.
- Constructed of PBT (thermoplastic) and Nylon for greater impact-resistance and insulation.
- Screw-type cord grip for maximum tightening force.
- Pin: 4
- Current Rating: 20
- Voltage: 250
Specifications
- Pin: 4
- Current Rating: 20
- Voltage: 250
- NEMA: L15-20
- Material: Nylon and PBT (thermoplastic) for line male and female; PBT only for socket receptacle.
- Terminals: 1.8 mm Copper alloy for 30 A line male/female, 1.6 mm copper alloy for 20 A line male / female, 1.2 mm copper alloy for receptacle.
- Terminal screw: #10 screws bronze.
- Wire accommodation: AWG #12 wire (for 20 A connectors) / AWG #10 wire (for 30 A connectors).
Applications
Use it for building, repairing, or maintaining compatible NEMA locking power assemblies in stage, studio, rental, and installation environments.
Compatibility
Match ATL-1520 FI with mating devices that use the same L15-20 configuration, 4-pin layout, 20 A rating, and 250 V class. Use conductors within the listed wire accommodation (AWG #12 wire (for 20 A connectors) / AWG #10 wire (for 30 A connectors).) and check phase, grounding, and local electrical code before wiring it into a stage, studio, rental, or installation power assembly.
