Product Description
Overview

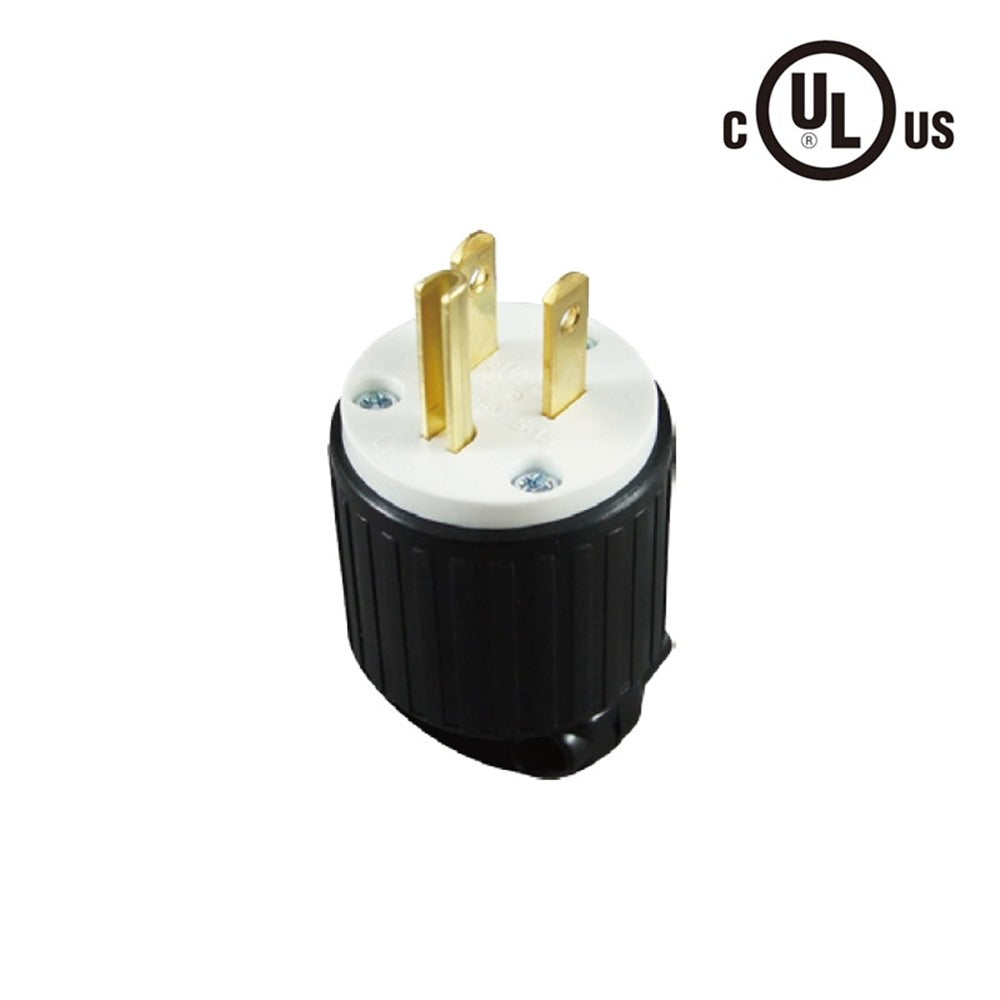

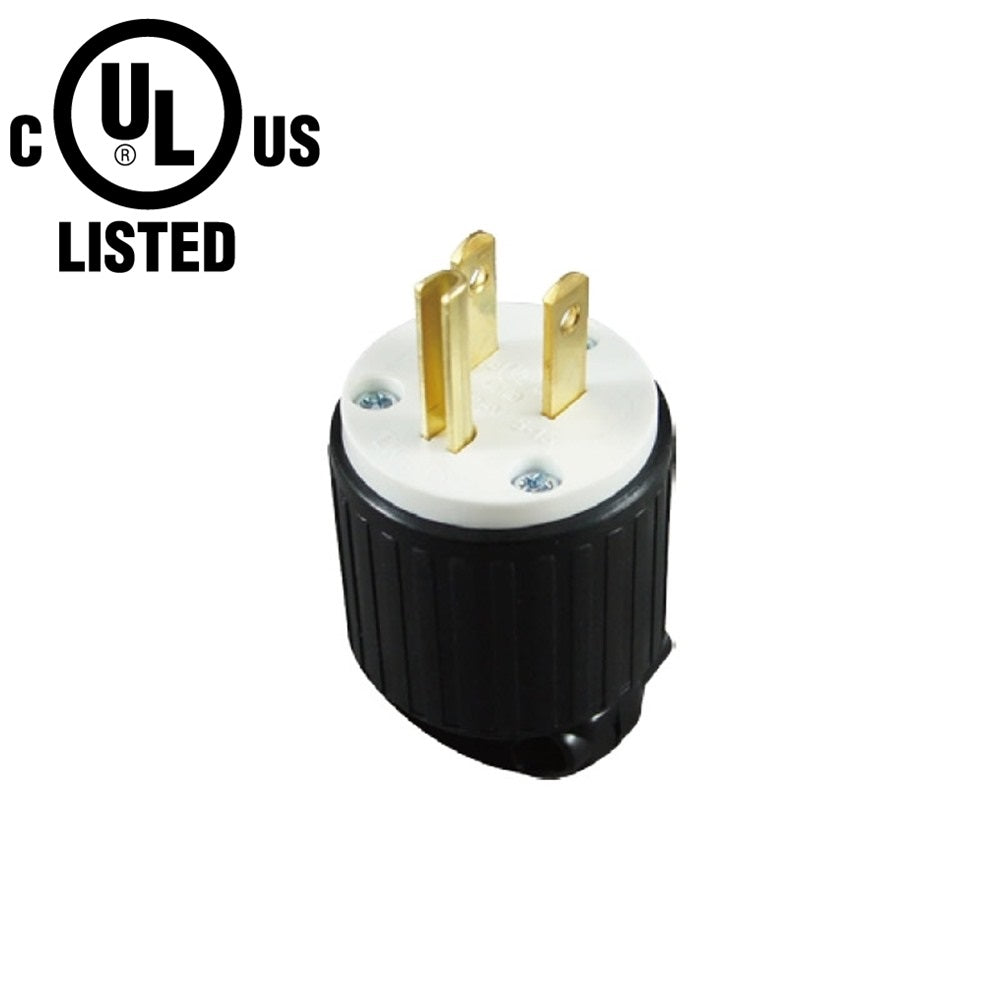

The KUPO ATL-515P uses the NEMA 5-15P configuration and is rated for 15 A at 125 V.
Why It Matters
Power connectors are small parts with a large effect on system reliability. ATL-515P gives technicians the correct pin count, current rating, and NEMA configuration for building or maintaining dependable stage and studio power runs.
Key Features
- Ribbed main body for firm and secure gripping.
- Constructed of PBT (thermoplastic) and Nylon for greater impact-resistance and insulation.
- Screw-type cord grip for maximum tightening force.
Specifications
- Pin: 3
- Current Rating: 15 A
- Voltage: 125 V
- NEMA: 5-15P
- Material: Nylon and PBT (thermoplastic) for line male and female; PBT only for socket receptacle.
- Terminals: 1.8 mm Copper alloy for 30 A line male/female, 1.6 mm copper alloy for 20 A line male / female, 1.2 mm copper alloy for receptacle.
- Terminal screw: #10 screws bronze.
- Wire accommodation: AWG #14
Applications
Use it for building, repairing, or maintaining compatible NEMA power assemblies in stage, studio, rental, and installation environments.
Compatibility
Match ATL-515P with mating devices that use the same 5-15P configuration, 3-pin layout, 15 A rating, and 125 V class. Use conductors within the listed wire accommodation (AWG #14) and check phase, grounding, and local electrical code before wiring it into a stage, studio, rental, or installation power assembly.
Frequently Asked Questions
What configuration does ATL-515P use?
NEMA 5-15P, 3-pin configuration, 15 A, 125 V.
Is ATL-515P for professional power assemblies?
Yes. It is designed for compatible stage, studio, rental, and installation power assemblies.
Should I check compatibility before wiring?
Yes. Always match the connector to the required NEMA configuration, cable size, phase, and local electrical practice before assembly.
