Overview

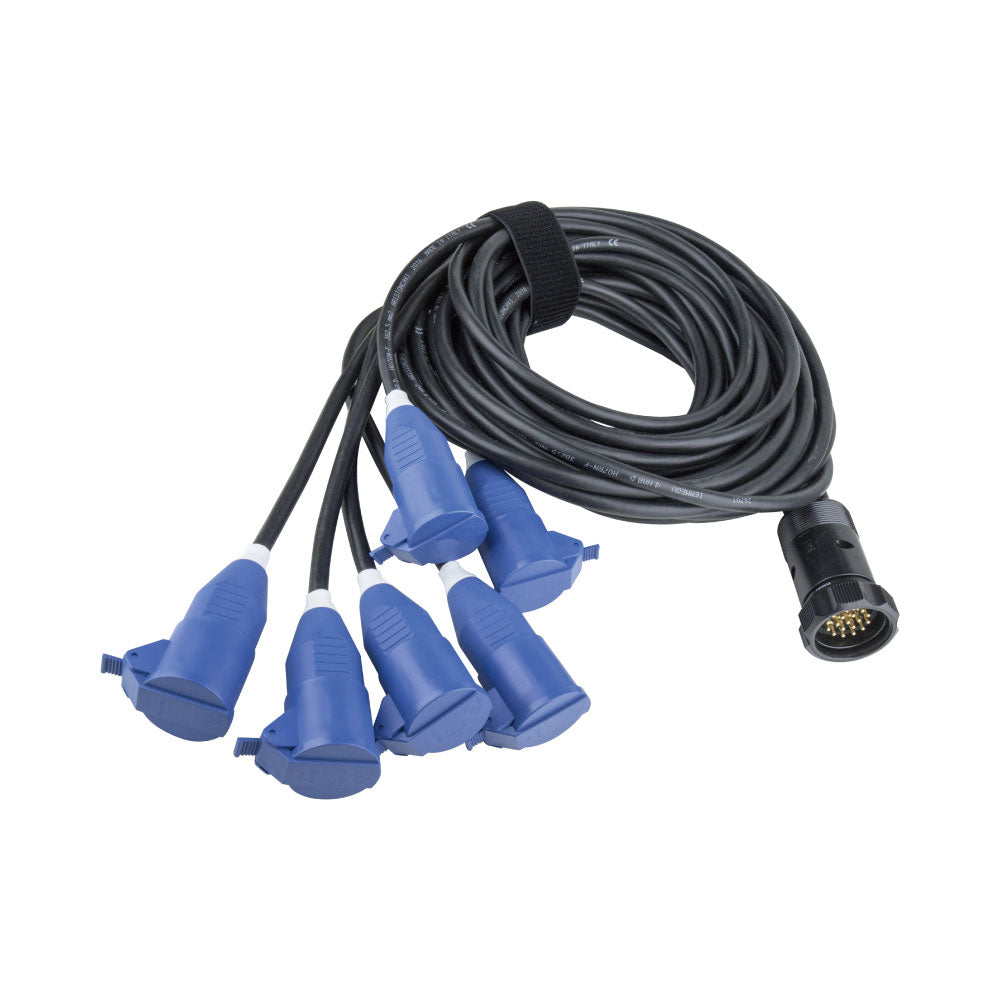

The KUPO BK3/1.5-1.2-SCHUKO is a 19-pin Soca break-out cable assembly that fans one multicore input into six individual 1.2 mm output legs terminated with Schuko 13 A connectors. It is built with 3 x 1.5 mm² H07RN-F rubber cable, giving touring and venue crews a rugged break-out option for compact six-circuit power distribution.

Why It Matters

Break-out cables sit at the point where a clean multicore run becomes individual fixture feeds. BK3/1.5-1.2-SCHUKO keeps that transition organized, with H07RN-F rubber cable that stays supple under production handling while resisting oil, grease, weather, and common industrial stress.

Key Features

• 19-pin Soca input fans out to six individual output legs for organized six-circuit distribution
• Each 1.2 mm leg is terminated with Schuko 13 A connectors for the specified fixture or distro standard
• 3 x 1.5 mm² H07RN-F rubber cable provides flexibility and rugged jacket performance
• 450 / 750 V working voltage supports professional temporary power cable assembly use
• RoHS and IEC/EN 60332-1-2 compliance reference supports production and installation documentation

Applications

Use it for stage lighting breakouts, truss or floor distro, touring cable packages, venue multicore runs, rental-house cable inventories, and equipment feeds where a 19-pin Soca input needs six individual output circuits.

Compatibility

Built as a Break-Out cable with one 19-pin Soca input from the PLS-5219 family and six output legs. Match the output connector type, voltage, current, cable cross section, and system wiring plan before use.
