Overview

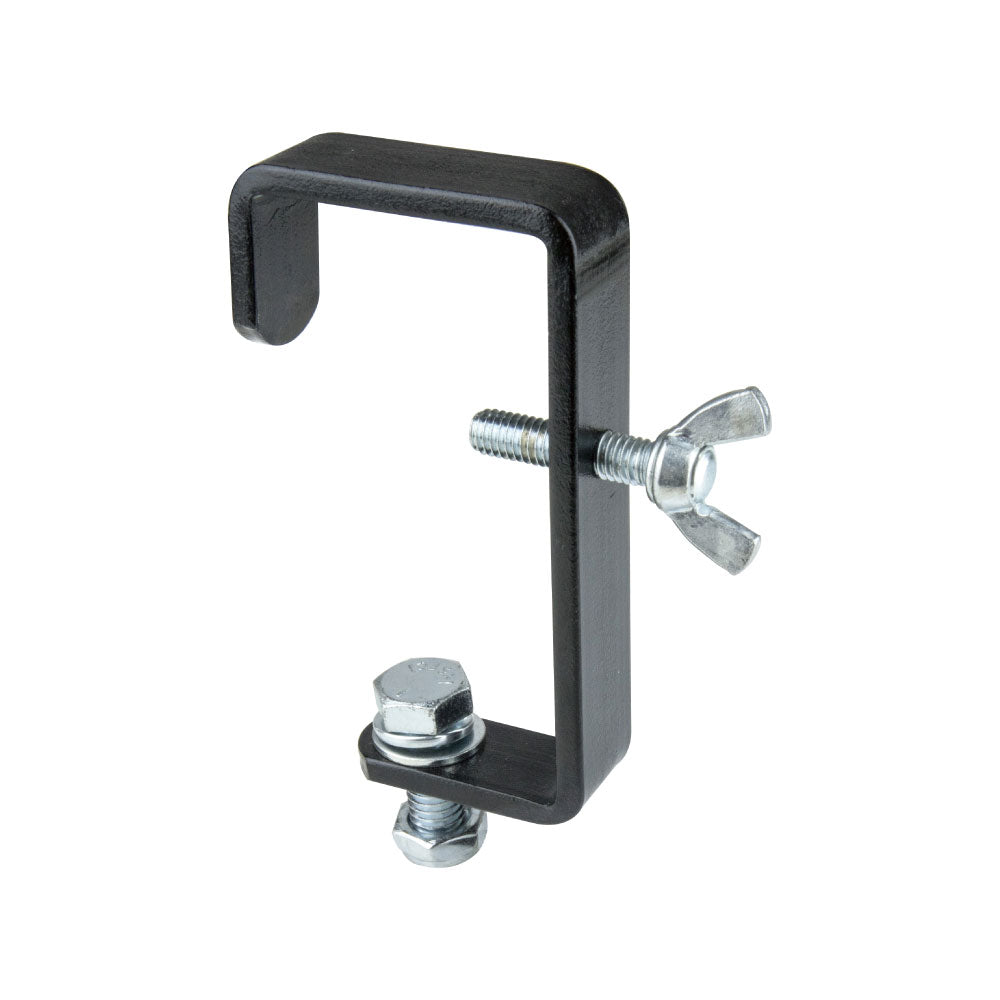

The KUPO C-02BN is a black wing-bolt stage clamp from the C-02 family, built from 6 mm x 25 mm rolled steel for standard 48 to 51 mm barrels or truss tubes. It omits the protective tab for a faster, slightly simpler clamp body while keeping the 40 kg Working Load Limit.
Why It Matters
Not every pipe needs pampering. On touring truss and already-worn bars, crews often want the black finish, the standard C-02 grip, and one less part between clamp and tube. The C-02BN is that straightforward working version.
Key Features
- Wing bolt tightening gives a simple, field-familiar way to lock onto standard stage tube
- No protective tab keeps installation direct on worn touring truss and rental pipe
- 48 to 51 mm tube range covers common 2" barrels and truss chords
- 6 mm x 25 mm rolled steel body carries the C-02 family workhorse construction
- Black powder coat reduces visual distraction in theaters, TV studios, and event grids
Applications

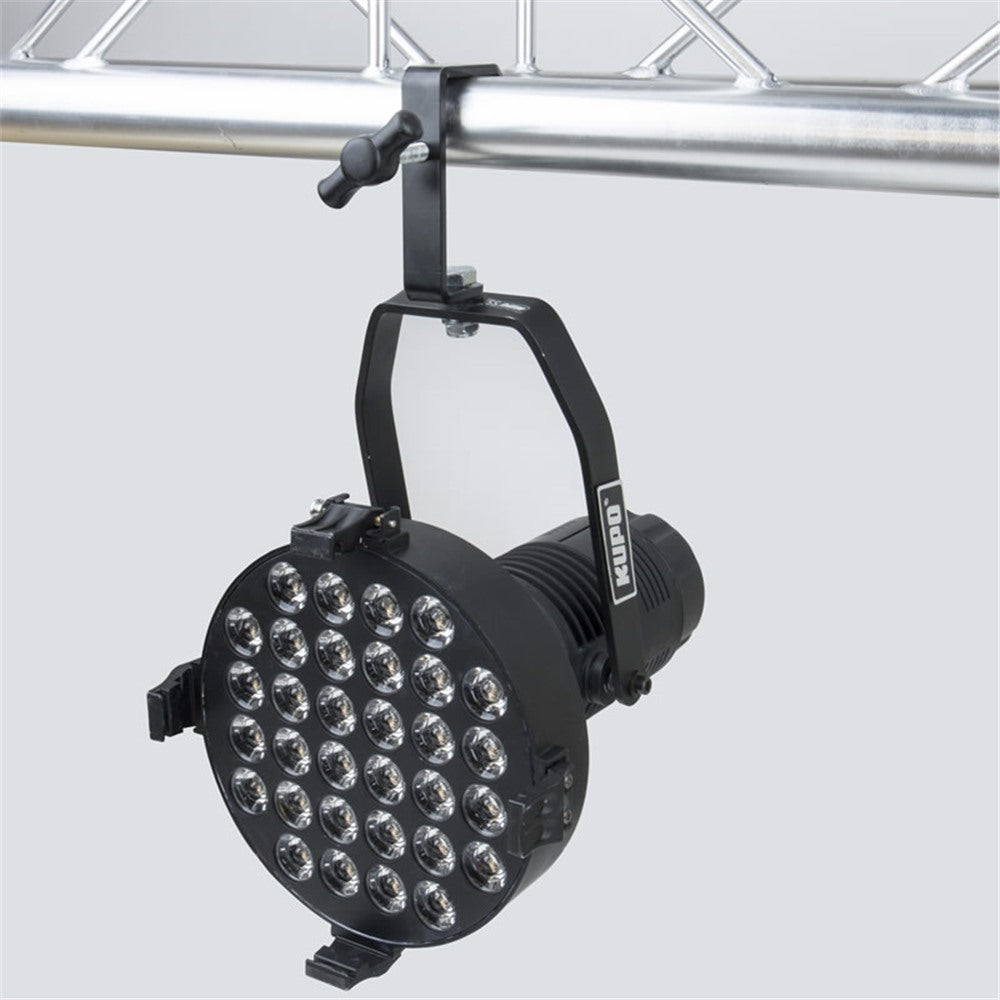

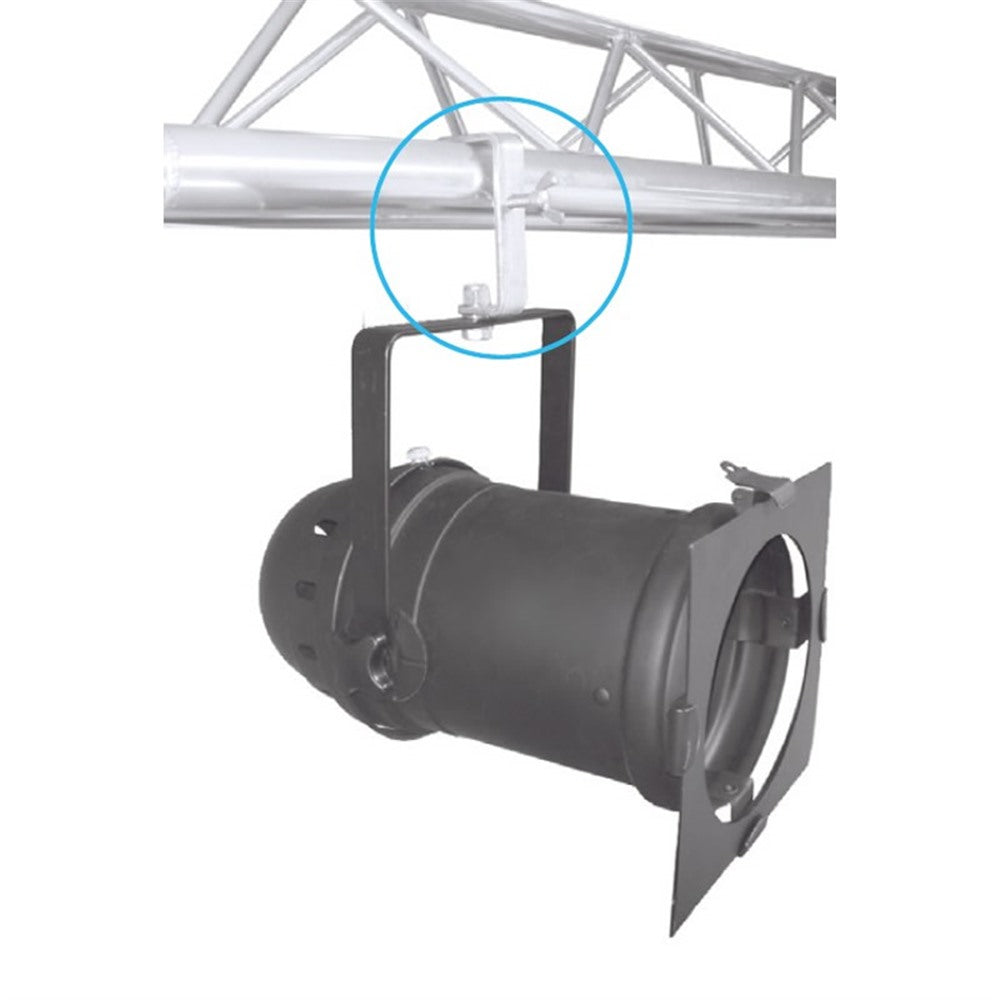

Built for live events, theaters, rental shops, and broadcast grids where fixtures are mounted to standard 2" tube and the truss finish does not need tab protection.
Compatibility

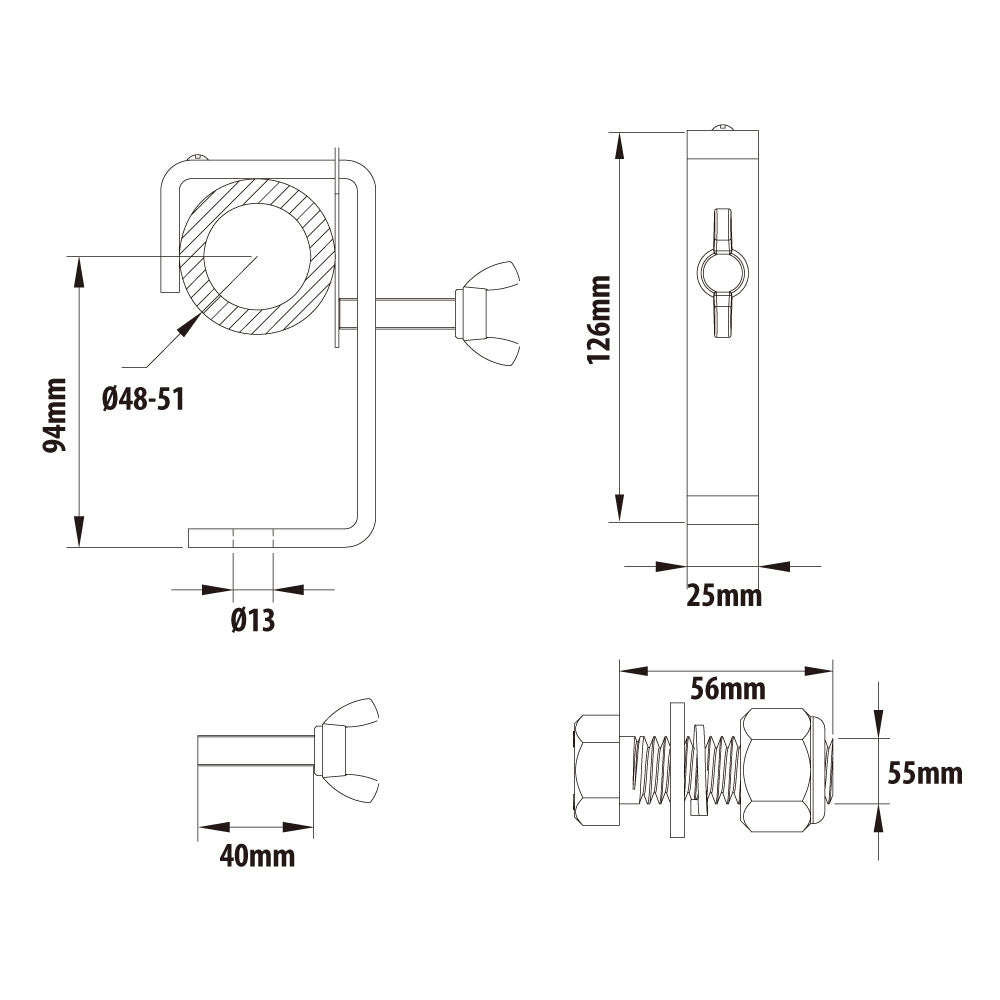

Fits 48 to 51 mm tube and uses an M12 bolt with nylon nut. It is part of the full C-02 family covering wing bolt, T-handle, protective tab, non-tab, silver, and black versions.
