Overview

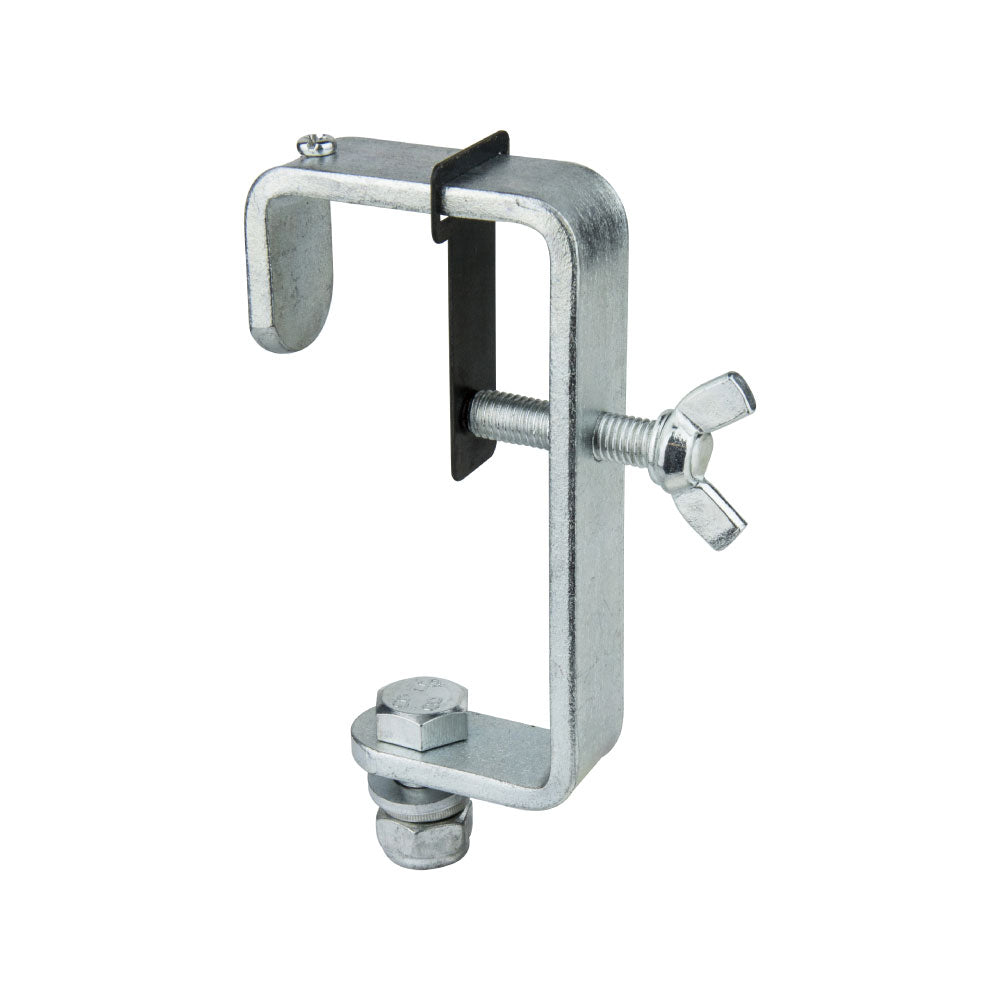

The KUPO C-02N-P Stage Clamp is a silver C-02 family clamp for standard 48 to 51 mm barrels and truss tubes. Built from 6 mm x 25 mm rolled steel with an M12 bolt and nylon nut, this wing-bolt version is rated to a 40 kg Working Load Limit and comes with protective tab.
Why It Matters
The protective tab gives crews a cleaner choice on painted truss, permanent bars, and any venue where tube finish matters after the show comes down. The wing-bolt control gives the operator a familiar way to tighten the clamp while the C-02 body keeps the fixture hang consistent across a mixed stage inventory.
Key Features
- Wing Bolt tightening gives crews a compact, familiar control for routine fixture hanging
- Protective tab reduces finish damage on painted tube and visible lighting bars
- 48 to 51 mm tube range targets standard 2" stage barrels and truss chords
- 40 kg Working Load Limit supports properly sized fixtures when the rig is loaded within spec
- Silver galvanized finish suits general rental, touring, and venue inventories
Applications

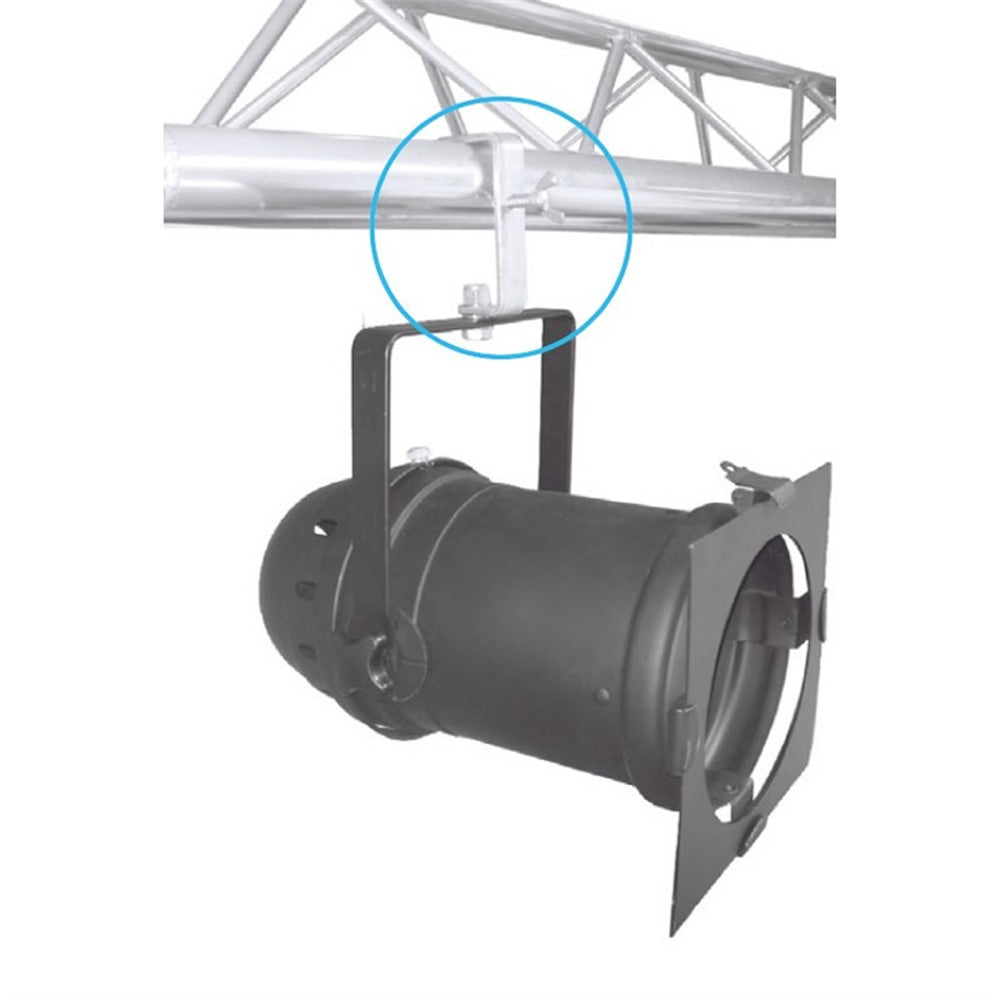

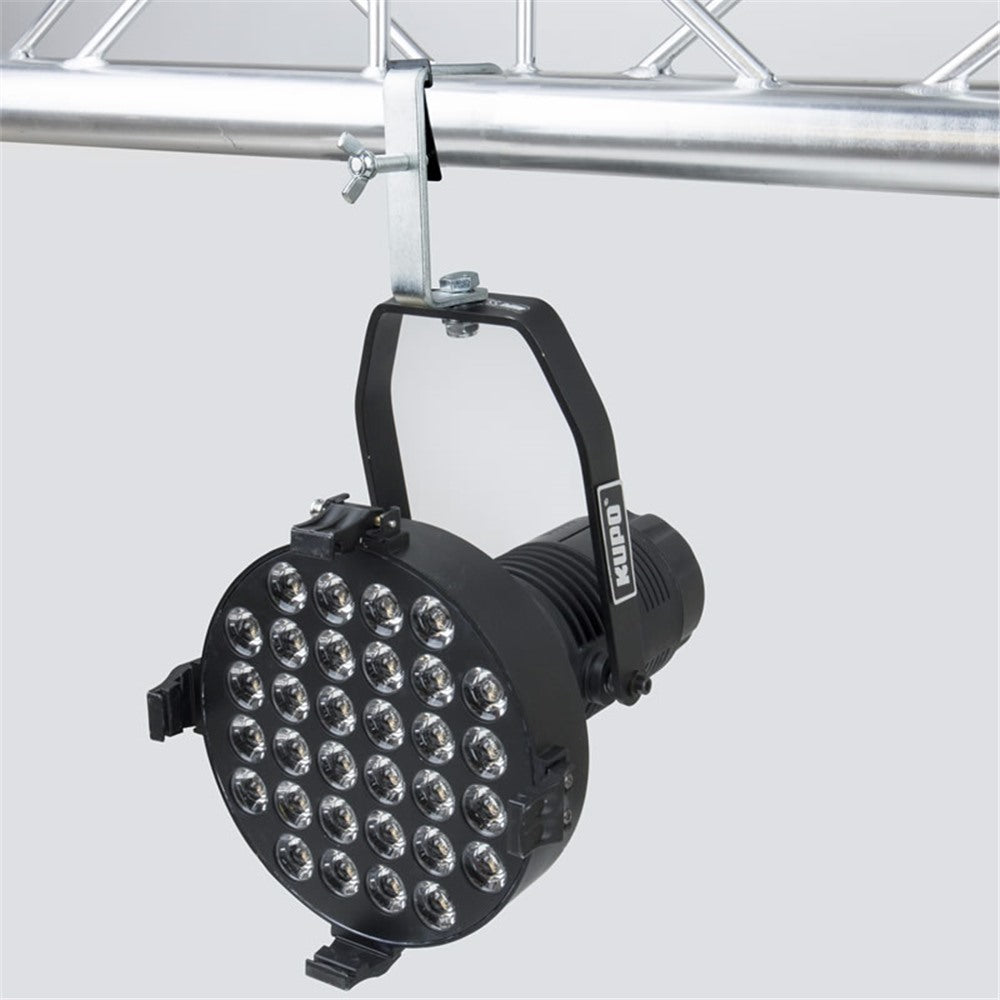

A workhorse clamp for theaters, concert rigs, broadcast grids, rental shops, and venue installs where fixtures need to lock to standard 2" tube with a wing-bolt control.
Compatibility

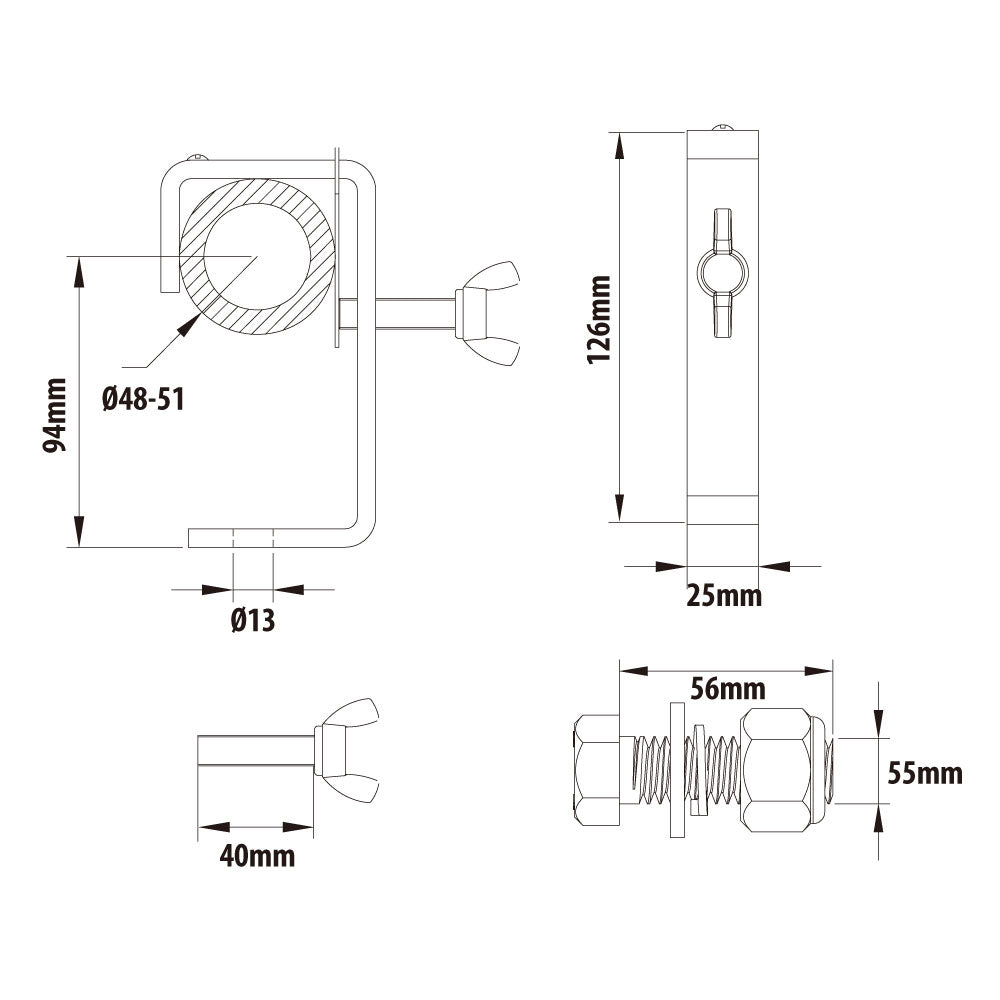

Fits 48 to 51 mm outside and uses an M12 bolt with nylon nut. It belongs to the full C-02 family of wing-bolt, T-handle, tabbed, non-tabbed, silver, and black versions.
