Overview

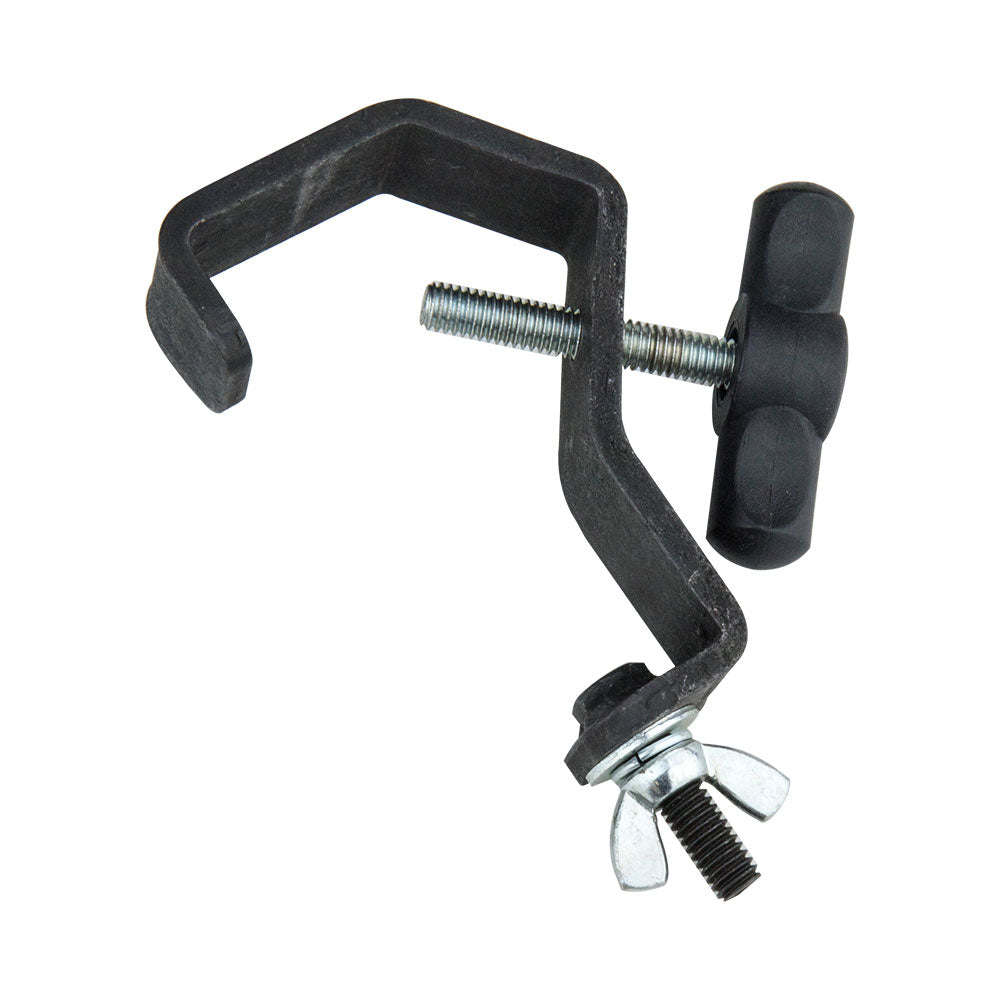

The KUPO C-03 Steel Hook Clamp is a full-size black G clamp made from 6 mm x 32 mm rolled steel for theatrical and stage fixture hanging. It fits 30 to 51 mm tube, uses a T-handle pipe bolt for grip, and includes a welded 3/8"-16 yoke bolt with wing nut for fast luminaire attachment.
Why It Matters
The C-03 is the straightforward full-size clamp for conventional fixtures. It gives crews a bigger steel body than compact clamps, a glove-friendly T-handle, and the familiar 3/8"-16 yoke bolt used across Par cans, fresnels, and older stage stock.
Key Features
- 6 mm x 32 mm rolled steel construction gives the clamp a rigid full-size body for stage use
- T-handle pipe bolt offers an easy grip when tightening onto standard tube
- 30 to 51 mm tube range covers common 2" pipe and many lighting bars
- Welded 3/8"-16 yoke bolt with wing nut speeds fixture attachment
- Black finish keeps the clamp visually quiet in overhead rigs
Additional Technical Notes

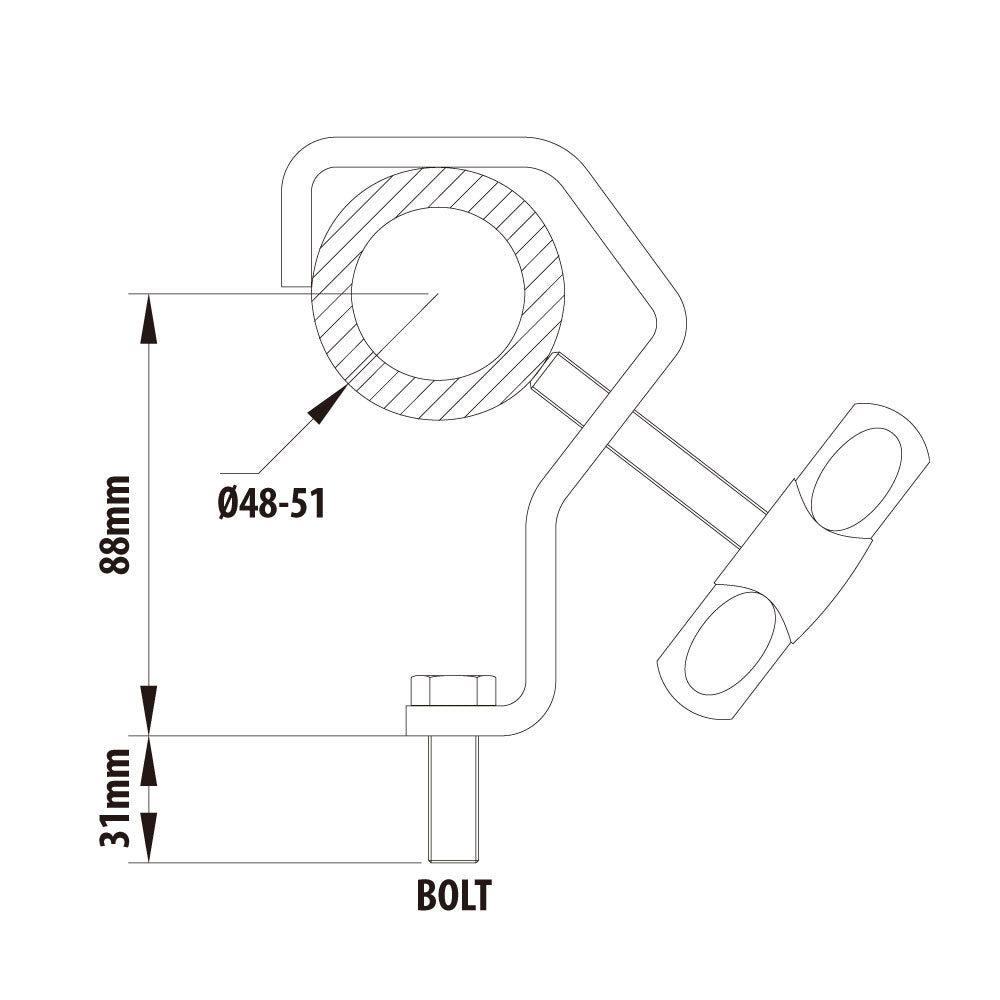

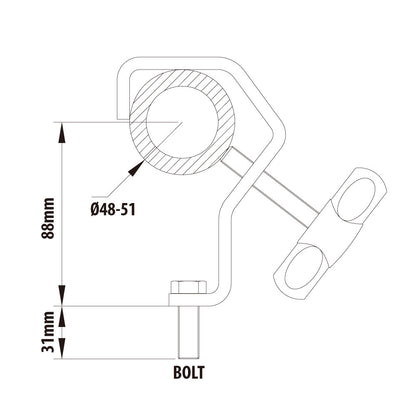

- Dimensions: 88 mm x 31 mm
Applications
Built for theaters, studios, event venues, school stages, and rental inventories hanging Par cans, fresnels, and conventional fixtures from standard pipe or square tube.
Compatibility
Fits 30 to 51 mm outside and fixtures using a 3/8"-16 yoke bolt. C-03S is the smaller sibling for 1.5" tube.
