C-04 - Steel Hook Clamp

Name: C-04 - Steel Hook Clamp
Brand: KUPO Stage

1 2

Product Description

Overview

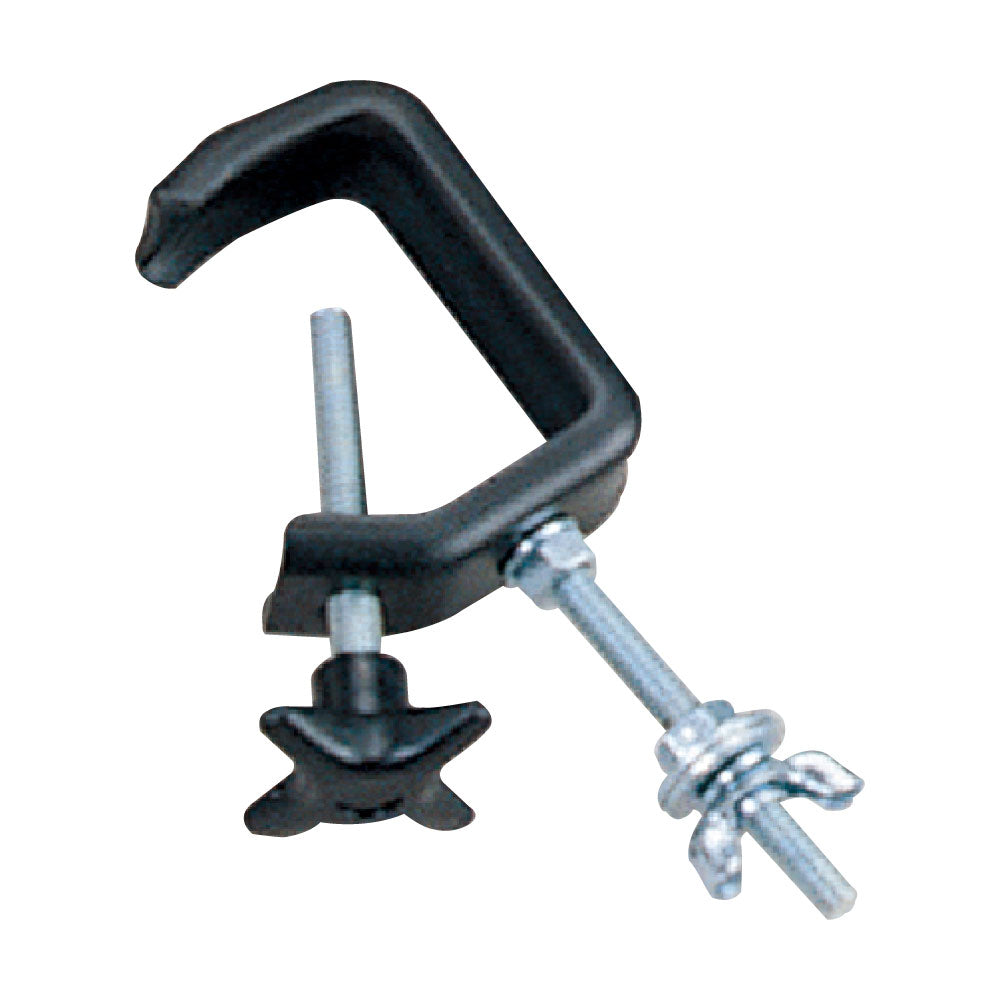

The KUPO C-04 Steel Hook Clamp is a compact black G clamp for lightweight fixtures on 25 to 51 mm tube. With a 10 kg working load limit, 190 g body weight, and M8 x 75 mm bolt, it is aimed at small pin spots, DJ effects, and other compact units rather than heavy stage luminaires.

Why It Matters

Small fixtures still need proper hardware. The C-04 gives crews a light, simple clamp that can fit into crowded lighting bars or compact DJ rigs without bringing the size and weight of a larger theatre C clamp.

Key Features

25 to 51 mm tube range covers common small lighting bars and support tubes
10 kg working load limit keeps the clamp clearly positioned for compact fixtures
190 g clamp weight makes it easy to carry in quantity for small-rig builds
Black standard finish helps the clamp stay visually discreet in entertainment environments

Applications

Use it for pin spots, DJ effect lights, small practical fixtures, and lightweight hardware positions where the load, tube size, and safety method are all within the clamp rating.

Compatibility

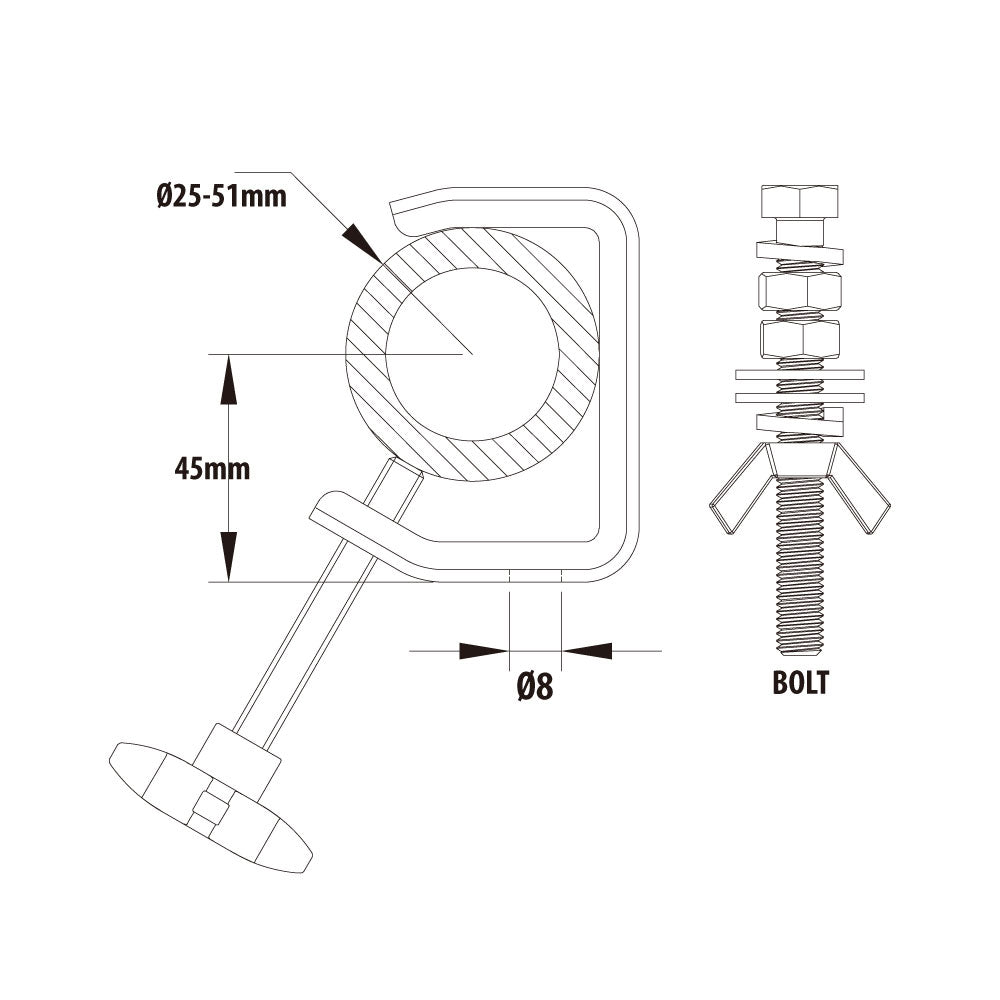

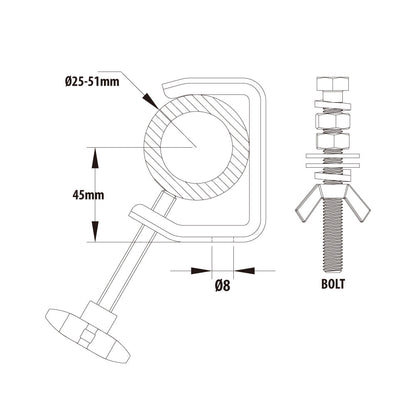

Fits 25 to 51 mm and uses an M8 x 75 mm bolt. Always match the clamp to the fixture weight, attachment method, and required secondary safety.

Frequently Asked Questions

What kind of fixture is C-04 meant for?

It is meant for small fixtures such as pin spots or DJ effects. The 10 kg working load limit should be treated as the upper boundary, not a target to exceed.

Will C-04 fit a 50 mm lighting tube?

Yes, the listed range is 25 to 51 mm , so a 50 mm tube is within the listed range when the tube and clamp condition are suitable.

Is this the right clamp for a moving light?

Usually no. Moving lights and larger luminaires typically need a higher-rated clamp and a fixture-specific attachment method.
