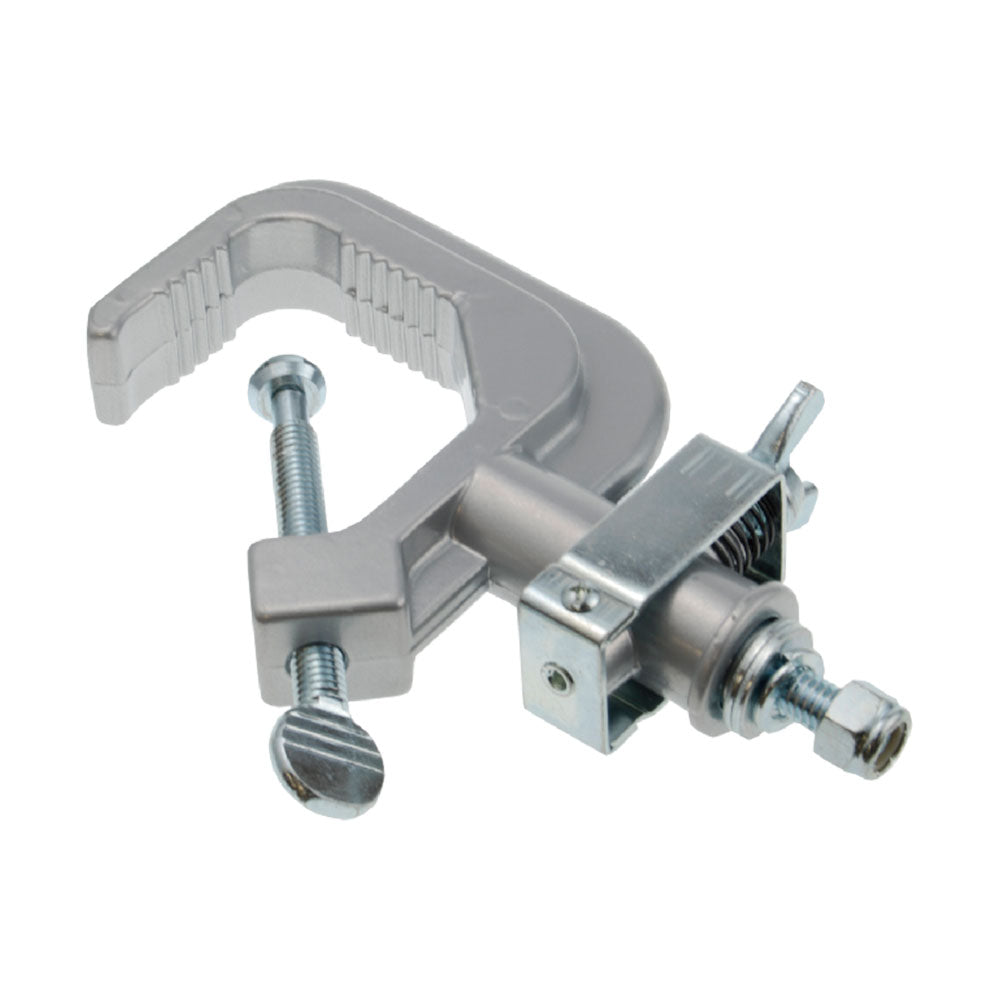

The KUPO C-05QP Quick Release Aluminum Alloy Hook Clamp is a lightweight die-cast clamp for Par cans and smaller conventional fixtures on 30 to 51 mm tube. It uses a 17 mm Dabo spigot, a 3/8"-16 yoke bolt, and a spring-loaded quick release collar for practical stage handling.
Why It Matters
This is the C-05 for crews who change fixtures often. The quick release collar speeds up focus calls and load-outs while keeping the same lightweight aluminum body that makes the standard C-05 easy to carry in quantity.
Key Features
Aluminum die-cast body keeps the clamp light for large fixture inventories and repeated handling
Spring-loaded quick release collar captures the spigot for faster fixture swaps
30 to 51 mm tube fit covers common lighting bars and truss tube used for small fixtures
3/8"-16 yoke bolt supports common Par can and conventional fixture yokes
40 kg Working Load Limit keeps the speed feature inside a clear rated envelope
Additional Technical Notes

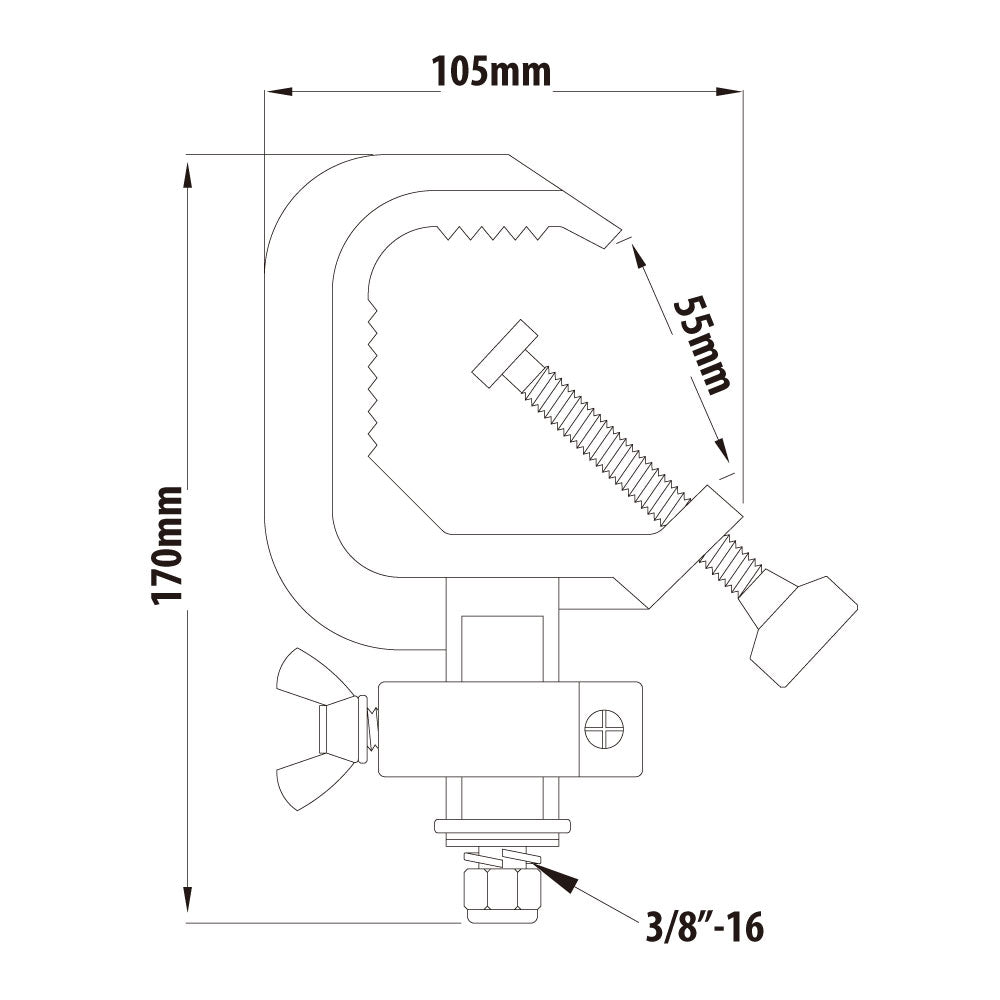

Dimensions: 105 mm x 170 mm x 55 mm
Applications
Designed for Par cans, birdies, compact conventional fixtures, DJ effects, small stage lights, and venue grids where low clamp weight and fast handling matter.
Compatibility
Fits 30 to 51 mm outside and works with fixtures using a 3/8"-16 yoke bolt. Sister products C-05 and C-05B use the standard non-quick-release body.
Frequently Asked Questions
Does quick release mean the clamp does not need tightening?
No. The quick release feature captures and releases the fixture spigot. The clamp still needs to be tightened properly to the pipe before use.
Will it fit standard 2" tube?
Yes, if the tube falls inside the listed 30 to 51 mm outside diameter range. Measure nonstandard pipe before ordering a full rig quantity.
When does the quick release version save real time?
It saves time when fixtures are swapped repeatedly during focus, maintenance, rental prep, or strike. For fixed installs, the standard C-05 may be enough.
