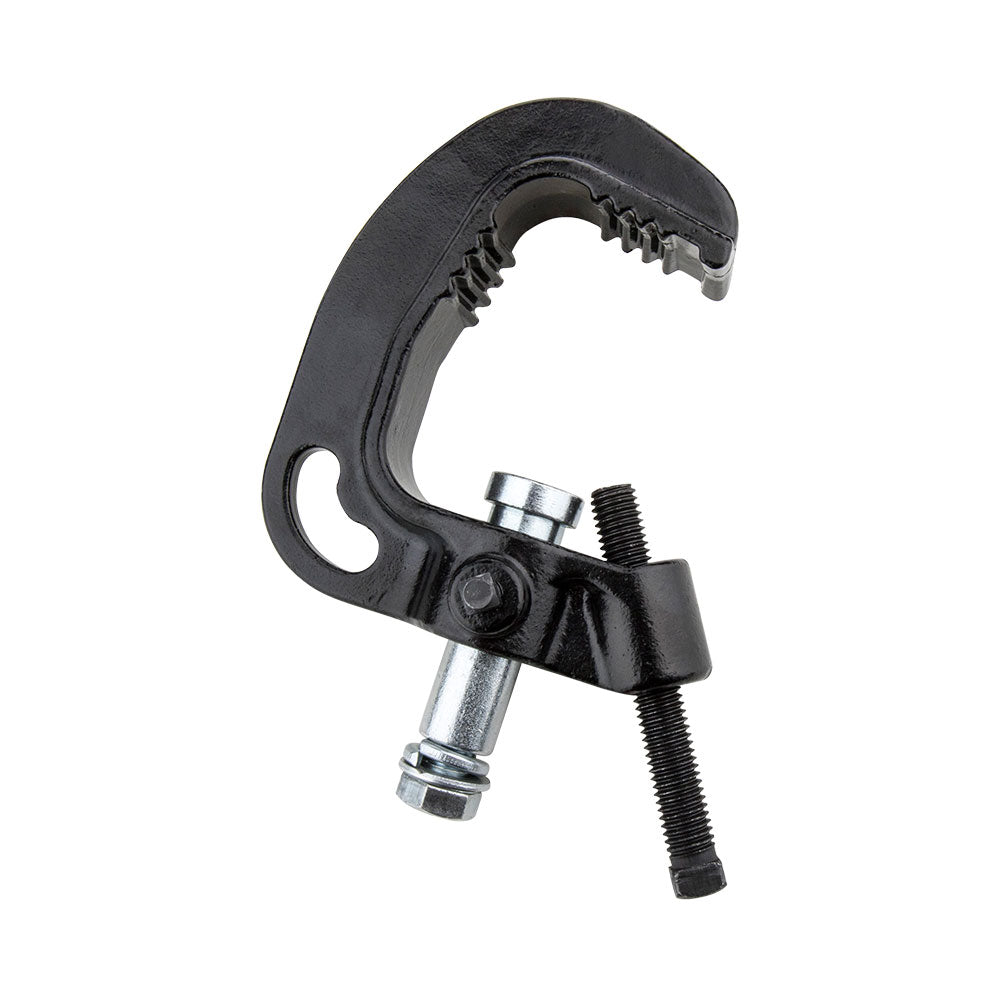

The KUPO C-06T Titan Iron Casting Clamp is the wider-range version of the iron casting C clamp family. It fits 38 to 65 mm outside , carries a 100 kg working load limit, and uses a 3-1/2" steel shaft with 1/2-13 bolt and washer for fixture attachment.
Why It Matters
The practical reason to choose the Titan version is clearance and tube range. Its longer shaft and wider 38 to 65 mm capacity give crews more room around larger pipes or fixture yokes, while the built-in bonding position keeps the safety-wire path in the conversation from the start.
Key Features
38 to 65 mm tube range covers larger pipe than the standard C-06 model
3-1/2" steel shaft provides extra yoke clearance where spacing matters
100 kg working load limit supports heavier theatre fixtures within the rated system
Bonding position on the main body gives a defined location for safety wire anchoring
Additional Technical Notes

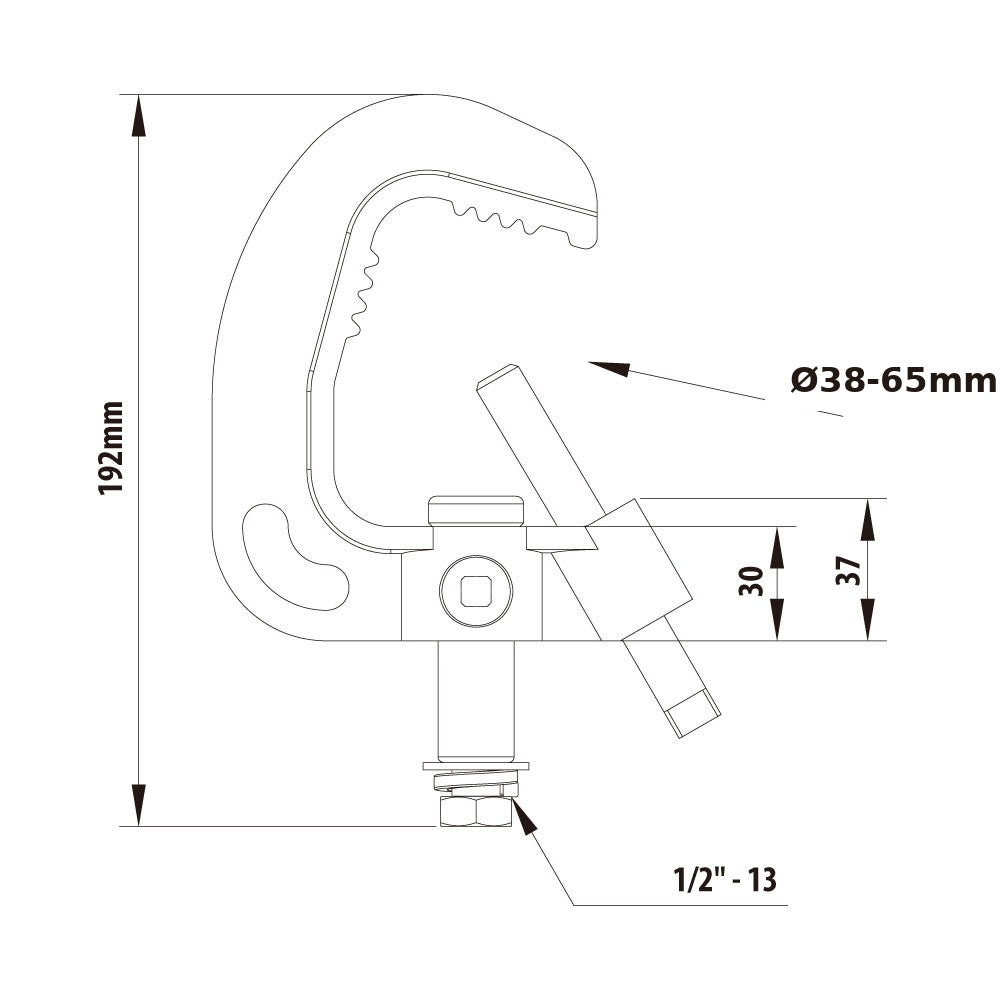

Tube Fit: 38 to 65 mm outside diameter, 1-1/2" to 2-1/2" tube
Applications
Use it for theatre, studio, and venue luminaires that need a rugged C clamp on 1-1/2" to 2-1/2" pipe, especially where the standard shaft length feels tight.
Compatibility
Fits 38 to 65 mm outside . Use normal C-clamp tightening practice and avoid over-tightening the pipe bolt on a batten.
Frequently Asked Questions
When should I choose C-06T over C-06?
Choose C-06T when the pipe is larger, the yoke needs more clearance, or the job benefits from the longer 3-1/2" shaft.
Does C-06T have a place for a safety wire?
Yes. The main body includes a bonding position for safety wire anchoring, which helps keep secondary safety planning clear.
Is the working load higher than C-06?
No. Both are listed at 100 kg working load limit. The Titan model mainly adds wider tube range and longer shaft geometry.
