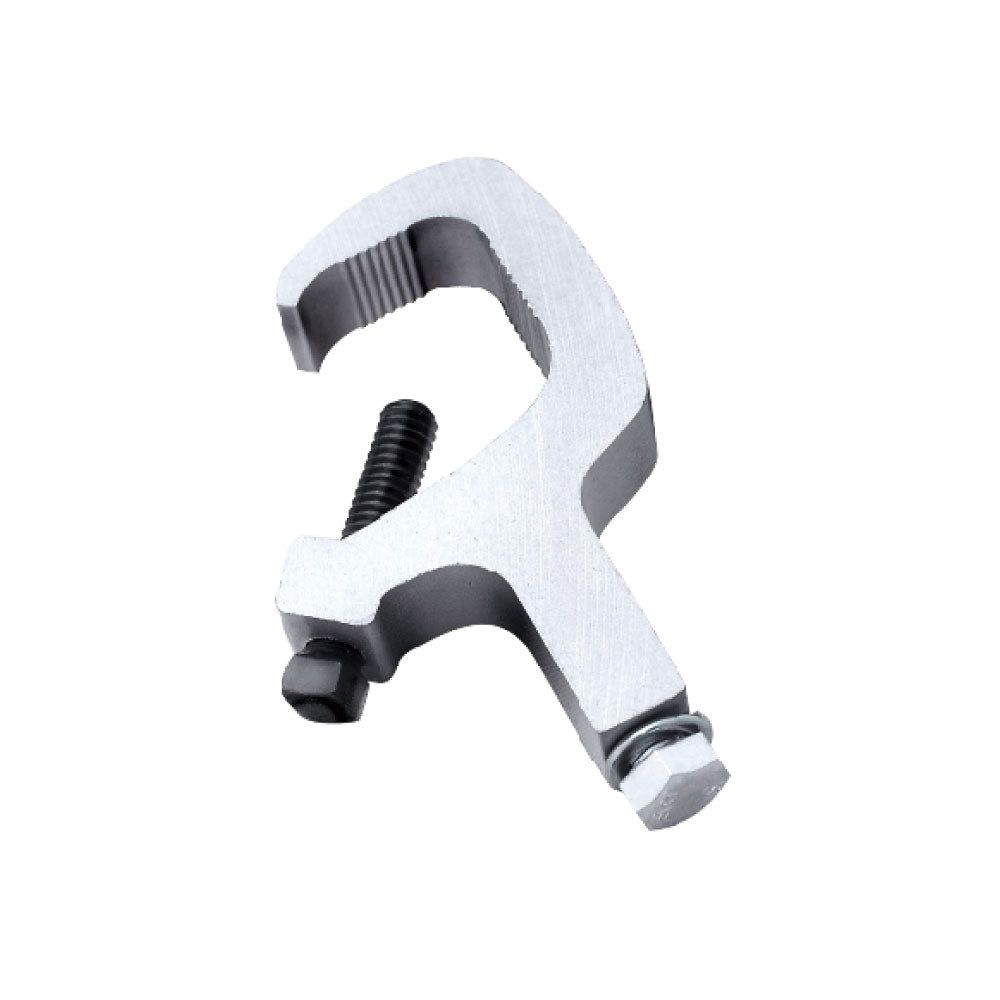

The KUPO C-09 Mini Aluminum Extrusion Clamp is a compact extruded aluminum clamp for small fixtures on 26 to 32 mm tube. It combines interior tube-gripping teeth, a 5/16"-18 yoke bolt, and a 55 kg Working Load Limit in a lightweight body.
Why It Matters
The C-09 family is for small lights that still deserve a real clamp. It keeps birdies, compact LEDs, and uplights off improvised hardware while staying small enough for narrow tube and dense rigs.
Key Features
Miniature extruded aluminum body keeps weight low while maintaining a positive clamp shape
Interior teeth grip 26 to 32 mm tube to resist slipping under load
55 kg Working Load Limit gives a clear rating envelope for the fixture class
5/16"-18 yoke bolt matches the fixture hardware expected for this clamp size
Silver finish keeps the clamp easy to identify in general inventory
Additional Technical Notes

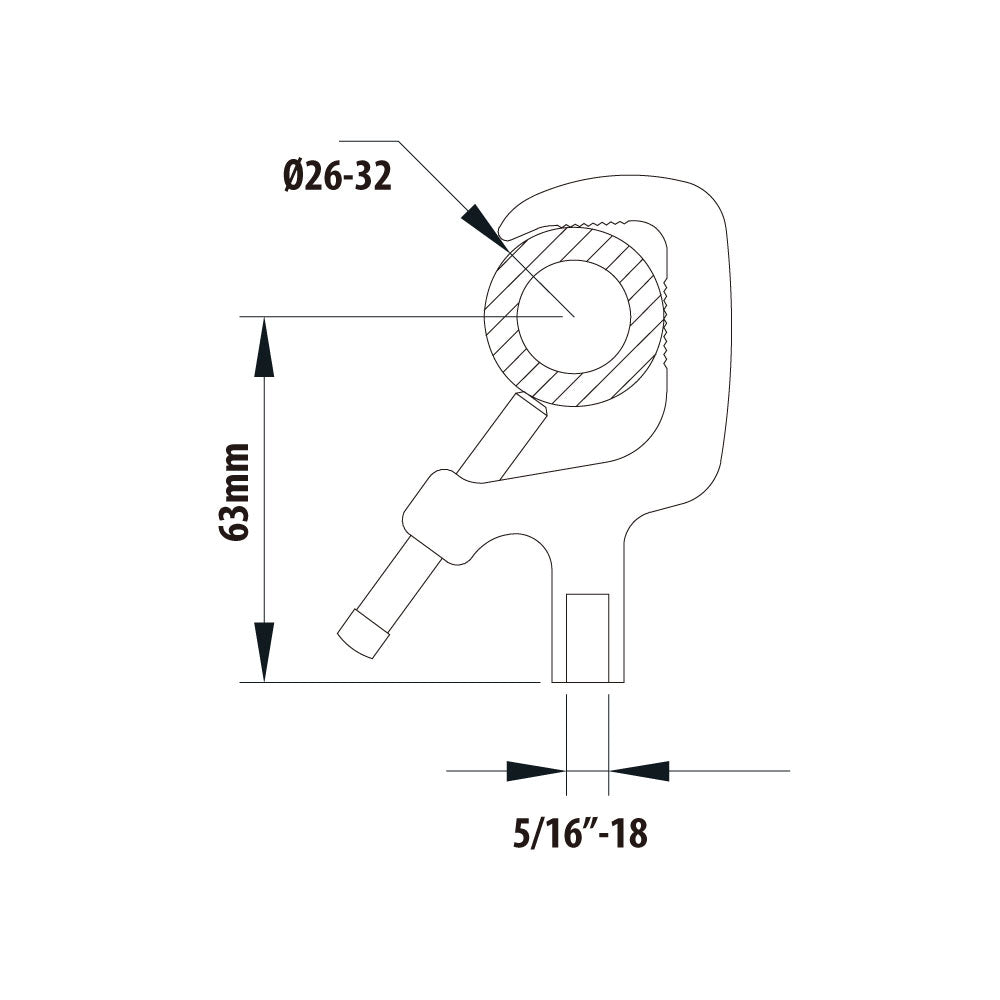

Dimensions: 63 mm height
Applications
Built for Par 16 birdies, small LEDs, compact uplights, scenic accents, and close-packed tube runs where a full-size hook clamp is unnecessary.
Compatibility
Fits 26 to 32 mm tube, 1" to 1-1/4". Uses a 5/16"-18 yoke bolt and washer.
Frequently Asked Questions
Is this only for small tube?
Yes. The C-09 family is sized for 26 to 32 mm tube, not full 2" truss. Use C-08 when the pipe is larger.
Can it hold a small LED uplight?
Yes, if the fixture mounts with the listed 5/16"-18 yoke bolt and the tube is inside the 26 to 32 mm range.
When is the silver version preferable?
Silver is easy to spot in inventory and suits general rental or shop use where low visibility is not the main concern.
