Overview

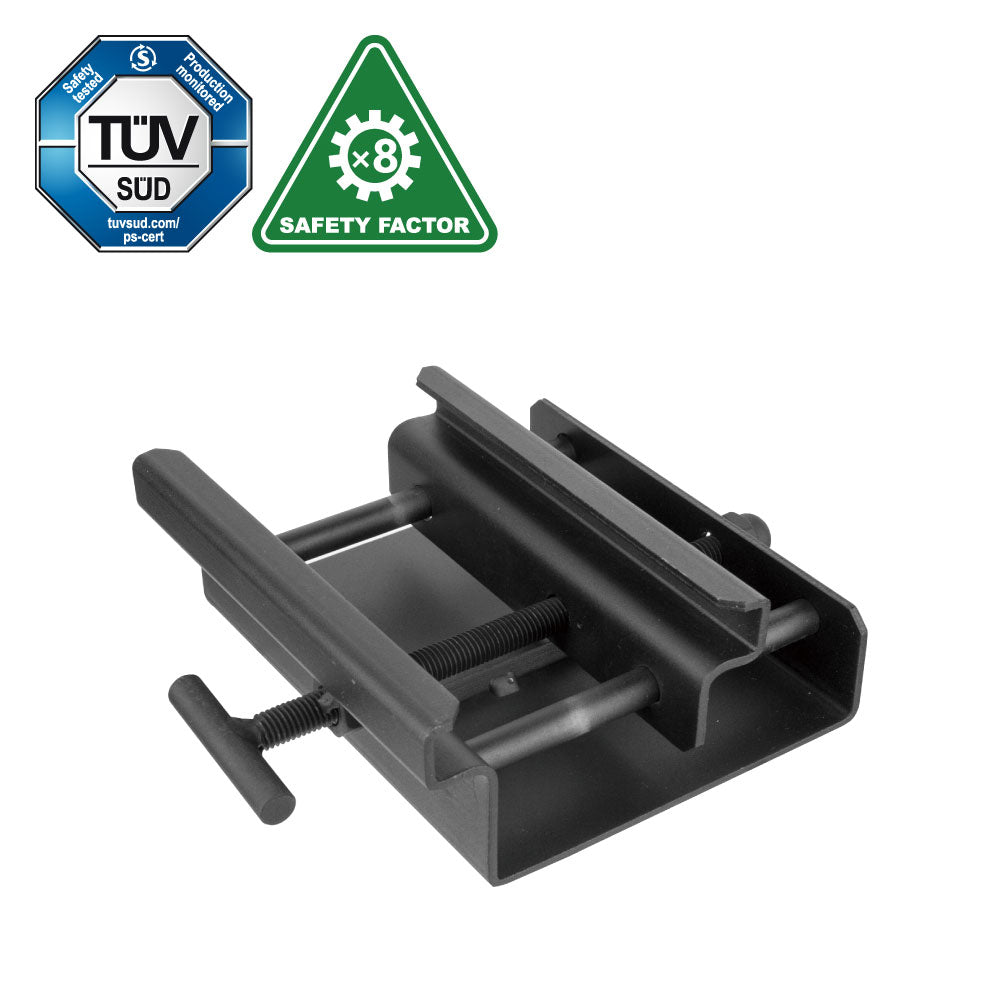

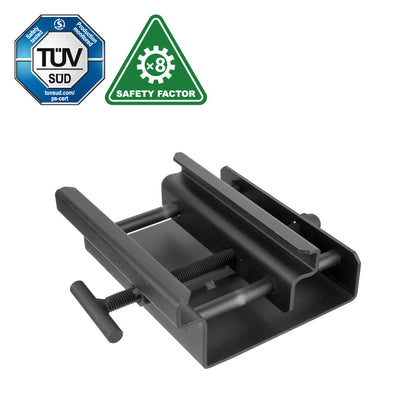

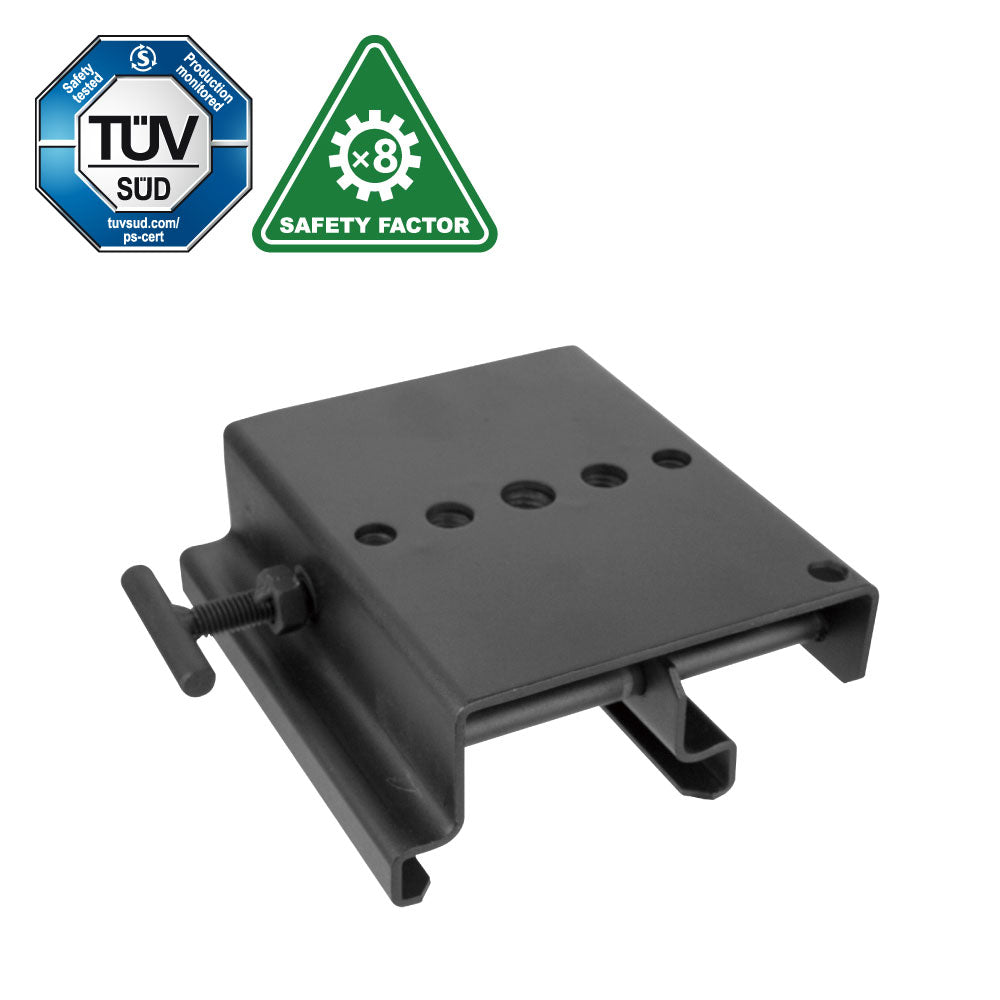

The KUPO C-14BP Tent Clamp is a steel clamp for attaching equipment to tent and canopy structural members from 50 to 110 mm. Its bottom plate provides one M14, two M12, and two M10 threaded fixing holes, with a 150 kg Working Load Limit on the central M14 point and 30 kg on the outer M10 or M12 points.
Why It Matters
Tent structures rarely behave like clean stage pipe. The C-14 family gives event crews a broad adjustable span and multiple threaded fixing choices, so lighting, signage, or support hardware can be mounted to canopy frames without inventing a one-off bracket on site.
Key Features
- 50 to 110 mm span adjustment fits many common tent and canopy frame profiles
- Central M14 fixing point is rated to 150 kg for the primary load path
- Two M12 and two M10 outer fixing holes provide secondary mounting flexibility up to 30 kg
- 13 mm plate thickness gives the clamp a solid base for professional event structures
- TÜV APPROVED certification supports use in professional event and temporary-structure environments
Additional Technical Notes

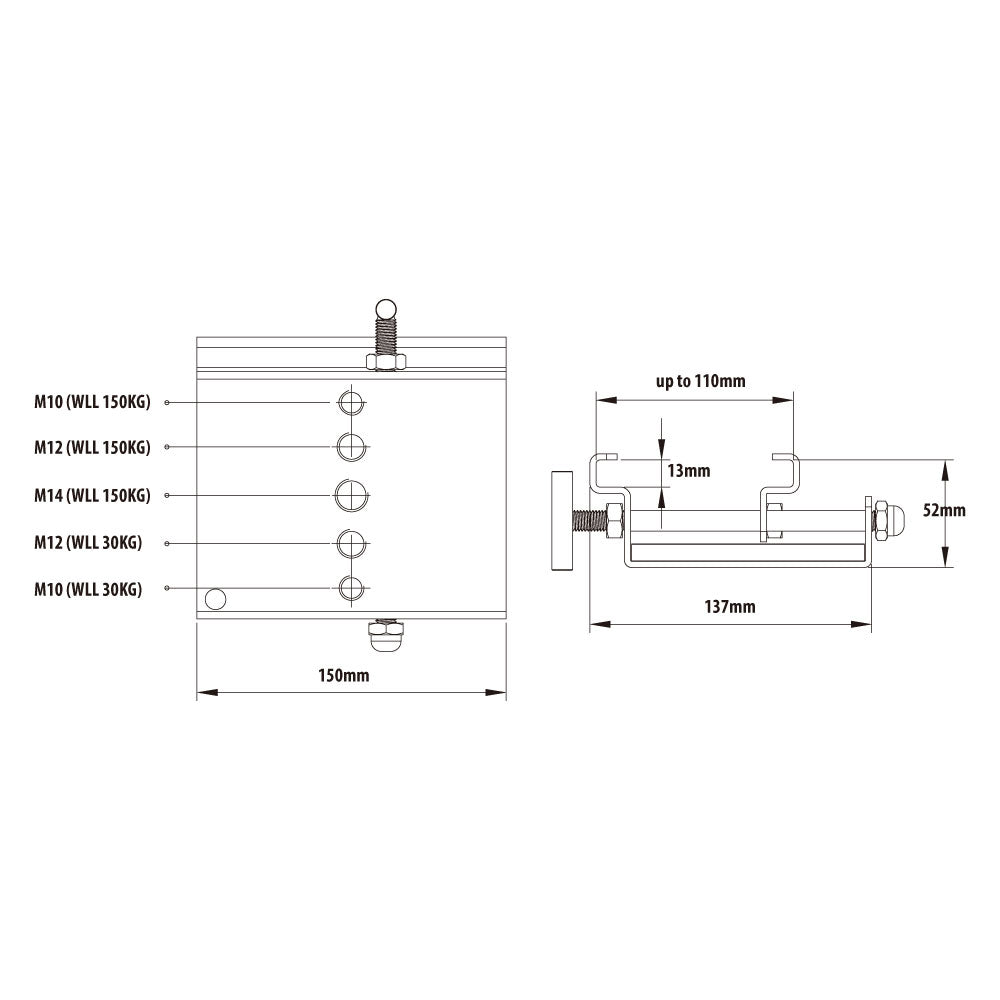

- Dimensions: 137 mm x 150 mm x 52 mm
Applications
Designed for outdoor event tents, canopy frames, temporary structures, exhibition builds, festival sites, and event production where fixtures or hardware need to mount to non-round structural members.
Compatibility
Adjusts across 50 to 110 mm structural members and provides M14, M12, and M10 threaded fixing holes. Check the load path and use the correct fixing point rating.
