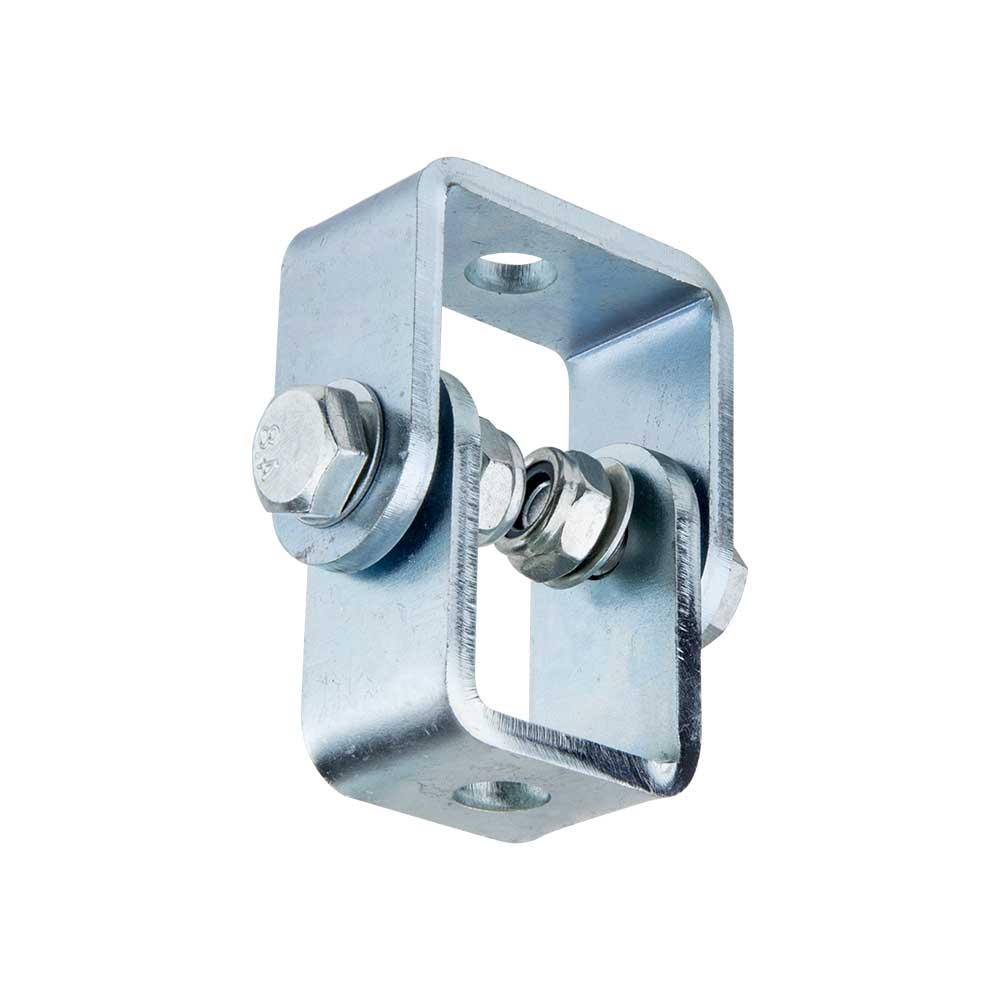

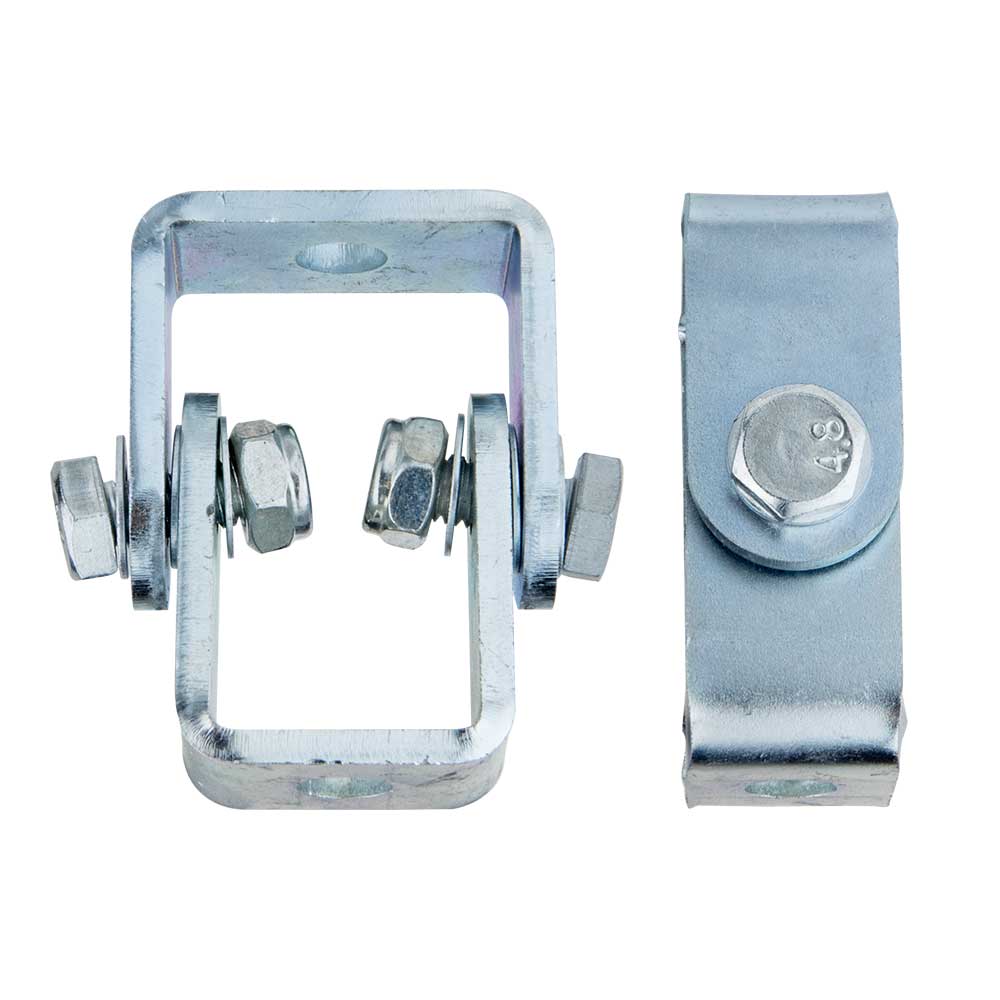

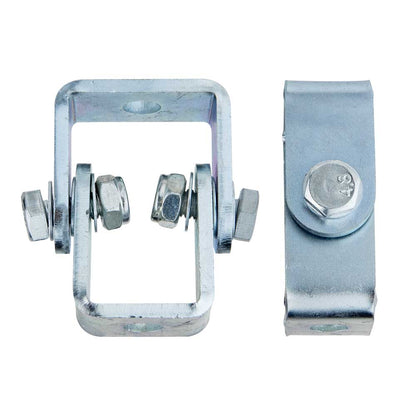

The KUPO C-17 Pivot Bracket is a zinc-plated steel connection bracket with two 12.5 mm fixing holes. It is used when tube, pipe, or related suspension hardware needs to connect from a point that is not square to the final pipe direction.
Why It Matters
Angled suspension points can make a simple pipe run awkward. The C-17 gives installers a compact, predictable bracket for building that angled connection, while using the 100 kg WLL and 360 g bracket weight as the component specification inside a properly rated assembly.
Key Features
Zinc-plated steel construction gives the bracket a durable surface for fixed hardware work
Two 12.5 mm fixing holes provide clear bolt locations for connection hardware

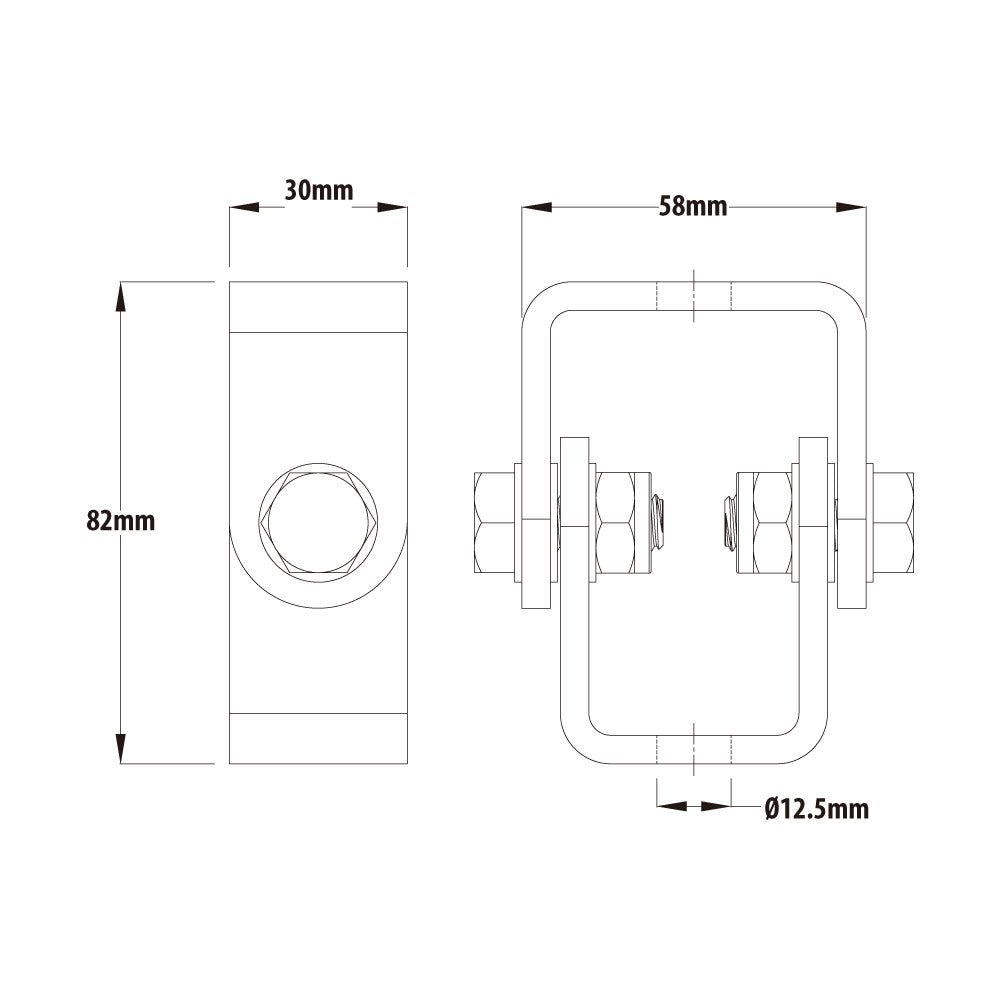

Compact 58 mm x 30 mm body with 82 mm overall dimension fits into tight suspension details
100 kg WLL and 360 g weight for a compact angled suspension bracket
Applications
Use it in fixed installations, theatre grids, overhead support details, and custom pipe-suspension assemblies where an angled connection point is required.
Compatibility
C-17 has a 100 kg WLL and 360 g weight. Match it with suitable bolts, connected hardware, substrate, and the required working load rating of the full assembly.
Frequently Asked Questions
Is C-17 a complete clamp by itself?
No. It is a connection bracket. The bracket has a 100 kg WLL and 360 g weight. Bolts, surrounding hardware, substrate, and full assembly rating still need to be selected as part of the installation.
What size are the fixing holes?
The bracket has two 12.5 mm diameter fixing holes.
Where is a pivot bracket useful?
It is useful when a pipe or tube suspension point comes in at an angle and the installer needs a compact bracket to connect the hardware cleanly.
