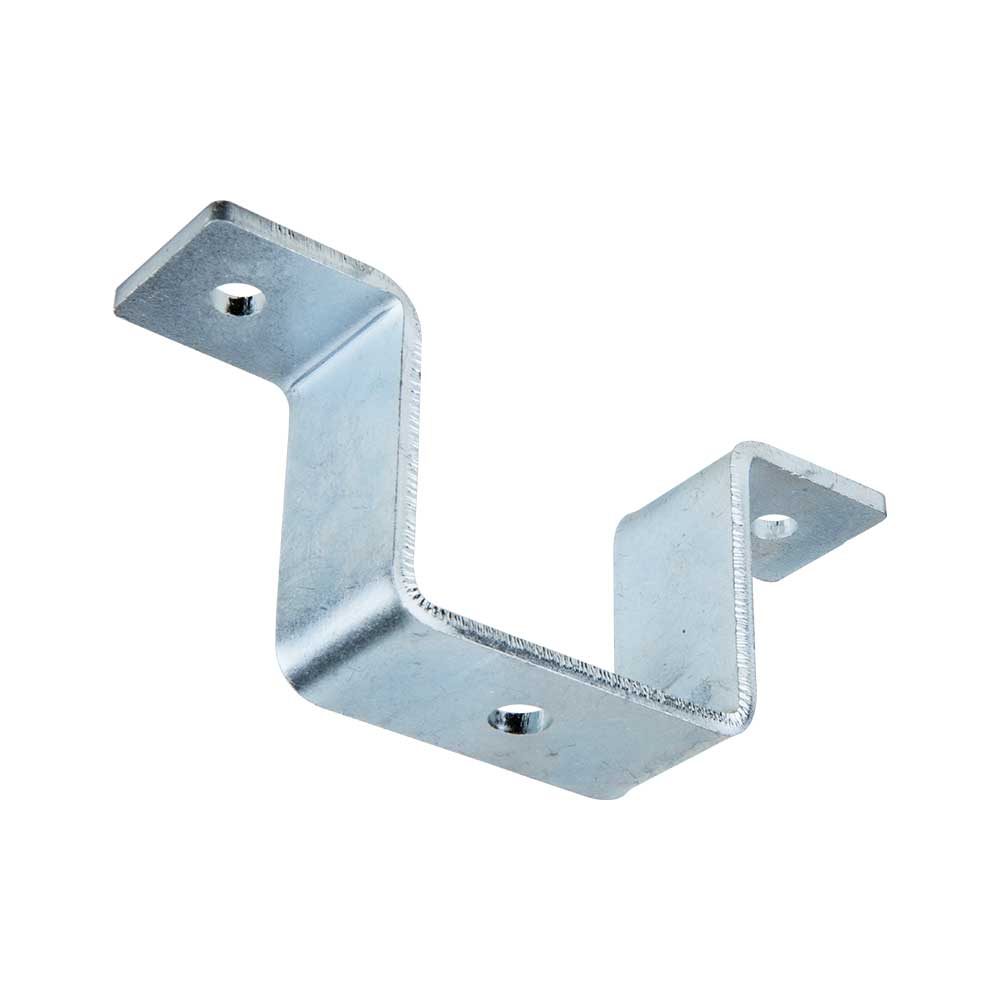

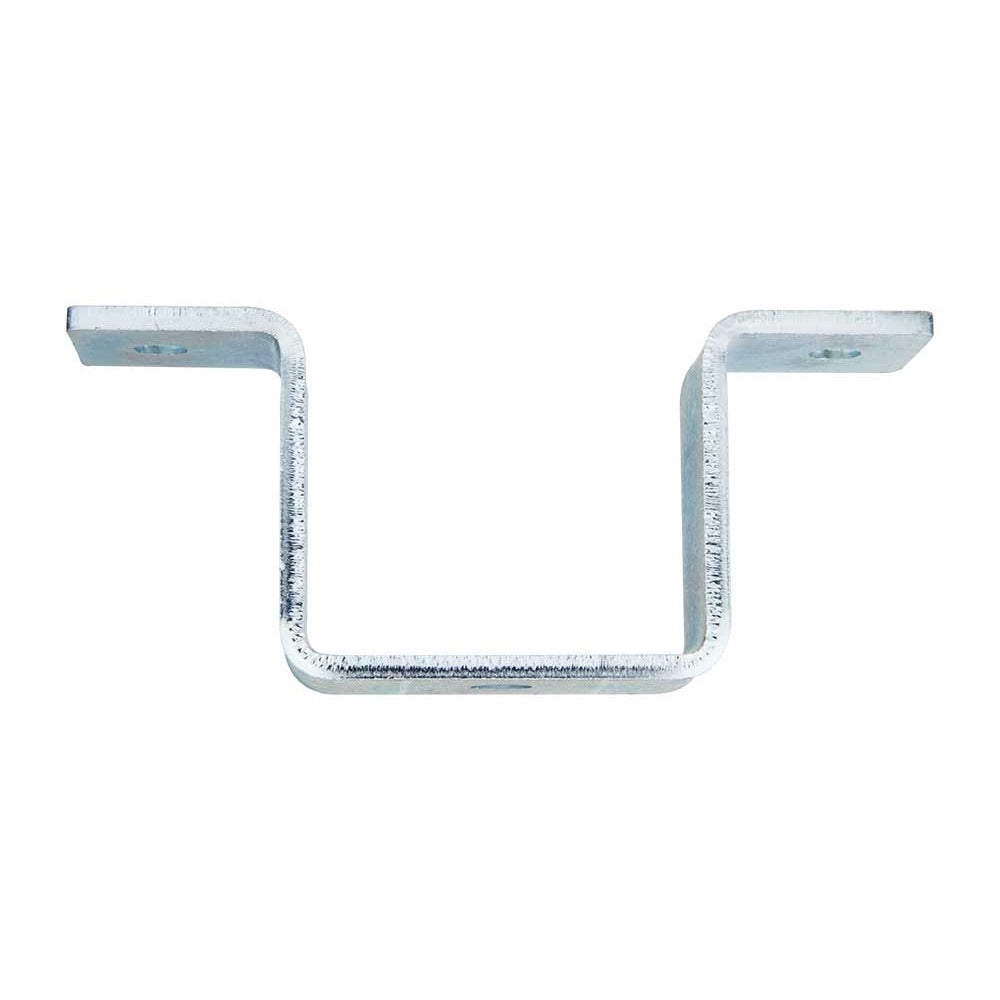

The KUPO C-19 Ceiling Saddle Bracket is a zinc-plated steel overhead bracket for threaded studding, M12 bolts, or threaded rod. It provides a fixed saddle-style support point with a 75 mm stand-off height and a 160 kg working load limit for properly specified ceiling hardware assemblies.
Why It Matters
A ceiling support point has to be more than a hole in the right place. The C-19 gives installers a defined saddle bracket with known geometry, so the pipe or fitting can be aligned while the substrate, fasteners, and load path are checked as a complete overhead system.
Key Features
160 kg working load limit and 450 g weight support fixed overhead hardware when the full installation is correctly specified
75 mm stand-off height creates clearance between the mounting surface and suspended fitting

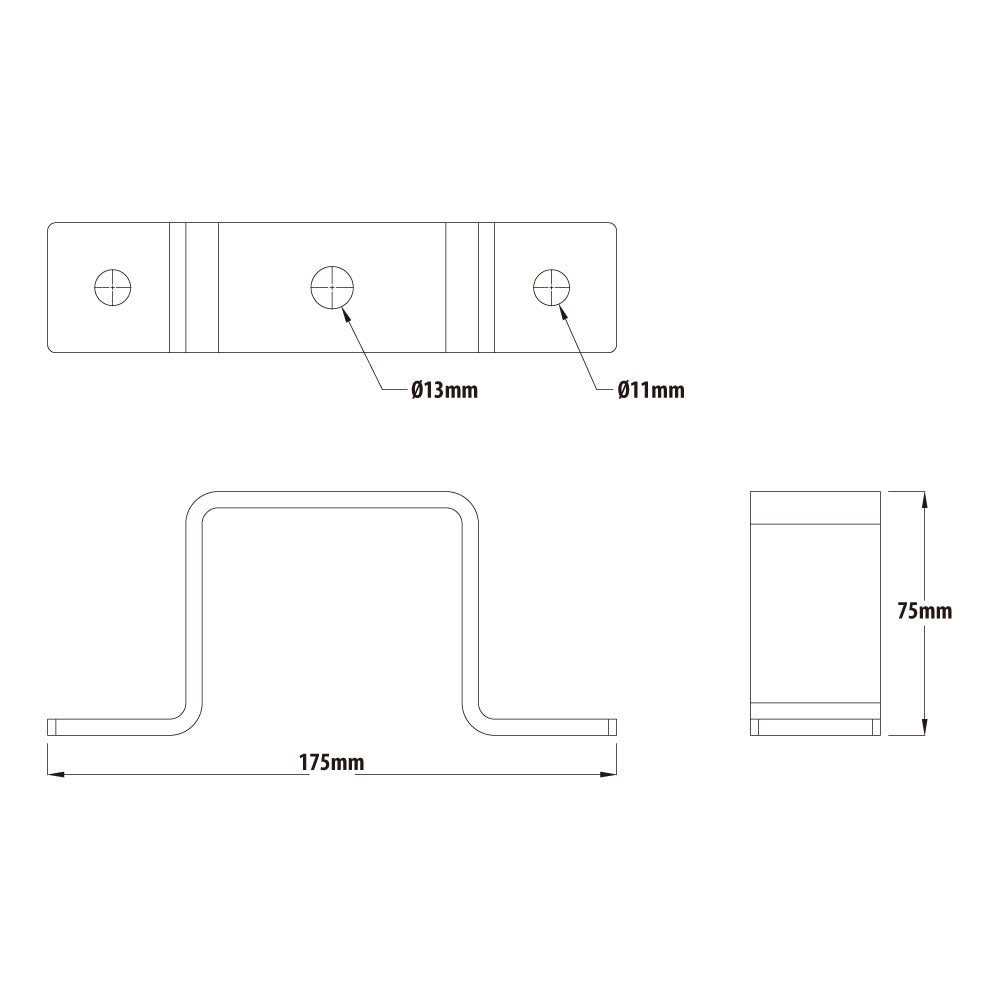

Central opening accepts M12 bolts or threaded rod, with the drawing showing a 13 mm central hole
Zinc-plated steel construction suits permanent-style bracket work in venues and studios
Applications
Use it for fixed overhead installations where pipe, tube, or related fittings need a stable ceiling-side attachment point with threaded studding or M12 hardware.
Compatibility
The two side mounting holes are 11 mm wing holes, and the central opening is 13 mm for M12 bolts or threaded rod. Match the fastener fit to the final installation hardware.
Frequently Asked Questions
What fastener size should I plan around?
The central opening accepts M12 bolts or threaded rod, while the two side mounting holes are 11 mm wing holes. Match the final fastener fit to the installation hardware.
Can C-19 be used as part of an overhead load path?
Yes, but only as one component in a properly specified system. The substrate, anchors, threaded rod, and connected fittings all need to be rated appropriately.
What is the stand-off height?
The specification lists a 75 mm stand-off height, which helps create working clearance from the ceiling or mounting surface.
