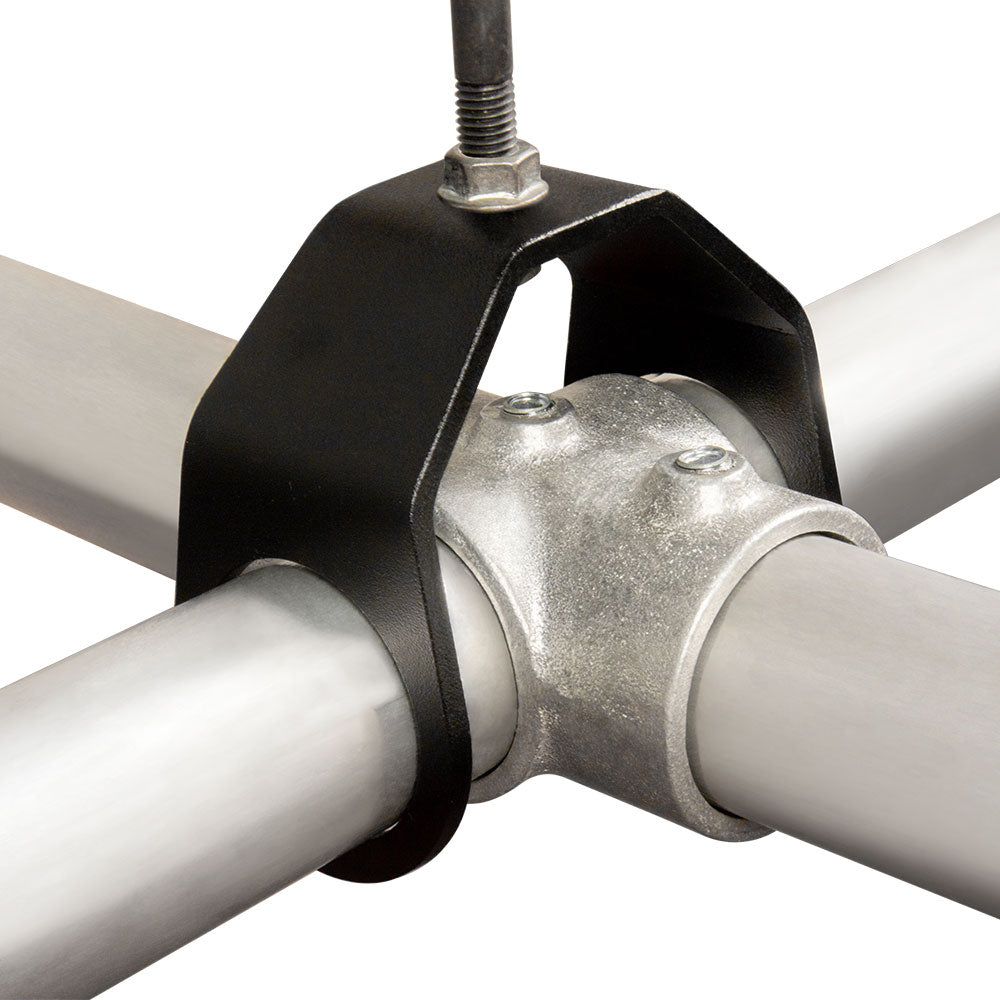

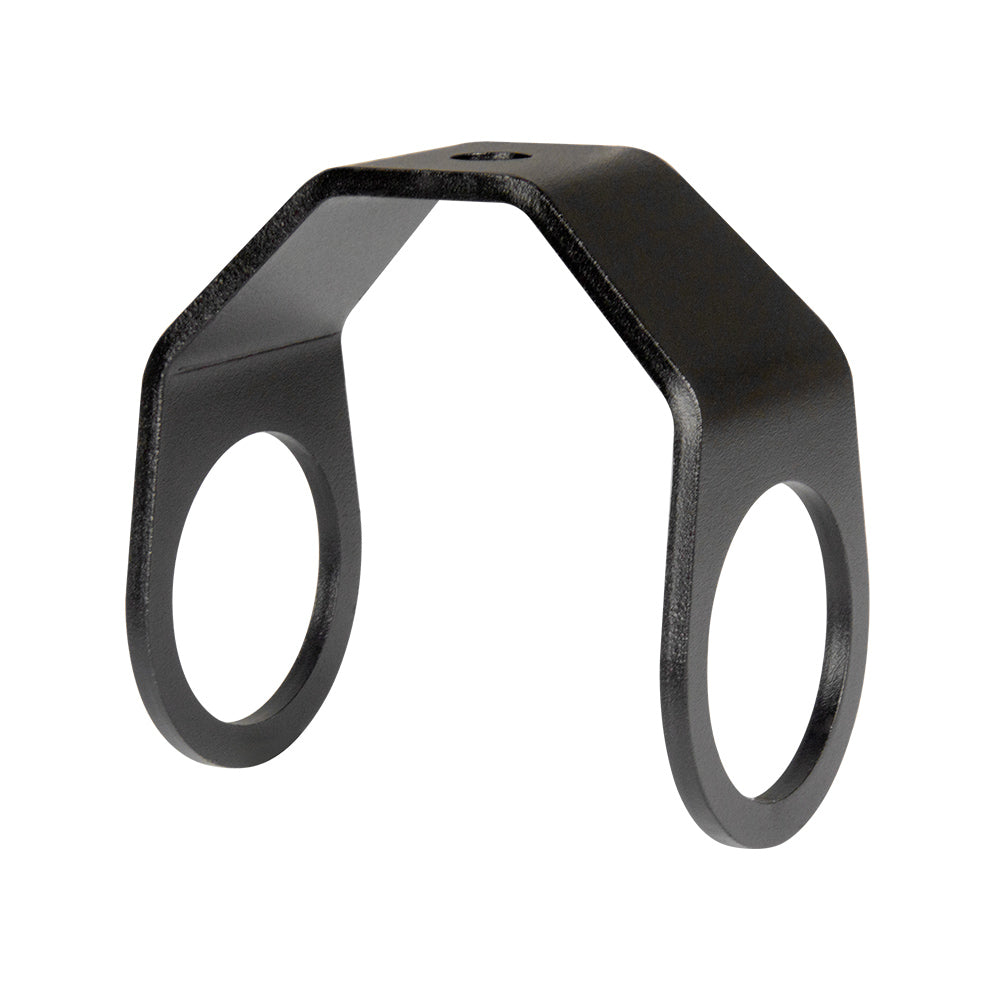

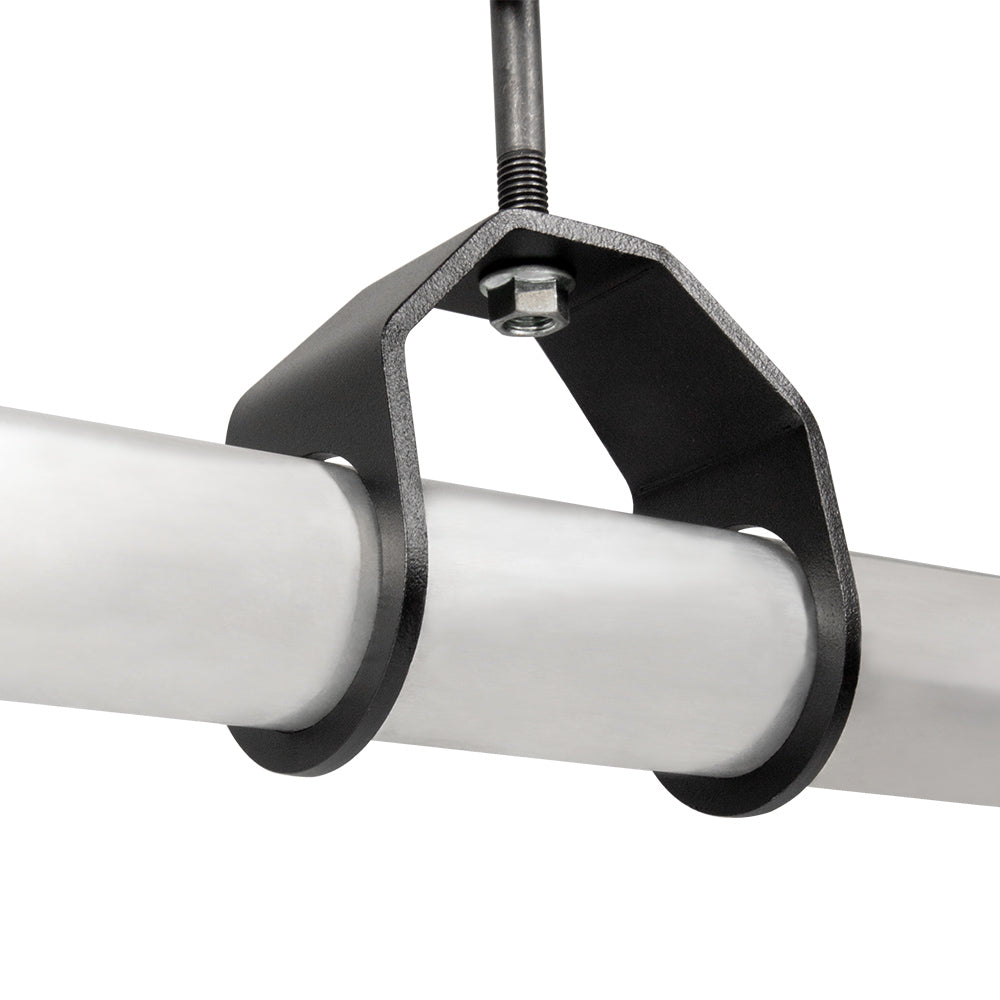

The KUPO C-20 Pipe Hanger is a black powder coated folded-steel support for 48 mm diameter tubing. It is built for suspended pipe-grid and barrel-grid work where a tube needs to hang from an M12 stud or bolt while staying aligned with the rest of the grid hardware.
Why It Matters
Pipe grids only feel clean when every support point lines up. The C-20 is sized to work naturally with related pipe clamp fittings such as KPC-A1207E or KPC-119, helping installers keep the grid consistent beneath air ducts or other overhead structures.
Key Features
200 kg working load limit supports fixed suspended pipe applications within a rated overhead system

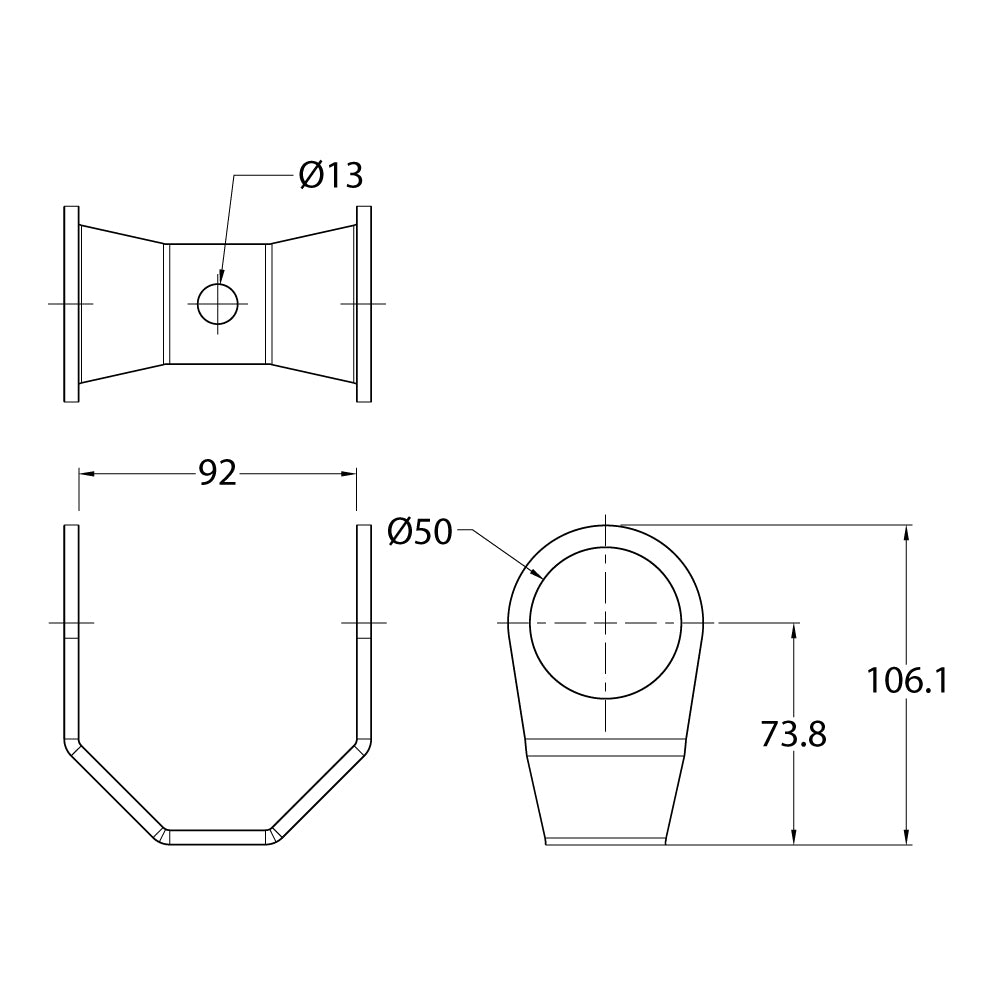

13 mm fixing hole is intended for M12 stud or bolt mounting
48 mm tube dimension matches the pipe-hanger family used in fixed grid layouts
Black powder coated steel body provides a low-visibility finish for permanent or semi-permanent installations
Applications
Use it for suspended 48 mm pipe runs, barrel grids, studio pipe grids, and venue installations where the tube is supported from overhead M12 hardware.
Compatibility
Pairs naturally with C-18 tube suspension clamps and C-22 pipe wall hangers in fixed-grid systems. The width also aligns with KPC-A1207E or KPC-119 fittings.
Frequently Asked Questions
What tube size is C-20 made for?
It is made for 48 mm diameter tubing in suspended pipe-grid and barrel-grid installations.
What hardware mounts the hanger?
The hanger uses a 13 mm fixing hole and is intended for M12 stud or bolt mounting, with the full overhead load path verified by the installer.
How does C-20 relate to C-18 and C-22?
C-20 is the overhead pipe hanger. C-18 is a tube suspension clamp, and C-22 is a wall-side pipe hanger, so they can appear together in fixed-grid layouts.
