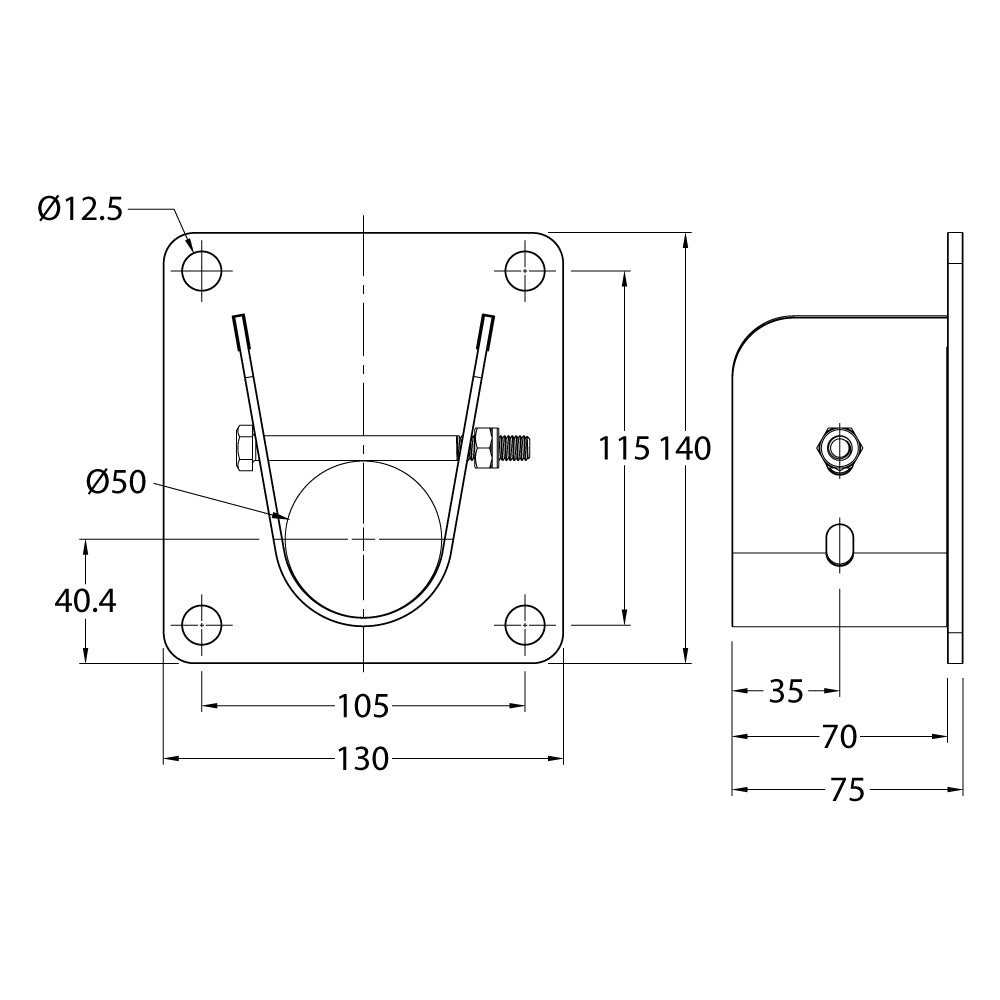

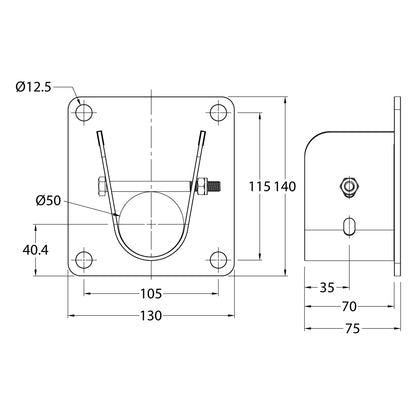

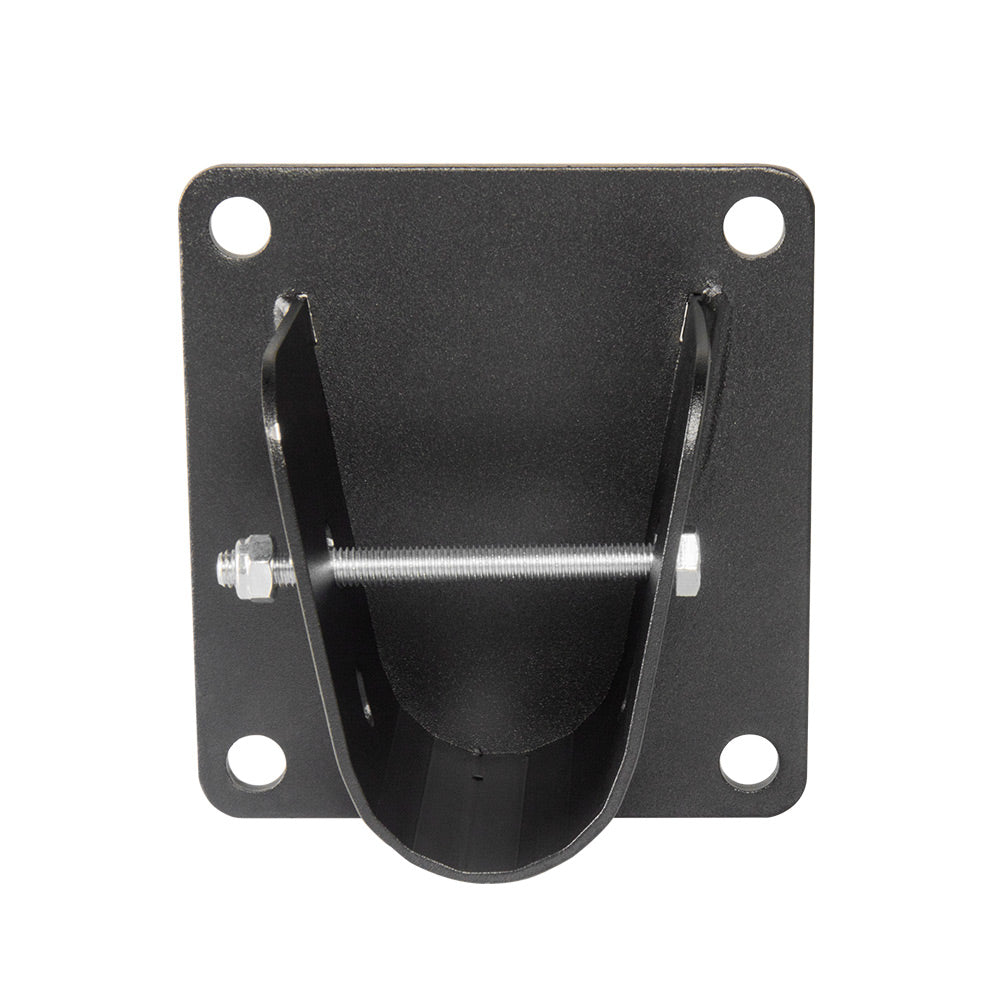

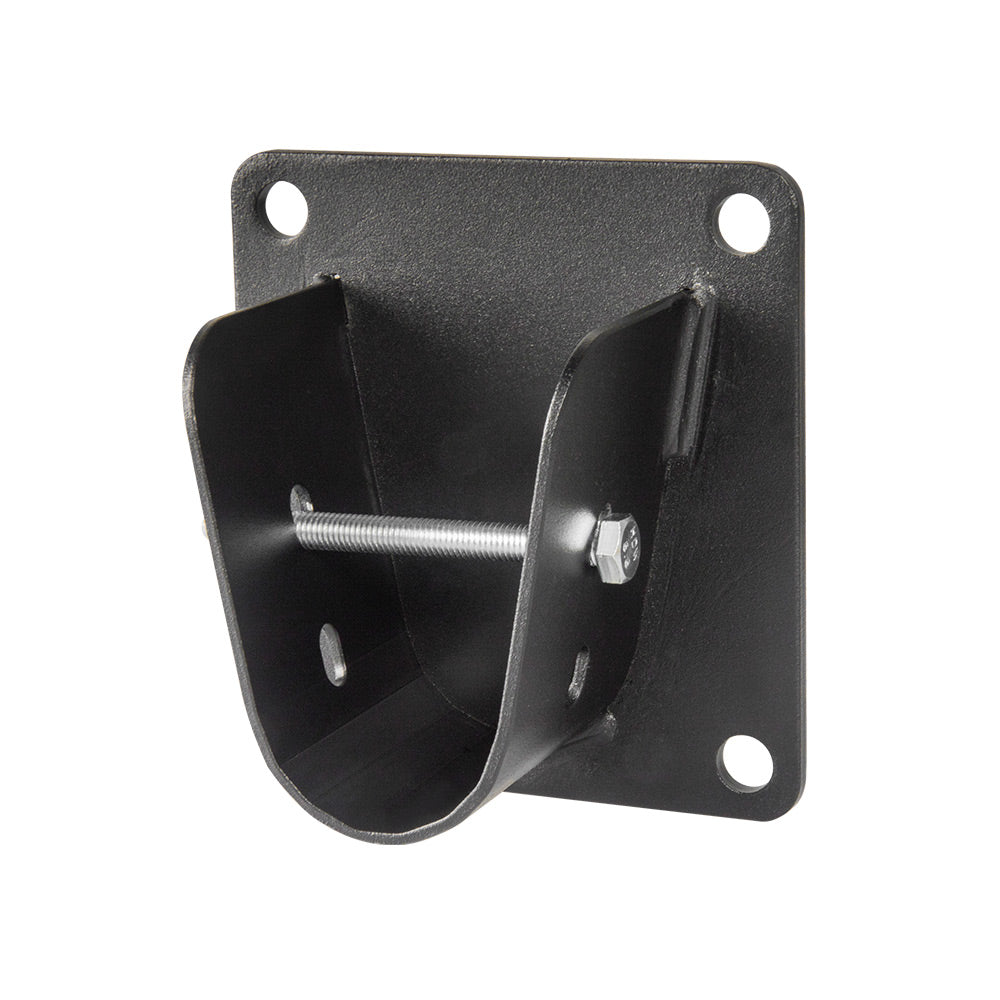

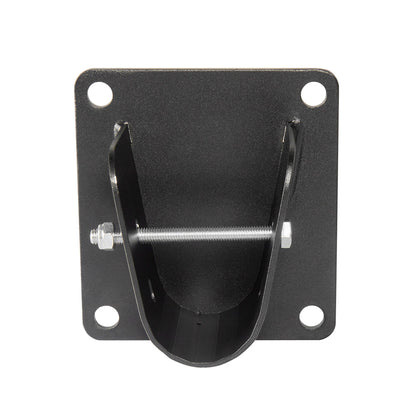

The KUPO C-22 Pipe Wall Hanger is a solid black steel bracket for holding 48 mm diameter tubing from a fixed wall or vertical surface. With a 100 kg working load limit, 1.45 kg body weight, and 12.5 mm wall fixing holes, it is the wall-side support in the KUPO pipe-hanger family.
Why It Matters
A fixed grid often needs a clean transition from overhead support to wall-side support. The C-22 gives that pipe end a dedicated bracket, keeping the 48 mm tube aligned with related suspension components such as the C-18 Tube Suspension Clamp and C-20 Pipe Hanger.
Key Features

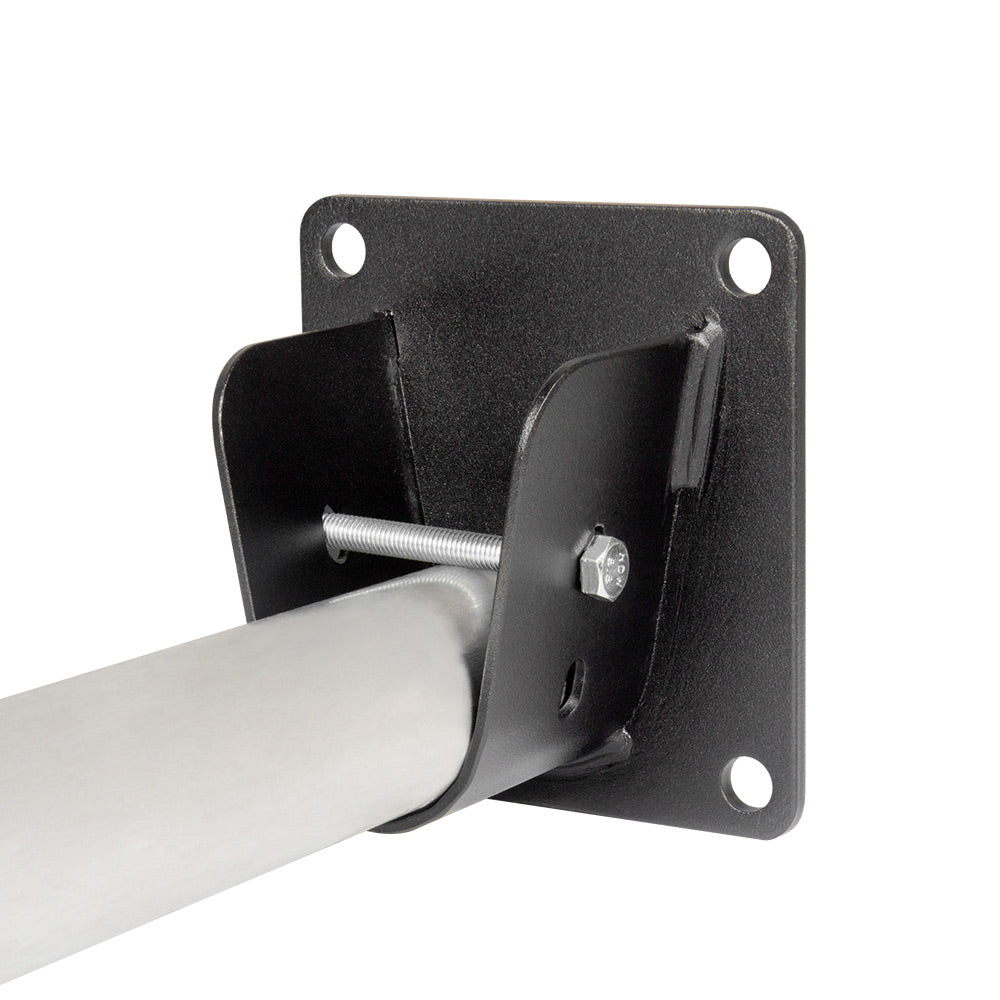

Wall-mounted steel bracket holds 48 mm tubing between fixed support points
100 kg working load limit suits properly specified fixed-grid wall support applications
12.5 mm wall fixing holes provide clear anchor locations for the installer
Black powder coated finish keeps the bracket discreet in studios, theatres, and venues
Applications
Use it for wall-side pipe support in fixed grids, permanent-style lighting positions, studio walls, and venue installations where 48 mm tube needs accurate alignment.
Compatibility
Designed to integrate with related pipe-hanger components including C-18 Tube Suspension Clamp and C-20 Pipe Hanger. Match wall substrate, anchors, and full load path before installation.
Frequently Asked Questions
Is C-22 for ceiling mounting or wall mounting?
C-22 is the wall-mounted hanger in this group. For overhead suspended pipe support, look at the C-20 style hanger instead.
What pipe size does it hold?
The specification lists 48 mm tube dimension.
Which other KUPO parts are mentioned with it?
The product information names C-18 Tube Suspension Clamp and C-20 Pipe Hanger as integrated suspension components in the same fixed-grid family.
