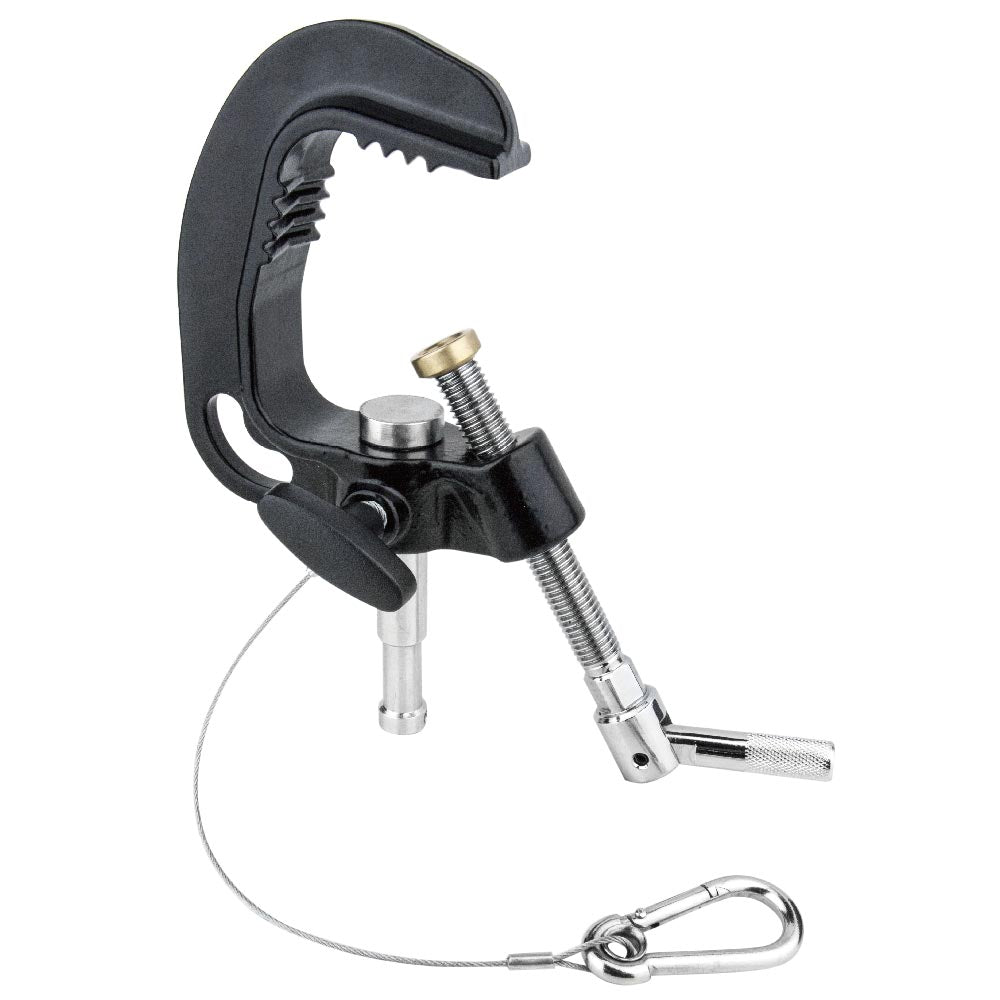

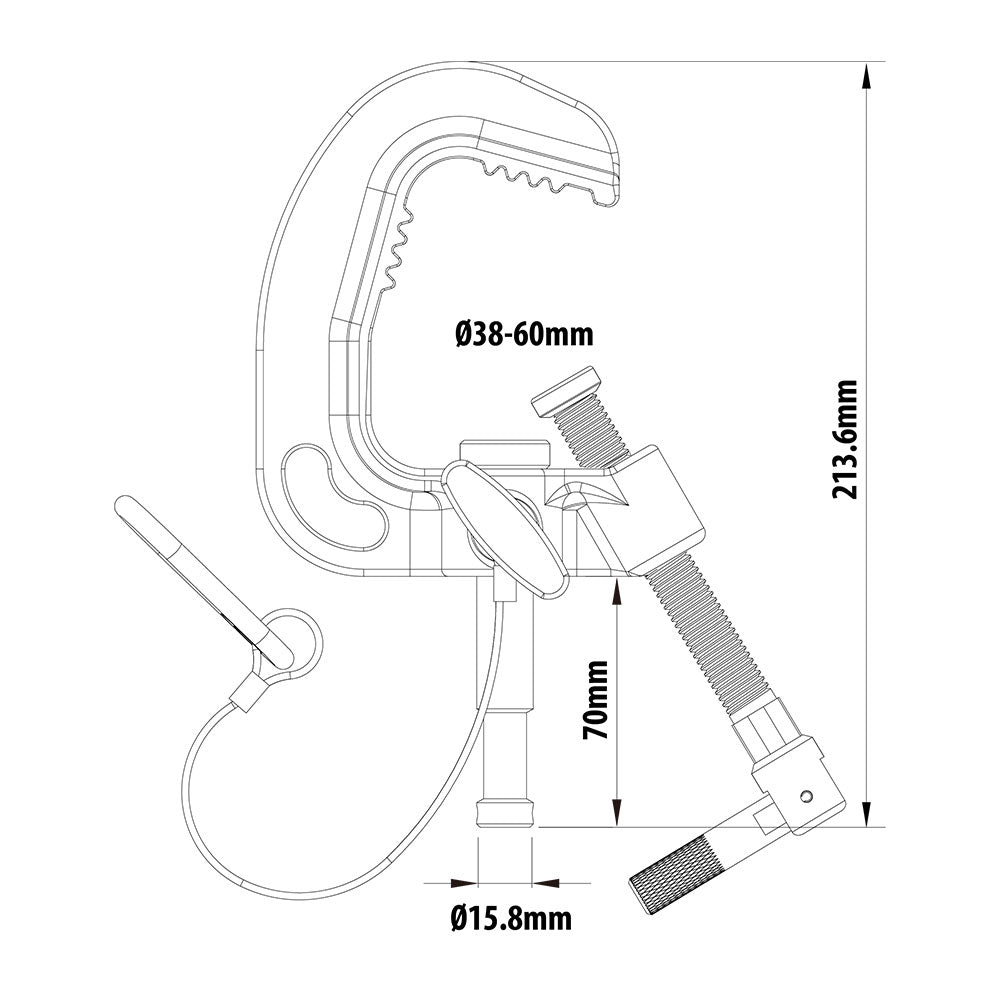

The KUPO C-26 Titan Clamp combines an iron casting Titan-style clamp body with a 16 mm baby spigot for TV and studio luminaires. It is designed for tube diameters up to 60 mm, with the dimension drawing showing a 38 to 60 mm range, a 100 kg working load limit, and a supplied safety cable.
Why It Matters
This clamp is for fixtures that need a baby-pin interface but also deserve a serious overhead clamp body. The short-handle tommy bar reduces interference with the luminaire, while the collar above the baby pin helps keep pan adjustment controlled when the clamp is loosened.
Key Features
16 mm baby spigot supports compatible TV and studio luminaires from an overhead pipe
Short-handle tommy bar reduces handle interference around the fixture body
Collar on top of the baby pin helps make pan adjustment safer while repositioning
Safety cable is supplied as a standard part according to the specification
Applications
Use it for studio, broadcast, theatre, and venue luminaires that mount on a 16 mm baby spigot and need a Titan-style clamp on pipe up to 60 mm.
Compatibility
Fits tube up to 60 mm, with the dimension drawing showing 38 to 60 mm. Match the fixture interface, tube diameter, and secondary safety before use.
Frequently Asked Questions
What fixture interface does C-26 provide?
It provides a 16 mm baby spigot, so it is meant for fixtures and accessories that mount to a baby pin.
Why is the handle shorter?
The short-handle tommy bar helps keep the handle from interfering with the luminaire during operation and adjustment.
Does it include a safety cable?
Yes. The specification notes that a safety cable is supplied as a standard part.
