Overview

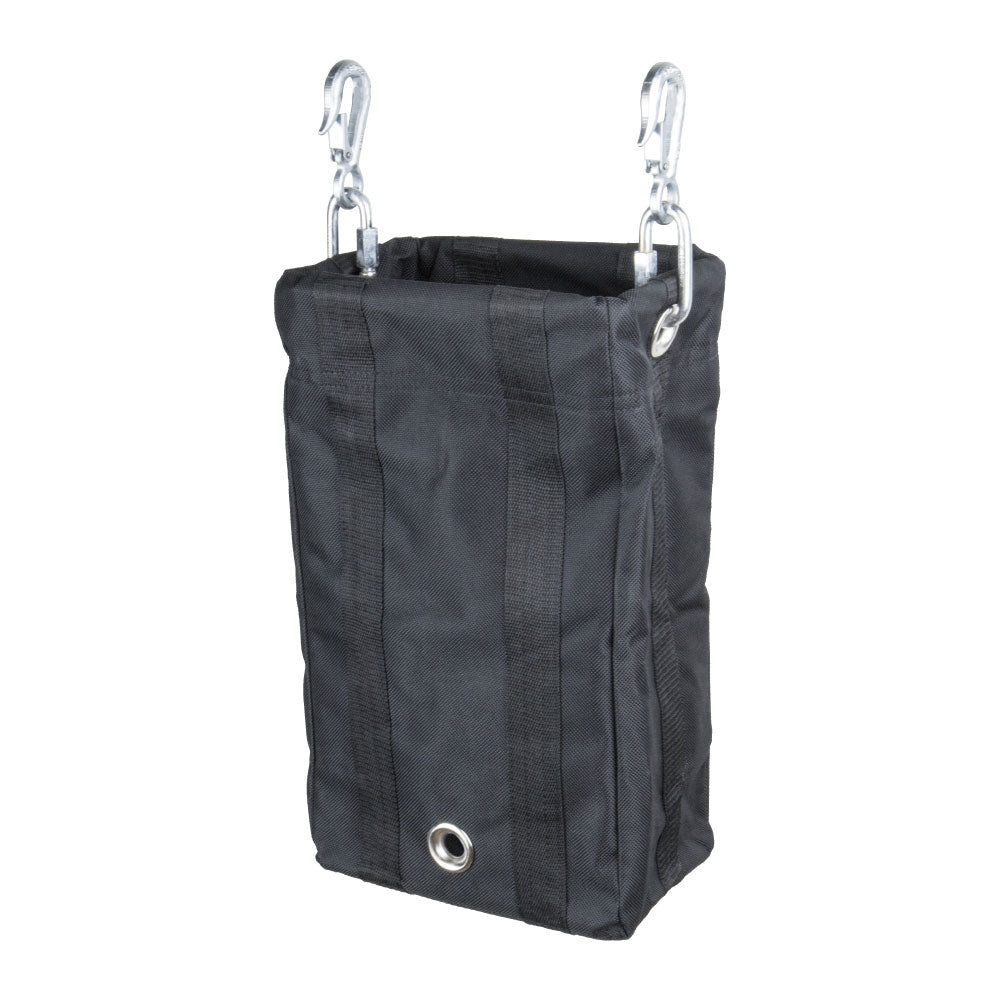

The KUPO CB-18 is a RIGPRO chain bag sized for 25 m of 7.1 mm load chain, keeping excess hoist chain contained above the work area instead of hanging loose from the hoist body. Its rectangular metal upper frame, 1000 denier black woven fabric, reinforced bottom, and included hoist attachment hardware make it a practical safety accessory for professional overhead lifting setups.

Why It Matters

CB-18 is the everyday mid-size bag for many theatre and concert rigs. It gives enough capacity for typical 15 to 20 meter free-chain runs without jumping to the longer tour-size bags.

Key Features

• 14 x 25 cm metal upper frame keeps the bag opening shaped and easy to attach near the hoist body.
• 45 cm, 18" bag height provides capacity for 25 m of 7.1 mm load chain while respecting the 75 % bag-space guideline.
• 8 mm acrylic bottom plate and three 3.5 cm polyester bottom straps distribute chain weight across the bag base.

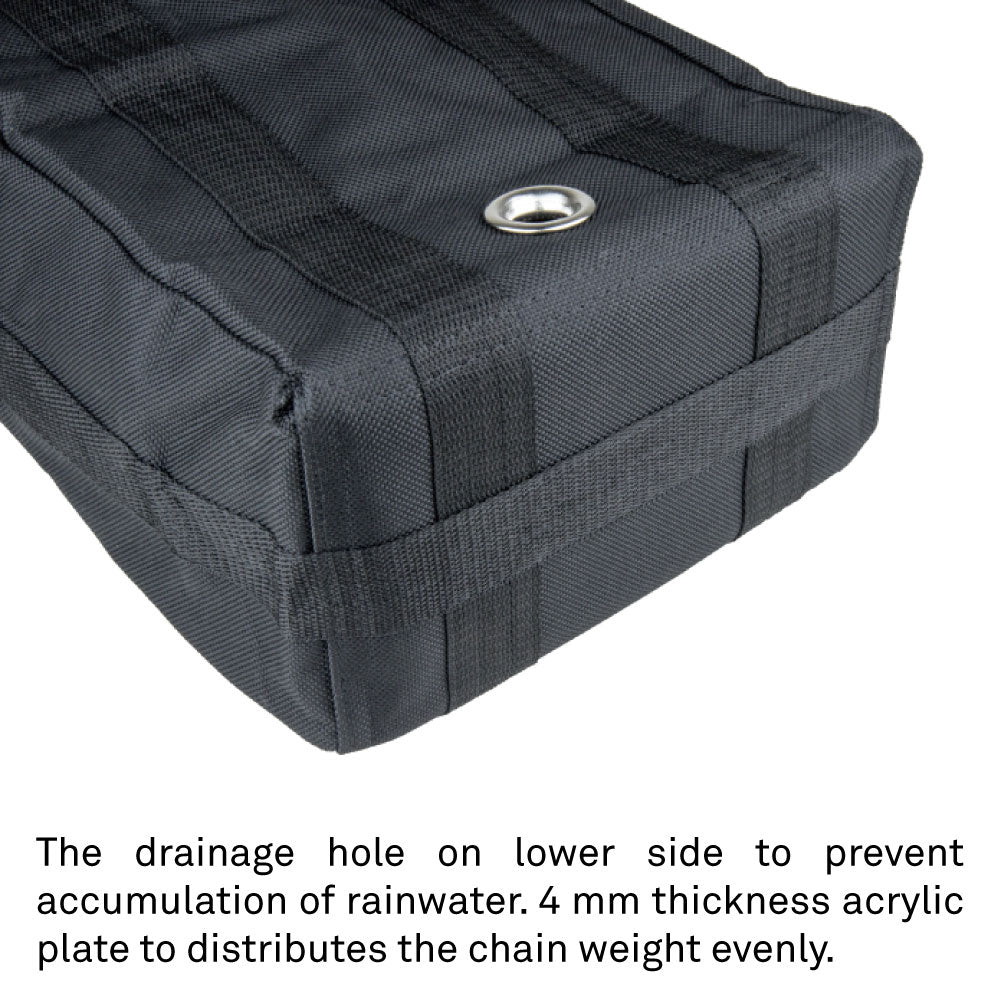

• Two lower drain holes help prevent rainwater buildup when the bag is used in outdoor or weather-exposed rigs.

Additional Technical Notes

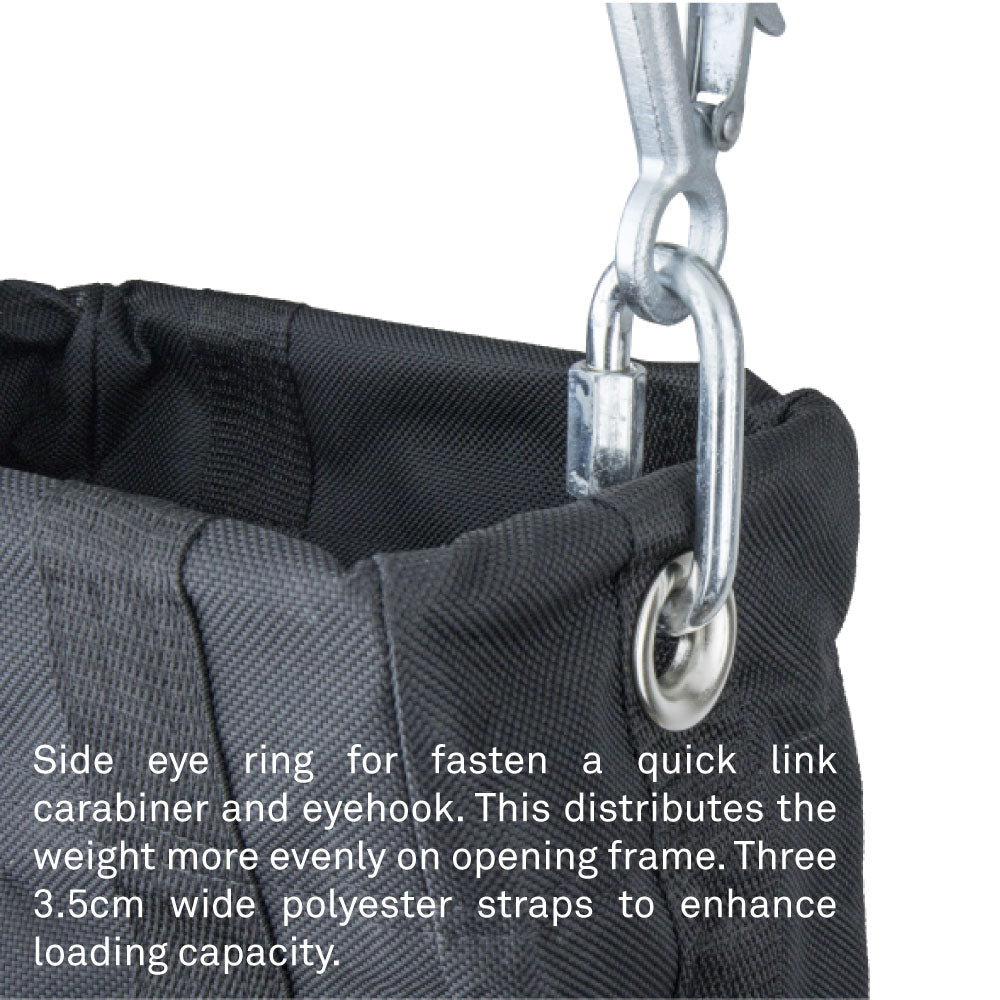

• Bottom Straps: 3 x 3.5 cm wide polyester straps, crisscross pattern

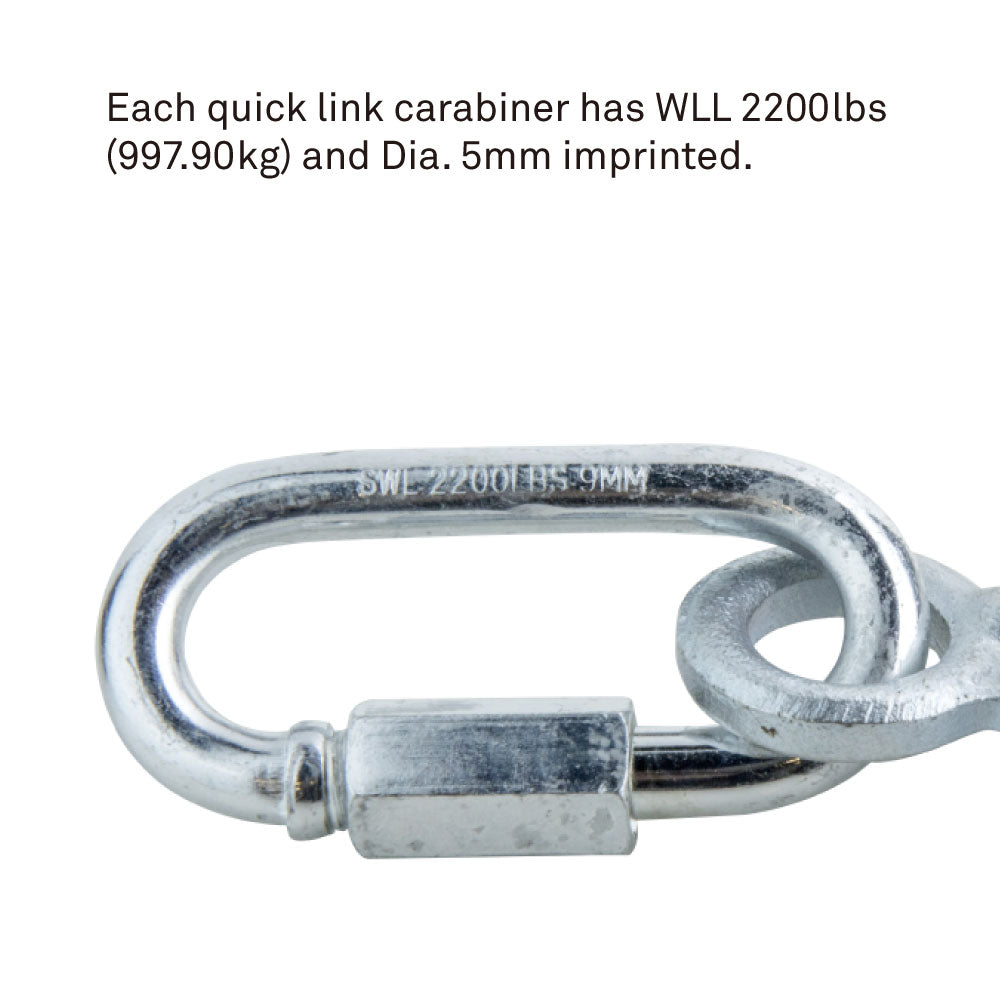

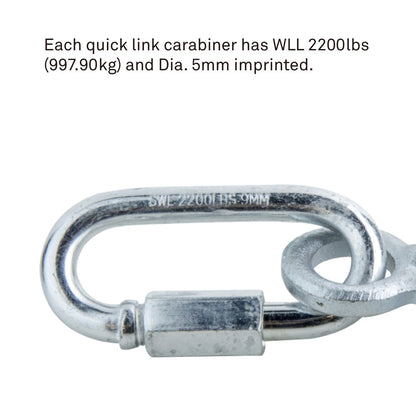

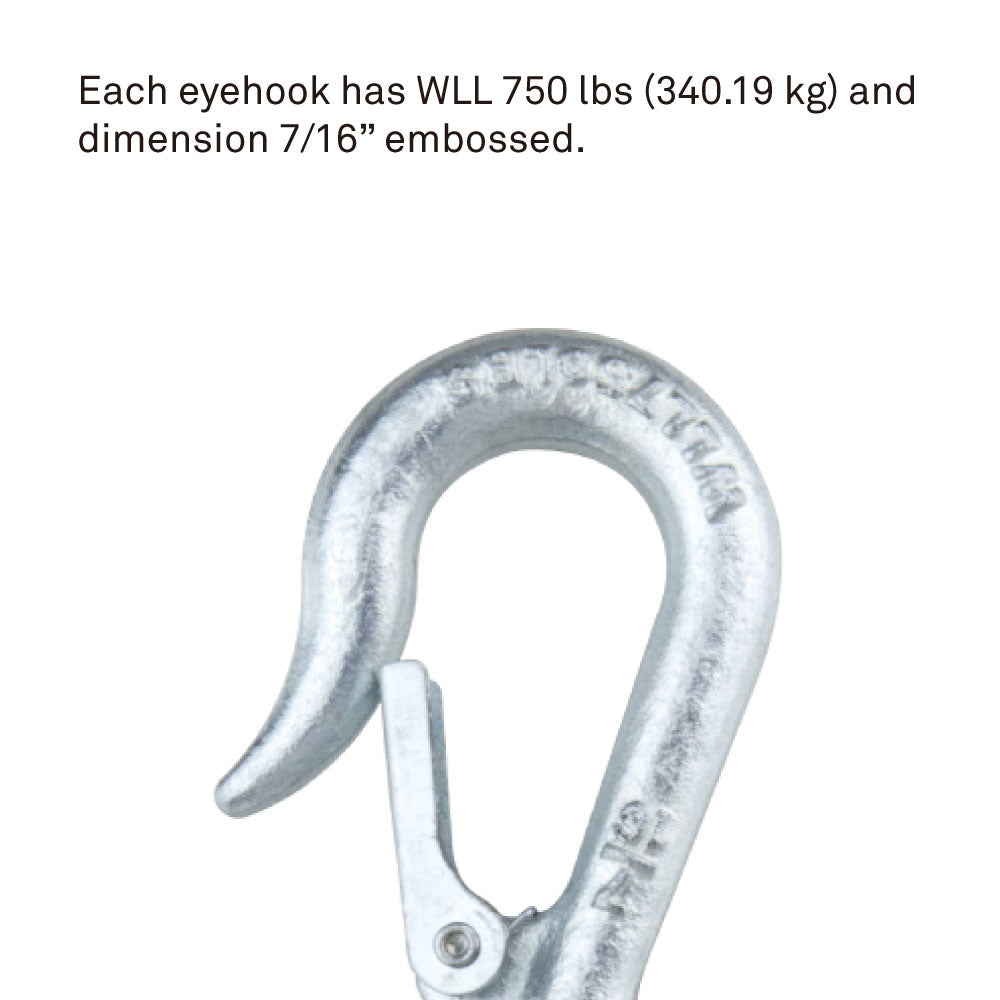

• Included Hardware: 2 eyehooks WLL 340 kg and 2 quick-link carabiners WLL 997 kg
• Safety Note: Hook block or load must not contact bag during operation

Applications

Use for entertainment chain hoists in theatres, arenas, touring rigs, broadcast studios, festivals, corporate events, and any overhead setup where free chain must be contained safely.

Compatibility

7.1 mm chain hoists.
