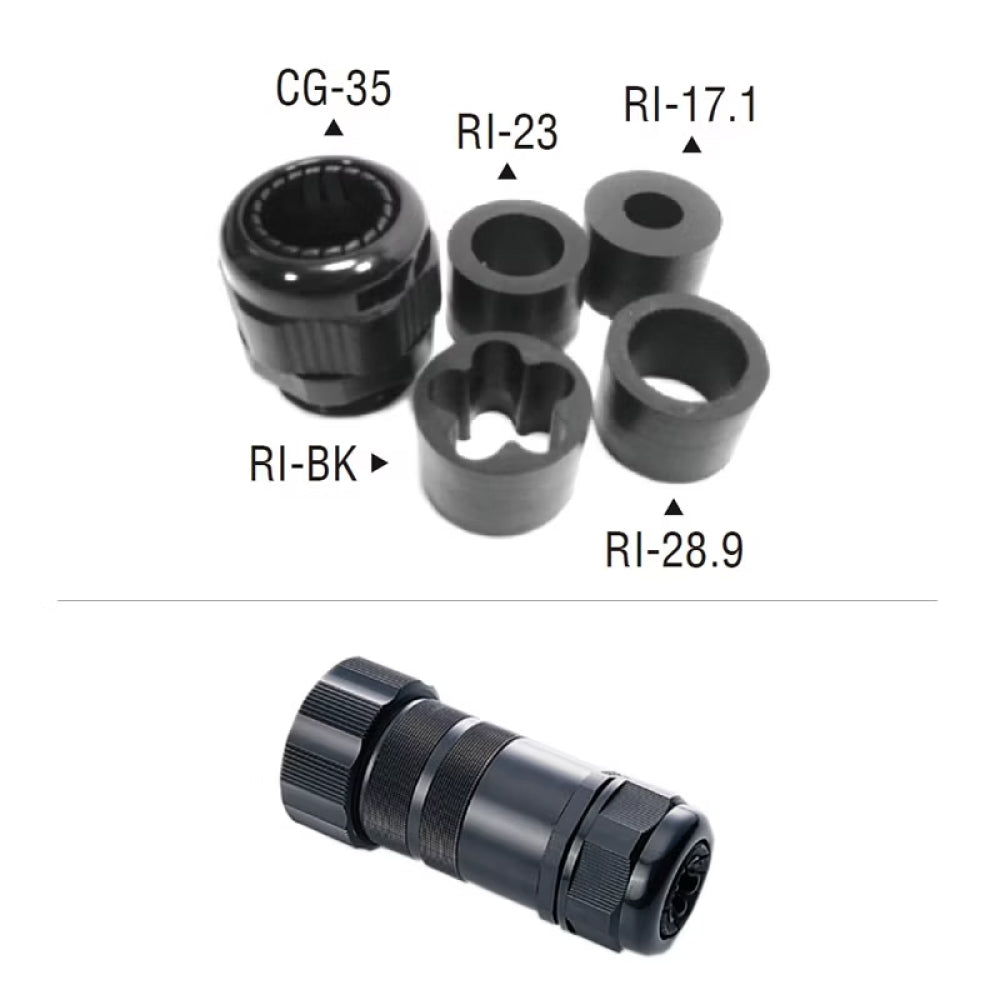

The CG-35 is the cable gland component for KUPO WPC 19-pin watertight connector assemblies. Used as part of the FPG-42 sealing system with interchangeable rubber sleeves, it creates the cable-entry side of the connector seal and helps maintain IP67 protection when the full assembly is built correctly.
Why It Matters
A watertight connector is only as reliable as the cable entry. The CG-35 matters because it turns the back of the connector into a controlled sealed interface instead of leaving water protection to improvised strain relief.
Key Features
Cable gland component belongs to the FPG-42 sealing system.
Designed for KUPO WPC 19-pin watertight connector assemblies.

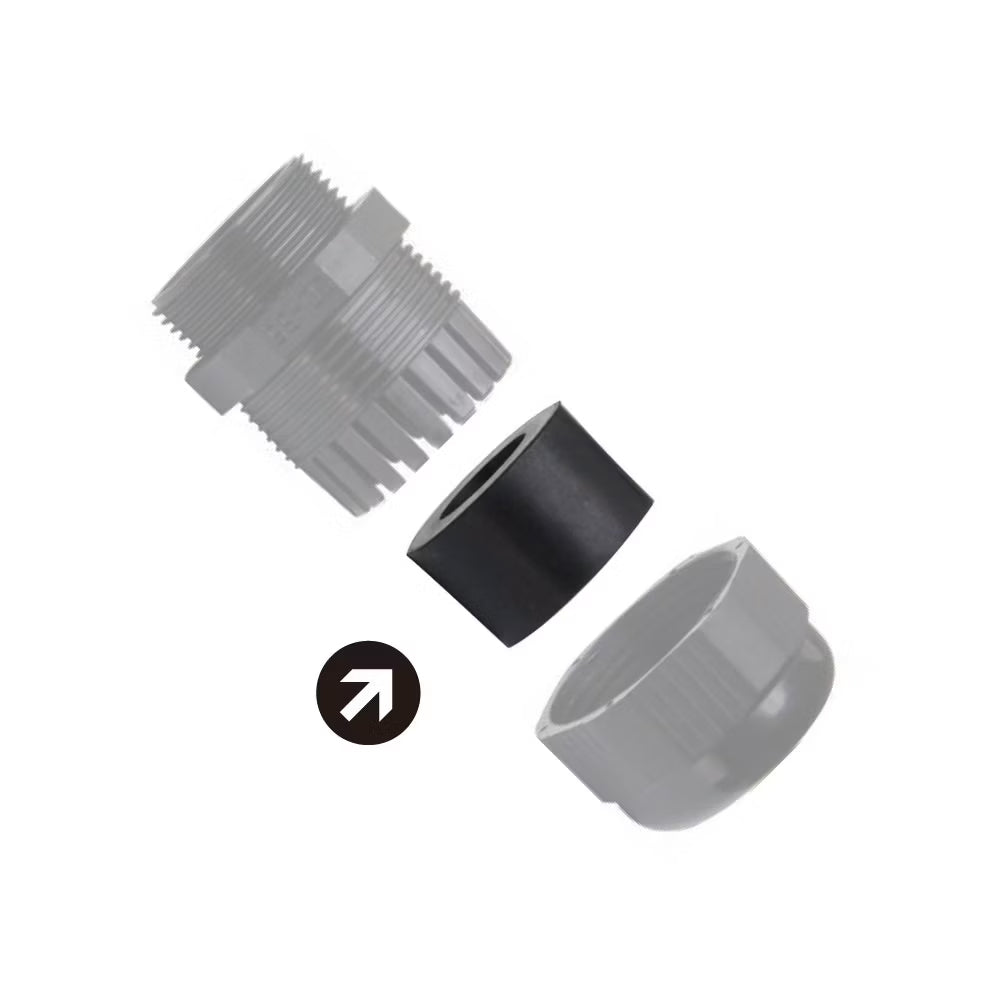

Works with interchangeable rubber sleeves to accommodate a range of cable diameters.
Supports IP67 protection when properly assembled with the full compatible connector system.
Applications
Used in outdoor power multicore builds, watertight 19-pin connector assemblies, touring power looms, event power packages, and installations where cable entry sealing is part of the connector specification.
Compatibility
Compatible with KUPO WPC 19-pin watertight series as part of the FPG-42 sealing system.
Frequently Asked Questions
Is CG-35 the whole connector?
No. It is the cable gland used as part of the WPC 19-pin watertight connector sealing system.
Does it help maintain IP67?
Yes, when properly assembled with the compatible connector system and rubber sleeves.
Which connector family is it for?
It is for the KUPO WPC 19-pin watertight series.
