Overview

The KUPO CH-52BP is the dustproof hoist jacket for 1-ton chain hoists equipped with Micro Switch Positioning (MSP). It uses the same 900 denier resin-coated polyester construction as the CH-52B, but adds tighter protection around the MSP sensor area where dust intrusion matters more.

Why It Matters

MSP-equipped hoists have an additional sensor-related opening near the chain entry, and that is exactly where a dusty venue can cause trouble. CH-52BP is the better pairing for RH-1000PS4, RH-1000PS8, and RH-1000LVP hoists when the show environment is not clean.

Key Features

• 900 denier woven polyester with two coats of resin helps proof the hoist body against rain and dust.

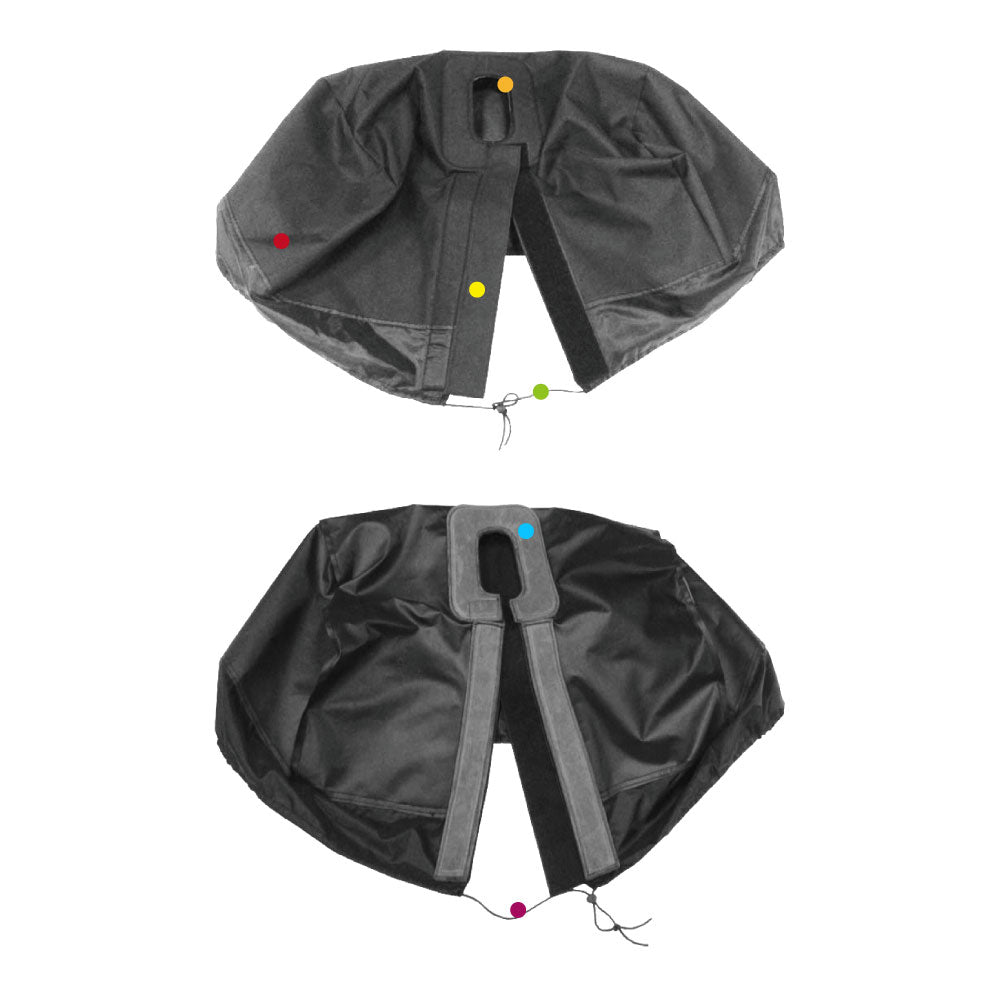

• Rectangular top cutout lets the chain pass through while the bottom drawstring tightens the skirt around the hoist.
• Internal foam pad adds cosmetic protection between the polyester shell and the metal hoist body.

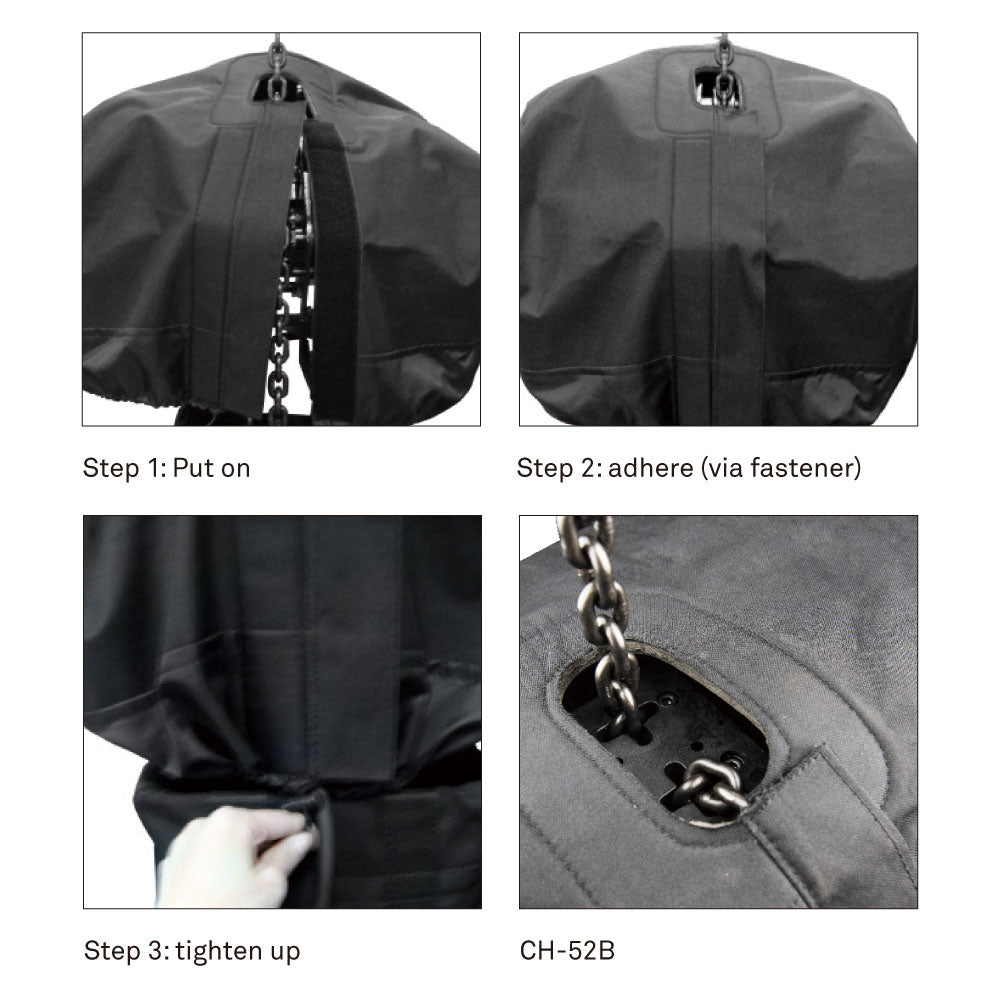

• Velcro adhere strip supports quick installation during load-in, storage prep, or outdoor show setup.

Additional Technical Notes

• Color: Black standard, customised colors and embossed logos upon request
• Control Voltage: 24 V / 48 V / 110 V
• Chain Fall: 1
• Brake: Spring-loaded heavy-duty DC brake
• Friction Clutch: Yes, for overload protection
• Working Noise: 75 dB(A) at 1 m

Applications

Use for outdoor venues, dusty environments, transit storage, touring preparation, and professional event setups where the hoist should be protected and visually cleaner.

Compatibility

Designed for RIGPRO RH-1000PS4, RH-1000PS8, and RH-1000LVP MSP-equipped 1-ton hoists. For non-MSP 1-ton hoists, use CH-52B.
