Overview

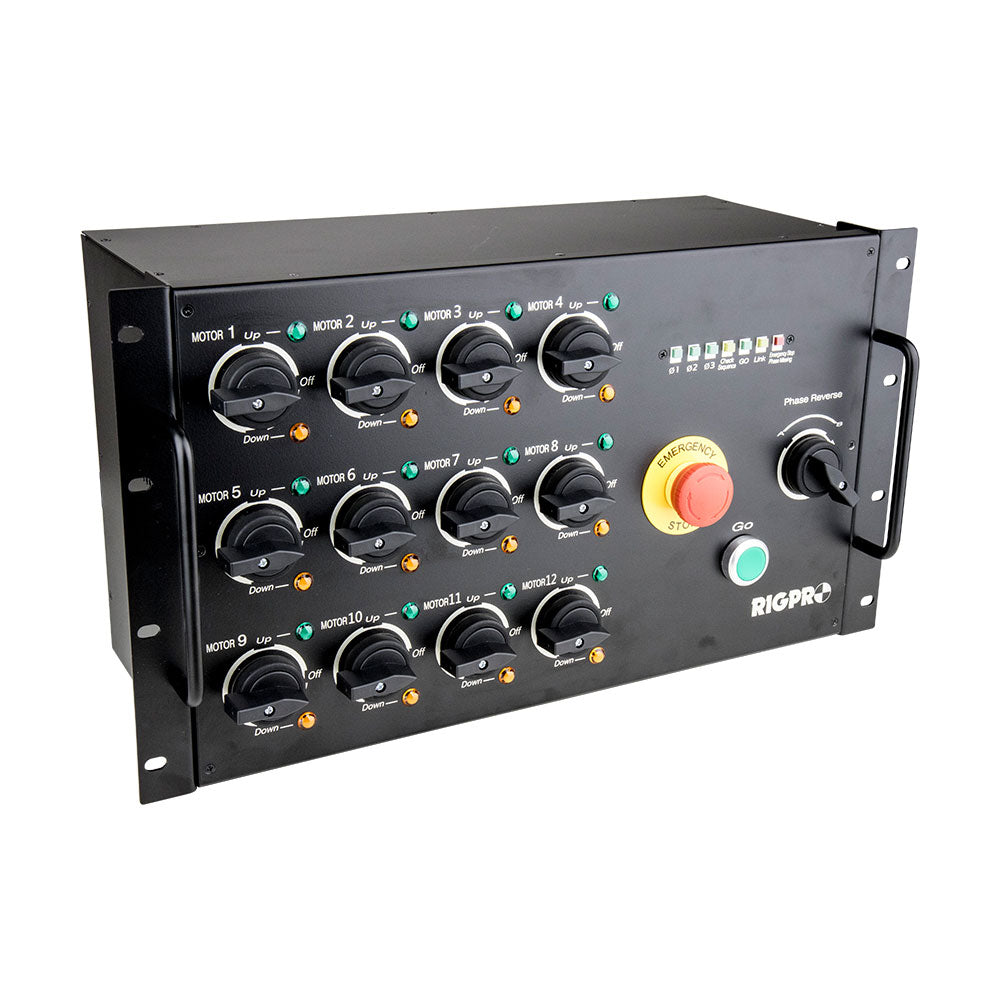

The KUPO CHC-112R-3P is the 12-channel rack-mount controller in RIGPRO's direct-voltage line, designed for touring, theatre, and corporate productions running a full motor grid from one rack console. Its 6U 19" chassis outputs through 3 Soca 19-pin sockets, keeping twelve channels organized in a format that fits standard road racks.

Why It Matters

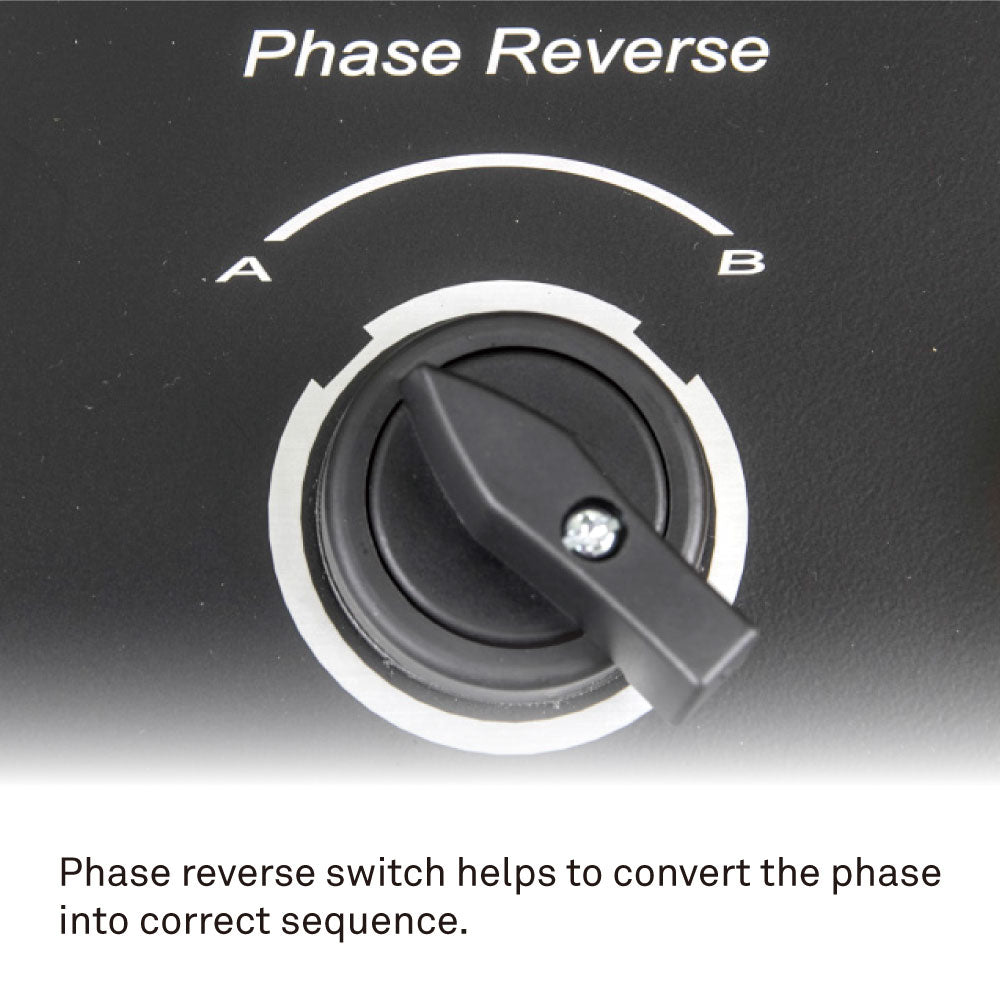

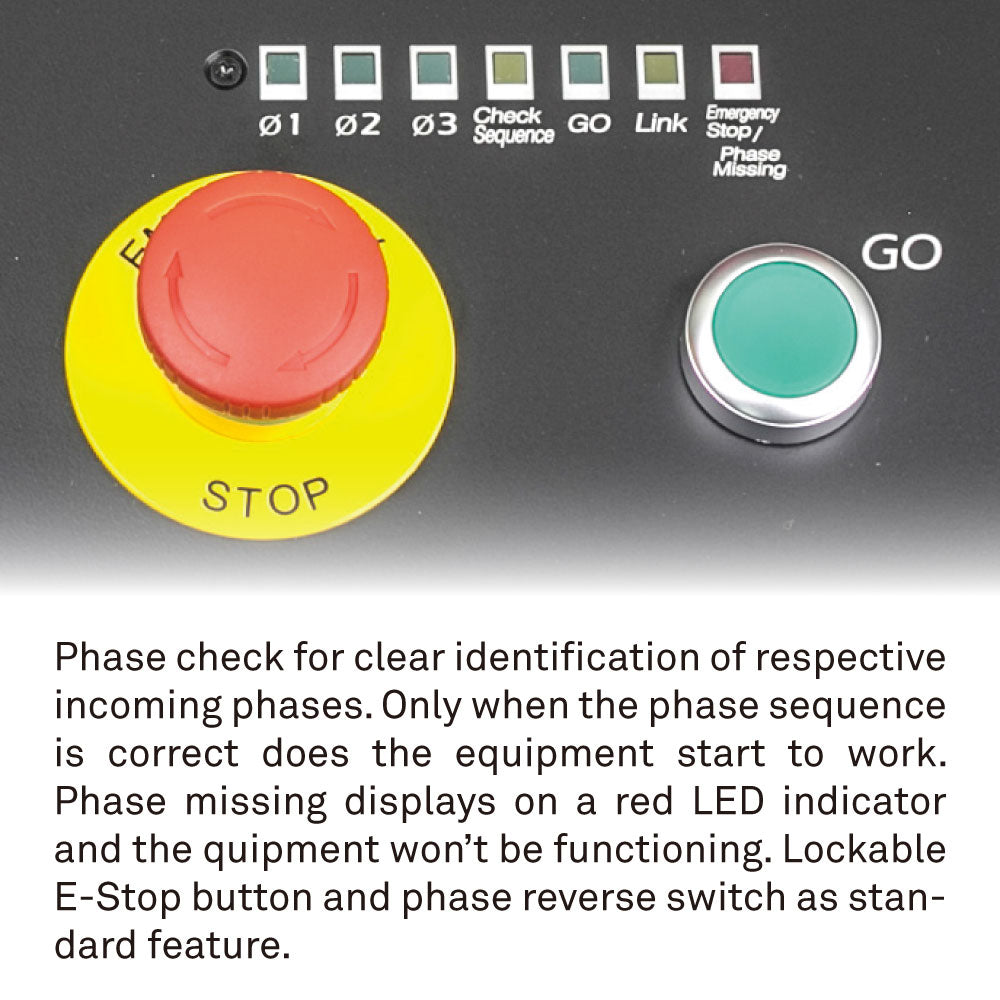

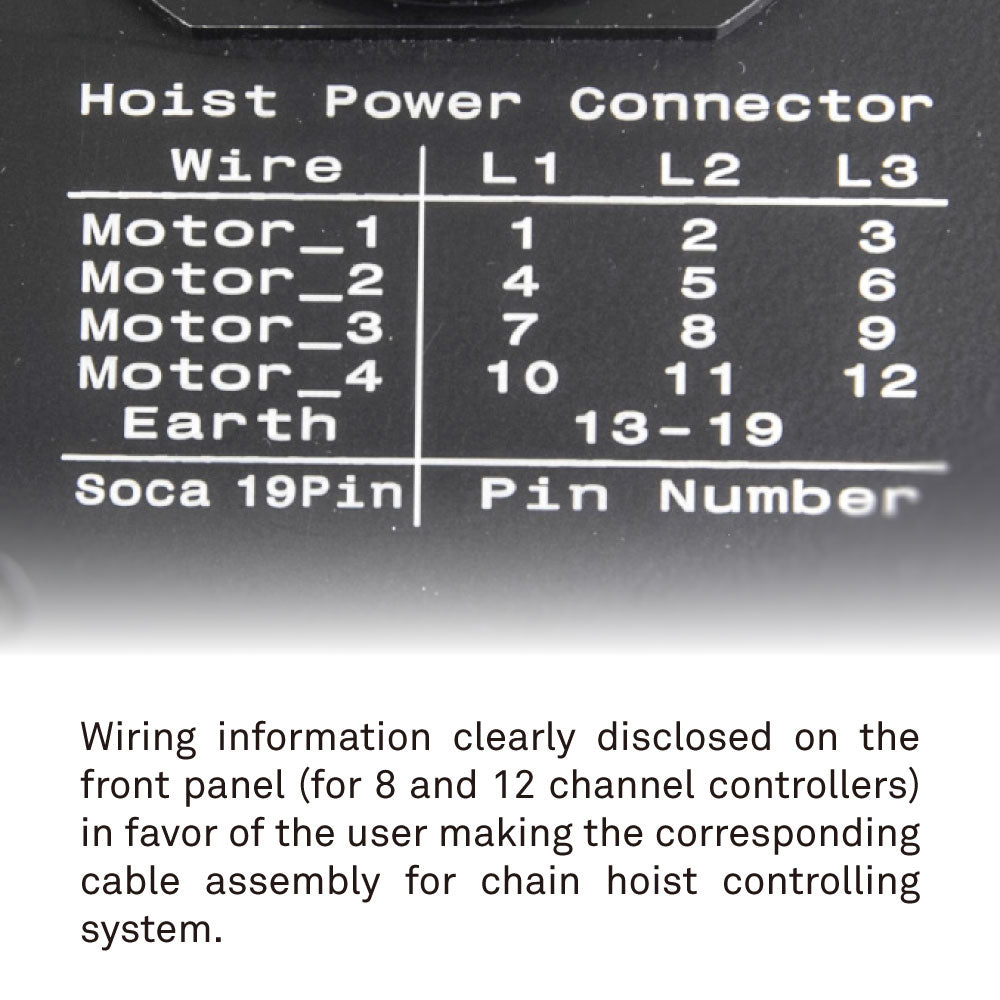

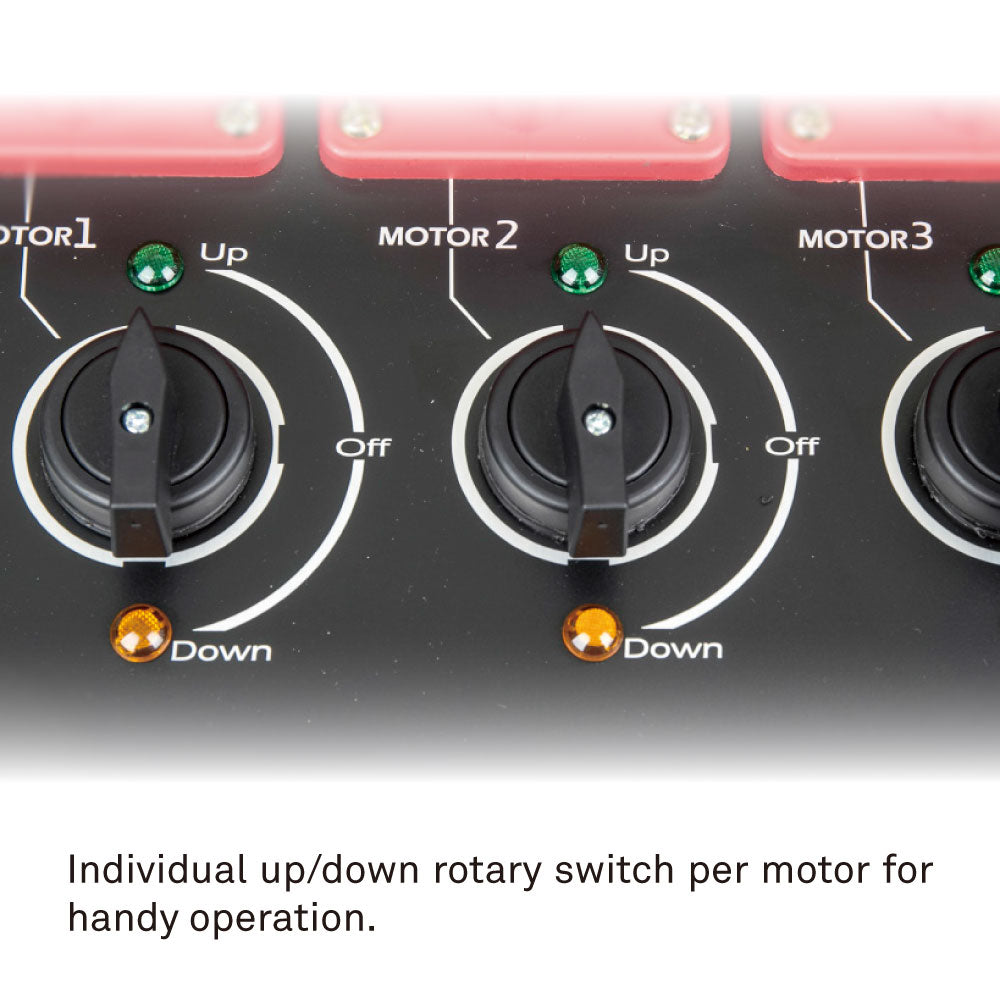

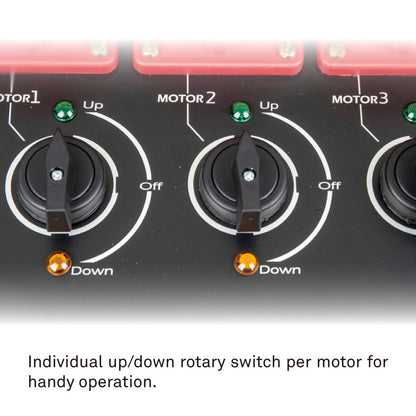

Twelve motors create enough wiring and status checking that the controller needs to be more than a box of switches. CHC-112R-3P gives the operator phase indication, channel direction, emergency stop, front-panel wiring legend, overload and circuit leakage protection, and XLR linking in one rack-mounted package.

Key Features

• 12 direct three-phase control channels fit into a 6U 19" rack-mount format.

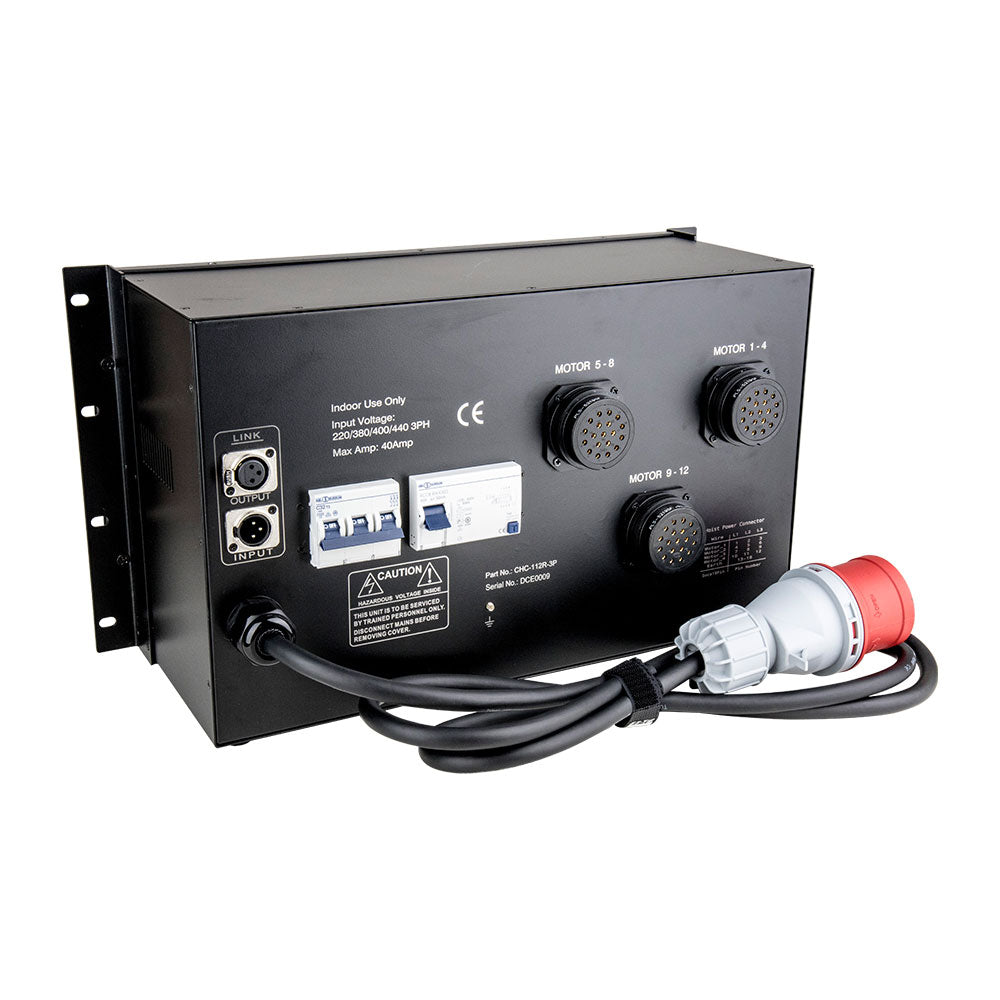

• 3 Soca 19-pin female outputs match touring multicore motor breakout workflows.

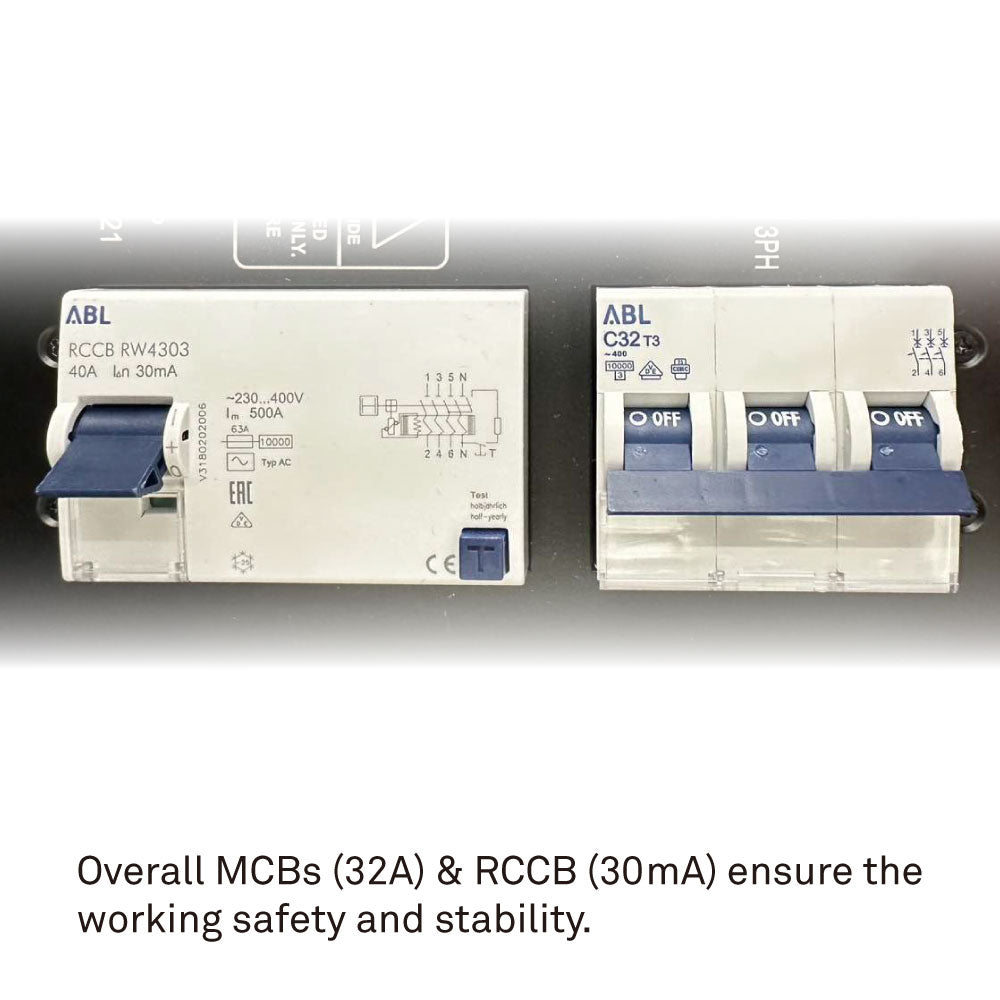

• Overload + leakage breaker support safer operation during hoist start-up surges.

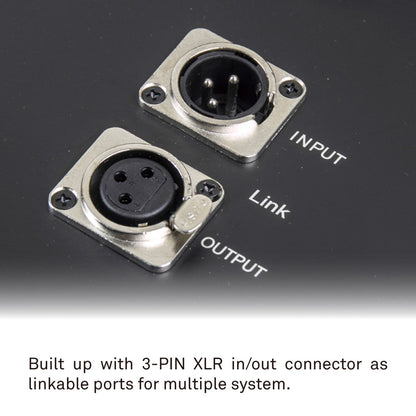

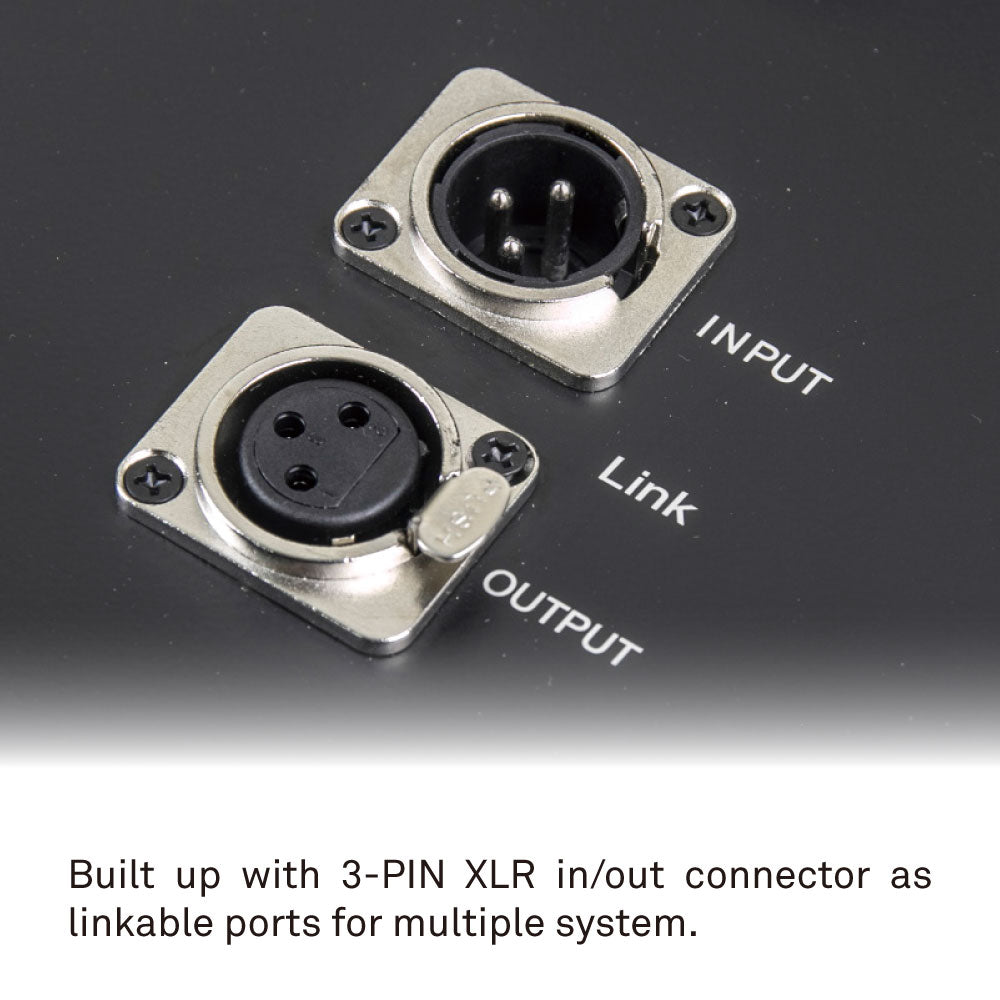

• 3-pin XLR master/slave link allows multi-unit operation for larger rigs.

Additional Technical Notes

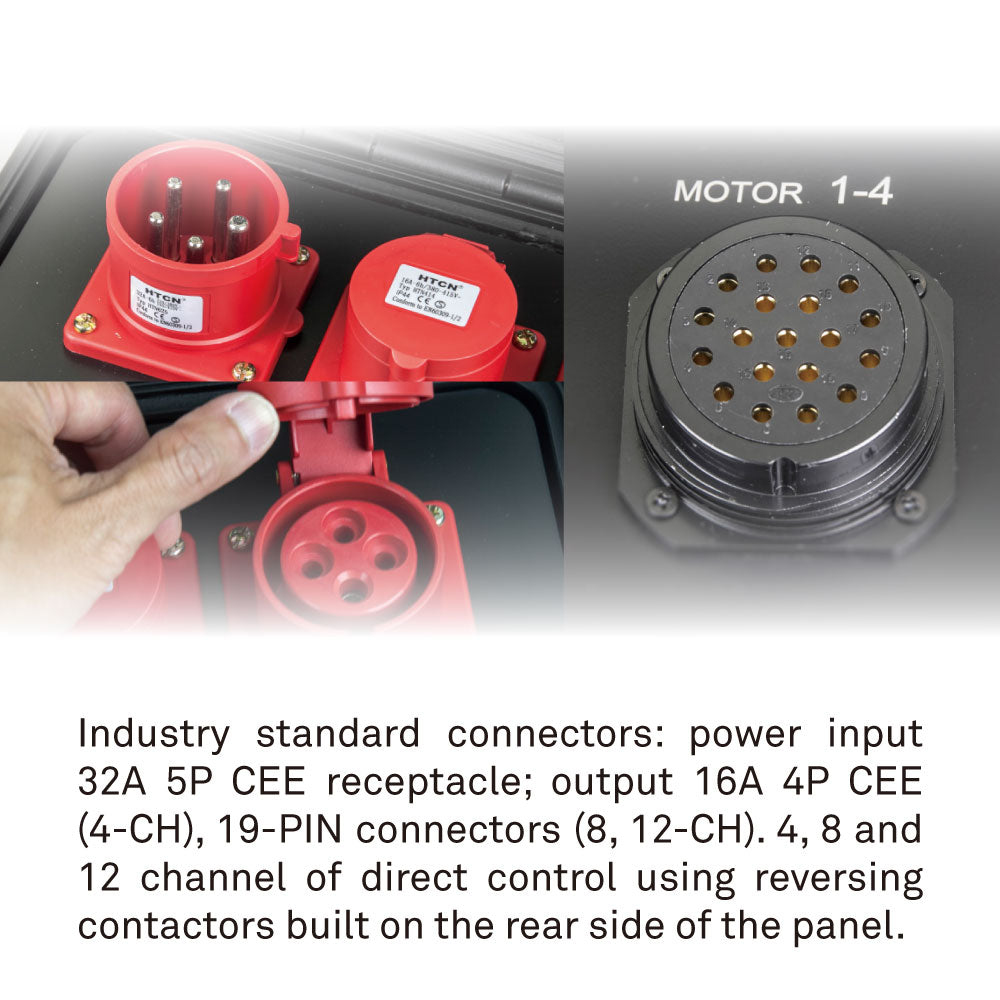

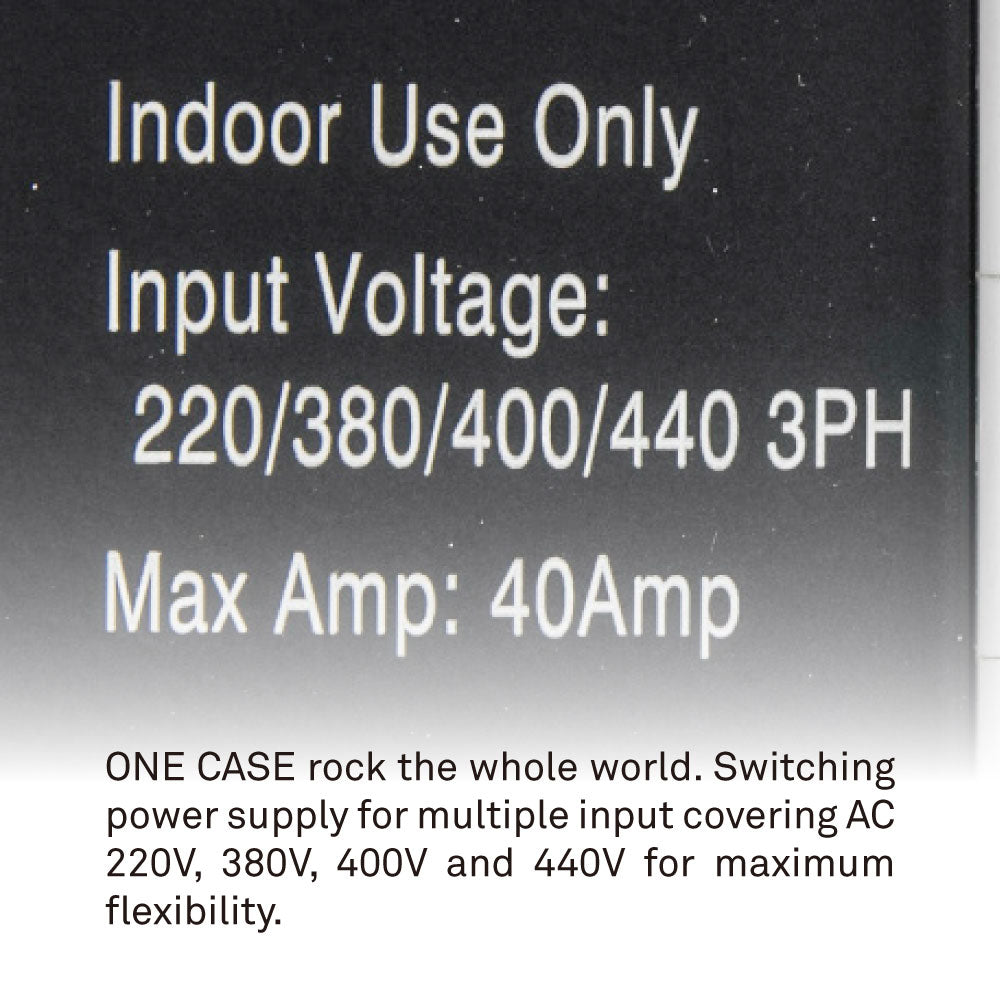

• Power Input: AC 220 V / 380 V / 400 V / 440 V, 50/60 Hz, 5-pin 32 A CEE male connector on 2 mm cable

Applications

Use for entertainment rigging, touring motor control, theatre hoist operation, corporate event truss moves, broadcast stages, and venue installations where controlled hoist movement is required.

Compatibility

Compatible with direct three-phase chain hoist control systems using the listed CEE input and Soca 19-pin output conventions.
