Overview

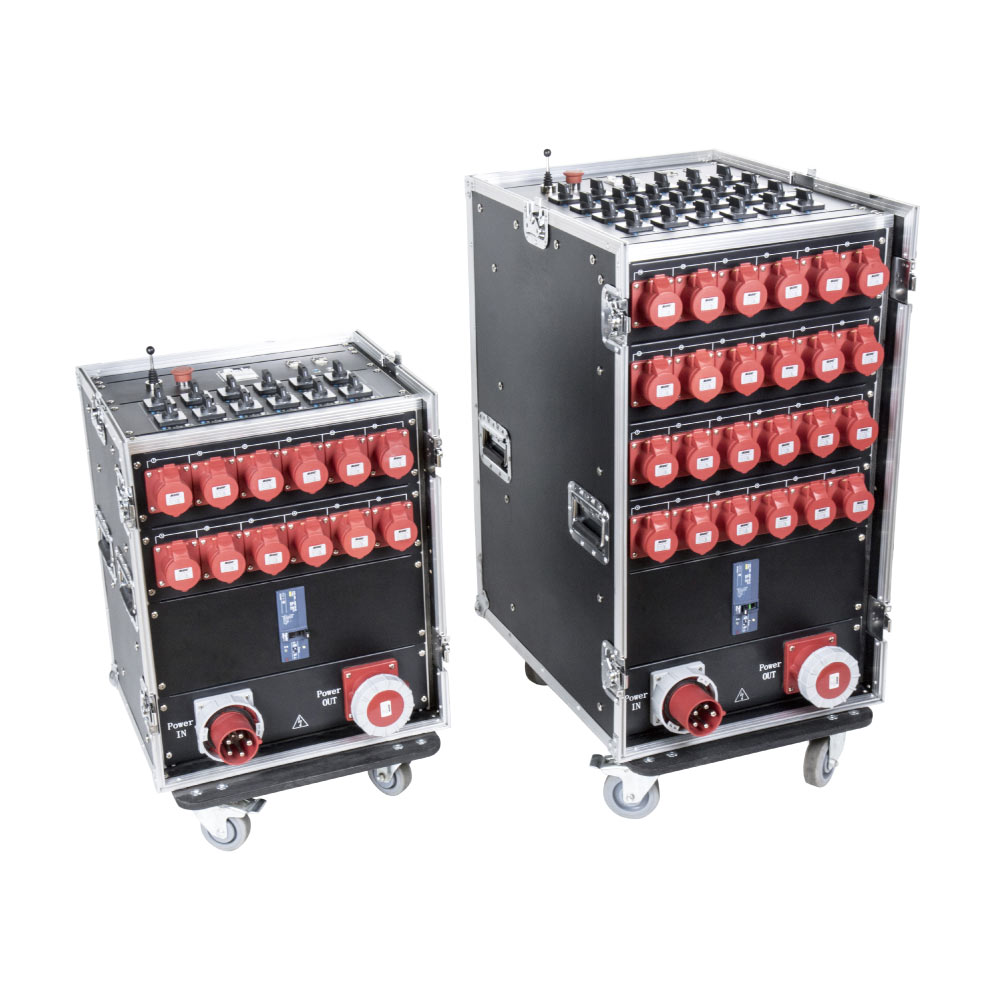

The KUPO CHC-112RSX-3P is an integrated 12-channel direct-voltage chain hoist controller built into a touring flight case with four swiveling castors, including two lockable castors. It arrives as a mobile control station with breakers, connectors, controls, and storage already built into one touring-grade chassis.

Why It Matters

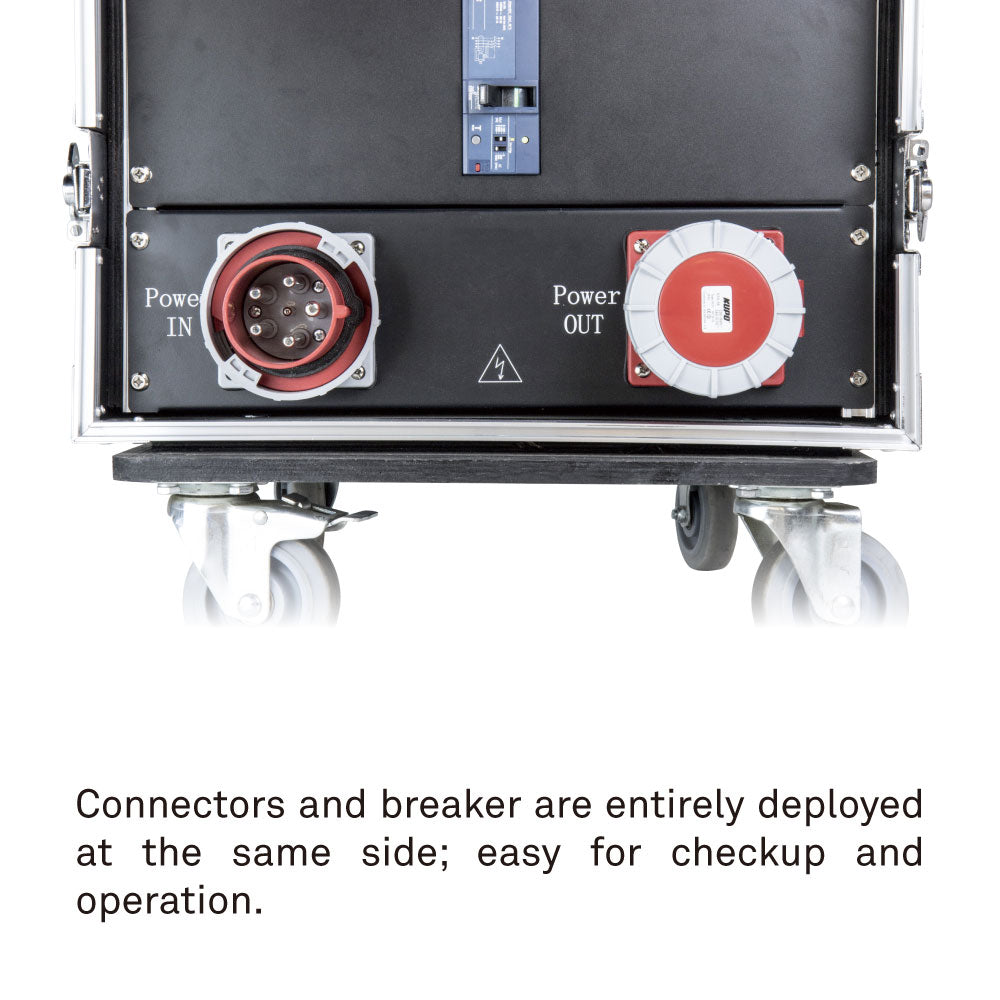

The 12-channel RSX is for crews who want a roll-in controller rather than a rack assembly project. All breakers, connectors, and controls are already deployed on one side of the case, making inspection and show setup cleaner on a touring deck.

Key Features

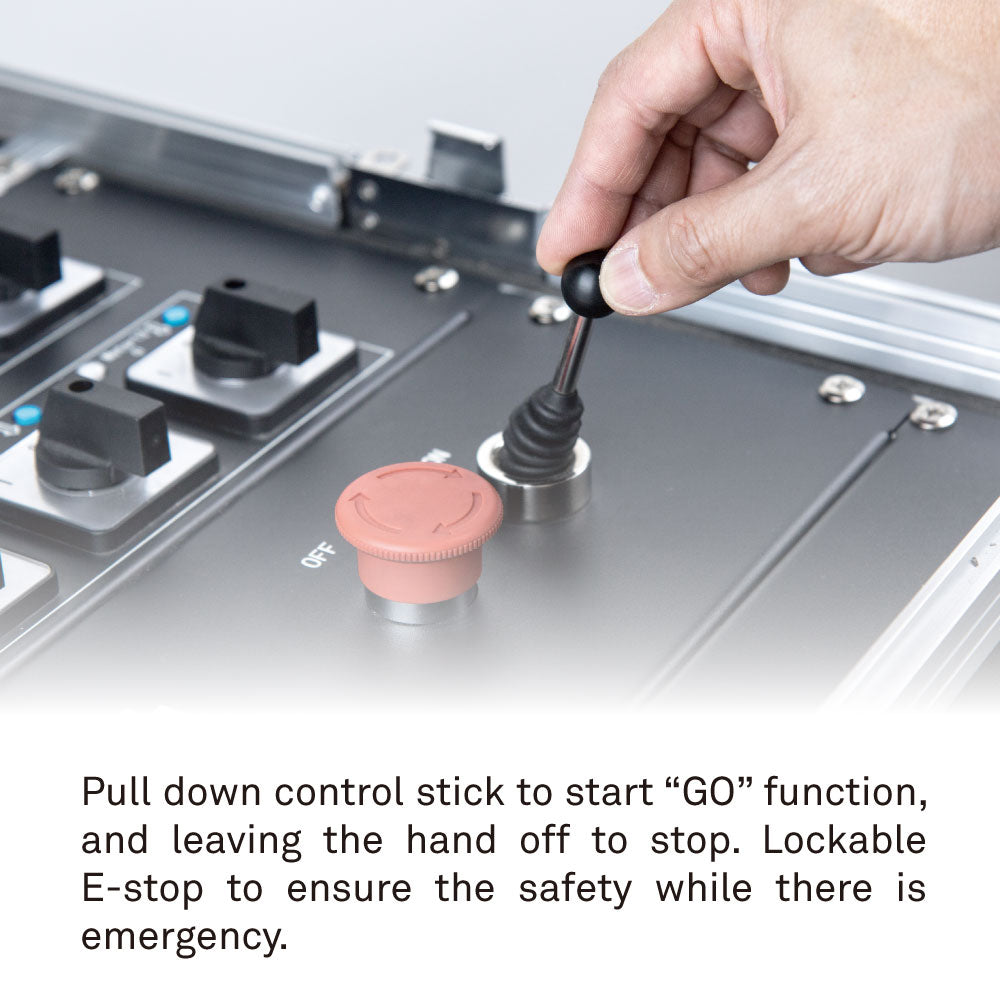

• 12 channels use pull-down GO sticks for tactile dead-man operation, hold to run and release to stop.

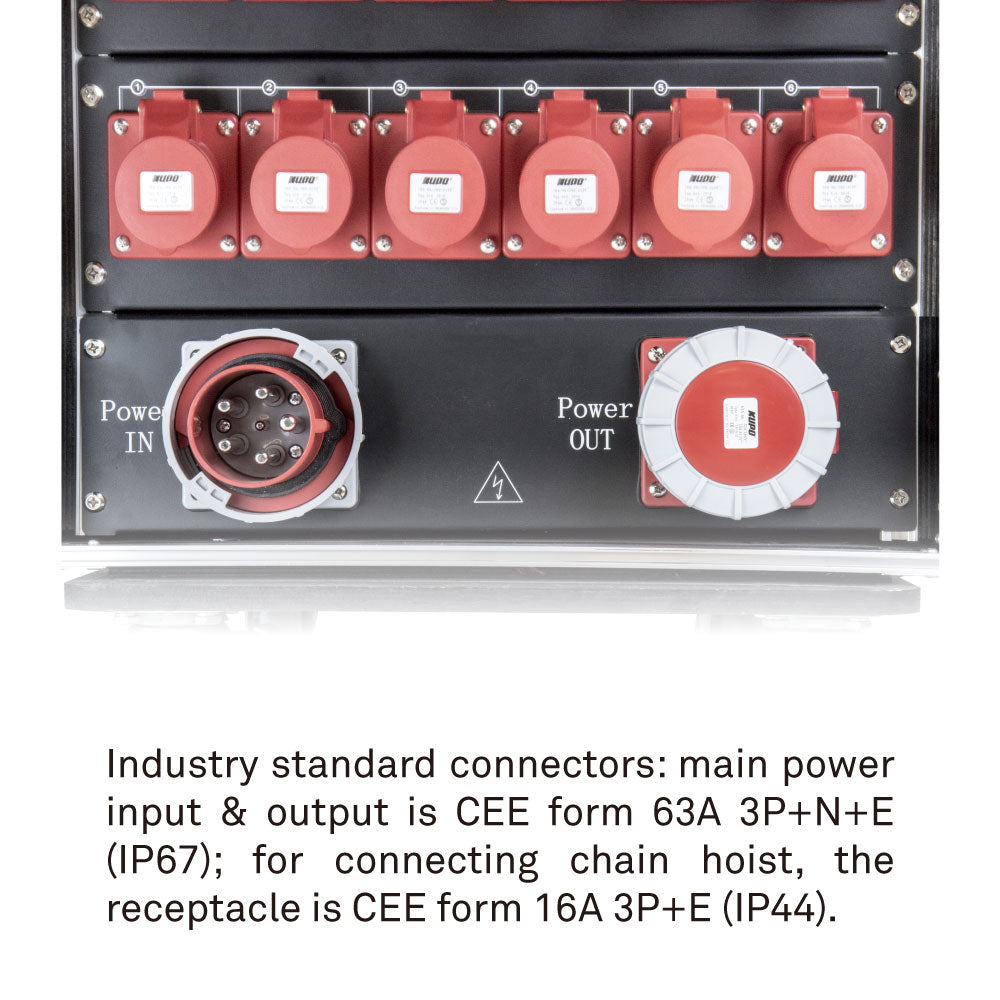

• CEE form 63 A 3P+N+E IP67 main power input and output support touring power distribution workflows.
• CEE form 16 A 3P+E IP44 channel outputs provide dedicated motor connections.

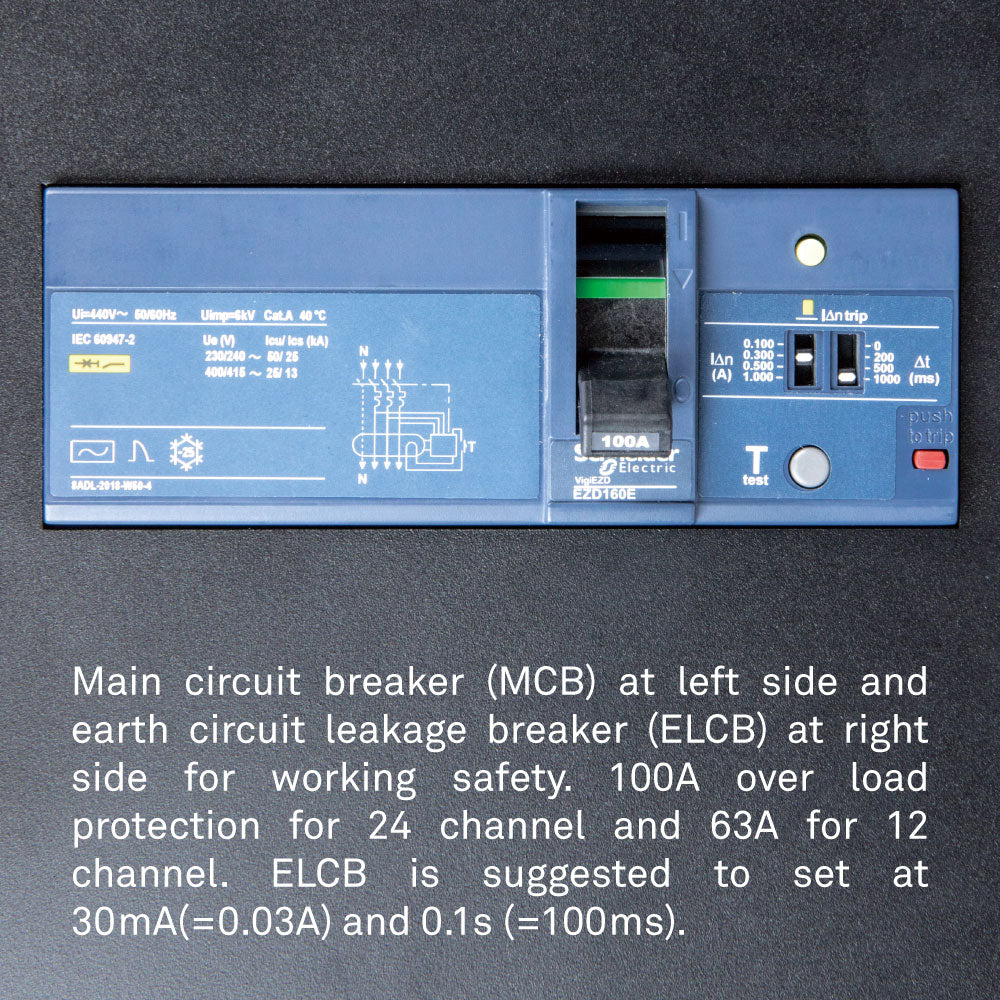

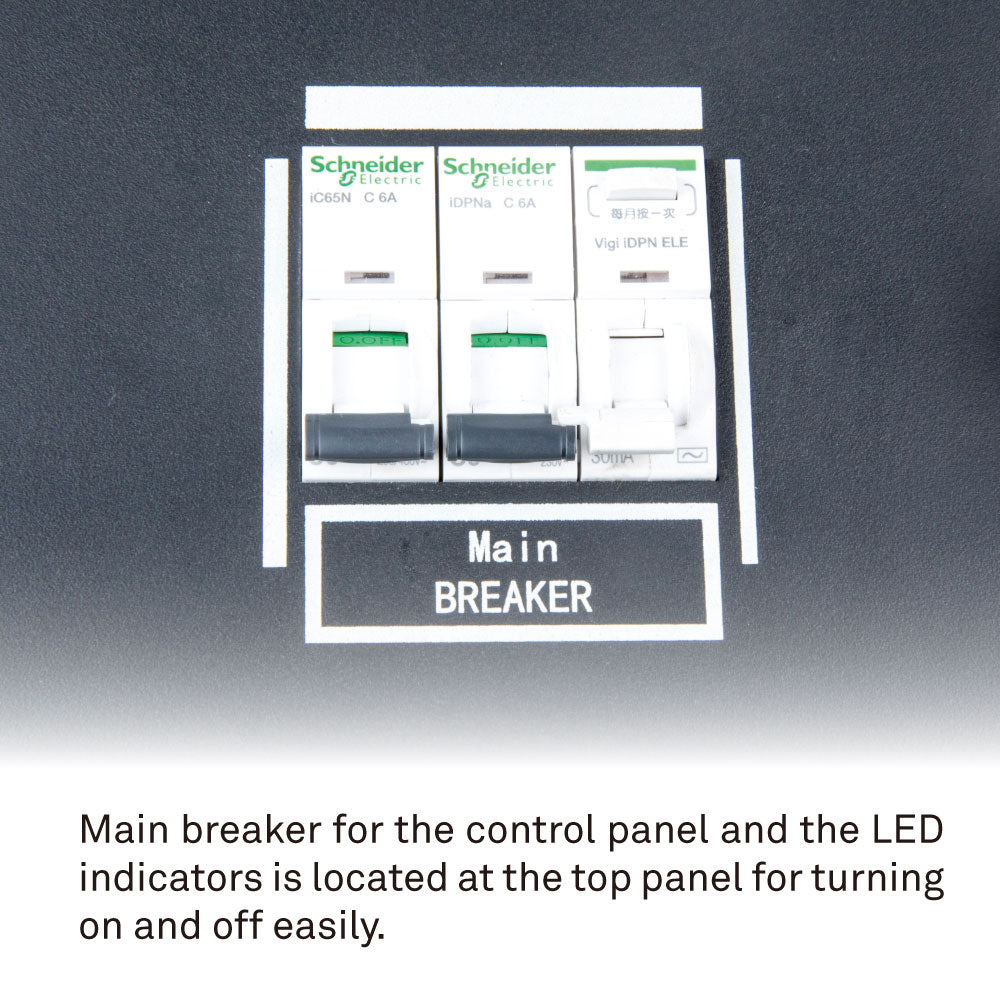

• MCB and ELCB protection with 63 A overload rating supports the higher current demand of the controller.

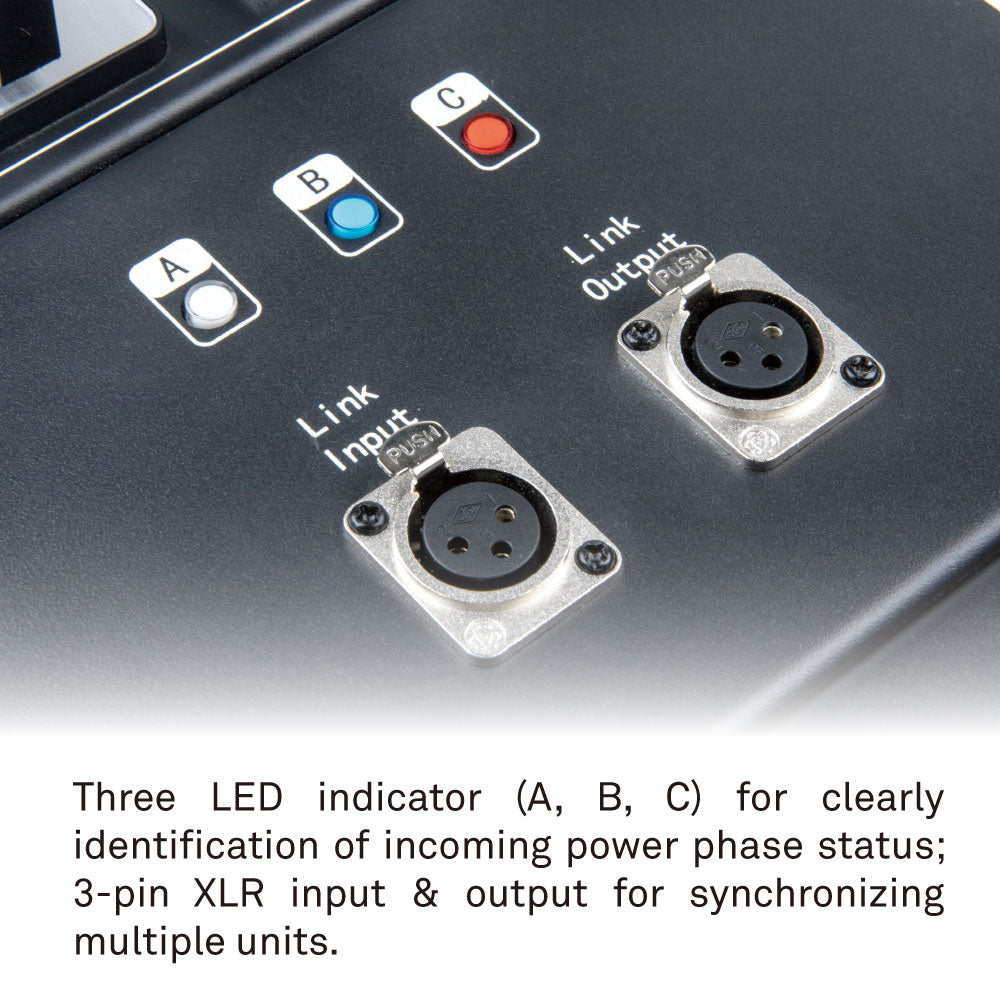

• 3-pin XLR input and output allow multi-unit synchronization.

Additional Technical Notes

• Form Factor: Integrated touring flight case with 4 castors, 2 lockable

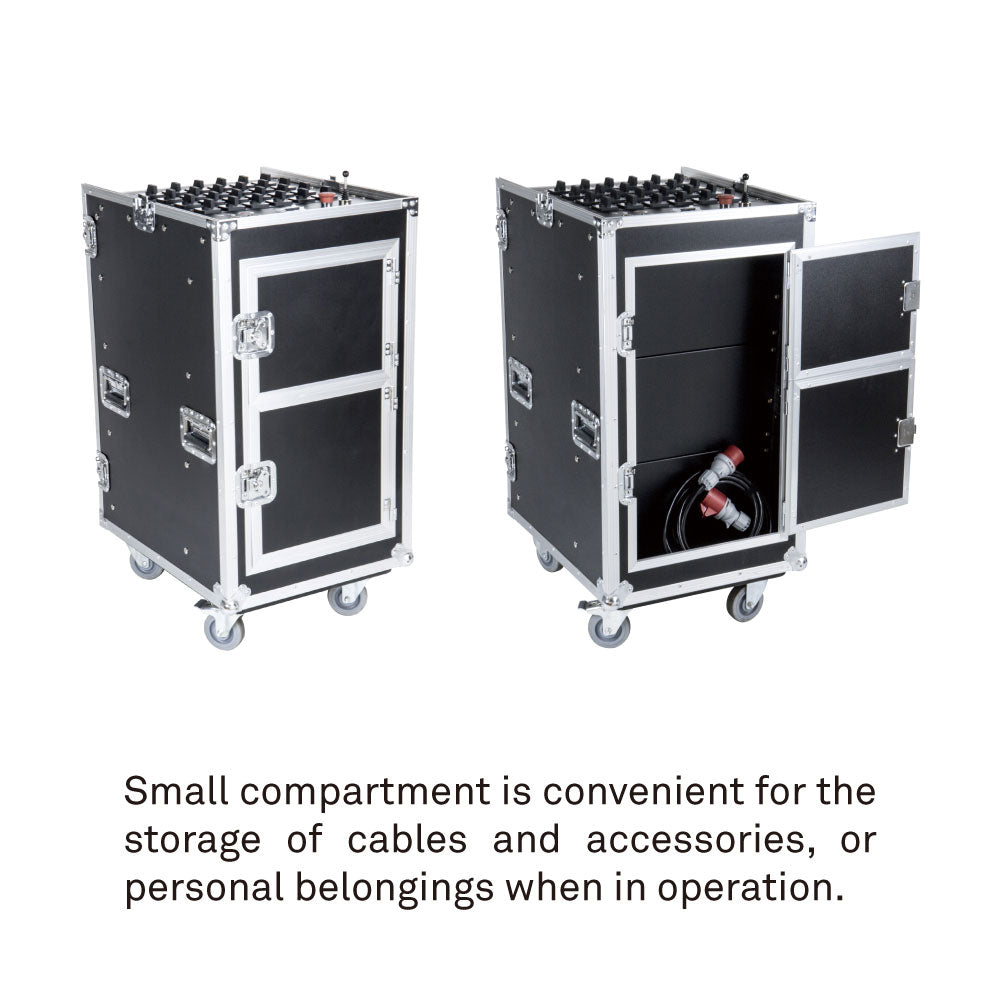

• Storage: Integrated accessories compartment
• Dimensions: 55 cm L x 55 cm W x 87 cm H with castors

Applications

Use for entertainment rigging, touring motor control, theatre hoist operation, corporate event truss moves, broadcast stages, and venue installations where controlled hoist movement is required.

Compatibility

Use with compatible direct three-phase chain hoist systems using CEE form power and motor output conventions. Link with sister RIGPRO controllers through the 3-pin XLR synchronization ports.
