Overview

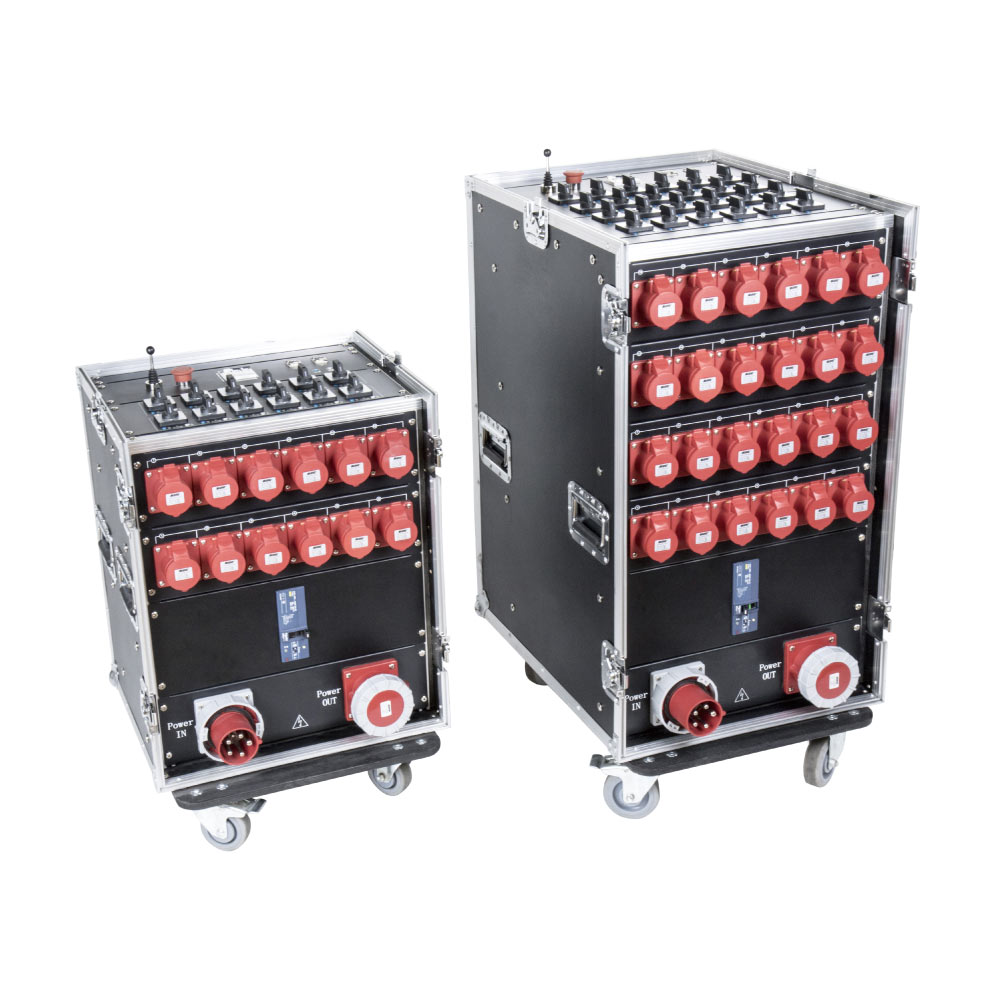

The KUPO CHC-124RSX-3P is an integrated 24-channel direct-voltage chain hoist controller built into a touring flight case with four swiveling castors, including two lockable castors. It arrives as a mobile control station with breakers, connectors, controls, and storage already built into one touring-grade chassis.

Why It Matters

This is the flagship option for arena tours, large theatres, and broadcast stages where the full flying grid routes back to one mobile control position. Twenty-four dead-man GO sticks and a single-side control layout make large motor systems easier to inspect and operate.

Key Features

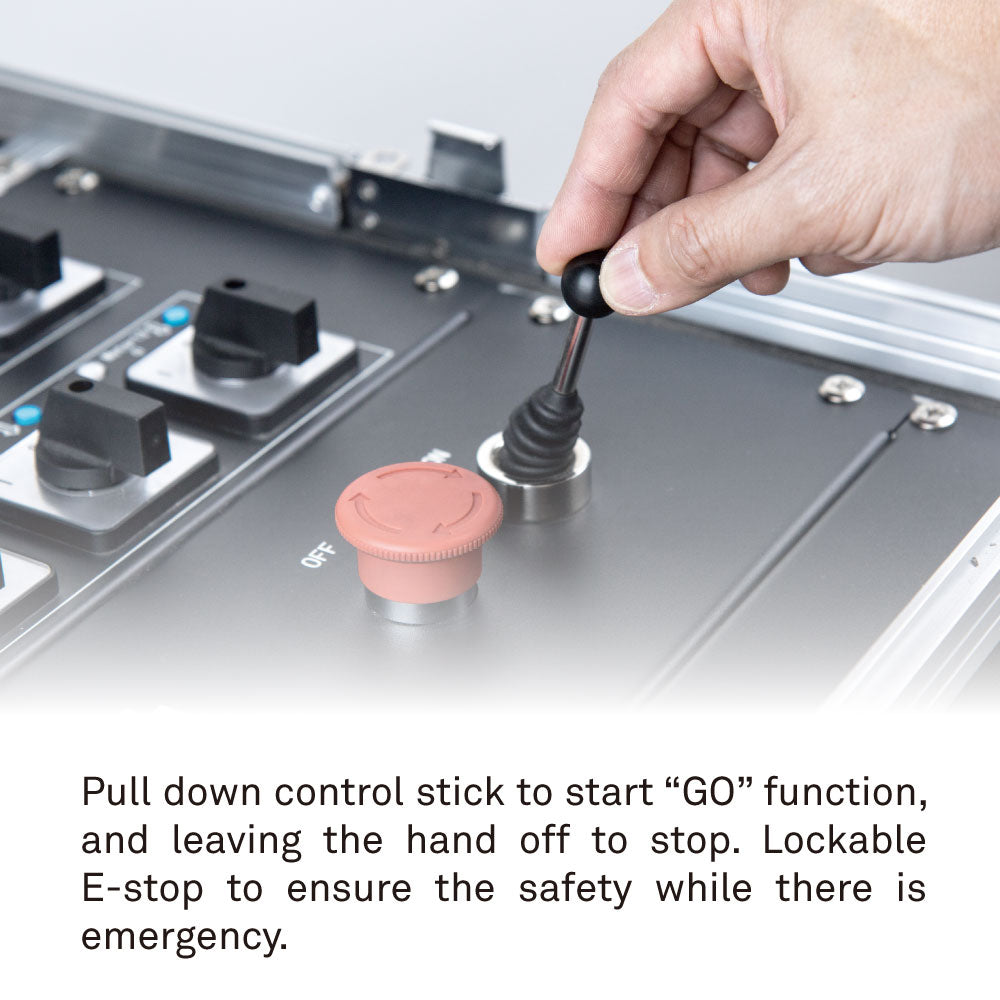

• 24 channels use pull-down GO sticks for tactile dead-man operation, hold to run and release to stop.

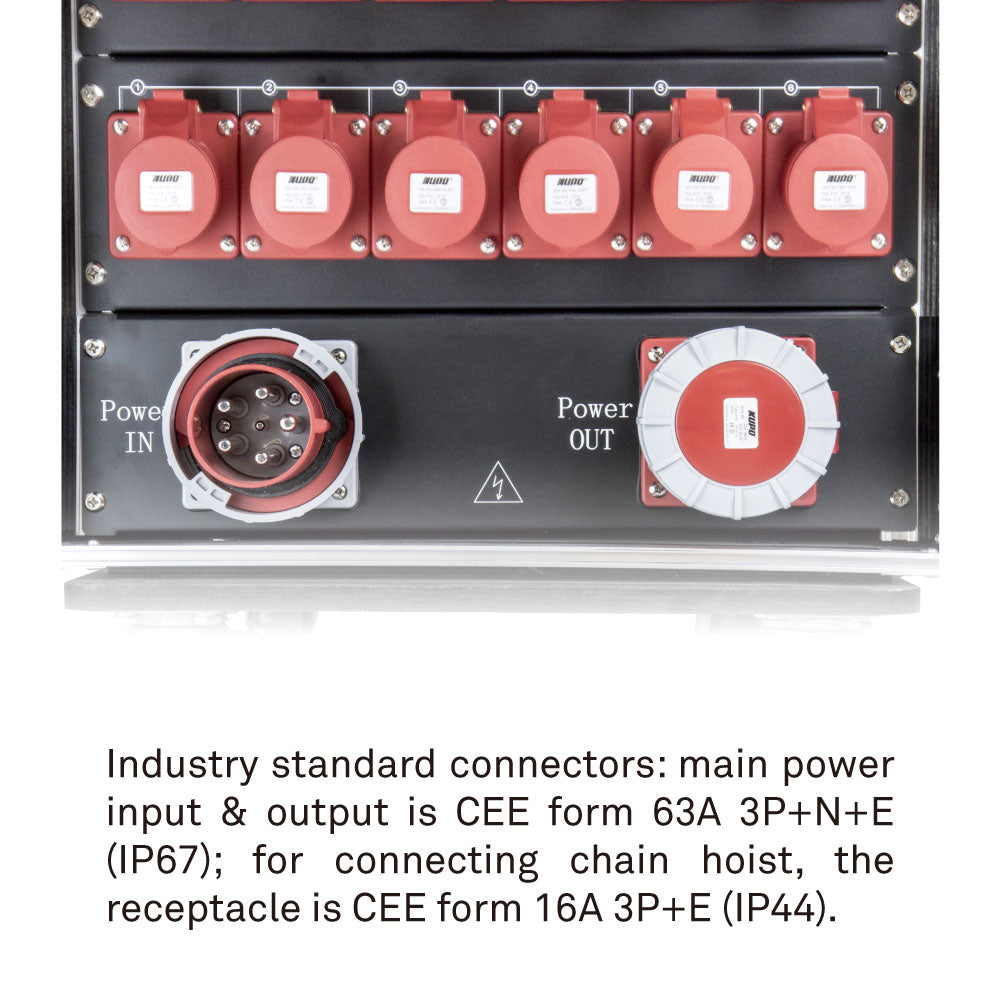

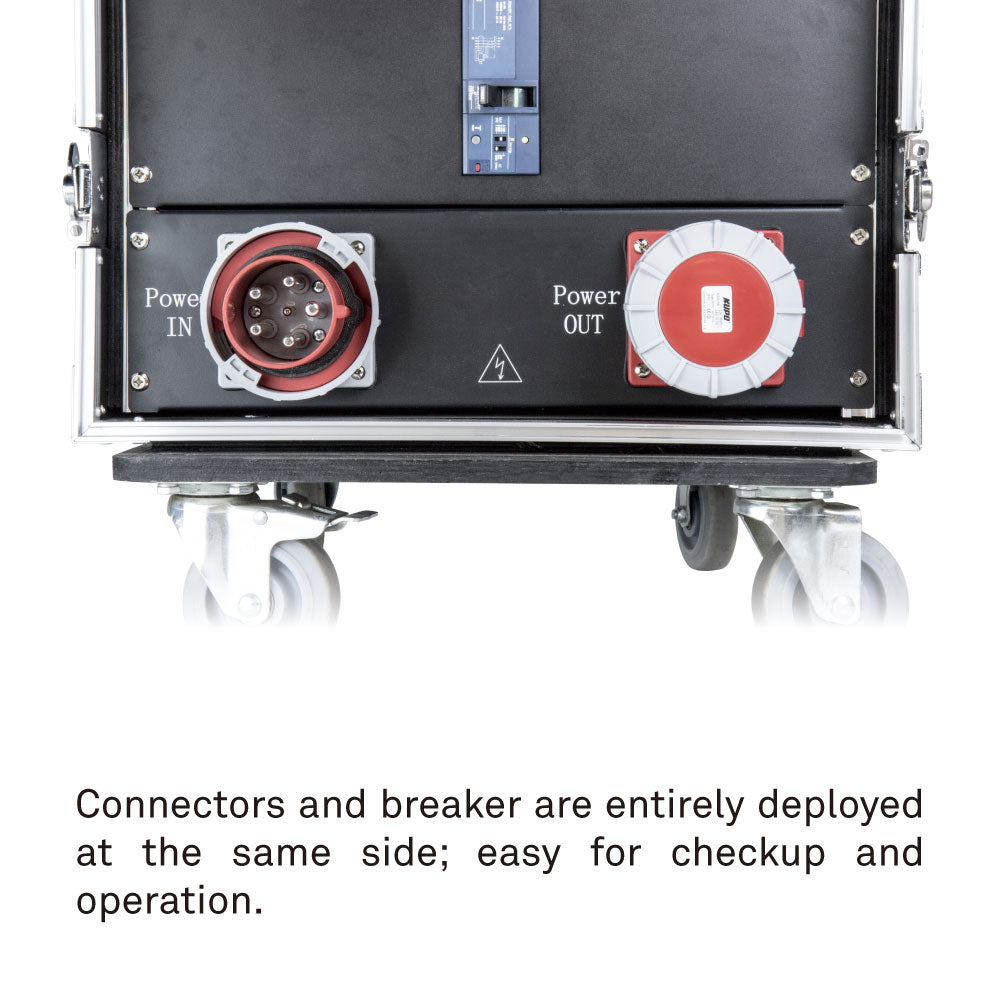

• CEE form 63 A 3P+N+E IP67 main power input and output support touring power distribution workflows.
• CEE form 16 A 3P+E IP44 channel outputs provide dedicated motor connections.

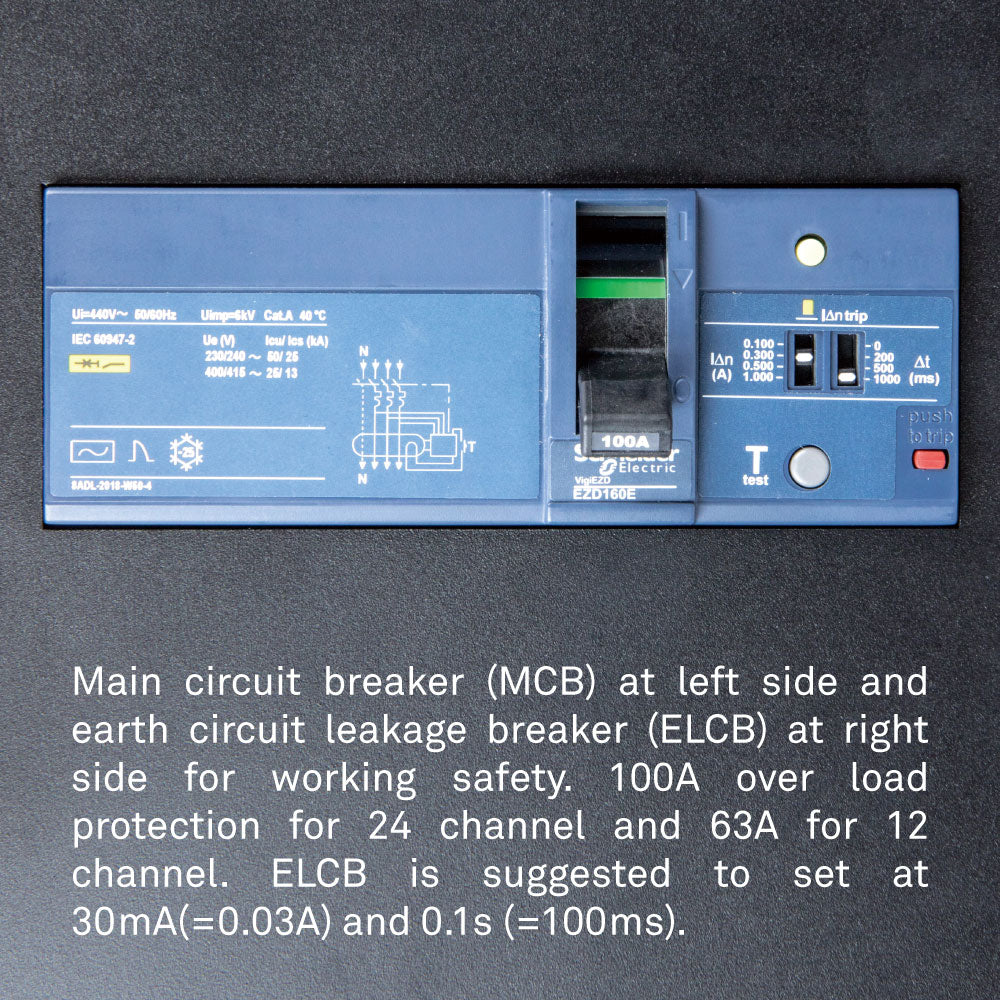

• MCB and ELCB protection with 100 A overload rating supports the higher current demand of the controller.

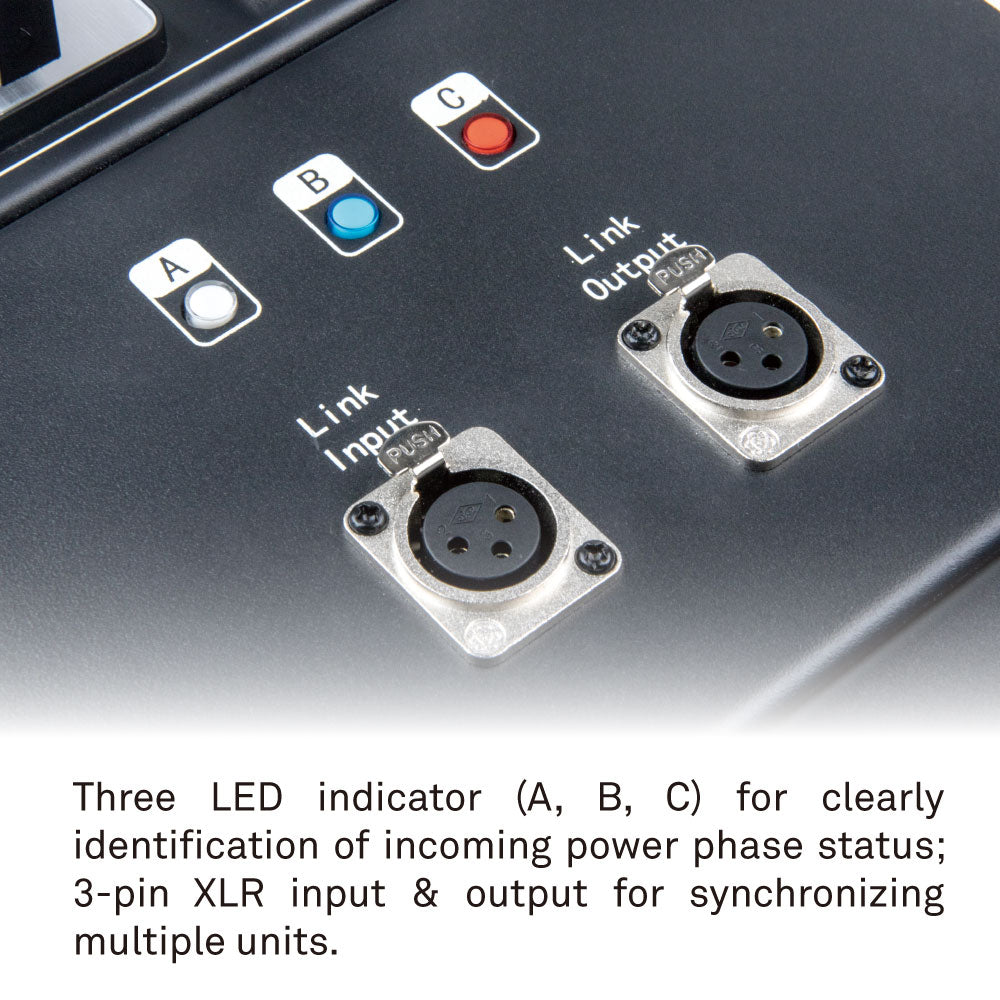

• 3-pin XLR input and output allow multi-unit synchronization.

Additional Technical Notes

• Form Factor: Integrated touring flight case with 4 castors, 2 lockable

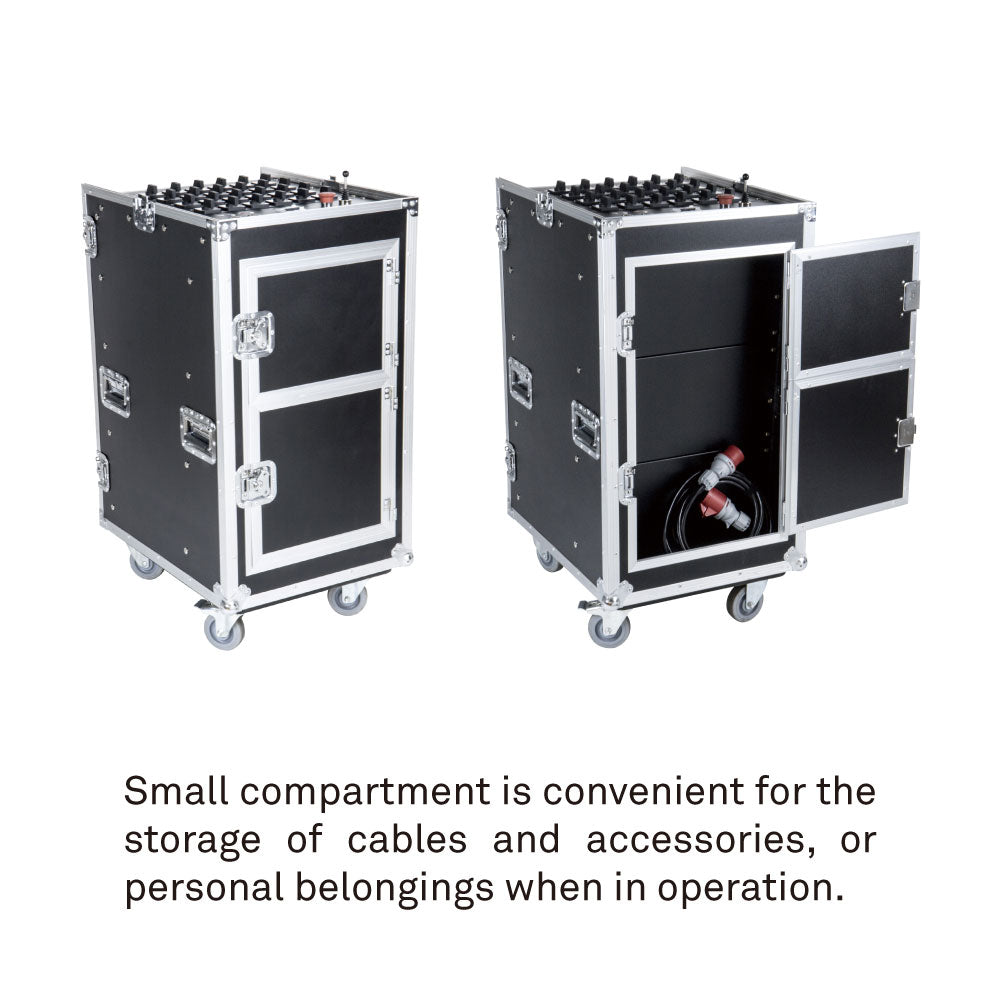

• Storage: Integrated accessories compartment
• Dimensions: 77 cm L x 55 cm W x 115 cm H with castors

Applications

Use for entertainment rigging, touring motor control, theatre hoist operation, corporate event truss moves, broadcast stages, and venue installations where controlled hoist movement is required.

Compatibility

Use with compatible direct three-phase chain hoist systems using CEE form power and motor output conventions. Link with sister RIGPRO controllers through the 3-pin XLR synchronization ports.
