Overview

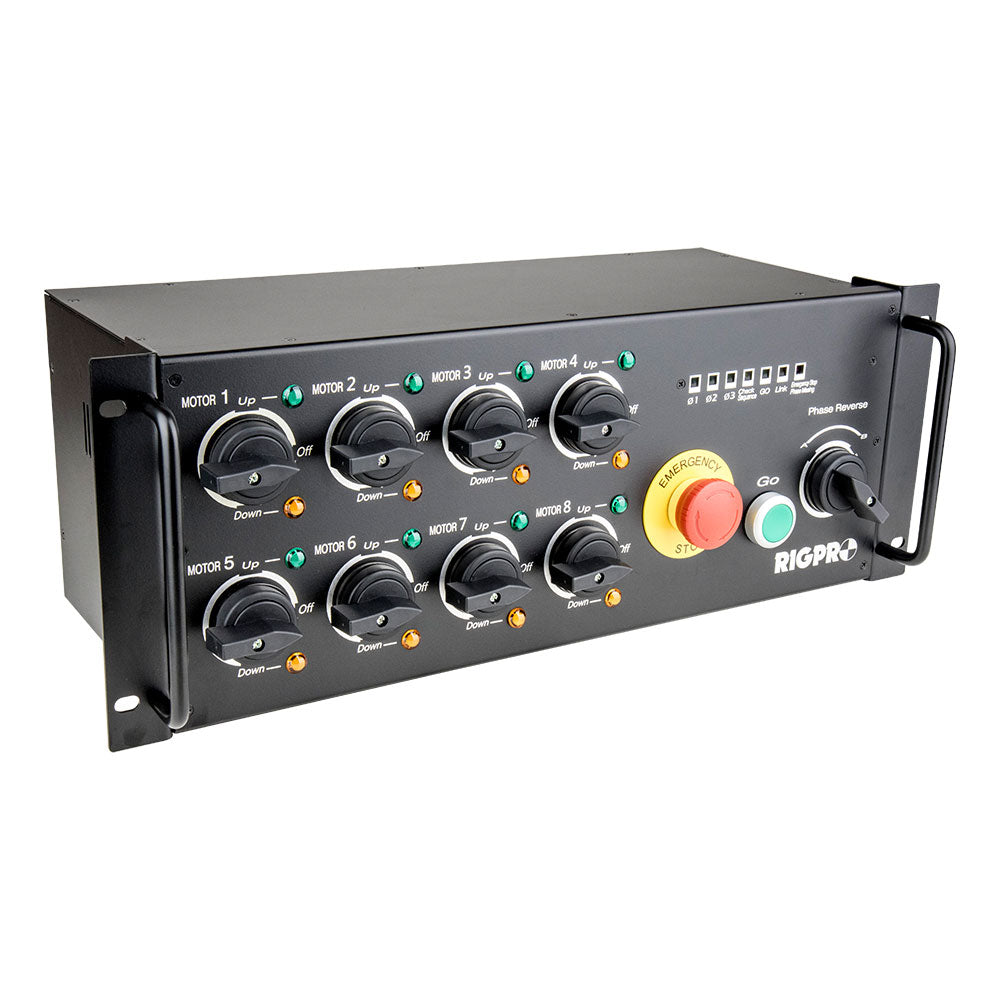

The KUPO CHC-18R-3P is an 8-channel rack-mount direct-voltage chain hoist controller for medium tours, corporate stages, and theatre rigs. It occupies 4U of standard 19" rack space and uses 2 Soca 19-pin output sockets, giving crews a compact rack workflow for eight points of motor control.

Why It Matters

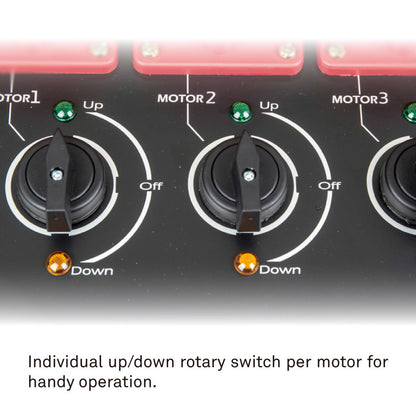

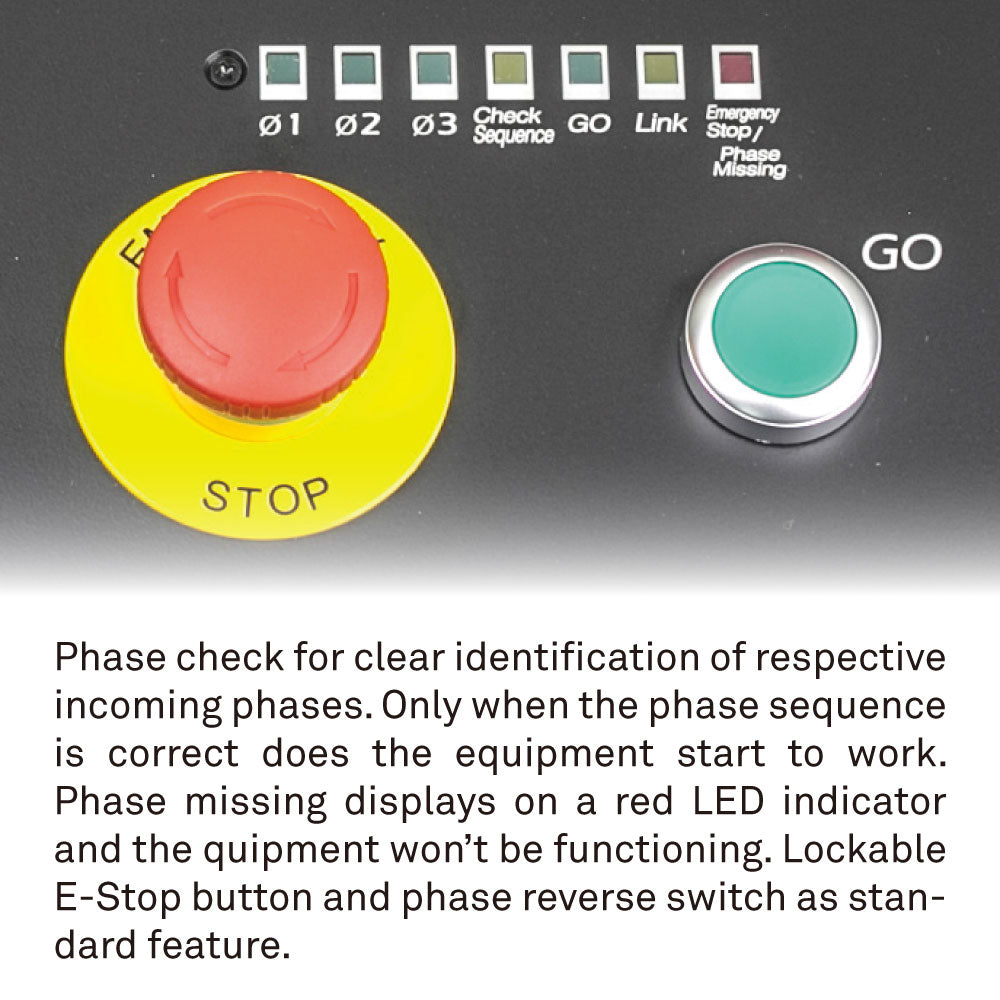

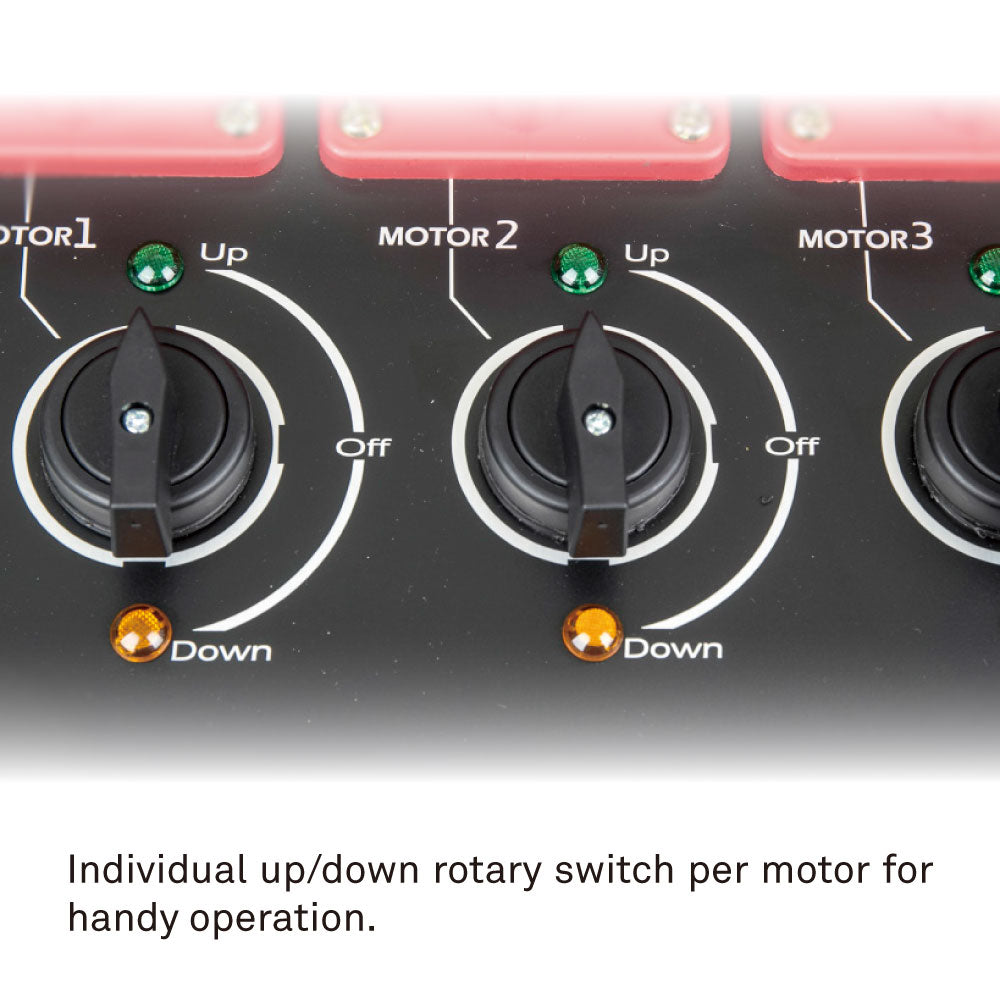

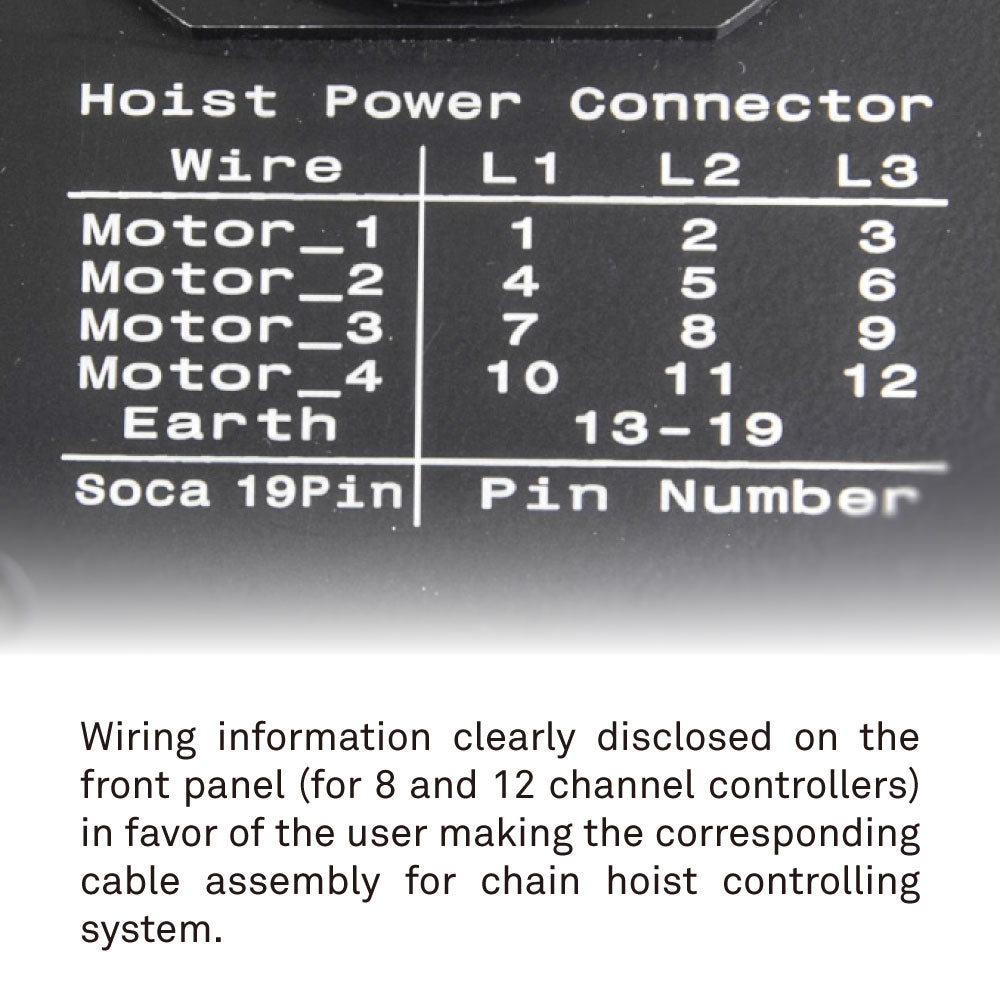

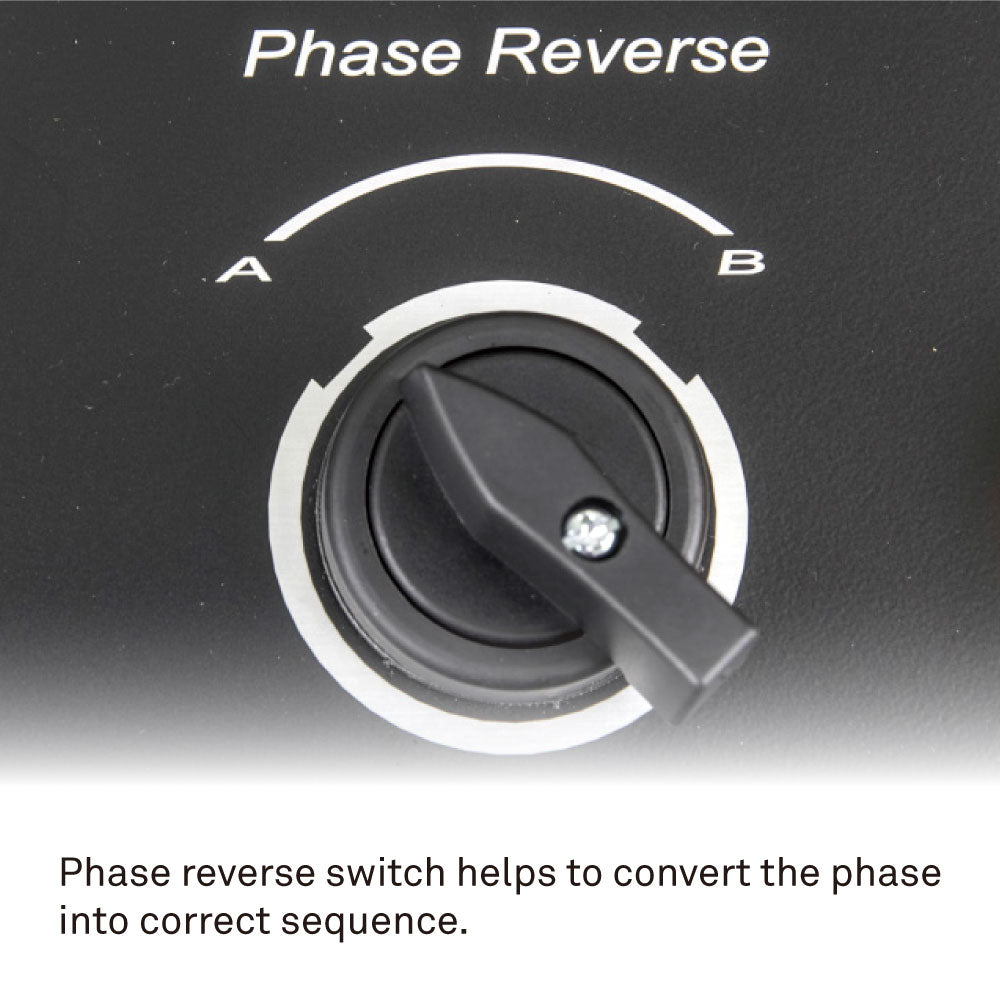

Eight motors is often the practical middle ground: too much for a small controller, but not always enough to justify a 12-channel system. CHC-18R-3P gives that rig size phase indication, front-panel direction control, overload and leakage protection, printed wiring guidance, and XLR linking in one touring-friendly rack unit.

Key Features

• 8 direct three-phase control channels fit into a 4U 19" rack-mount chassis.

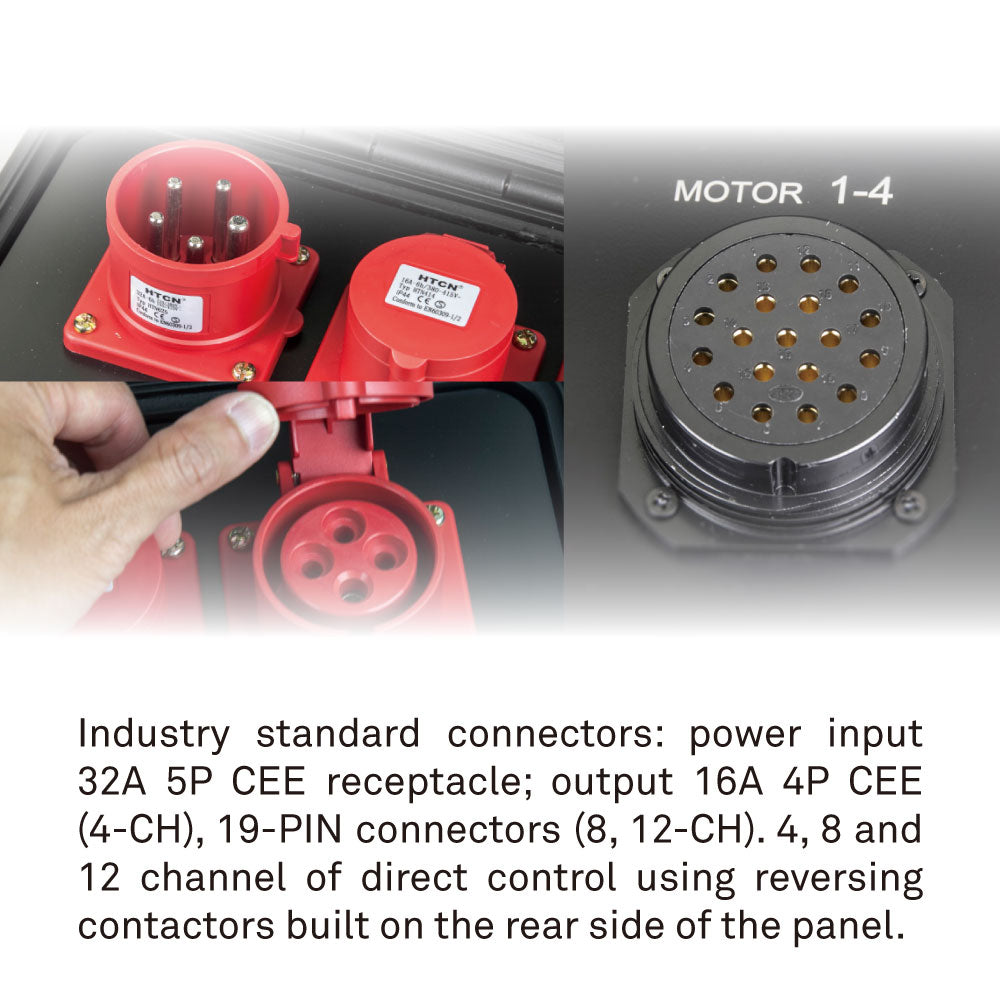

• 2 Soca 19-pin female outputs match common touring motor multicore workflows.

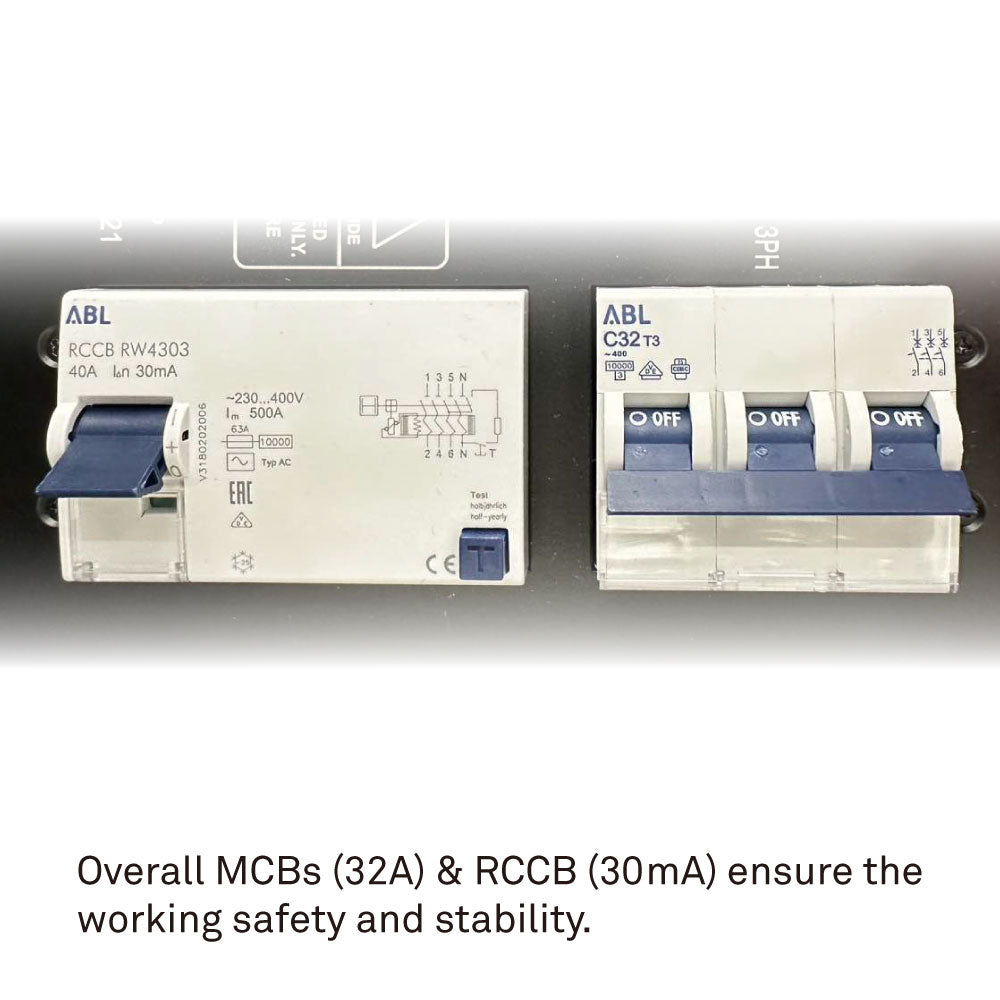

• Overload + leakage breaker add protection for the 8-channel version.

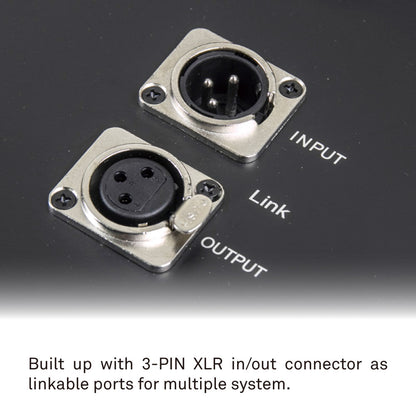

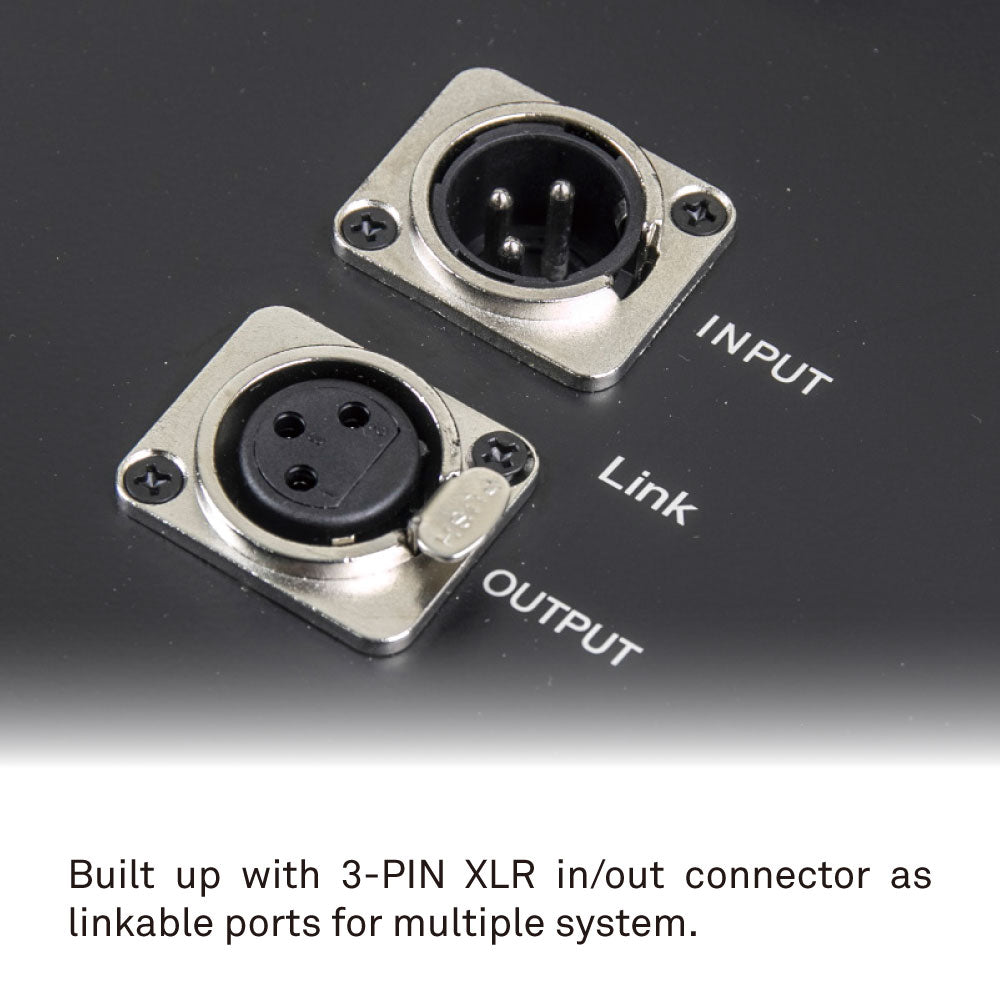

• 3-pin XLR master/slave link lets the controller scale with other RIGPRO rack units.

Additional Technical Notes

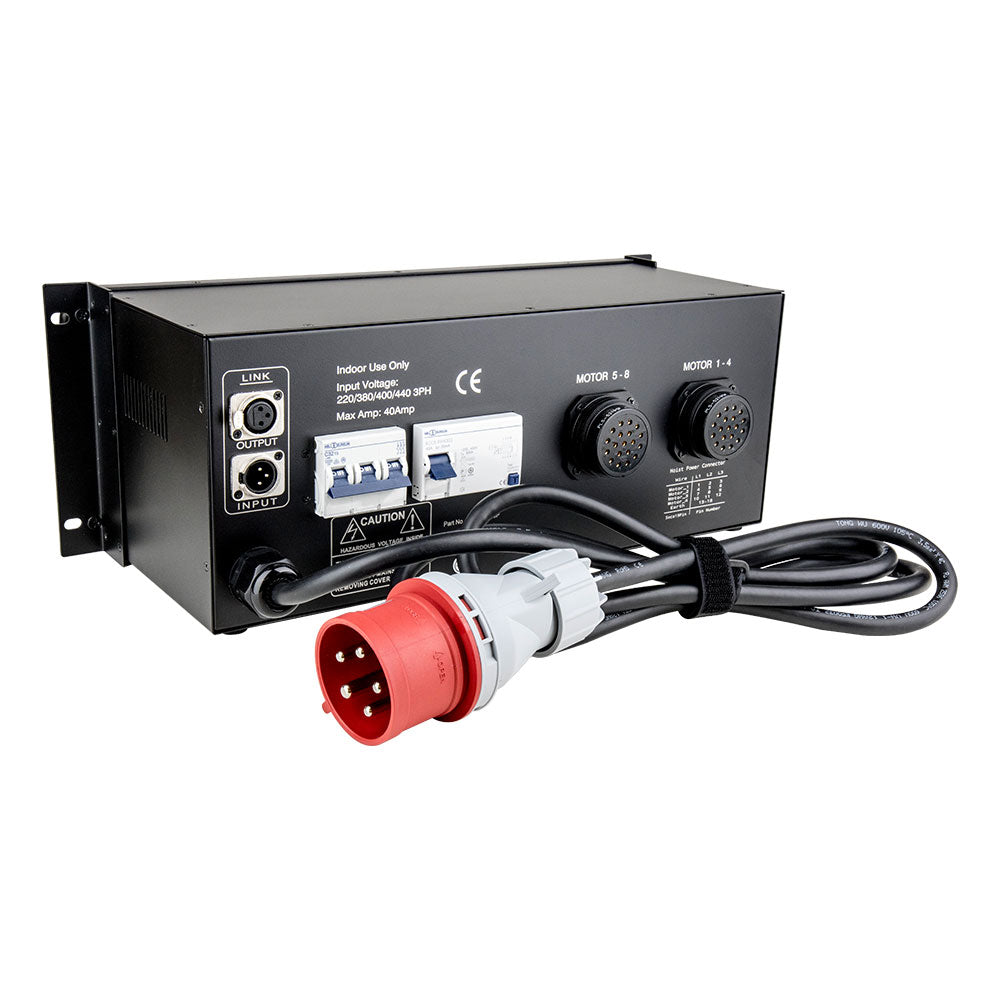

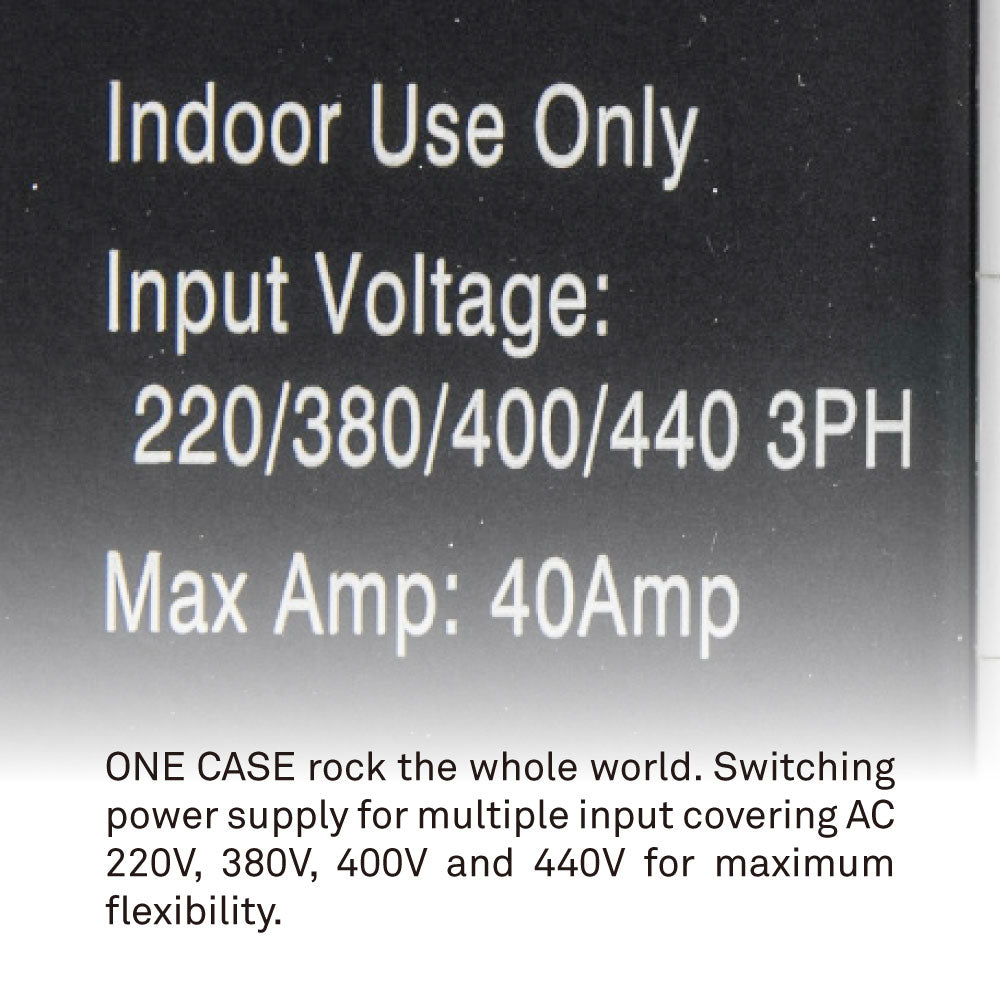

• Power Input: AC 220 V / 380 V / 400 V / 440 V, 50/60 Hz, 5-pin 32 A CEE male connector on 2 mm cable

Applications

Use for medium touring rigs, line array points, lighting trusses, scenic flying, theatre motor control, and corporate event stages where eight hoists need organized rack control.

Compatibility

Use with compatible direct three-phase chain hoists using a 5-pin 32 A CEE input and Soca 19-pin motor output convention.
