Overview

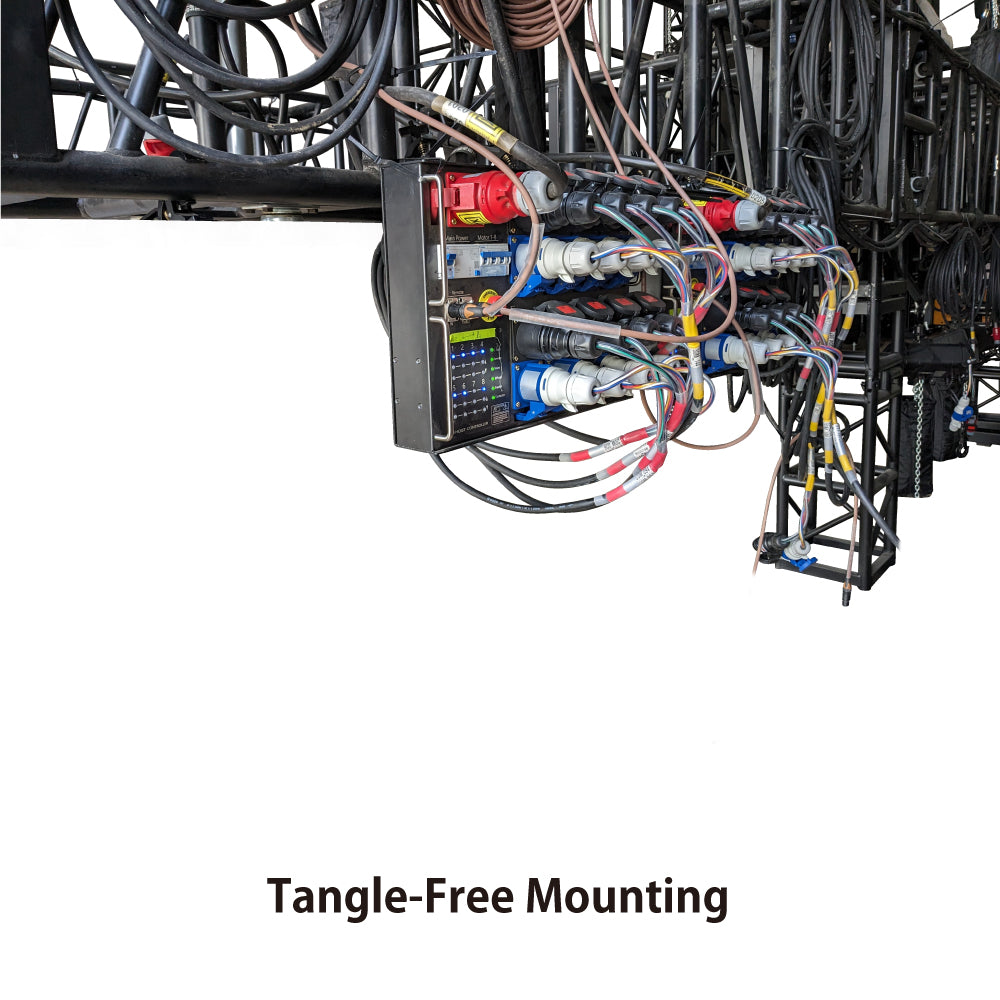

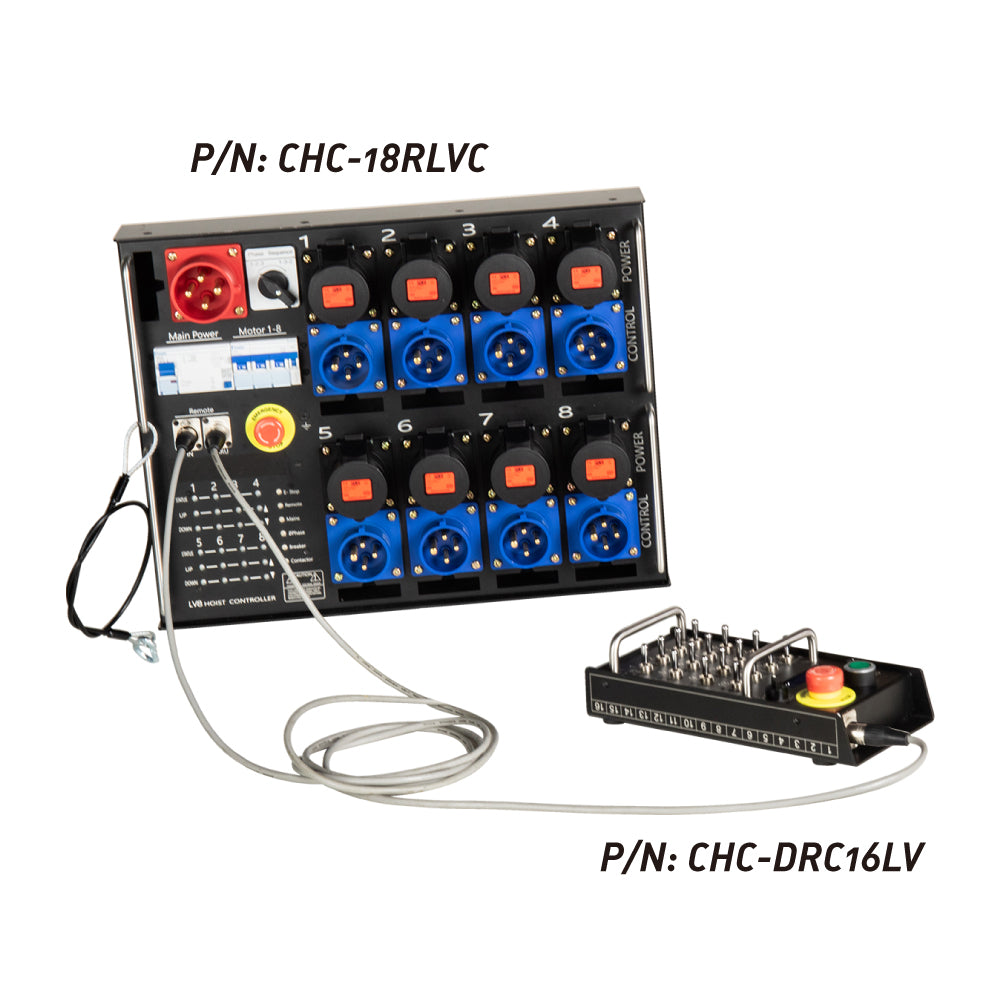

The KUPO CHC-18RLVC is an 8-channel digital low-voltage chain hoist controller for entertainment rigging teams that work across mixed low-voltage hoist brands. It supports universal 3-phase power input, digital communication, group operation, system status monitoring, and truss mounting, keeping the control station close to the rig instead of dragging unnecessary cable to the floor.

Why It Matters

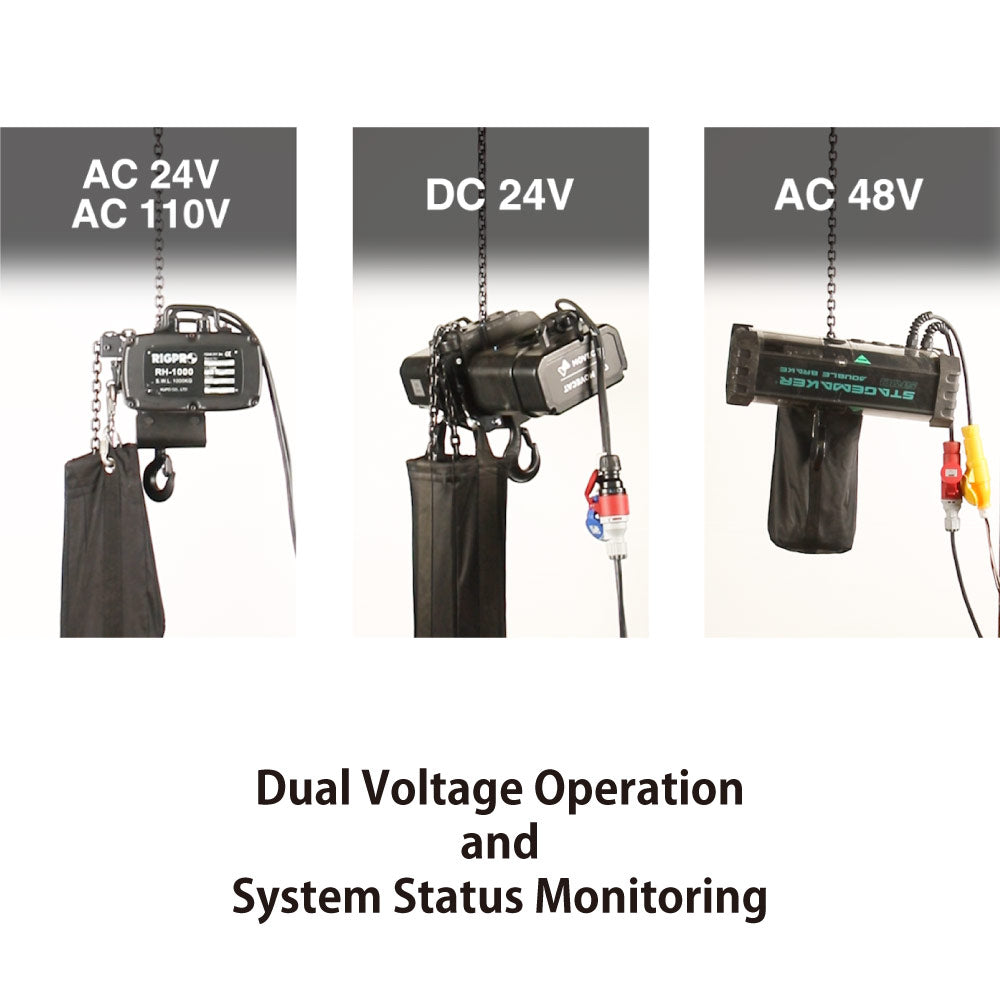

The valuable part is not just eight channels. It is the way the controller handles different low-voltage hoists, AC or DC control voltage, and real-time status monitoring through the remote system, giving touring crews a cleaner and more adaptable LV °C control platform.

Key Features

• Works with low-voltage hoists from multiple brands, according to the source description.

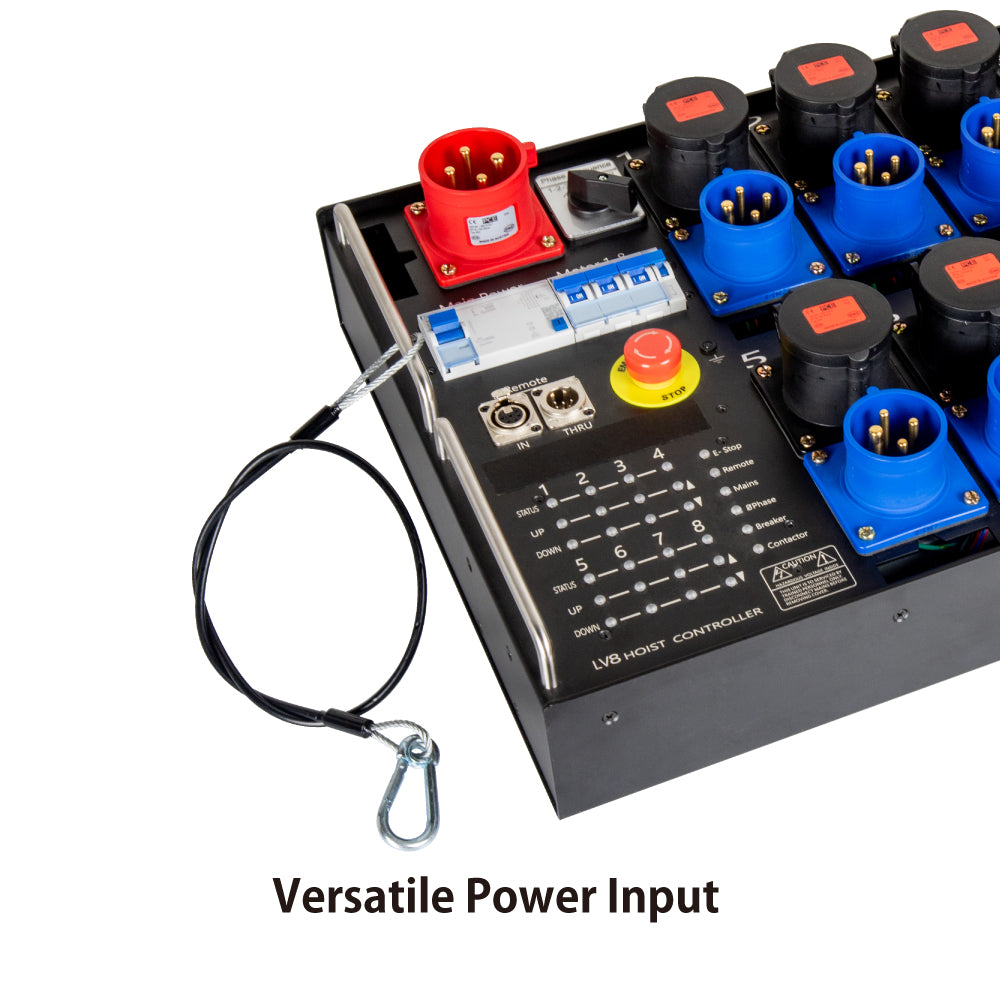

• Universal 3-phase power input accepts 220 / 380 / 400 / 415 V.

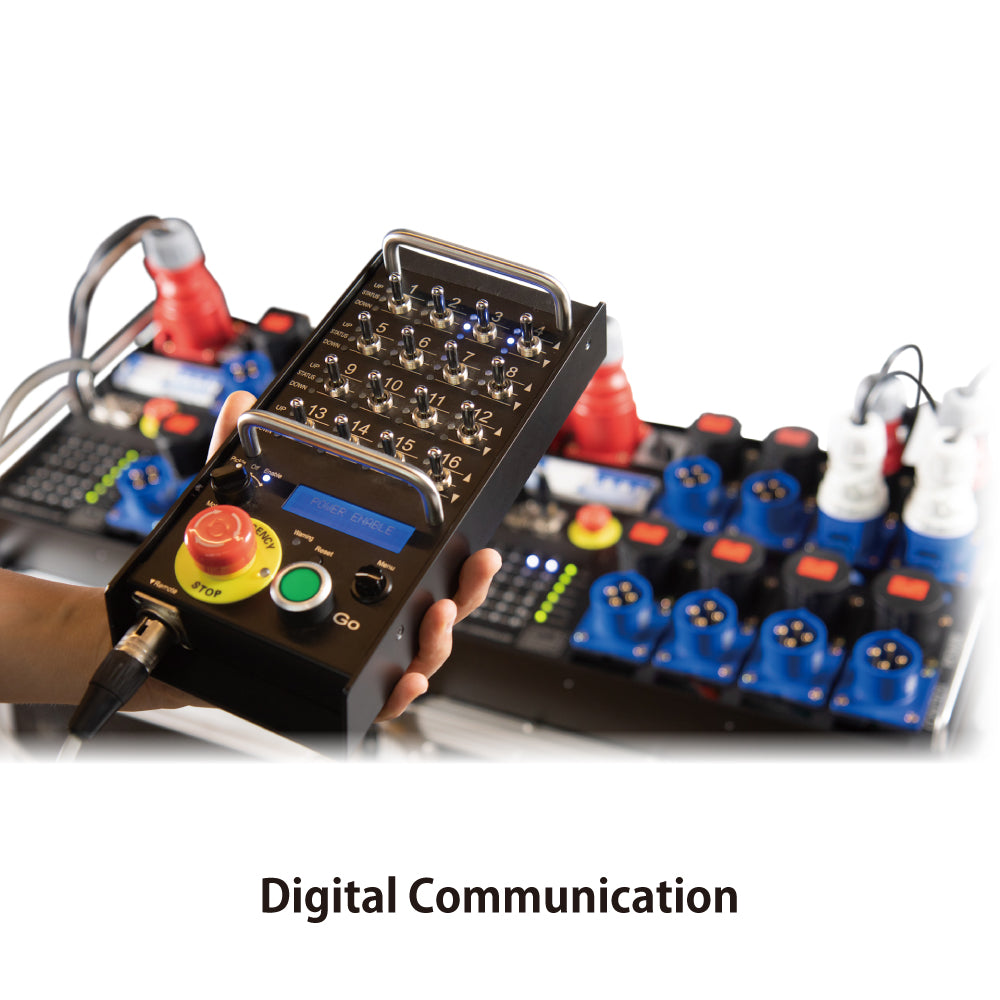

• Digital communication supports long-distance monitoring and control between console and remote.
• 30 mA leakage circuit breaker and maximum 40 A overload breaker support safer rig operation.

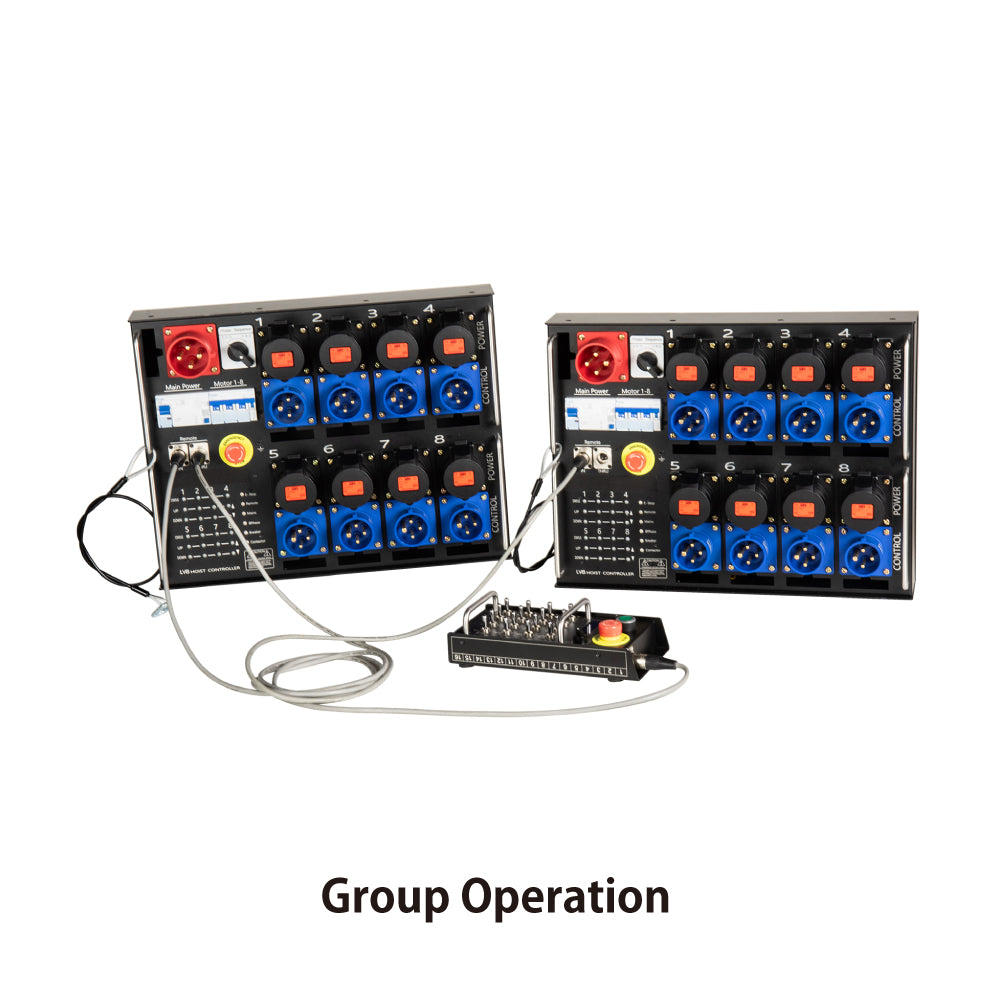

• Group operation lets individual hoists be assigned for coordinated movement.

Additional Technical Notes

• Protection: 30 mA leakage circuit breaker and max 40 A overload breaker

Applications

Use for low-voltage chain hoist control in touring events, live entertainment, truss-mounted rigs, clean stage decks, and systems where multiple hoist brands or control voltages may appear.

Compatibility

Designed for low-voltage hoists and digital remote operation. Socket and plug outlet types are available based on request according to the source.
