Overview

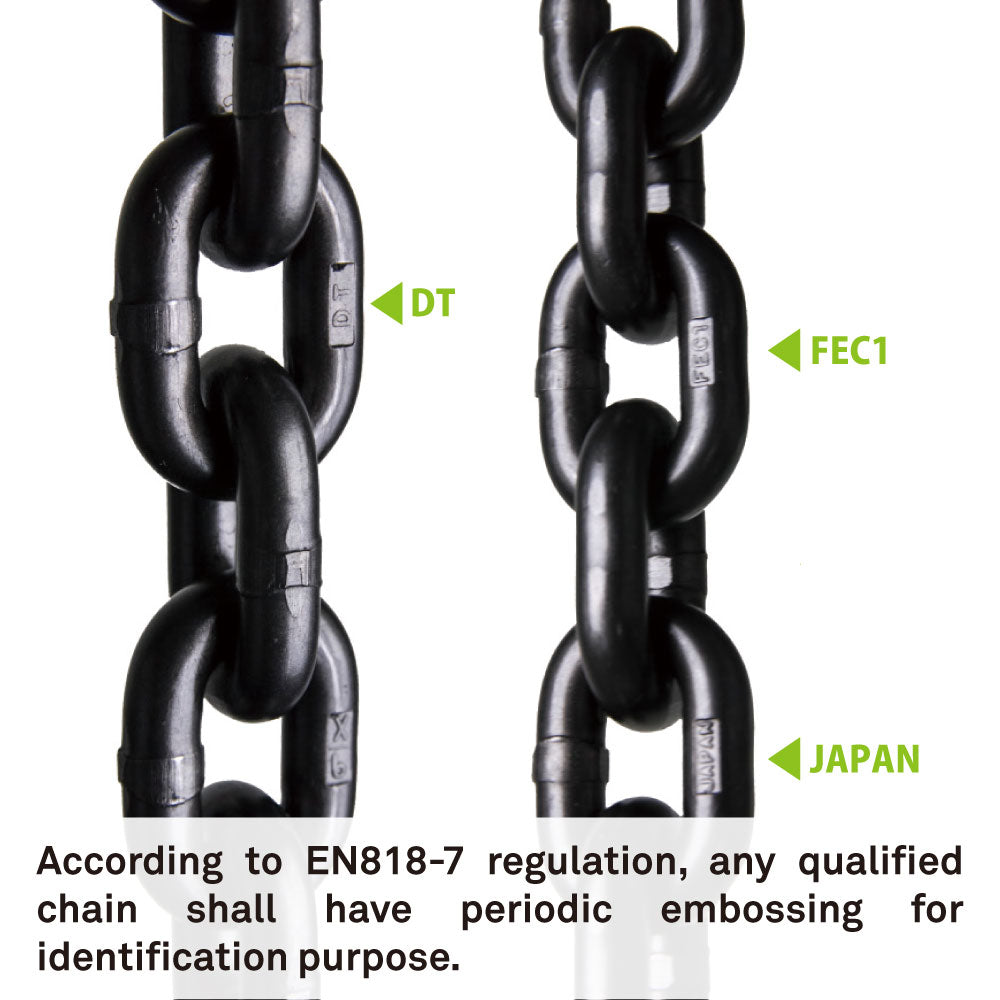

The KUPO CHC-4.0 is a 4.0 x 12.0 mm Grade 80 alloy load chain for RIGPRO hoists, manufactured from chromium-molybdenum alloy and finished in black phosphate for corrosion resistance and a low-profile entertainment look. It is an EN 818-7 Type DT chain for power-driven hoist use, with periodic embossing for traceability and identification.

Why It Matters

This is the smaller RIGPRO chain size, made for compact 250 kg and single-phase brushless-DC hoists. It keeps the hoist package lighter while still meeting the Grade 80 and EN 818-7 requirements expected in overhead entertainment rigging.

Key Features

• EN 818-7 compliant Type DT construction matches the baseline standard for power-driven hoist chains.
• 20.0 kN minimum breaking force supports the rated hoist families that use this chain size.
• HV 550 minimum hardness and 12 percent minimum elongation at break support controlled lifting-chain performance.
• Black phosphate finish helps resist corrosion and keeps the chain visually discreet in entertainment rigs.

Additional Technical Notes

• Chain Fall: 1
• Brake: One spring-loaded DC brake
• Friction Clutch: Overload slipping clutch
• Working Noise: within 75 dB
• Dimensions: A 410, B 135, C 18, D 205, F 175, H 28, I 28, J 85, M 25 mm
• Motor Isolation Class: F
• Load Wheel: Pulley type chain guide with lift wheel
• Suspension: 360° turnable hook suspension with safety latch
• Chain Link Weight: 0.35 kg per meter

Applications

Use as load chain for compatible RIGPRO chain hoists in entertainment rigging, touring systems, theatres, venues, broadcast studios, and professional overhead lifting applications.

Compatibility

RH-250, RH-SP24, RH-SP48 series chain hoists
