Overview

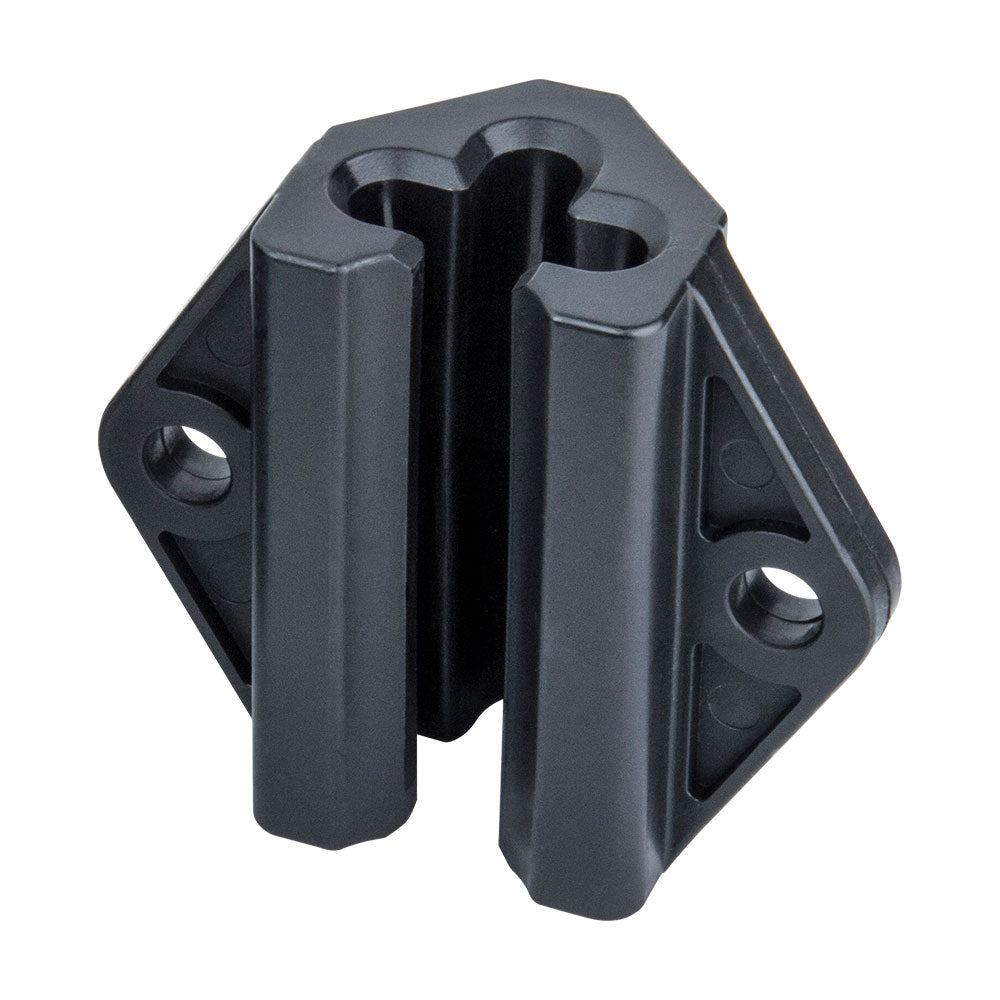

The KUPO CS-4054 is a black POM (polyoxymethylene) chain slider for cable management on chain hoists running 4.0-5.4 mm load chain. It snaps onto the load chain between hoist body and hook, adding two 10 mm fixing points so power, control, data, or audio cables can travel alongside the chain in a more organized way.

Why It Matters

CS-4054 is the smallest chain slider in the series, made for the lightest RIGPRO hoist chains. It gives compact RH-250 and RH-SP setups the same cable-management discipline used on larger rigs without oversizing the slider.

Key Features

• 4.0-5.4 mm chain range matches the slider body to the correct load-chain size.

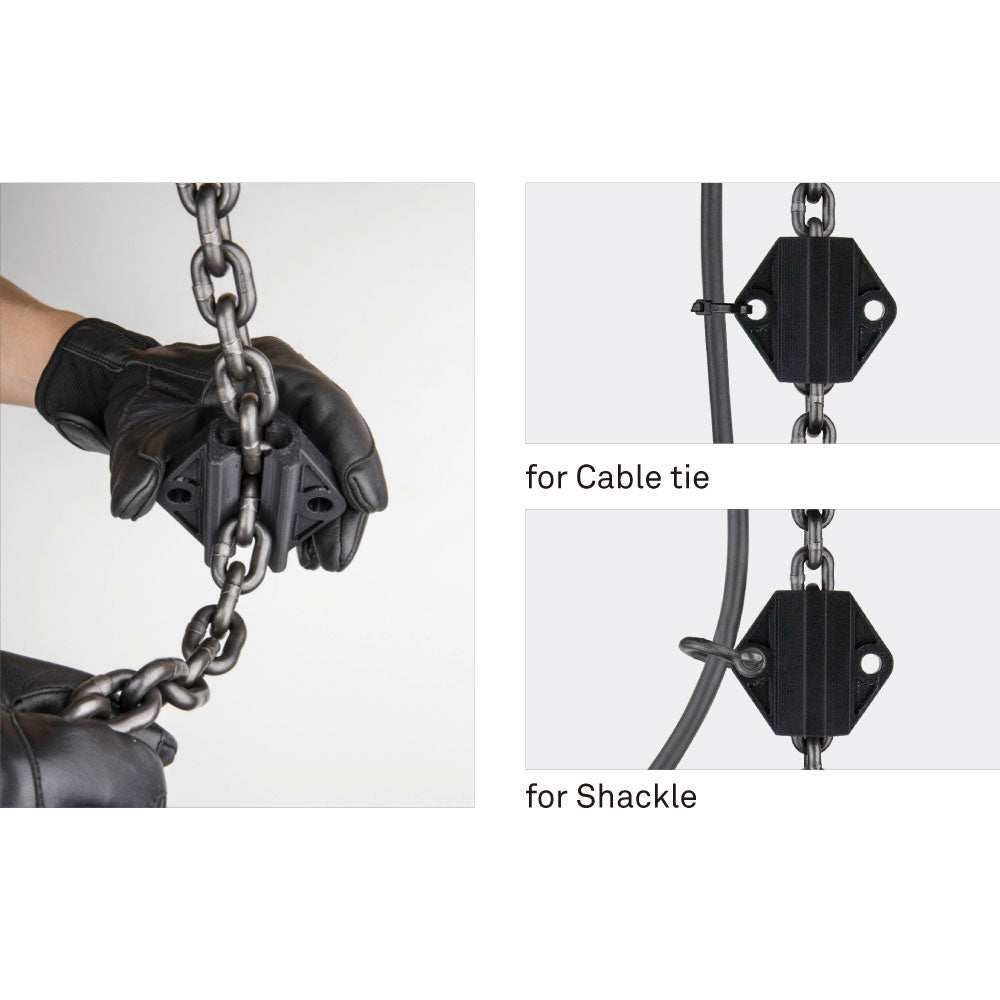

• Two 10 mm fixing points accept shackles or cable ties for cable support.
• Tool-free attachment avoids removing the hoist hook during setup.
• Low-friction POM body helps the slider travel with the chain during hoist movement.

Additional Technical Notes

• Hoist Application: Chain slider for entertainment rigging chain hoists
• Cable Use: Cable management for power, control, data, or audio cables
• Use Limitation: Cannot be attached or detached while chain is under load
• Compatible Hoists: RH-250, RH-SP24, RH-SP48 series using 4.0 mm CHC-4.0 chain
• Chain Fall: 1
• Brake: One spring-loaded DC brake
• Friction Clutch: Overload slipping clutch
• Working Noise: within 75 dB
• Dimensions: A 410, B 135, C 18, D 205, F 175, H 28, I 28, J 85, M 25 mm
• Motor Isolation Class: F
• Load Wheel: Pulley type chain guide with lift wheel
• Suspension: 360° turnable hook suspension with safety latch
• Chain Link Weight: 0.35 kg per meter

Applications

Use for cable management on entertainment chain hoists where power, control, data, or audio lines need to follow the load chain without hanging loosely around the hook block.

Compatibility

RH-250 / RH-SP series
