Product Description
Overview

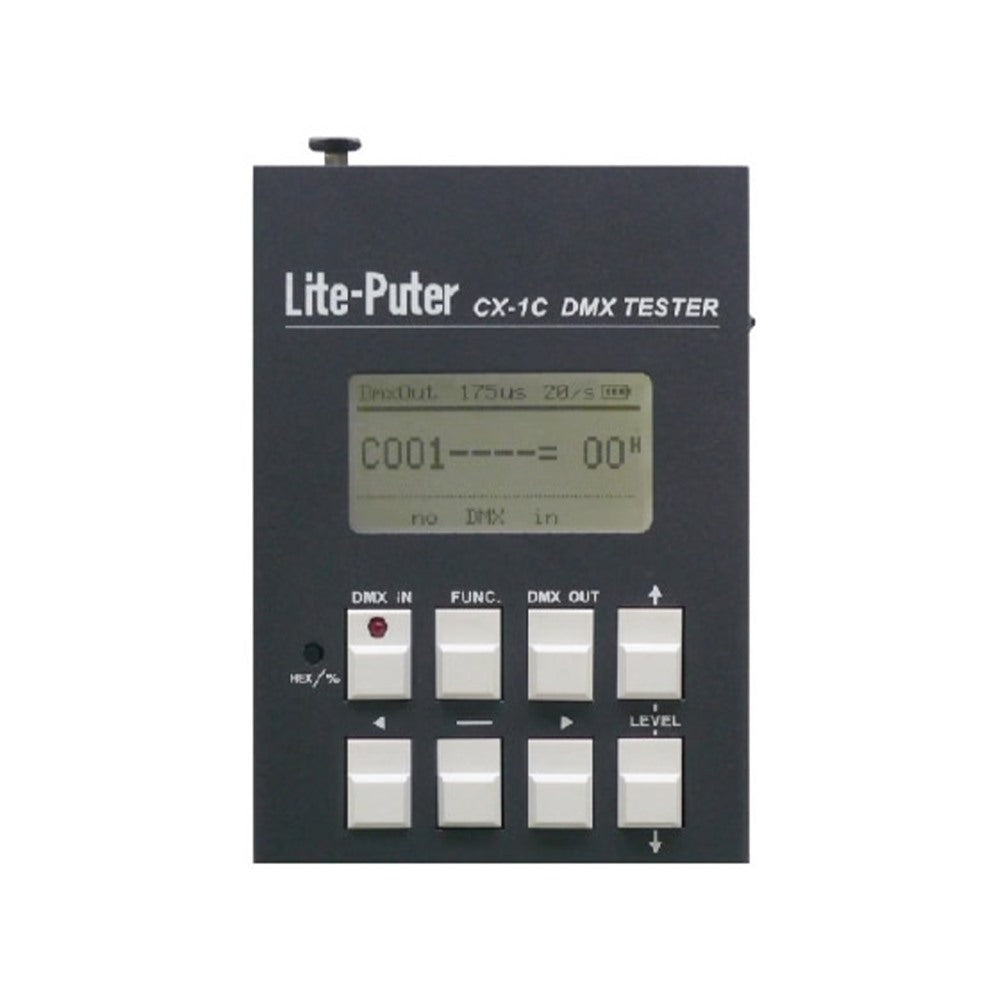

The KUPO CX-1 C is a portable DMX tester for checking synchronized DMX input and output signals in the field. It gives lighting technicians a compact battery-powered way to check a control line without bringing a full console, rack, or fixture chain into the troubleshooting process.
Why It Matters
DMX problems often appear during the least convenient part of load-in. CX-1 C gives the crew a handheld check point for signal presence and synchronization, with rechargeable battery operation, sleep behavior, and backlit LCD usability for dark backstage or dimmer-room work.
Key Features
- Tests synchronized DMX-in and DMX-out signal for field troubleshooting
- Supports DMX-512 / 1990 with XLR 5-pin and RJ11 phone jack connections
- Battery powered with four AAA 1.2 V rechargeable batteries for portable service calls
- Sleep mode after 5 minutes helps preserve battery life when left running
- Compact 100 x 133 x 50 mm body keeps the tester easy to carry in a technician kit
Applications
Use it for DMX line checks, service calls, show setup, splitter or dimmer troubleshooting, fixture-position verification, and quick backstage diagnostics.
Compatibility
Designed for DMX-512 / 1990 signal testing with XLR 5-pin x2 and RJ11 phone jack x2 connections.
Frequently Asked Questions
Can CX-1 C replace a lighting console?
No. It is a portable tester for checking DMX signal behavior, not a show-control console.
How long does the battery last?
The specification notes about 3 hours of operation after a 5-hour charge, or approximately 100 hours standby.
Why are there RJ11 jacks as well as XLR connectors?
They give the tester additional connection options for service and signal-check workflows listed in the specification.
