Product Description
Overview

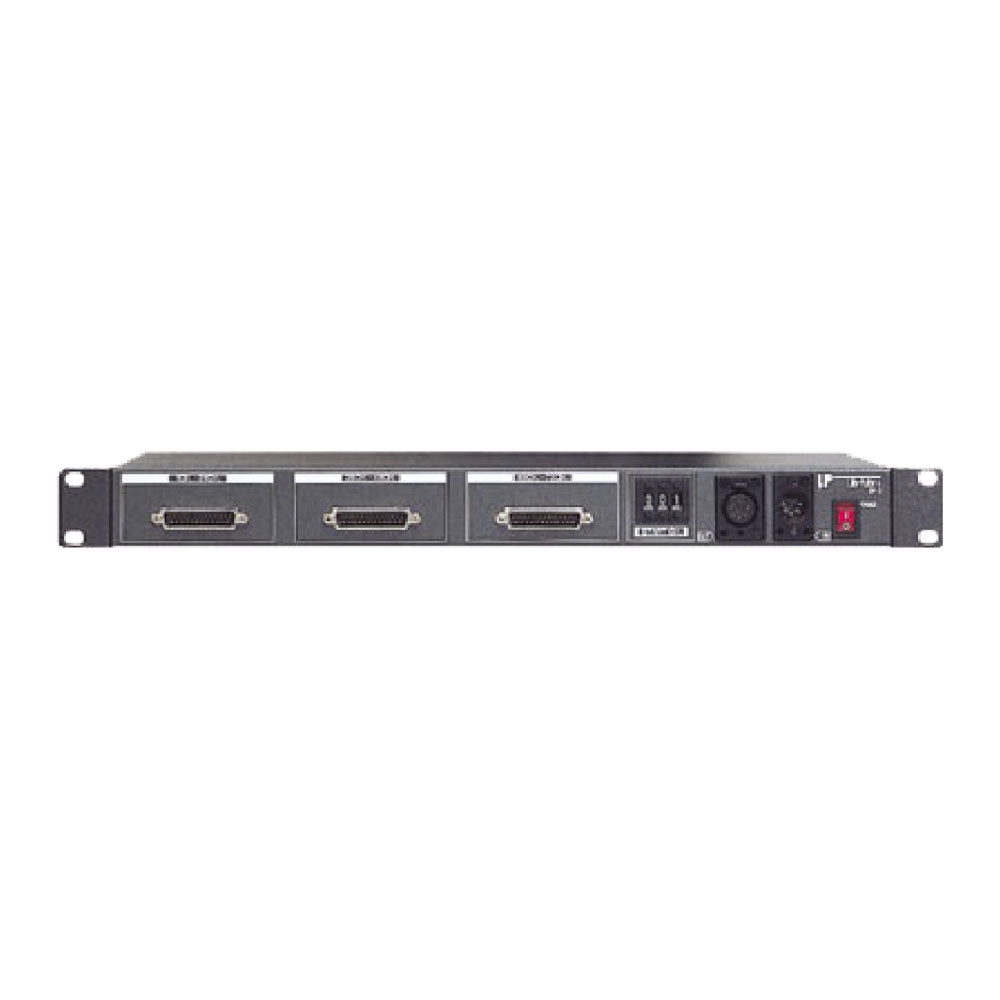

The KUPO DP-24 is a rack-mount interface that decodes DMX-512 control into DC 0-10 V analog output. It is built for venues and systems where a modern DMX console still needs to drive legacy analog dimmers, architectural controls, or other 0-10 V equipment.
Why It Matters
Not every installation moves from analog to DMX in one clean step. DP-24 gives those hybrid systems a bridge, mapping selectable DMX address ranges to analog outputs so older control infrastructure can stay useful while the operator works from a DMX controller.
Key Features
- Converts DMX-512 / 1990 input into DC 0-10 V analog output
- Selectable start channel maps CH01-24, CH25-48, or CH49-72 to the analog output connector
- D-type 25-pin analog connector supports organized rack wiring
- AC 100-240 V, 45-63 Hz power input suits a wide range of installations
- 19" 1U rack form keeps the interface tidy in control or dimmer racks
Applications
Use it for DMX-to-0-10 V conversion, legacy dimmer integration, architectural lighting retrofits, theatre upgrades, and mixed control systems where analog outputs still matter.
Compatibility
Supports DMX-512 / 1990 via XLR 5-pin and DC 0-10 V analog output through D-type 25-pin connector. It converts control signal only and does not provide dimmed power output.
Frequently Asked Questions
Does DP-24 dim the load directly?
No. DP-24 converts DMX control data into DC 0-10 V analog signal. It is not a dimmer pack.
How are the analog channels assigned?
The start channel is selectable, allowing DMX channels 1-24, 25-48, or 49-72 to map to the 25-pin analog connector.
Why would I need this in a modern DMX system?
Use it when the console or control network is DMX, but the connected dimmer or architectural equipment still expects DC 0-10 V analog control.
