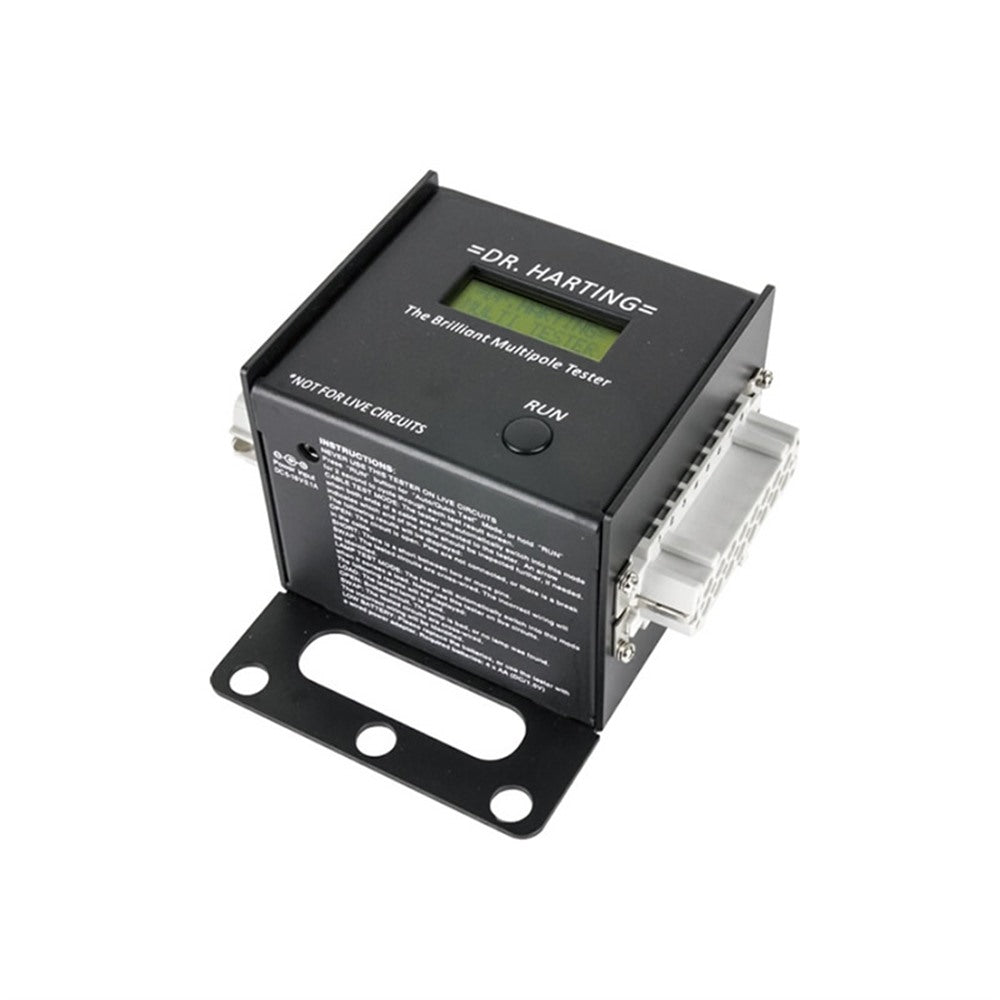

The DR-H16 is a dual-function cable and lamp / load tester for Multipole / Letriflex / Harting 16-pin systems. It uses LCD real-time pin-to-pin scanning to show missing connections, swapped pins, shorts, and opens clearly, giving shops and production crews a faster way to verify multicore cable assemblies and lighting bars.
Why It Matters
Harting and Letriflex-style cable assemblies can be slow to diagnose with basic continuity tools. DR-H16 gives the shop a purpose-built tester for the 16-pin format, with clear scanning results and load-test behavior in one box.
Key Features

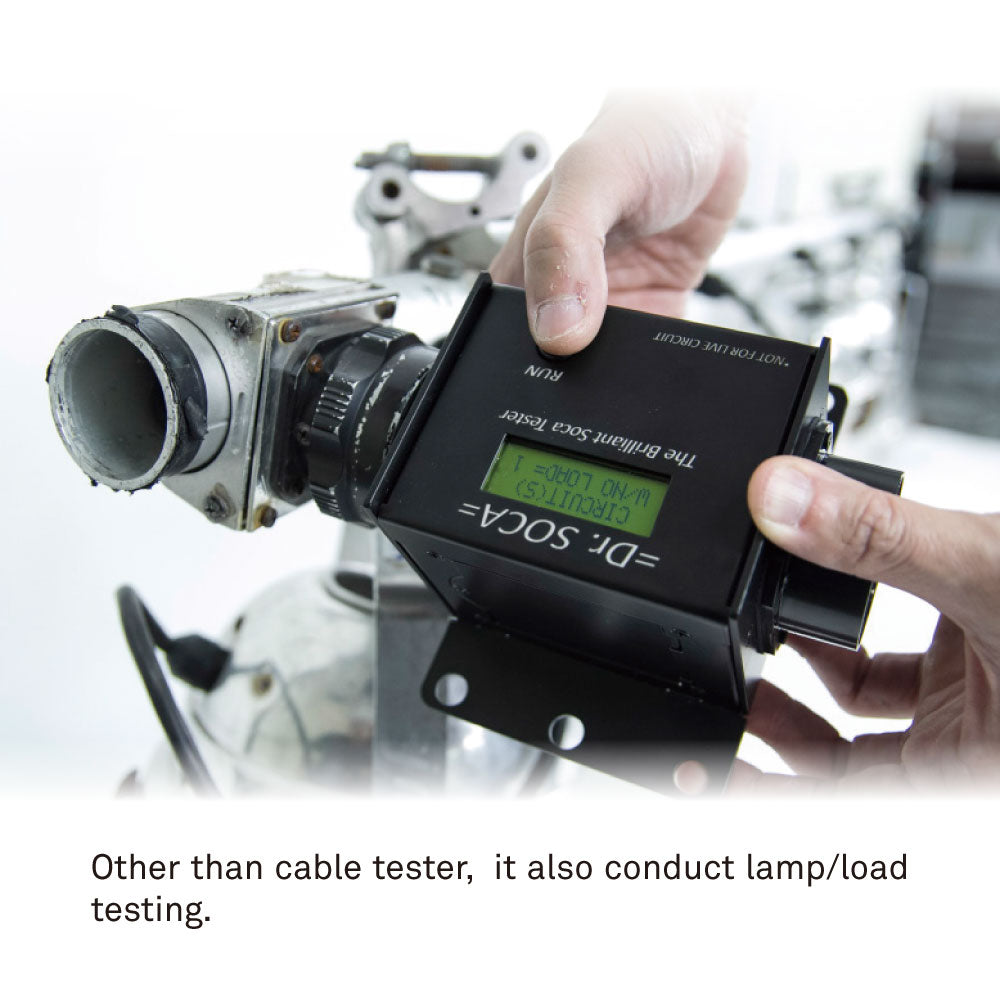

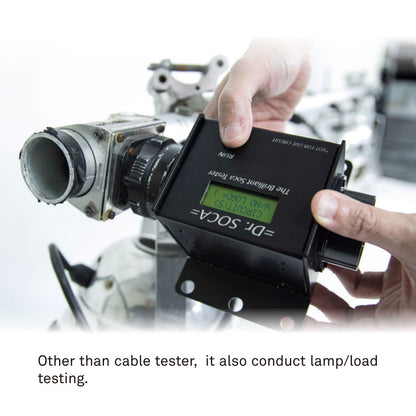

Tests Multipole / Letriflex / Harting 16-pin cable assemblies and lamp / load status on lighting bars.

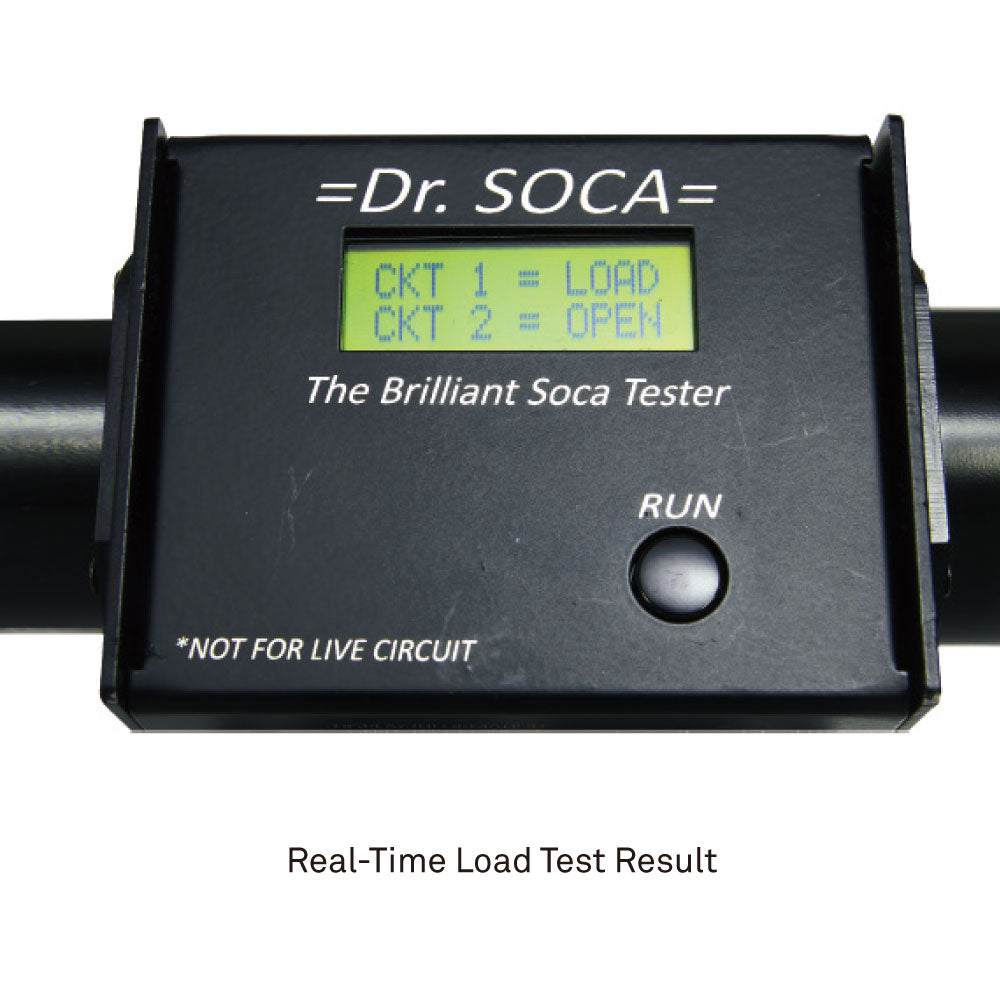

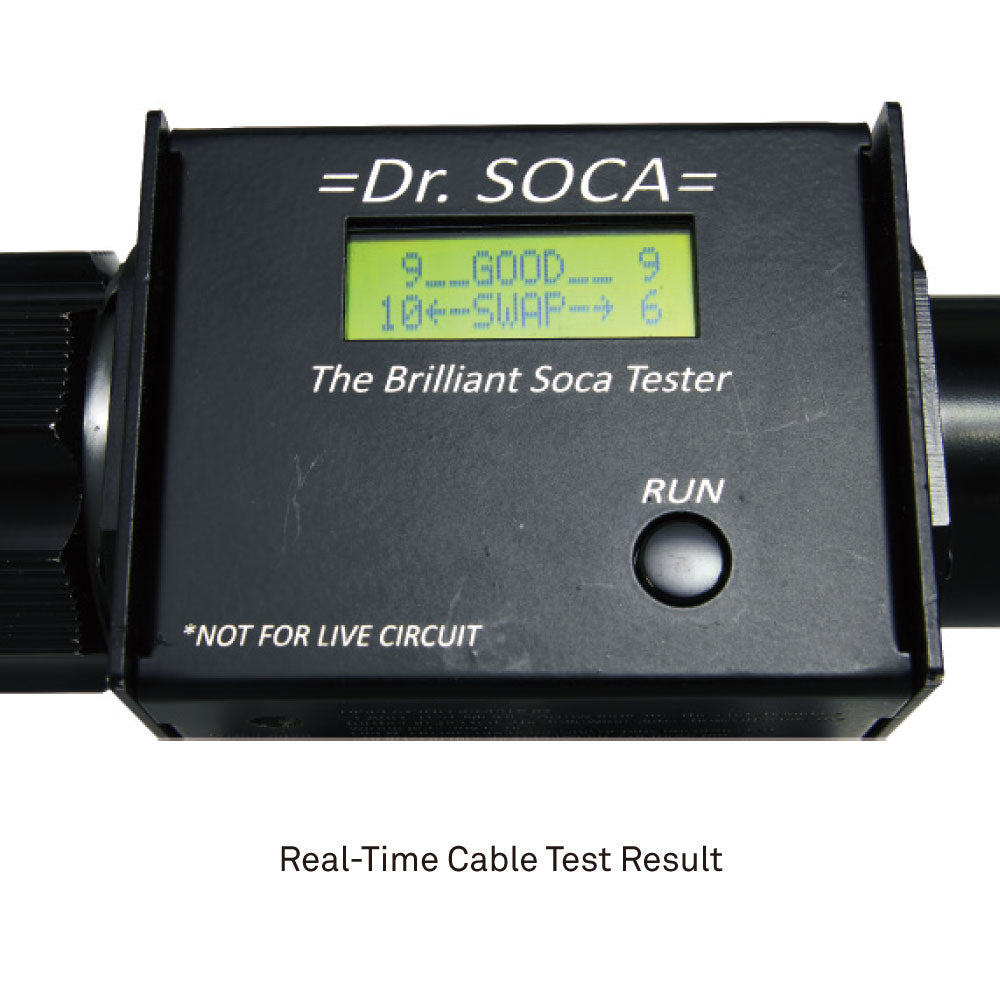

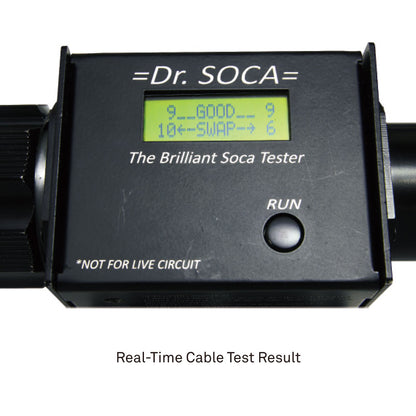

LCD shows real-time results from pin-to-pin scanning.
Detects missing connections, swapped pins, shorts, and opens.

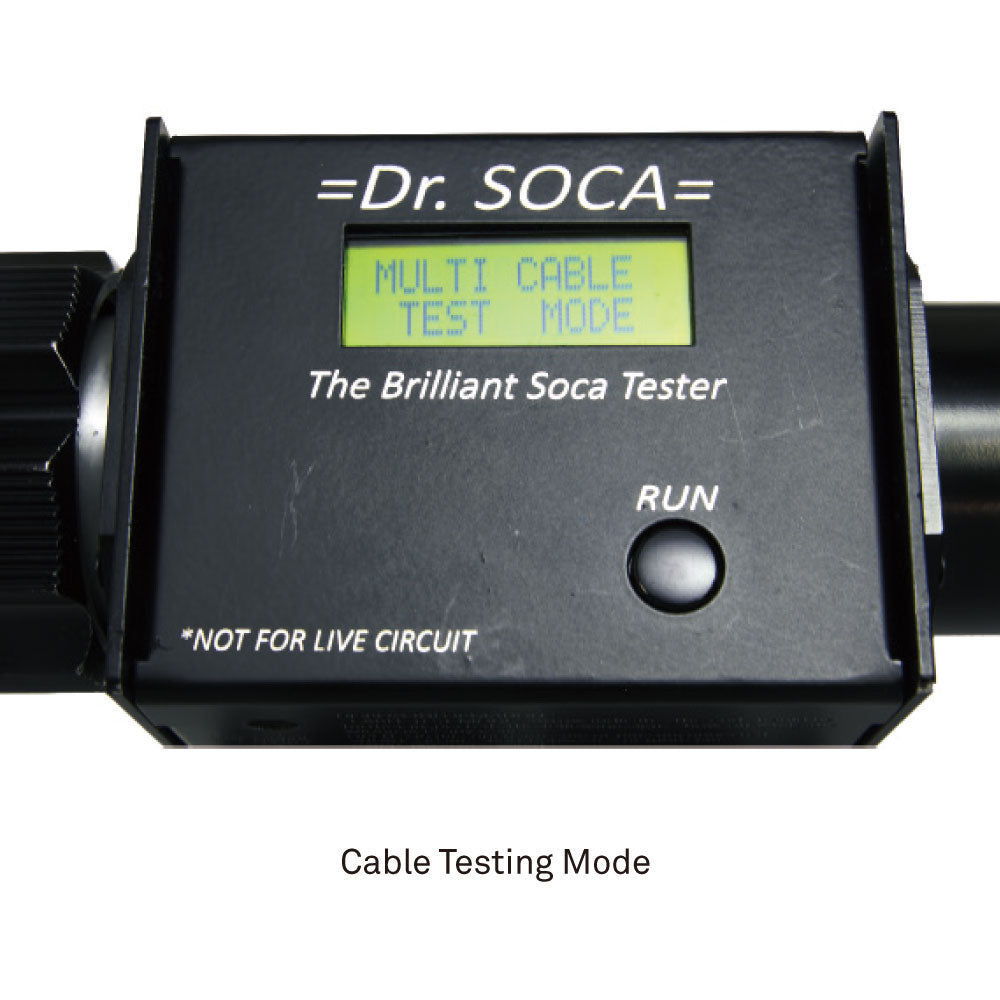

Auto-sense switches between cable-test and load-test modes.

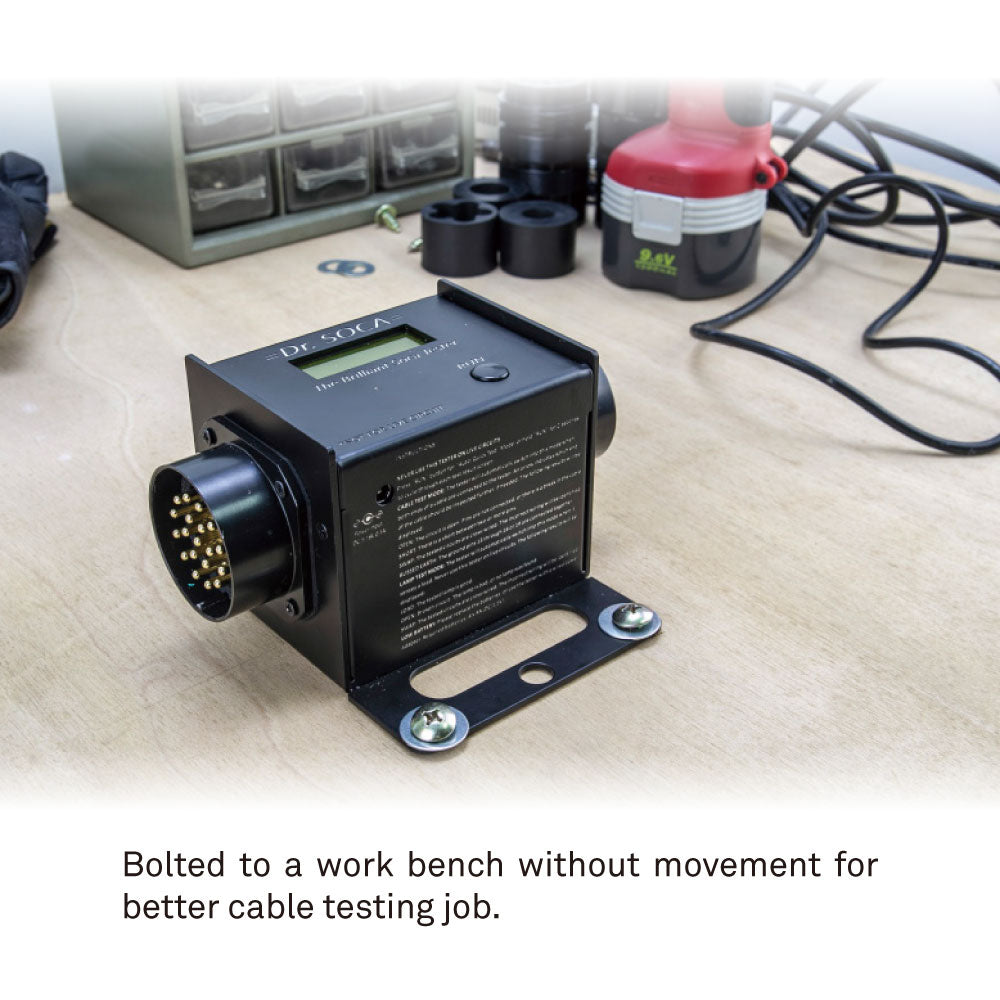

Aluminum-alloy chassis can be bolted to a work bench for stable cable-assembly testing.
Applications
Used in rental-house cable departments, production shops, touring prep, lighting bar maintenance, multicore cable repair, and pre-show verification where finding wiring faults early saves time on site.
Compatibility
Companion model DR-S19 covers Soca 19-pin connectors.
Frequently Asked Questions
Can it detect swapped pins?
Yes. The specification lists missing connections, swapped pins, shorts, and opens.
Can it be bench mounted?
Yes. The aluminum-alloy chassis can be bolted to a work bench.
Which connector family does DR-H16 test?
It is for Multipole, Letriflex, and Harting 16-pin formats.
