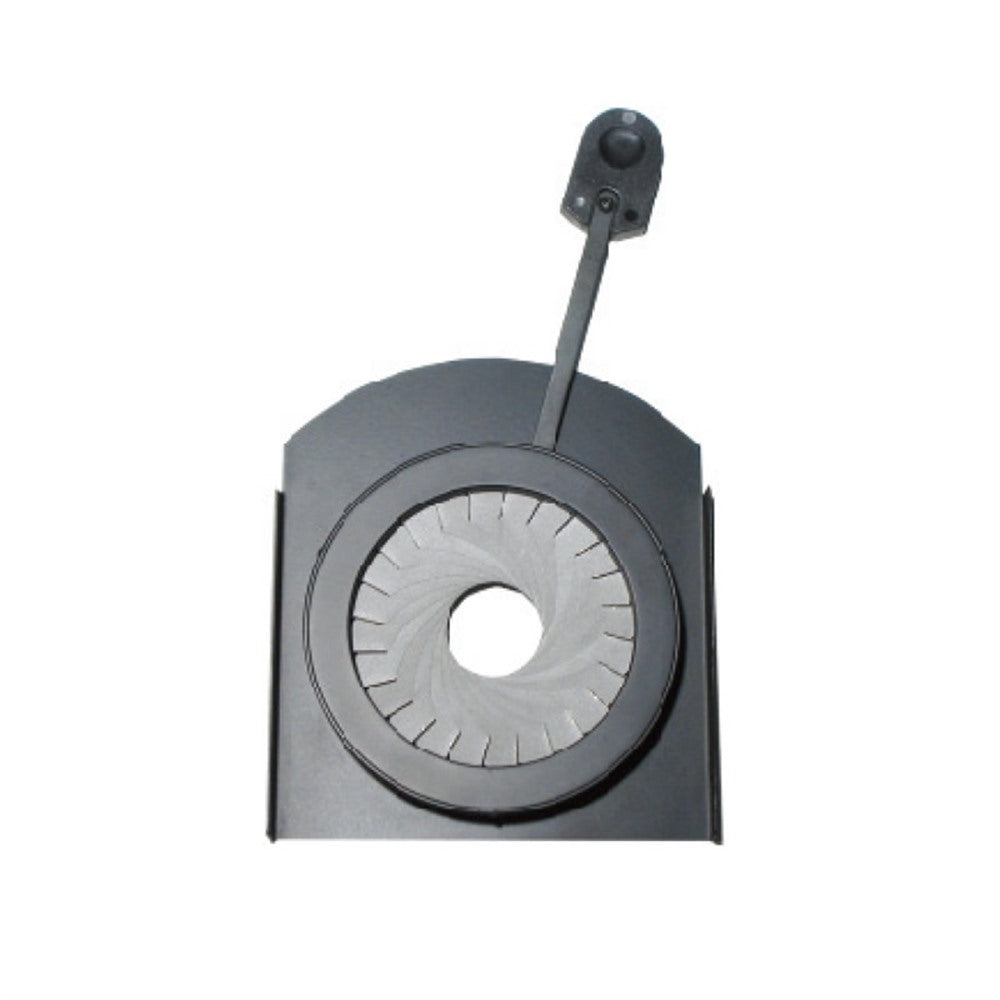

The KUPO ETI-F24 is a 24-leaf manual iris for S4 / Shakespeare / S3 / Marumo Rayer. Compared with an 18-leaf iris, the 24-leaf construction gives the beam a finer circular edge when the aperture is reduced.
Why It Matters
Some specials need the beam to close down smoothly without the edge feeling too segmented. ETI-F24 gives designers and technicians the finer leaf count, heat-resistant construction, and familiar accessory-slot handling needed for more controlled profile work.
Key Features

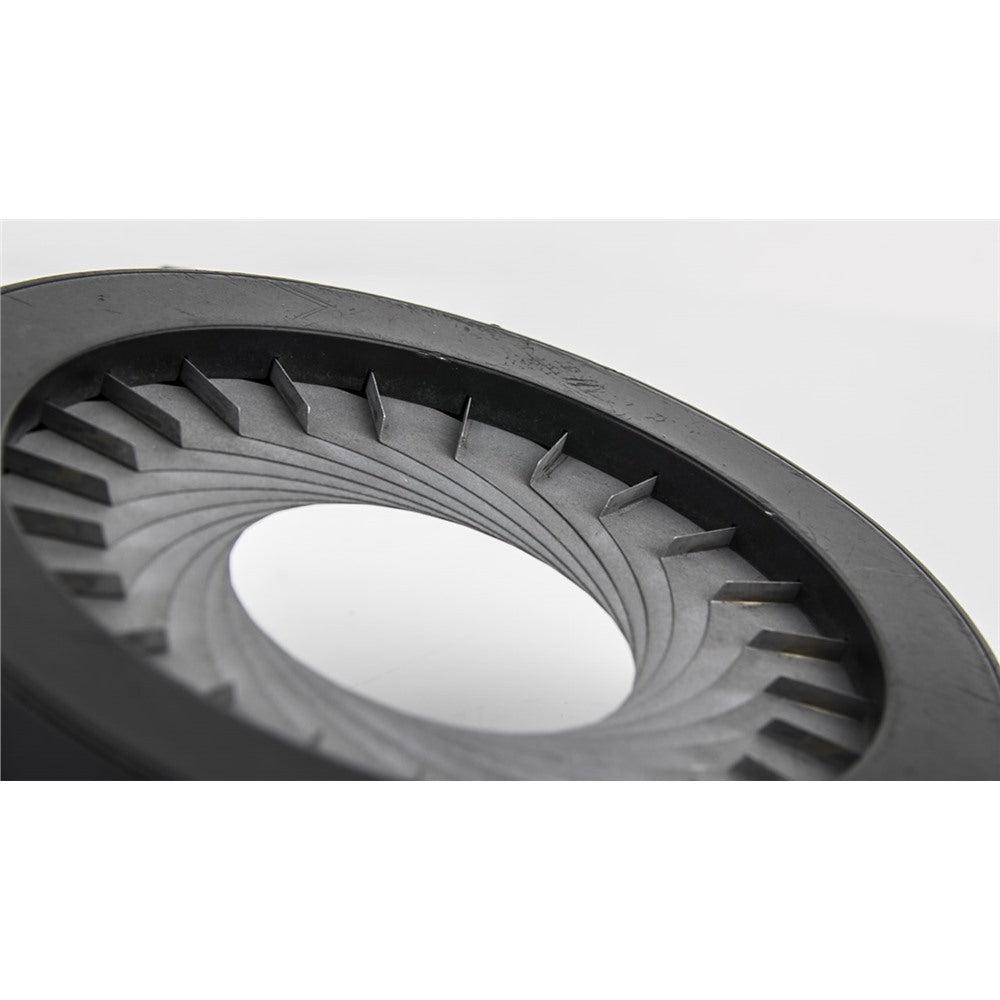

24-leaf construction creates a smoother circular aperture than lower-leaf-count iris designs
Adjustable 4.5 mm to 75 mm aperture range supports tight specials and open beam looks
Stainless steel leaves with formulated gray paint resist heat up to 450 °C

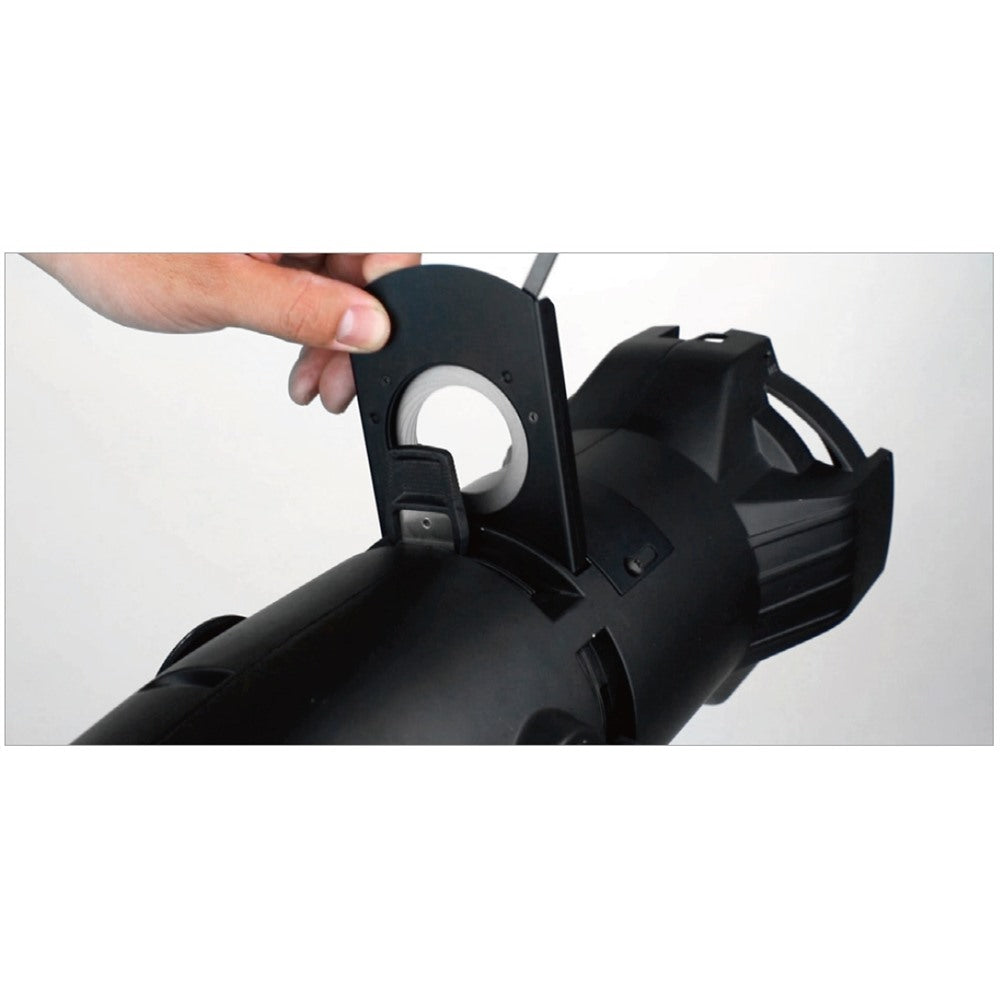

Three fixed focusing holes make insertion and positioning more repeatable
Tailor-made backing plate option supports special fixture adaptations when requested
Applications
A practical accessory for stage, studio, and venue profile fixtures where smooth aperture control is needed for specials, isolation, spill reduction, or cue refinement.
Compatibility

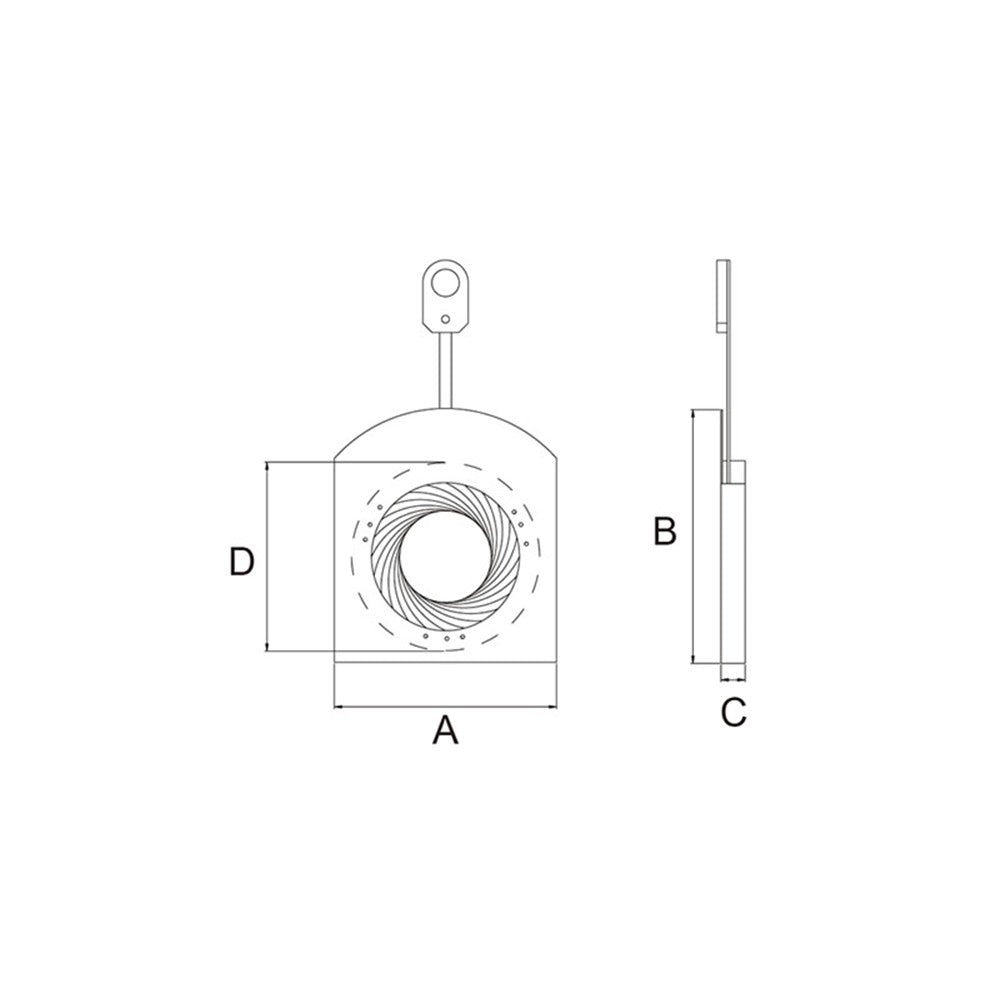

Compatible with S4 / Shakespeare / S3 / Marumo Rayer, with listed dimensions A 120 mm, B 137 mm, C 13 mm, and D 102 mm.
Frequently Asked Questions
Why choose the 24-leaf model?
The higher leaf count gives a finer circular edge when the iris is closed down, which can look cleaner on precise specials.
Can this be used with Marumo Rayer fixtures?
Yes. Marumo Rayer is listed in the compatible fixture families for ETI-F24.
Does it include motorized control?
No. This is a manual iris accessory for fixture aperture control, not a DMX-controlled iris device.
