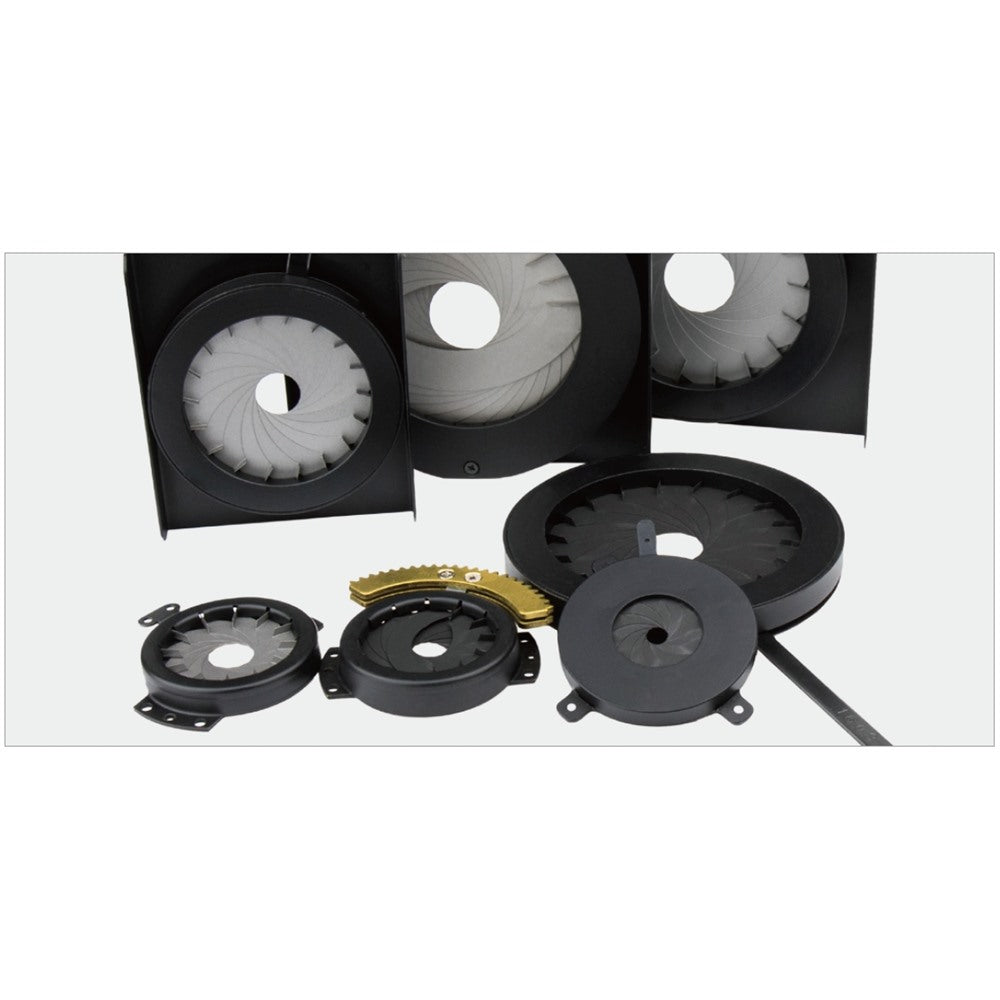

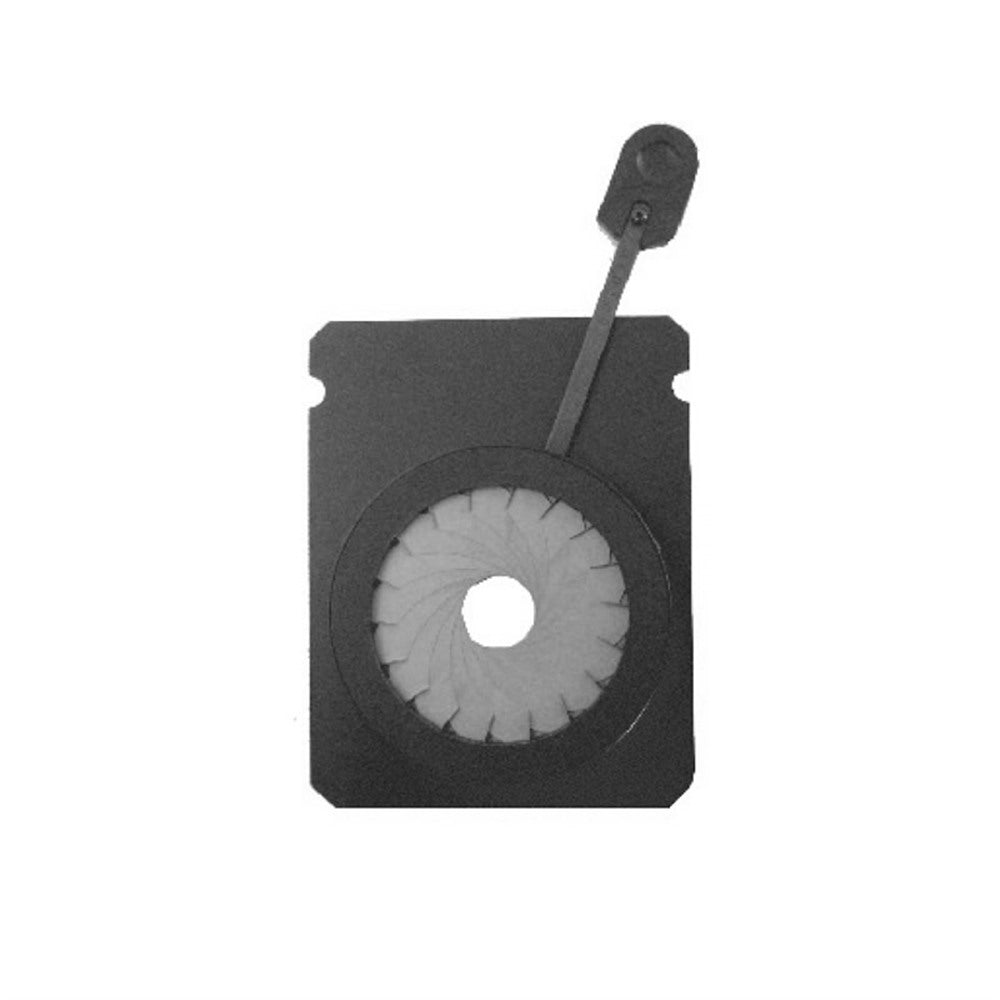

The KUPO ETI-P18 is an 18-leaf manual iris for Pacific / Freedom, giving these profile-style luminaires a controlled circular aperture for specials, isolation, and spill management. Its listed dimensions are specific to the Pacific / Freedom format rather than the S4 iris group.
Why It Matters
Pacific / Freedom need the correct accessory size if the iris is going to sit properly and operate smoothly. ETI-P18 gives that fixture family a dedicated 18-leaf option with the same heat-resistant leaf construction used across the ETI range.
Key Features
18-leaf iris construction provides smooth manual aperture adjustment for Pacific / Freedom
4.5 mm to 75 mm aperture range gives useful control from tight beam reduction to open output

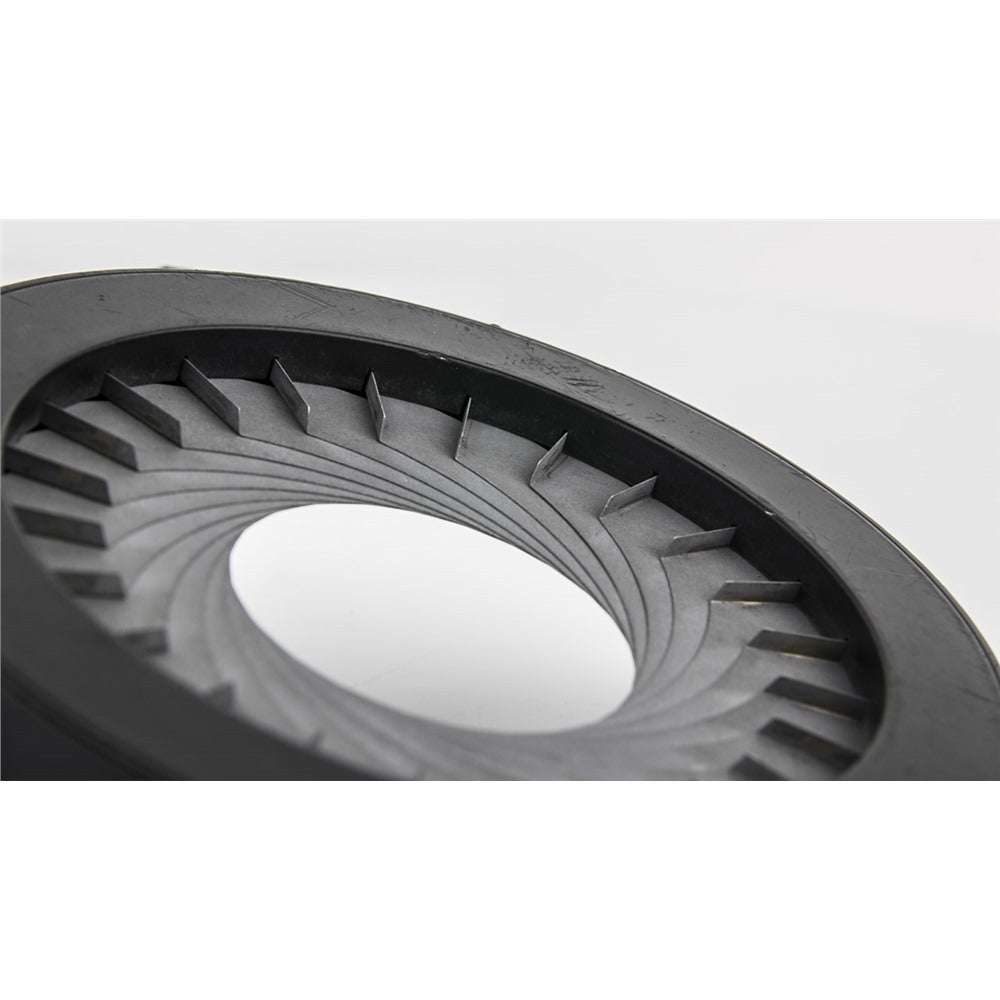

Stainless steel leaves with formulated gray paint resist heat up to 450 °C
Three fixed focusing holes support quick seating and repeatable positioning
Listed dimensions are distinct from the S4 / Shakespeare iris models for proper family matching
Applications

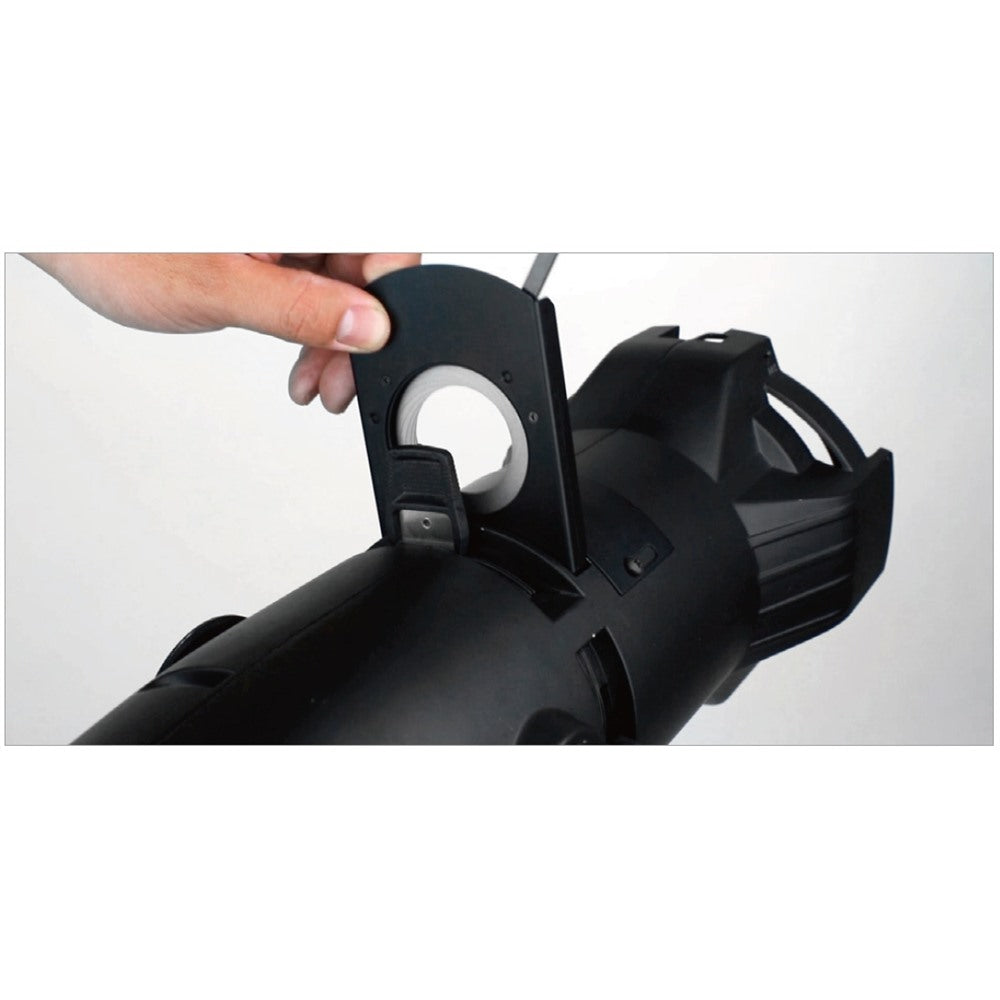

Use it for Pacific and Freedom profile fixtures in theatre, studio, touring, venue, and event lighting systems where beam size needs to be refined without changing the fixture focus.
Compatibility

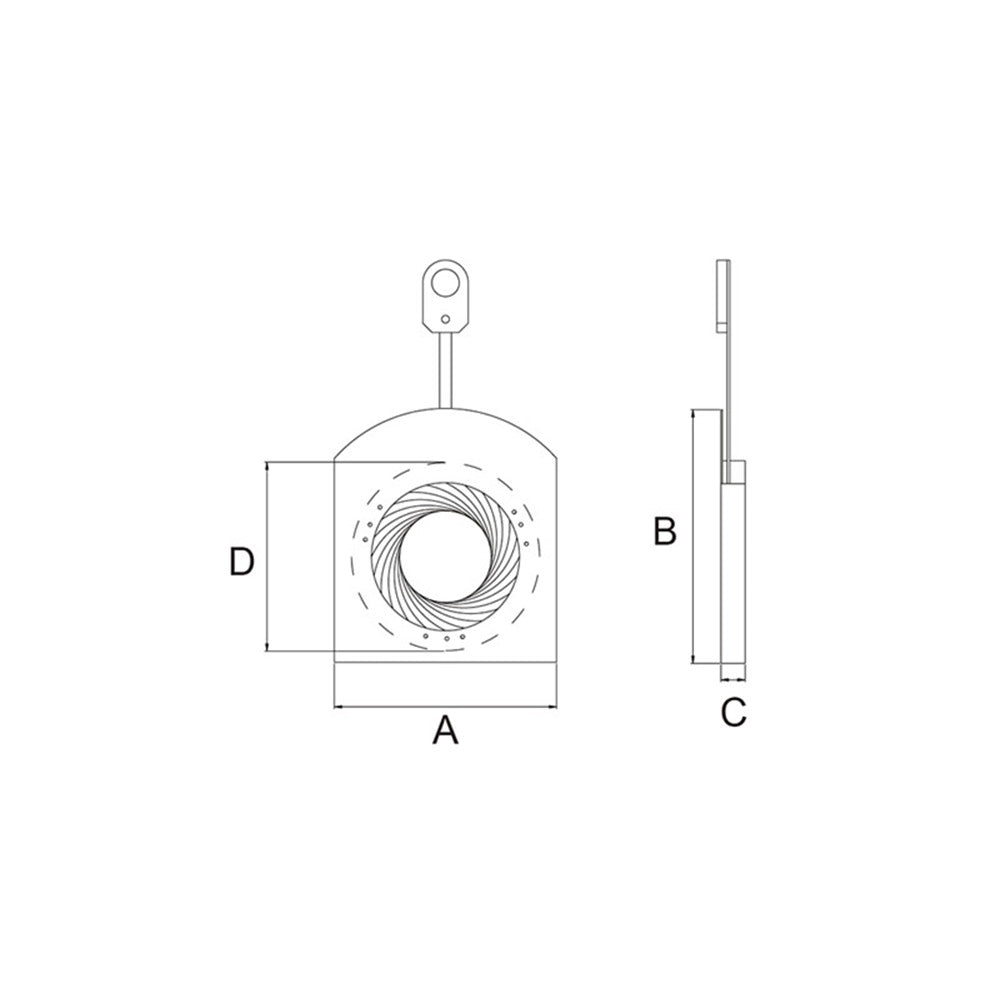

Compatible with Pacific / Freedom, with listed dimensions A 118 mm, B 153 mm, C 13.5 mm, and D 102 mm.
Frequently Asked Questions
Will this fit the S4 iris slot?
No. ETI-P18 is listed for Pacific / Freedom, with different dimensions from the S4 / Shakespeare models.
What kind of beam control does it provide?
It adjusts the circular aperture from 4.5 mm to 75 mm, useful for tightening specials and reducing spill.
Is this a manual accessory?
Yes. ETI-P18 is a manual iris accessory, not a motorized DMX device.
