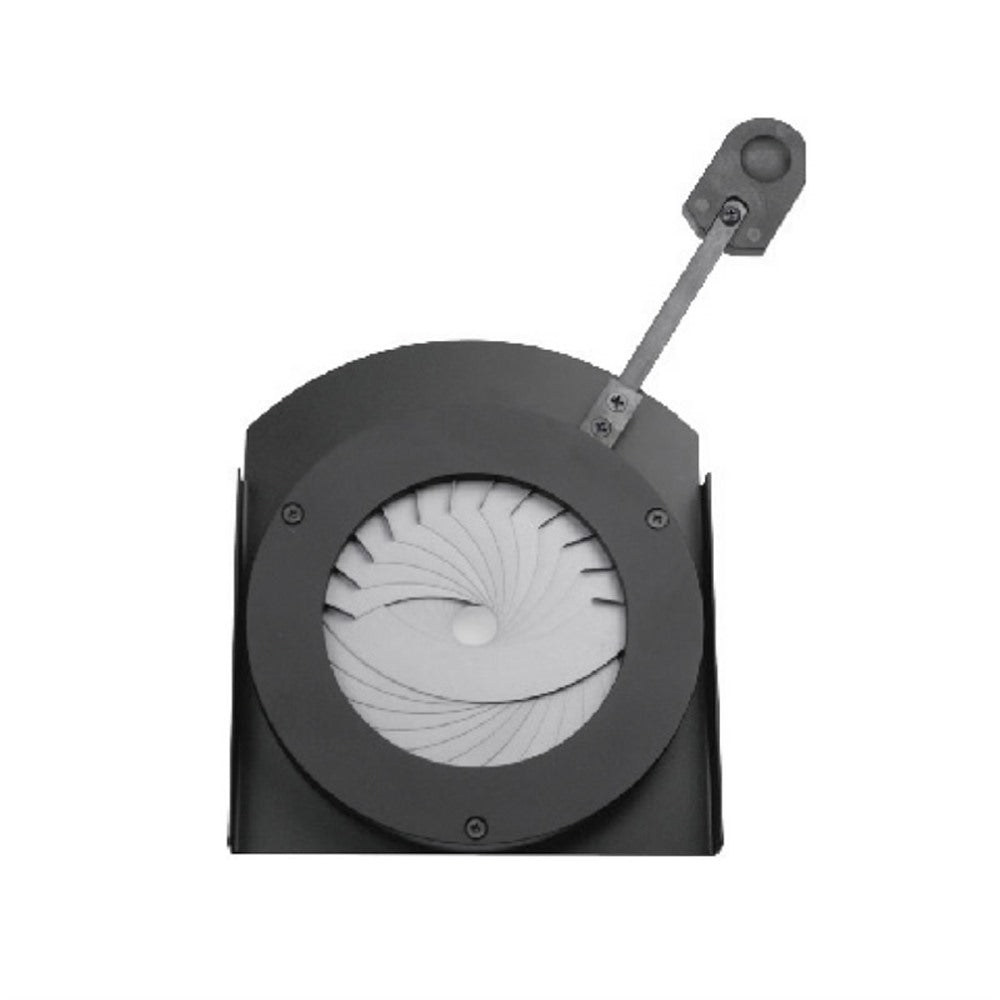

The KUPO ETI-W24 is a 24-leaf manual iris shutter designed to move from open to fully closed. It belongs to the ETI iris family, but its full-close action makes it the choice when the lighting setup needs aperture control that can also shut the beam down completely.
Why It Matters
A standard iris is often used to resize a beam, while an iris shutter can support cueing and masking needs where full close matters. ETI-W24 gives technicians a 24-leaf option with heat-resistant construction and the larger ETI body dimensions listed in the specification.
Key Features
24-leaf iris shutter design moves from open to fully closed for cue and masking control
ETI family aperture range is listed as 4.5 mm to 75 mm for aperture adjustment

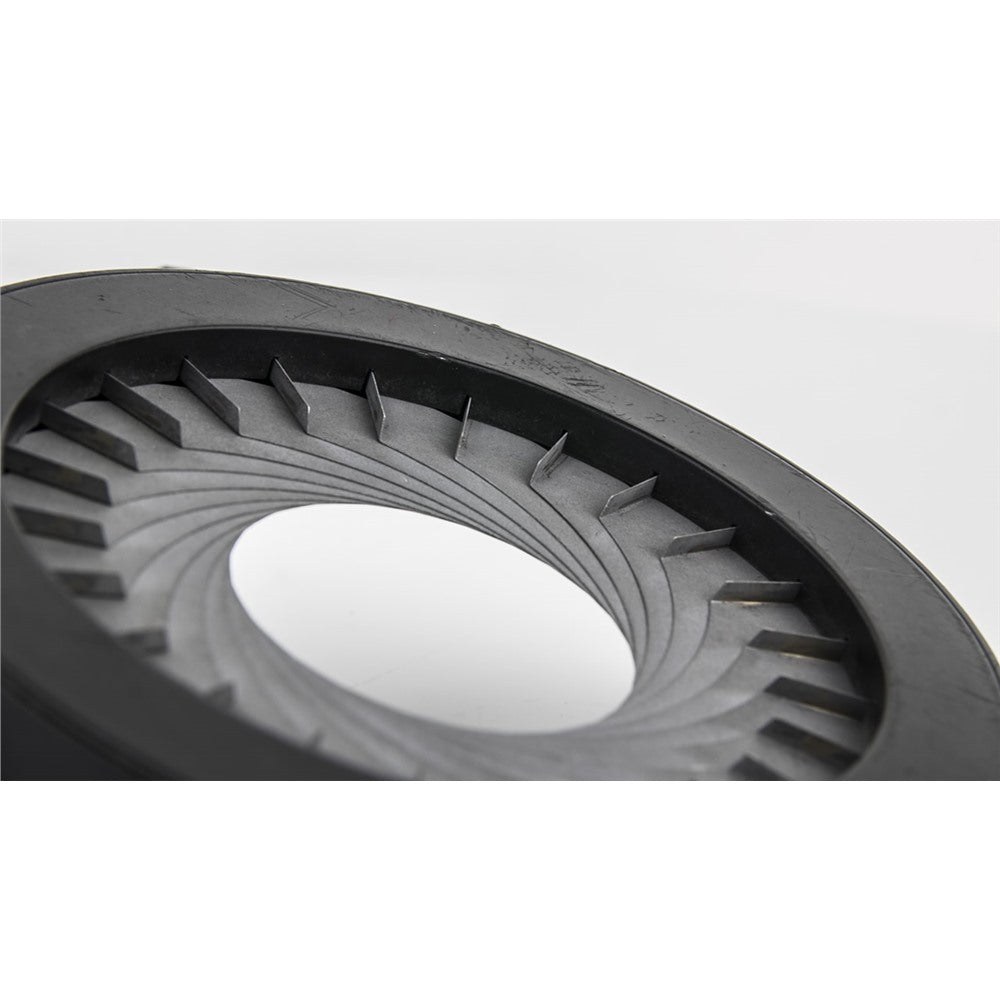

Stainless steel leaves with formulated gray paint resist heat up to 450 °C
Three fixed focusing holes support consistent positioning in compatible applications
Listed dimensions match the larger ETI-F18 / ETI-F24 body format
Applications

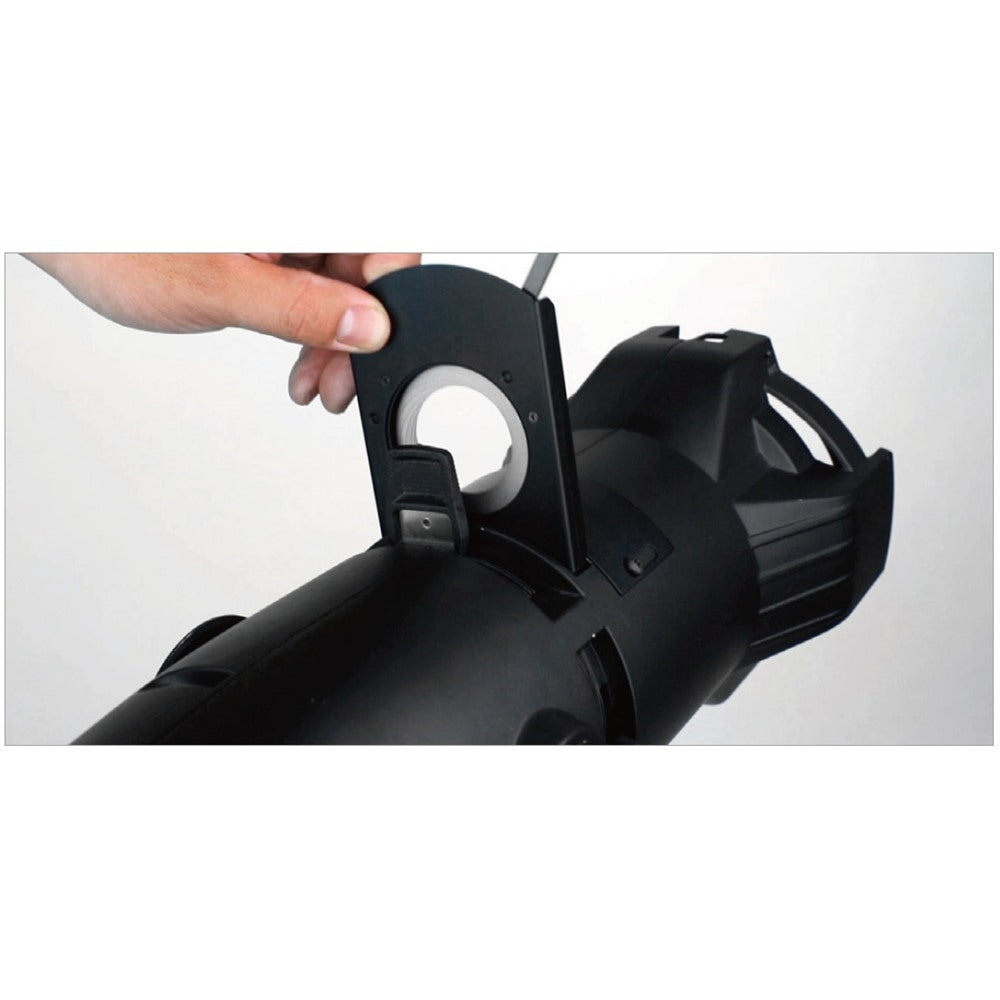

Use it for theatrical cueing, beam blackout effects, masking, specials, and venue profile positions where full-close iris shutter behavior is required.
Compatibility

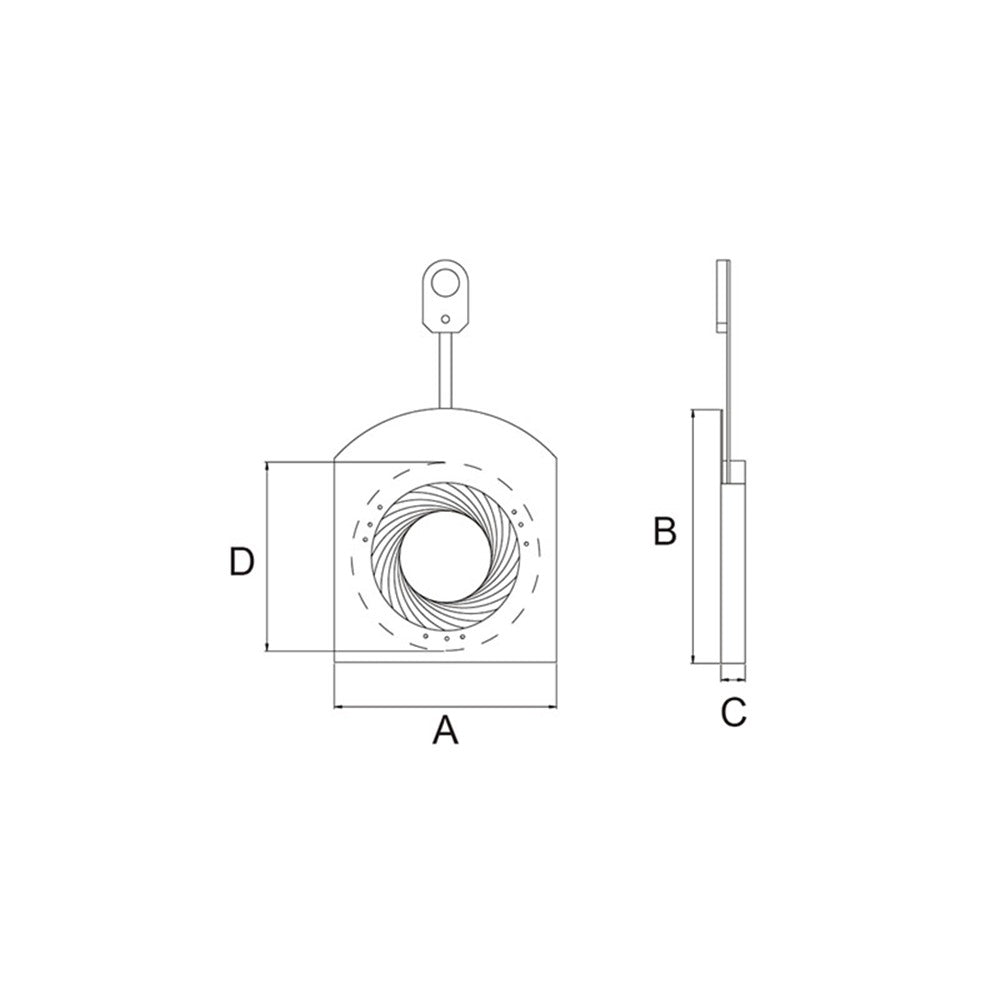

Listed with listed dimensions A 120 mm, B 137 mm, C 13 mm, and D 102 mm; match host fixture fit where full-close iris shutter action is required.
Frequently Asked Questions
How is this different from a normal iris?
ETI-W24 is described as an iris shutter that moves from open to fully closed, so it can support full-close cueing or masking.
Does it use the same body size as ETI-F18 and ETI-F24°
The specification lists the same A 120 mm, B 137 mm, C 13 mm, and D 102 mm dimensions.
Should I assume it fits every profile fixture?
No. Because the specification does not list a specific fixture family, host fit should be matched before specification.
