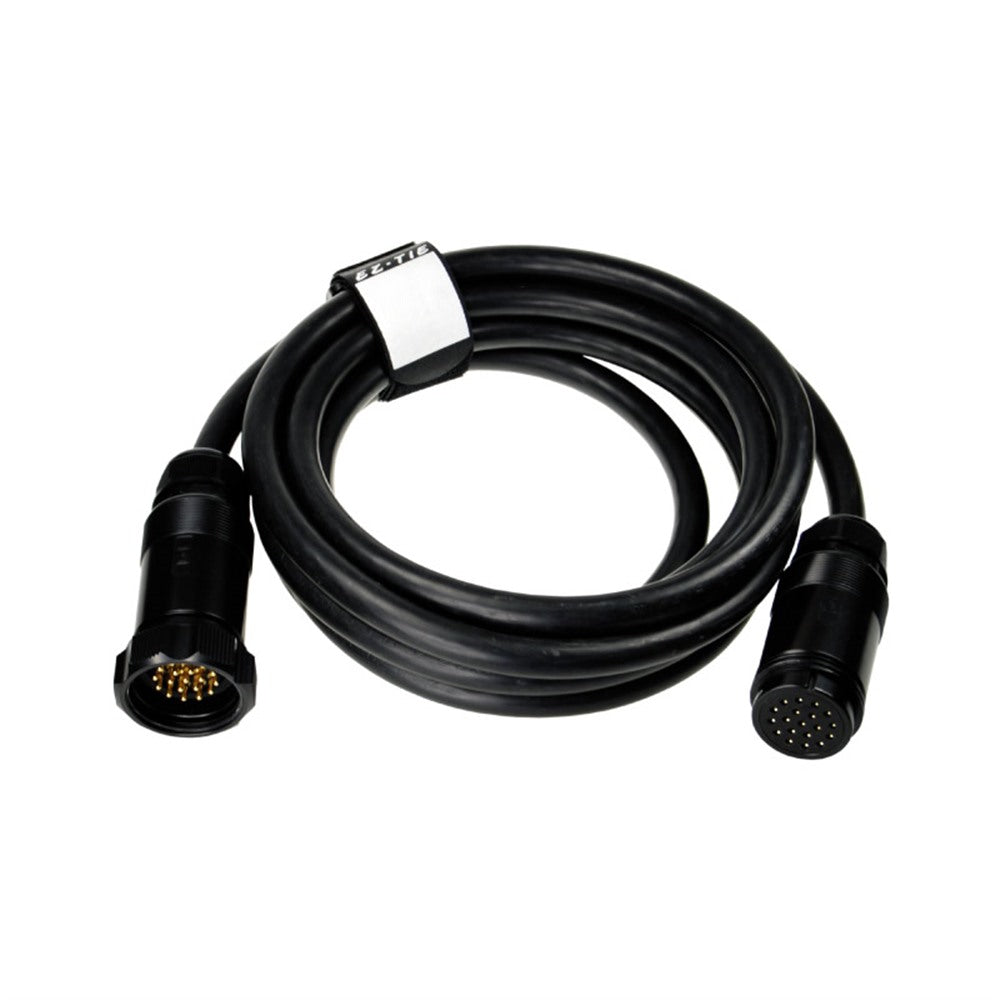

The EXE18/1.5-10 is a 10 m KUPO 19-pin multi-cable extension built on MULTI-CORE 18 cable for six-circuit entertainment power distribution. It uses an 18 C x 1.5 mm² cable with PLS-5219LM line male input and PLS-5219LF line female output connectors, giving crews a Soca-compatible extension for indoor portable rigs.
Why It Matters
The 10 m version is a useful short extension when the dimmer, rack, or breakout is close but not close enough. It adds reach without adding unnecessary cable weight.
Key Features
10 m length extends a 19-pin Soca-compatible multicore run without changing connector format.
18 C x 1.5 mm² construction is the lighter-duty cable option in the EXE family.
Fine-stranded class 5 copper conductors keep the cable flexible for repeated load-in and load-out.
Self-extinguishing flame-retardant PVC jacket gives abrasion resistance for portable entertainment use.
Compatible with Socapex 419 and Veam VSC industry-standard 19-pin connector workflows.
Applications
Used for indoor stage multicore extension, dimmer-to-breakout runs, touring power distribution, rental-house cable packages, production installs, and portable entertainment rigs that need six-circuit Soca-compatible extension.
Compatibility
Equipped with PLS-5219LM input and PLS-5219LF output 19-pin Soca-compatible connectors. For higher-current applications, use EXE18/2.5 variants.
Frequently Asked Questions
Is this the 1.5 mm² version?
Yes. This batch is the 18 C x 1.5 mm² lighter-duty EXE18 cable option.
Which connectors are fitted?
It uses PLS-5219LM line male input and PLS-5219LF line female output connectors.
When should I choose 10 m?
Choose 10 m when the run only needs a short extension from rack to breakout or fixture position.
