Overview

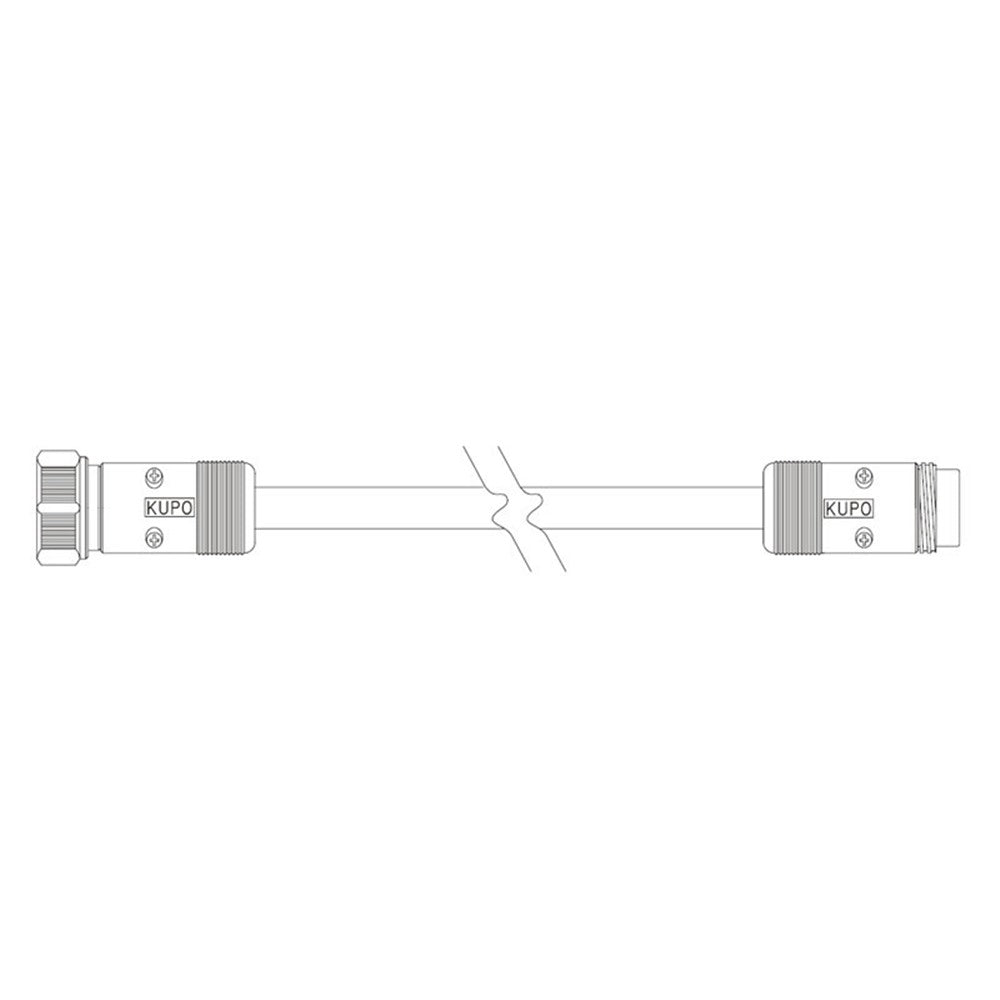

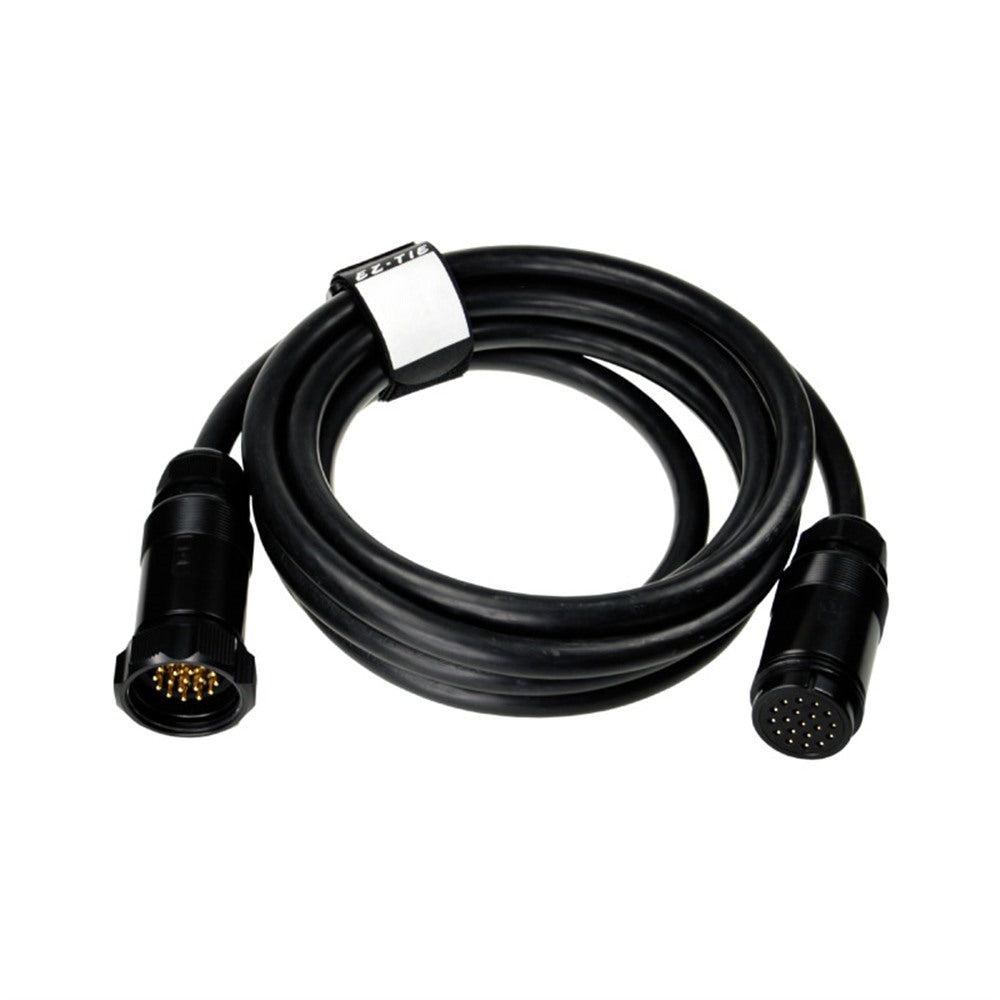

The EXE18/2.5-20 is a 20 m factory-terminated 18-core multi-cable extension for portable entertainment power distribution. It carries six circuits over a single 18 x 2.5 mm² jacketed run, with PLS-5219LM line male and PLS-5219LF line female connectors for inline extension between distro boxes, lighting bars, and Soca-compatible power systems.
Why It Matters
The 20 mm length is the middle working choice for many venues, giving reach without committing to the full 30 mm coil. The heavier 2.5 mm² cross-section is the main reason to choose this family over the 1.5 mm² versions when the power package calls for it.
Key Features
- 18 C x 2.5 mm² cable construction gives the EXE family a heavier cross-section option for higher-current planning.
- 20 mm length supports medium stage runs and common rack-to-bar distances.
- Stranded class 5 copper conductors provide flexibility for portable power distribution.
- Self-extinguishing flame-retardant PVC outer jacket complies with IEC 60332-3-24.
- PLS-5219LM and PLS-5219LF terminations keep the extension inline with 19-pin Soca-compatible workflows.
Applications
Used for six-circuit entertainment power distribution, distro-to-bar extension, touring and rental power packages, indoor stage runs, production installs, and portable lighting systems that need the heavier 2.5 mm² cable option.
Compatibility
Available in 5, 10, 20, and 30 mm lengths. For two-output break-out / fan-out assemblies, see the TF18/2.5 series.
